Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPJ-175SP

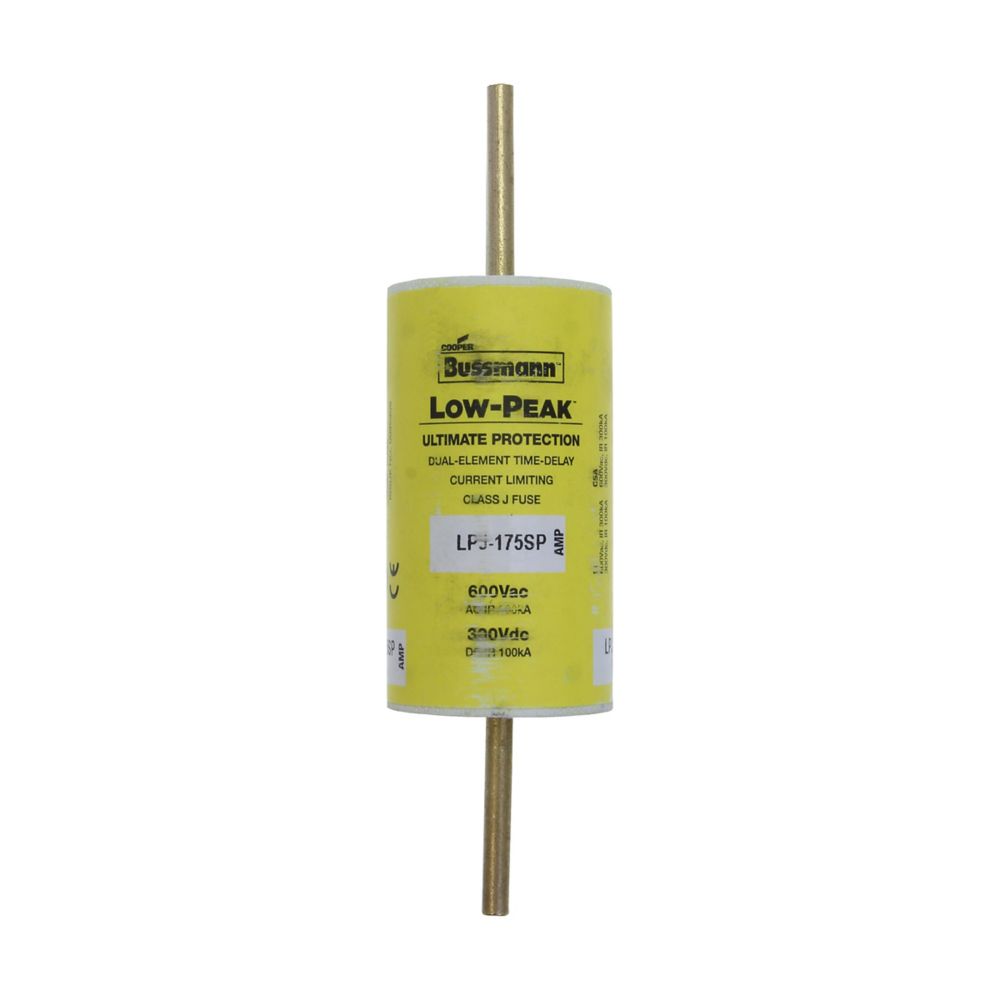

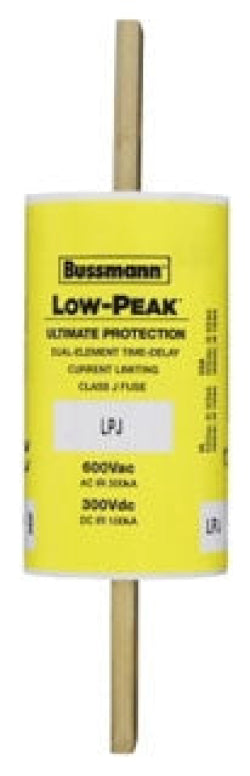

LPJ-175SP is a 175 amp, dual-element, time-delay Class J fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a bolted blade end connection type, current-limiting capability, and is rated for 600 VAC and 300 VDC operation. It provides an interrupting rating of 300 kAIC at 600 VAC and 100 kAIC at 300 VDC, ensuring high fault current interruption capacity. The LPJ-175SP fuse is non-indicating and suitable for use in industrial and commercial electrical systems requiring time-delay protection.
- Key Specifications
- Amperage: 175 A
- Voltage Rating: 600 VAC, 300 VDC
- Interrupting Rating: 300 kAIC at 600 VAC, 100 kAIC at 300 VDC
- Fuse Type: Dual-element, time-delay, current limiting
- Connection Type: Bolted blade end x bolted blade end
- Class: J
- Non-indicating
- Series: LPJ
- Mounting: Compatible with Class J fuse blocks
- Certifications: Meets industry standards for Class J fuses
- Part Number: LPJ-175SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 175
- AIC rating : 300kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
- UPC : 051712523448
- GTIN : 00051712523448
- Country of Origin : Mexico
- Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.8
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
