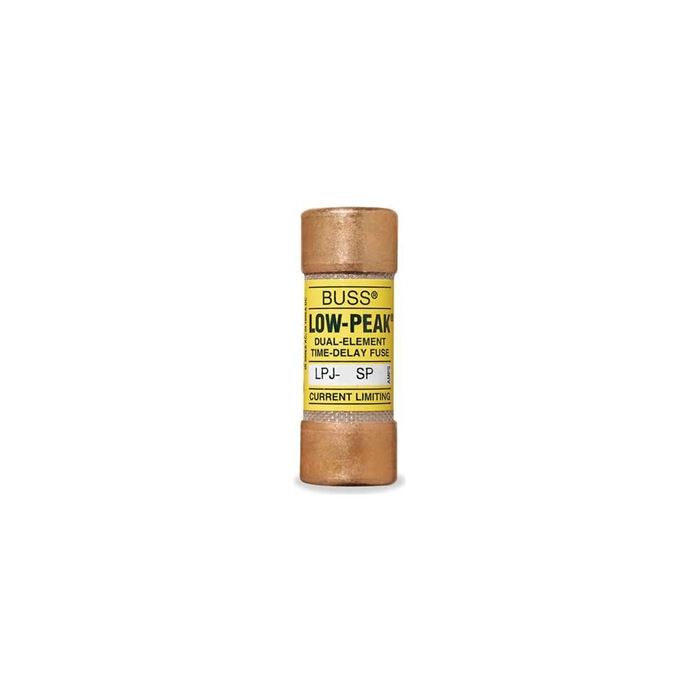

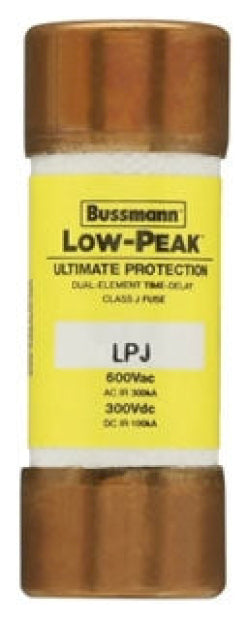

LPJ-17-1/2SP - Bussmann, Cooper Bussmann, Eaton 17.5 Amp 600V AC Class J Time Delay Dual Element Fuse, 300kA Interrupt Rating, Non-Indicating, UL Listed, CSA Certified

LPJ-17-1/2SP

LPJ-17-1/2SP is a Bussmann, Cooper Bussmann, and Eaton 17.5 Amp, 600V AC Class J time-delay, dual-element fuse designed for reliable circuit protection in demanding applications.

This non-indicating fuse features a high degree of current limitation, a 10-second minimum time delay at 500% of rated current, and robust construction for industrial and commercial use. It is part of the Low-Peak™ LPJ series, known for its current-limiting performance and dual-element design that provides both overload and short-circuit protection.

Key Specifications
• Amperage: 17.5A
• Voltage: 600V AC, 300V DC
• Poles: 1
• Mounting Type: Not specified (standard Class J cartridge)
• Interrupt Rating: 300,000A AC (symmetrical), 100,000A DC
• Series/Frame: LPJ, Class J
• Trip Unit: Dual element, time delay (10 sec min at 500% rating)
• Certifications: UL Listed (Special Purpose, Guide JFHR, File E56412), CSA Certified (Class J per CSA 22.2 No. 248.8)
• Physical Size: 0.81" x 2.25"
• Time Delay: 10 seconds minimum at 500% of rating
• Current Limiting: Yes
• Indicating: No

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-17-1/2SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 17
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523271
• GTIN : 00051712523271
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.8 in x 0.8 in (Length/Depth x Height x Width)
• Weight : 0.105
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
