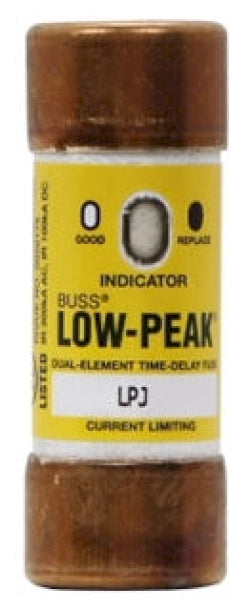

LPJ-15SPI - Eaton 15 Amp 600V AC Class J Time-Delay Dual-Element Indicating Fuse, 300kA Interrupt Rating, UL Listed, CSA Certified

LPJ-15SPI

LPJ-15SPI is a 15 Amp, 600V AC, Class J, time-delay, dual-element, indicating fuse from Eaton, designed for ultimate circuit protection and easy visual indication of fuse status.

This Eaton Bussmann Series fuse features a high degree of current limitation, a 10-second minimum time delay at 500% rating, and is suitable for both AC and DC applications. It is UL listed and CSA certified, ensuring compliance with industry standards for safety and performance.

Key Specifications
• Amperage: 15A
• Voltage: 600V AC, 300V DC
• Poles: Single
• Mounting Type: Not specified
• Interrupt Rating: 300,000 AIC RMS @ 600V AC, 100,000 AIC @ 300V DC
• Series/Frame: LPJ (Class J)
• Trip Unit: Dual-element, time-delay
• Certifications: UL Listed (Special Purpose, Guide JFHR, File E56412), CSA Certified (Class J per CSA 22.2 No. 248.8)
• Physical Size: 0.81" x 2.25"
• Indicating: Yes (visual open fuse indication, requires 75V AC minimum)
• Current Limitation: High
• Time Delay: 10 seconds minimum at 500% rating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-15SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 15
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712626316
• GTIN : 00051712626316
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.8 in x 0.8 in (Length/Depth x Height x Width)
• Weight : 0.105
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
