Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPJ-150SPI

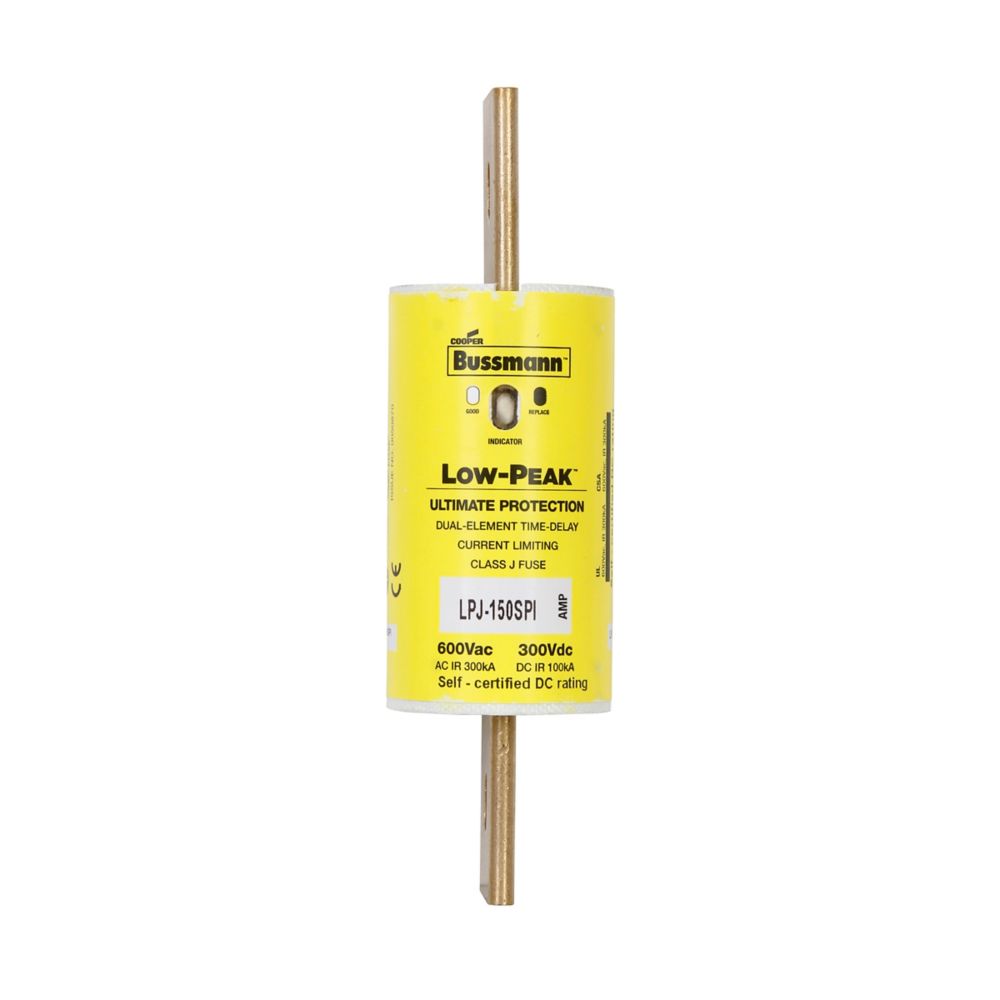

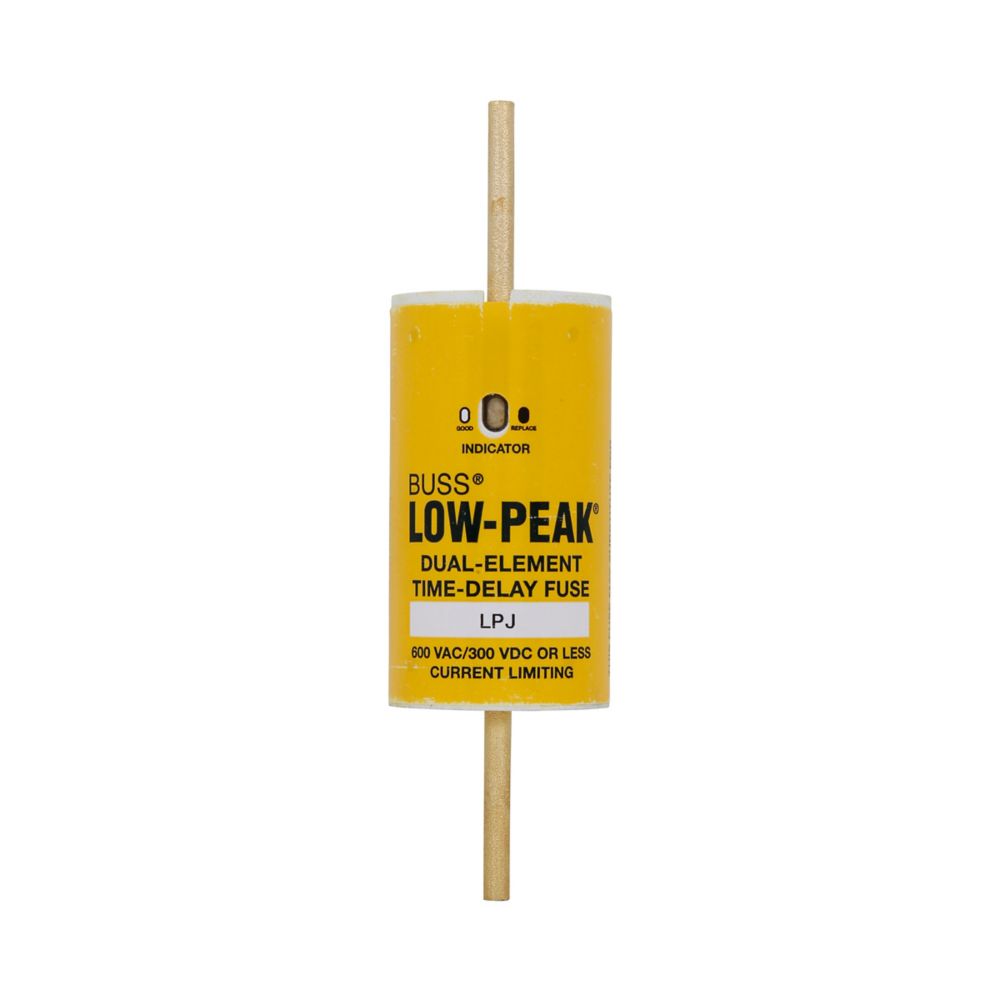

LPJ-150SPI is a Eaton Bussmann Series Class J fuse designed for reliable circuit protection with a 150 amp rating and 600 VAC voltage capacity.This fuse features a time-delay, dual-element design providing current limiting protection with a 300,000 amp interrupting rating at 600 VAC. It is a 1-pole fuse suitable for industrial and commercial electrical applications requiring UL Class J compliance and high interrupting capacity. The fuse includes an element window indicator for easy status verification.
- Amperage: 150 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Poles: 1
- Fuse Type: Time-Delay, Dual Element
- Interrupting Rating: 300 kA at 600 VAC
- Series/Frame: Low-Peak LPJ Class J
- Indicator: Element Window
- Mounting Type: Cartridge Fuse
- Certifications: UL Listed, Class J
- Physical Size: 1.63 inch diameter x 5.75 inch length
Specifications
- Part Number: LPJ-150SPI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 150
- AIC rating : 300kA@600V
- Diameter : 1.63
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712627993
- GTIN : 00051712627993
- Country of Origin : Mexico
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.73
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
