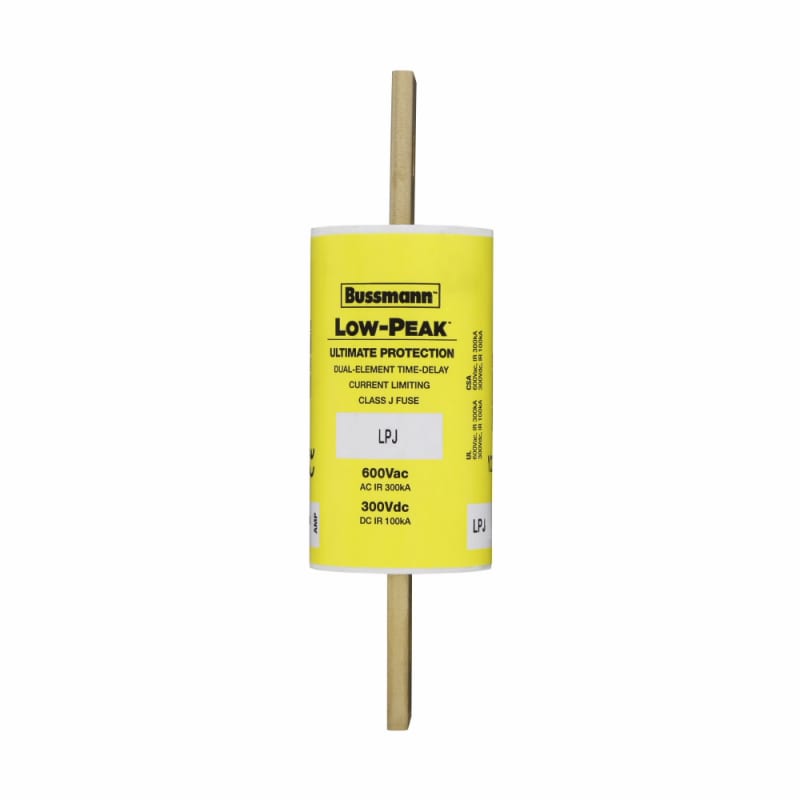

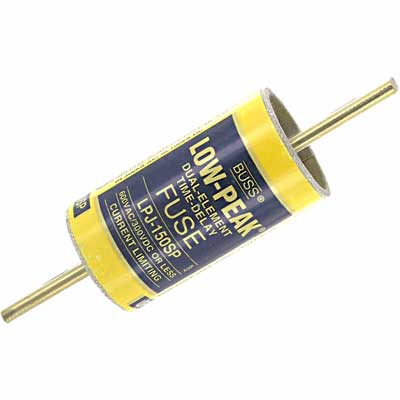

LPJ-150SP - Eaton Bussmann 150A 600V Class J Time-Delay Dual Element Fuse 300kA Interrupt Rating

LPJ-150SP

LPJ-150SP is a 150 Amp, 600 Volt AC Class J time-delay dual-element fuse from Eaton Bussmann series designed for high interrupting capacity applications.This fuse features a 10-second minimum time delay at 500% rating, current-limiting dual-element construction, and a 300,000 AIC interrupting rating at 600 VAC and 20,000 AIC at 300 VDC. It is non-indicating with blade end connections and UL Listed and CSA Certified for safety and reliability.

• Amperage Rating: 150 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: Class J
• Time Delay: 10 seconds minimum at 500% rating
• Interrupting Rating: 300 kA at 600 VAC, 20 kA at 300 VDC
• Fuse Type: Dual-element, current limiting
• Connection Type: Blade end x blade end
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified
• Physical Size: 1.63 in width x 5.75 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-150SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 150
• AIC rating : 300kA@600V
• Diameter : 1.63
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523431
• GTIN : 00051712523431
• Country of Origin : Mexico
• Dimensions : x 5-3/4 in x
• Weight : 1
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
