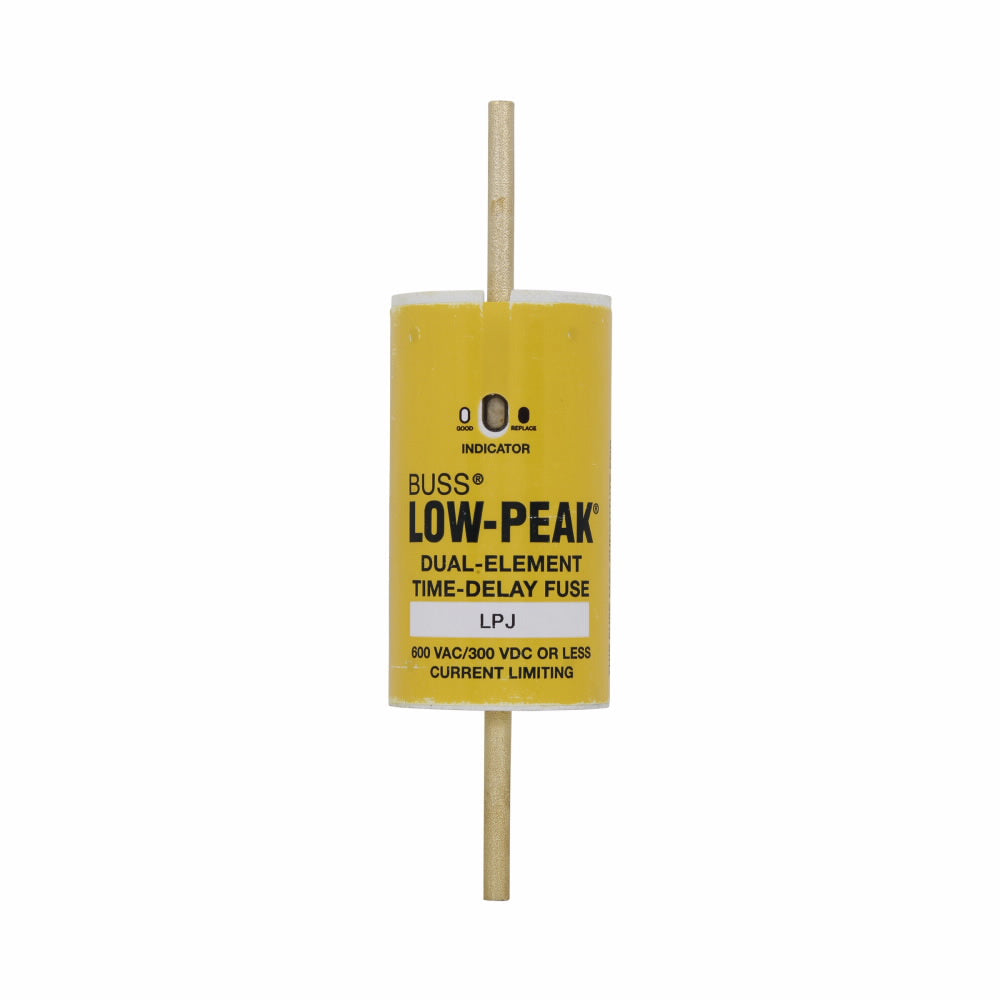

LPJ-12SPI - Eaton 12 Amp 600V AC Class J Time Delay Indicating Fuse Dual Element 300kA Interrupt Rating

LPJ-12SPI

LPJ-12SPI is a 12 Amp, 600 Volt AC Class J time delay indicating fuse from Eaton designed for high performance circuit protection.LPJ-12SPI features a dual element design with a minimum 10-second time delay at 500% rated current, providing superior current limitation and protection. It has an interrupting rating of 300,000 AIC RMS at 600VAC and 100,000 AIC at 300VDC (non-indicating versions rated for DC). This fuse requires a holder for mounting and is UL Listed, CSA Certified, and RoHS compliant.

Key Specifications
• Amperage: 12 Amps
• Voltage Rating: 600VAC, 300VDC (non-indicating only)
• Fuse Class: J (UL 248-8)
• Time Delay: Minimum 10 seconds at 500% rated current
• Dual Element Design
• Indicating Fuse (open fuse indication)
• Interrupt Rating: 300,000 AIC AC, 100,000 AIC DC
• Mounting Type: Requires holder
• Dimensions: 0.81 inch diameter x 2.25 inch length
• Certifications: UL Listed, CSA Certified, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-12SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 125
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 05171262751
• GTIN : 00051712627511
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.73
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
