Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

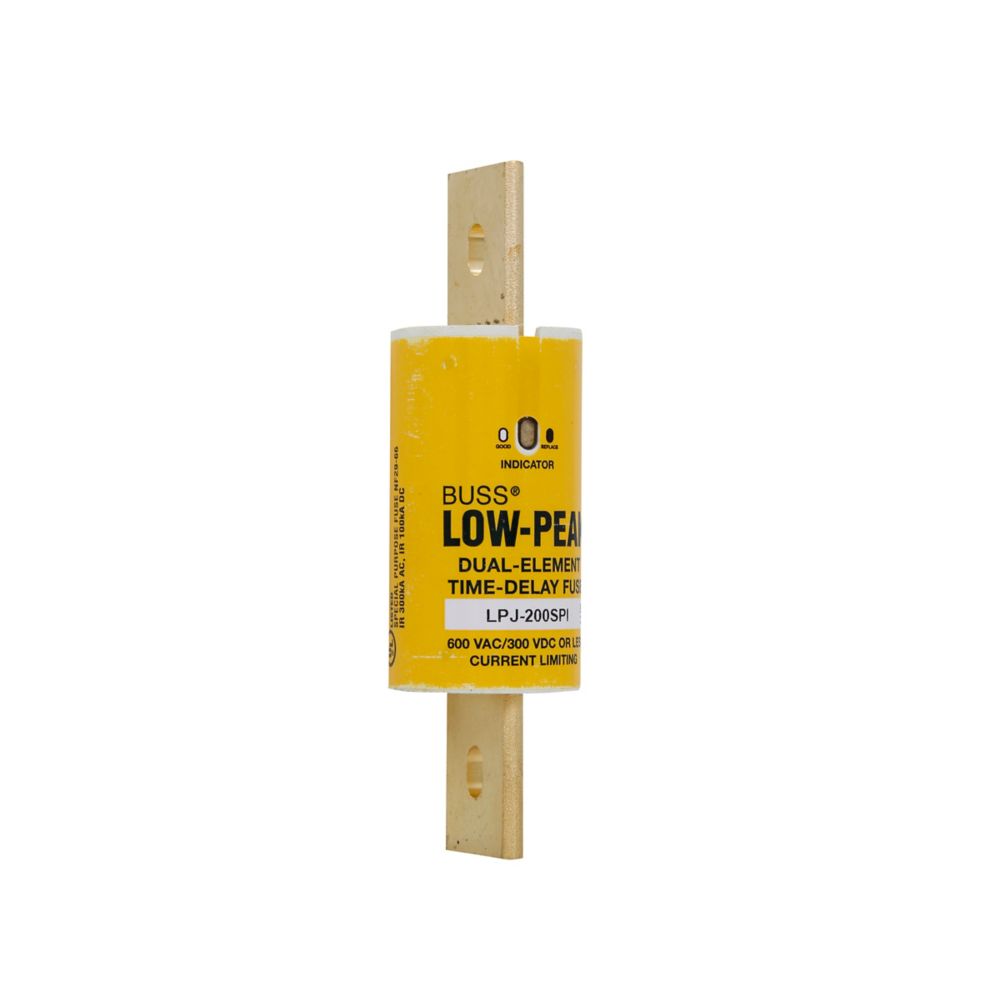

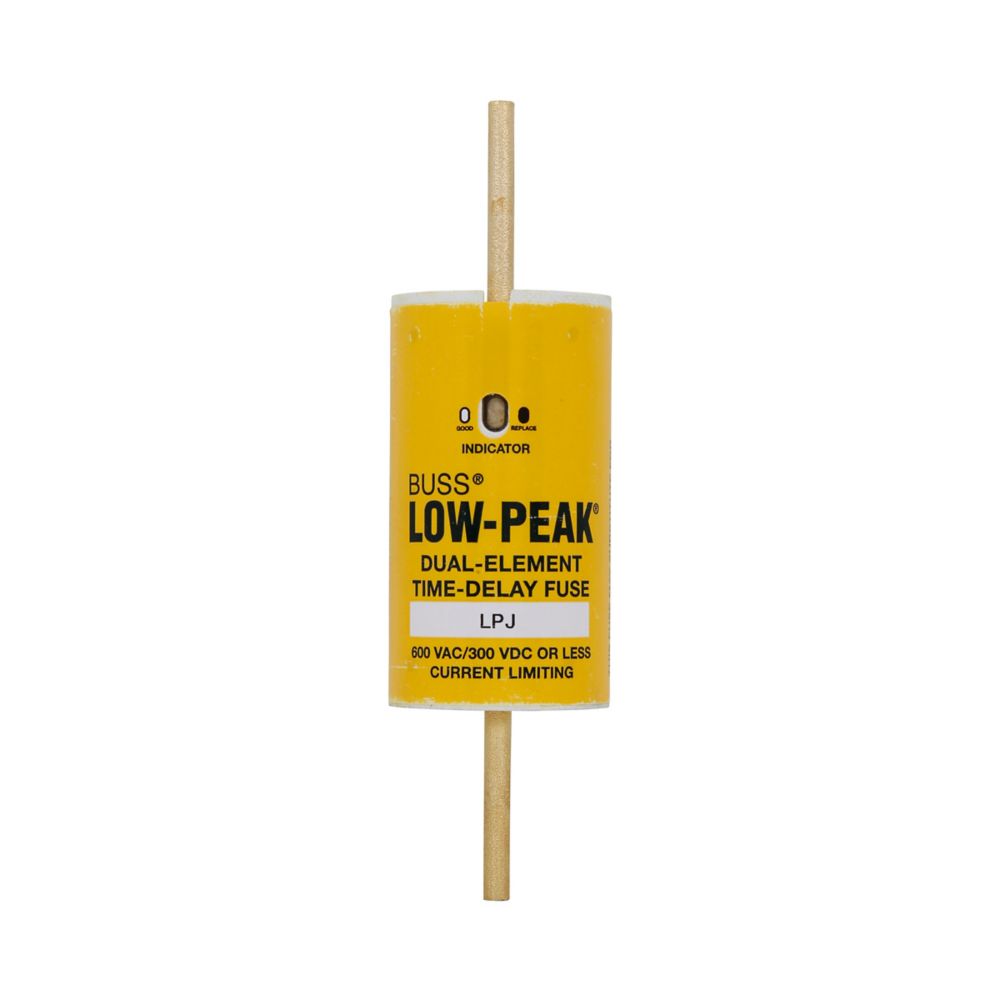

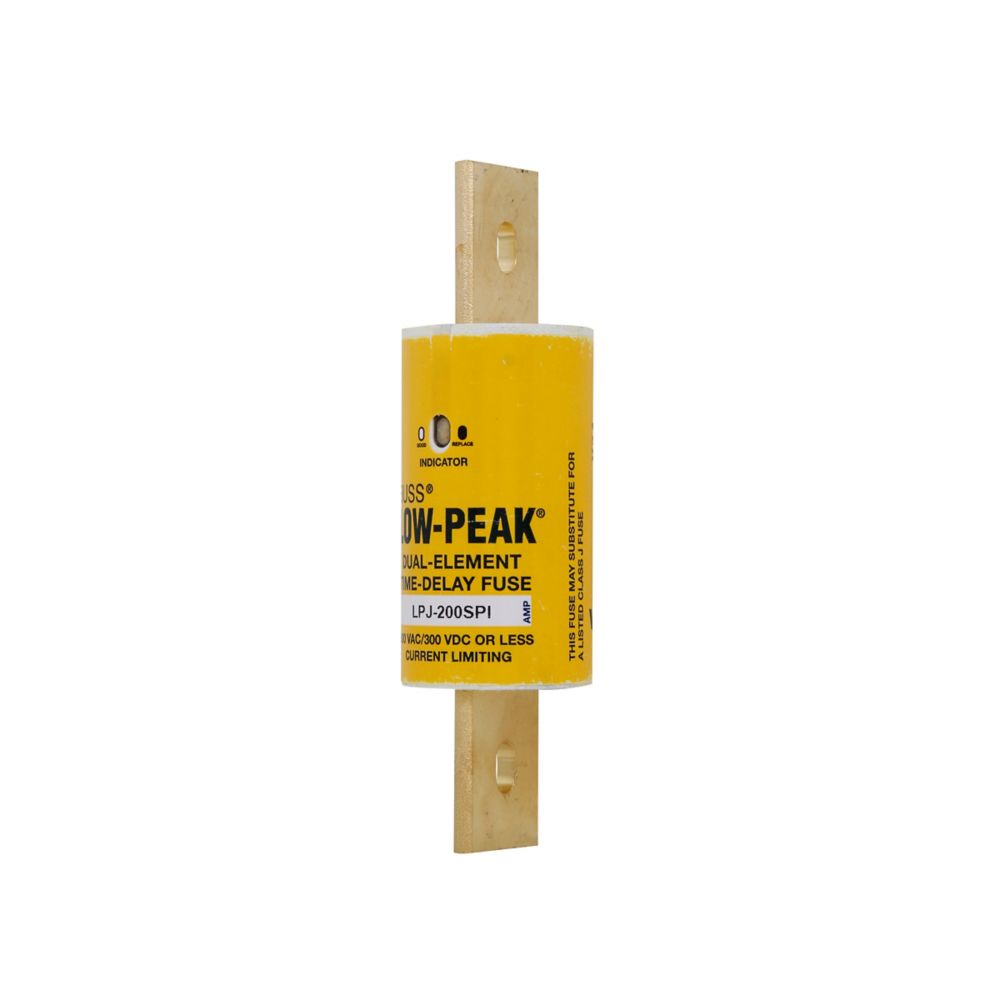

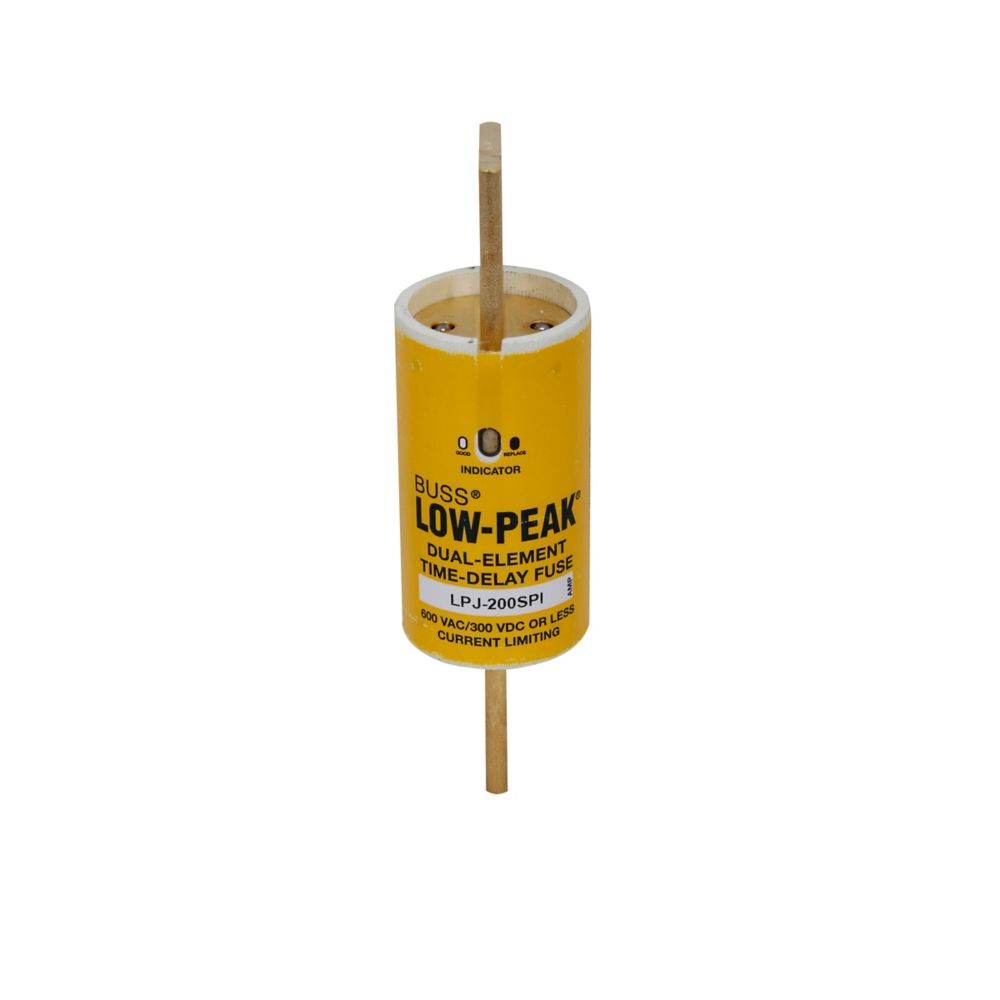

LPJ-125SPI
LPJ-125SPI is a Cooper Bussmann Eaton Class J indicating fuse providing 125 amps and 600 volts AC protection with time-delay and dual-element technology.This LPJ-125SPI fuse features a 125 amp rating, 600 VAC voltage rating, and a 300 kA interrupting rating. It is a dual-element, time-delay fuse with a minimum 10-second delay at 500% overload, designed for ultimate circuit protection with permanent open fuse indication. It complies with UL 248-8 Class J standards, is cULus listed, CSA certified, CE marked, and RoHS compliant.
- Key Specifications
- Amperage: 125 A
- Voltage: 600 VAC
- Interrupt Rating: 300 kA RMS Symmetrical
- Fuse Type: Class J, Dual Element, Time-Delay
- Indicating Fuse with Open Fuse Indication
- Mounting Type: Cartridge
- Standards: UL 248-8, cULus, CSA, CE, RoHS
- Minimum Time-Delay: 10 seconds at 500% rated current
- Manufacturer Series: Low-Peak LPJ
Specifications
- Part Number: LPJ-125SPI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 125
- AIC rating : 300kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 05171262798
- GTIN : 00051712627986
- Country of Origin : Mexico
- Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.8
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
