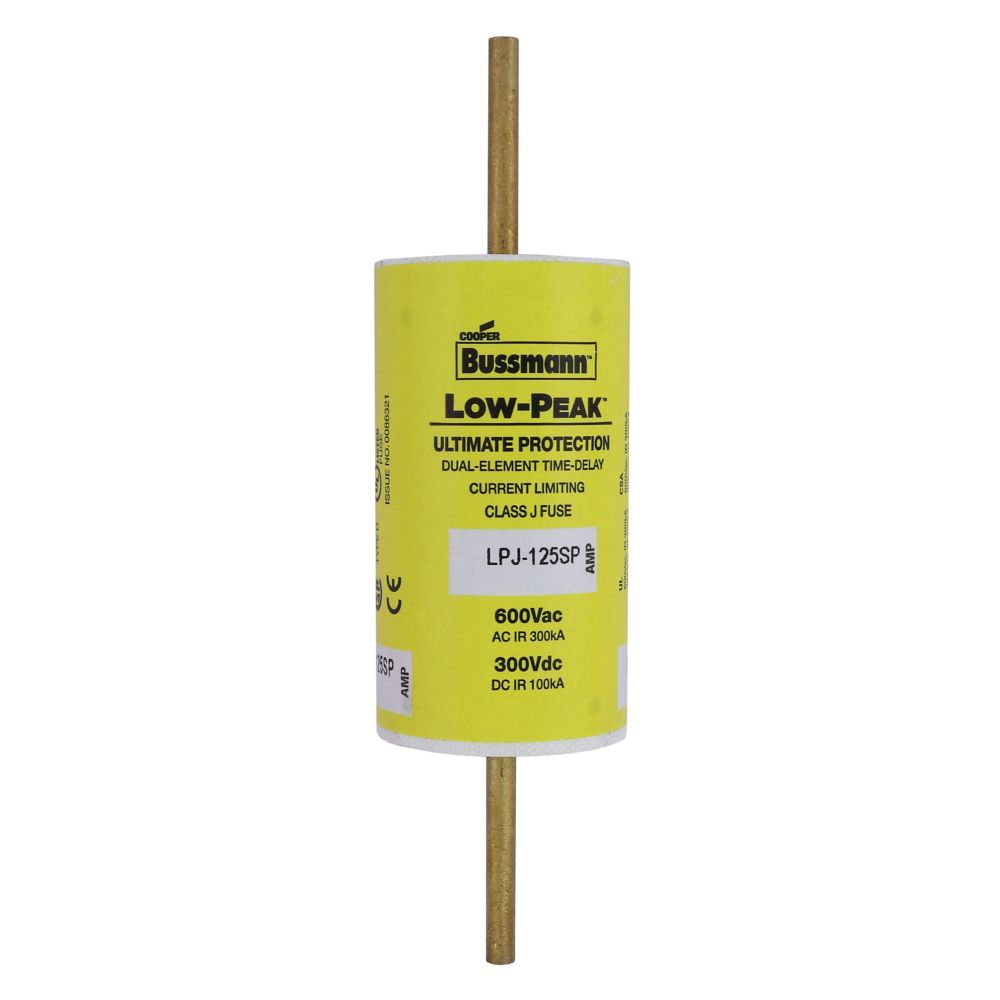

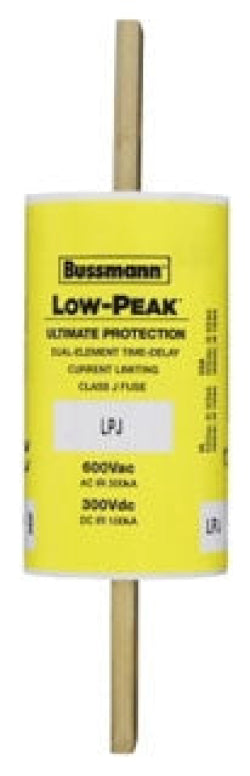

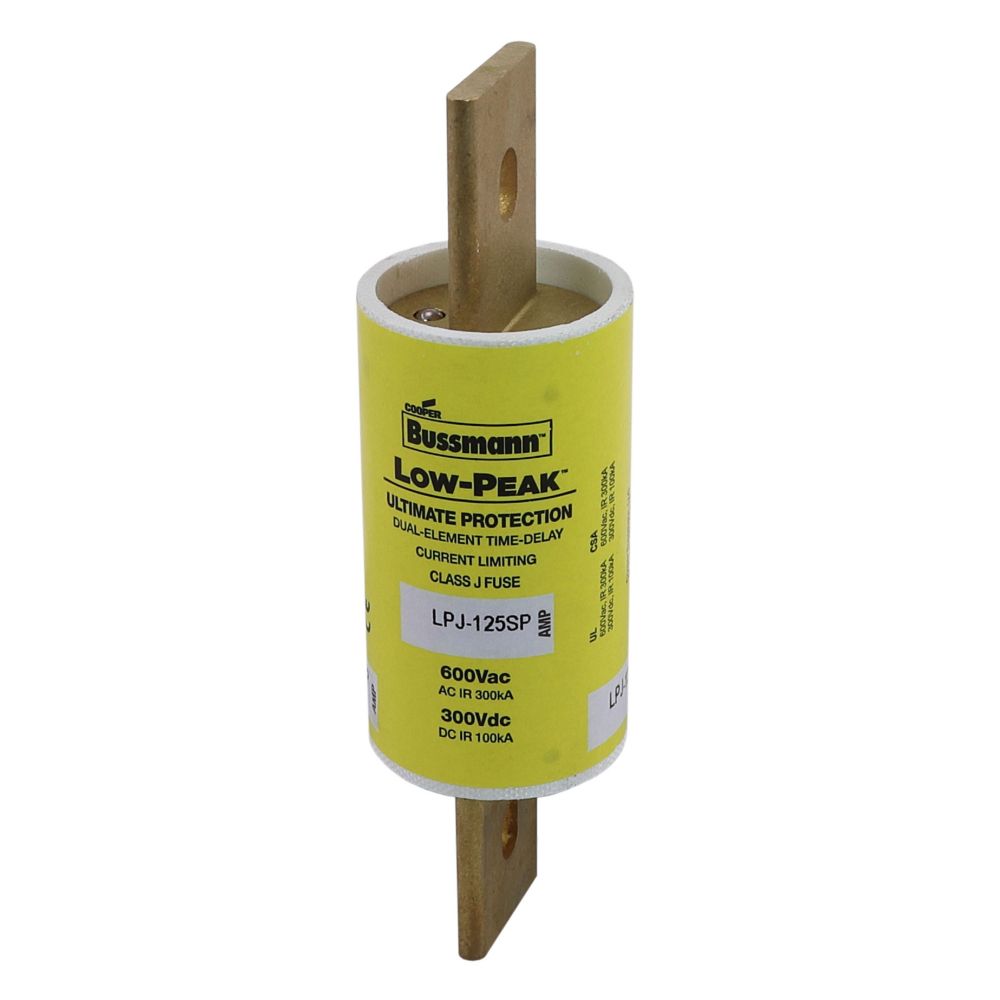

LPJ-125SP - Eaton Bussmann 125A 600V AC Class J Time Delay Fuse Dual Element

LPJ-125SP

LPJ-125SP is a 125 Amp, 600 Volt AC Class J time delay fuse from Eaton Bussmann series designed for reliable circuit protection.This dual-element fuse features a 10-second minimum time delay at 500% rating, high current limitation, and an interrupting rating of 300,000 AIC RMS at 600VAC and 20,000 AIC at 300VDC. It is UL Listed Special Purpose (Guide JFHR) and CSA Certified to Class J standards. The fuse measures 1.63" x 5.75" and has bolted blade end connections.

• Amperage: 125A
• Voltage Rating: 600VAC, 300VDC
• Fuse Type: Time Delay, Dual Element
• Interrupting Rating: 300kAIC at 600VAC, 20kAIC at 300VDC
• Physical Size: 1.63" x 5.75"
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified Class J, File 53787
• Non-indicating
• Blade Terminal Connection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-125SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 125
• AIC rating : 300kA@600V
• Diameter : 1.63
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523424
• GTIN : 00051712523424
• Country of Origin : Mexico
• Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.8
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
