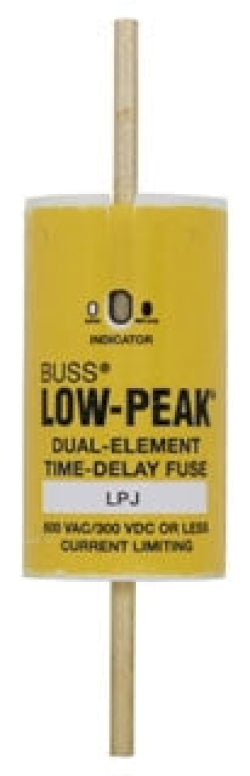

LPJ-110SPI - Eaton 110A 600V Class J Time Delay Dual Element Indicating Fuse

LPJ-110SPI

LPJ-110SPI is an Eaton Bussmann series Class J fuse rated for 110 amps and 600 volts AC, featuring a time-delay dual-element design with an indicating feature.This fuse provides high inrush current motor protection with a 10-second response time at 500% overload, and an interrupting rating of 300 kA at 600 VAC and 100 kA at 300 VDC. It has bolted blade end connections and complies with RoHS and CE standards.

• Amperage Rating: 110 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Time delay, current-limiting, dual element
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Response Time: 10 seconds at 500% overload
• Connection: Bolted blade end x bolted blade end
• Class: Class J
• Indicating Fuse: Yes
• Physical Size: 1.5 in x 1.5 in x 5.75 in
• Certifications: RoHS Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-110SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 110
• AIC rating : 300kA@600V
• Diameter : 1.63
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712627696
• GTIN : 00051712627696
• Country of Origin : Mexico
• Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.8
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
