Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

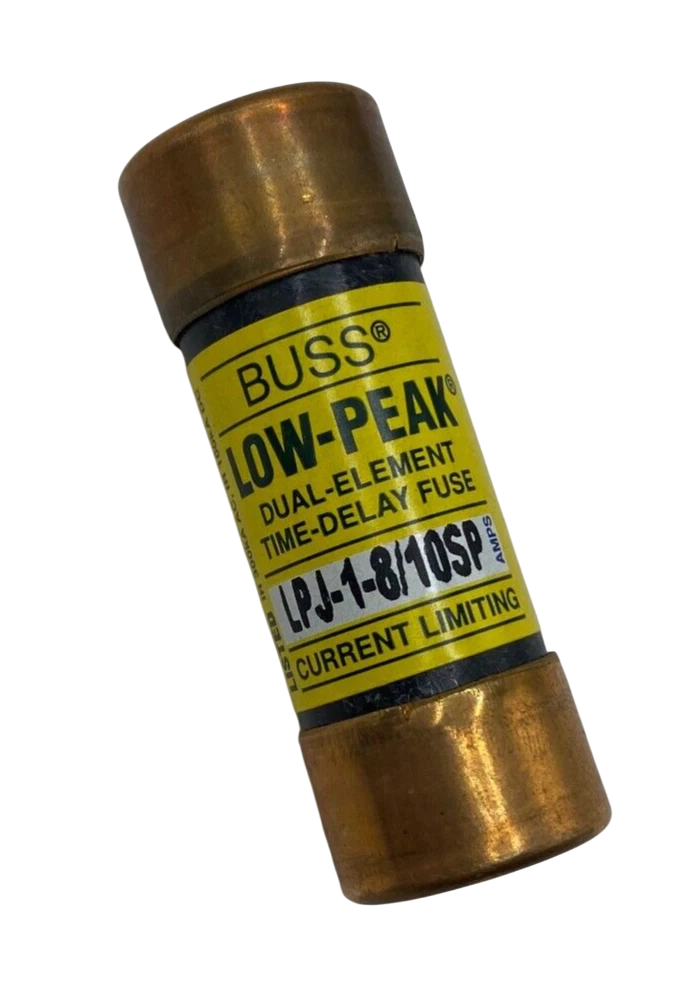

LPJ-1-8/10SP
LPJ-1-8/10SP is a Class J time delay fuse from Eaton designed for reliable circuit protection with a 1.8 amp rating.LPJ-1-8/10SP features a dual element, current-limiting design with a 10 second response time at 500% overload, suitable for 600 VAC and 300 VDC applications. It has a cylindrical melamine body, ferrule end terminals, and is intended for holder mounting. The fuse offers a 300 kA interrupt rating and is non-indicating and non-rejection type.
- Key Specifications
- Amperage: 1.8 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: J
- Fuse Type: Time Delay, Current Limiting
- Interrupt Rating: 300 kA
- Response Time: 10 seconds at 500% overload
- Body Type: Cylindrical Melamine
- Terminal Type: Ferrule End
- Mounting Type: Holder Mount
- Number of Elements: Dual
- Indicating: Non-Indicating
- Rejection Type: Non-Rejection
Specifications
- Part Number: LPJ-1-8/10SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 1
- AIC rating : 300kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712522762
- GTIN : 00051712522762
- Country of Origin : Mexico
- Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.105
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
