LPJ-1-1/4SP - Bussmann Eaton 1.25 Amp 600V Class J Time Delay Fuse

LPJ-1-1/4SP

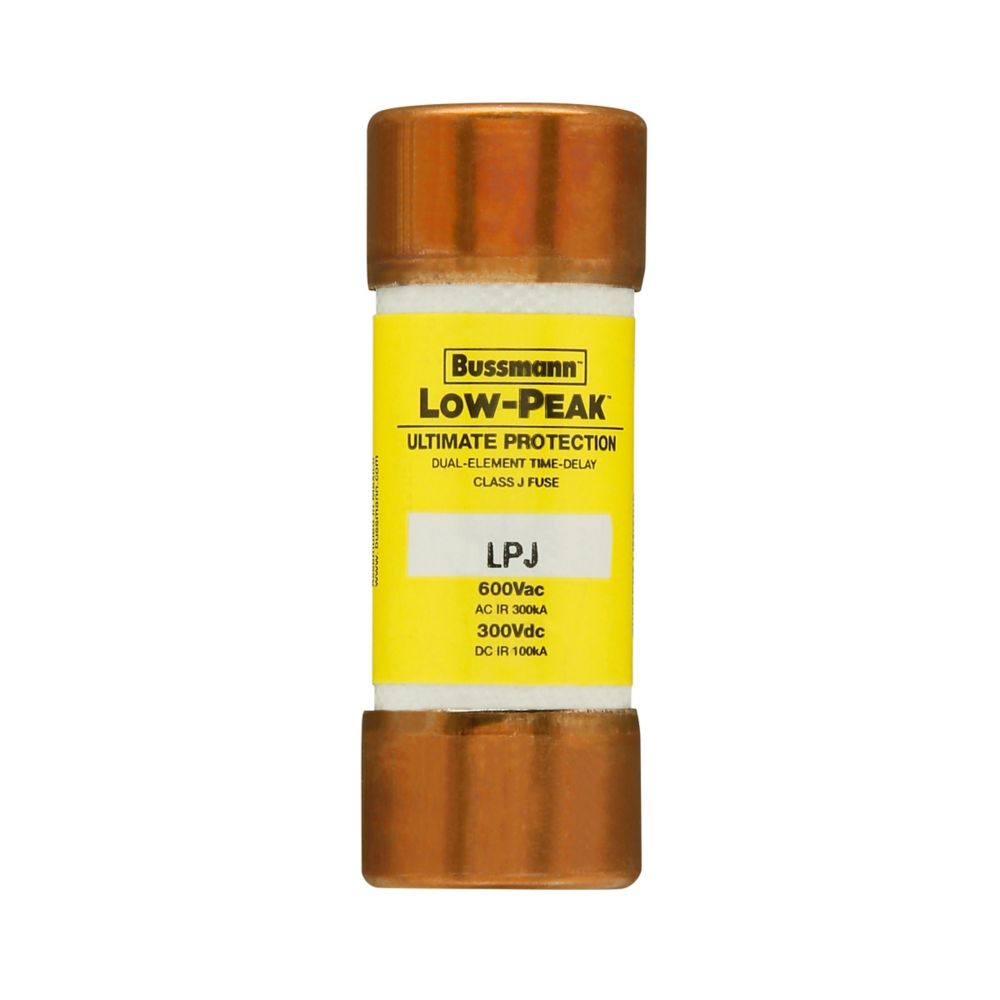

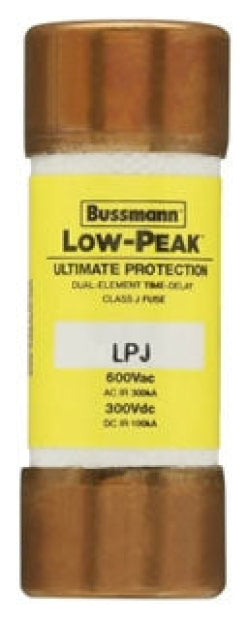

LPJ-1-1/4SP is a 1.25 Amp, 600 Volt AC, Class J time delay fuse from Bussmann Eaton designed for reliable circuit protection.This fuse features a dual element design with a 10 second time delay at 500% rating, providing high current limitation and superior protection. It has an interrupting rating of 300,000 AIC RMS at 600VAC and 100,000 AIC DC at 300VDC. The fuse is UL Listed (Guide JFHR, File E56412) and CSA Certified (Class J per CSA 22.2 No. 248.8). Its compact physical size is approximately 0.81 inches by 2.25 inches, suitable for standard Class J fuse holders.

Key Specifications
• Amperage: 1.25 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Class: J
• Time Delay: 10 second minimum at 500% rating
• Interrupting Rating: 300,000 AIC RMS @ 600VAC, 100,000 AIC DC
• Dual Element, Current Limiting
• Physical Size: 0.81" x 2.25"
• UL Listed, CSA Certified
• Non-indicating, Ferrule end x ferrule end

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-1-1/4SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 1
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522755
• GTIN : 00051712522755
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
