Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LP4K1201BW3

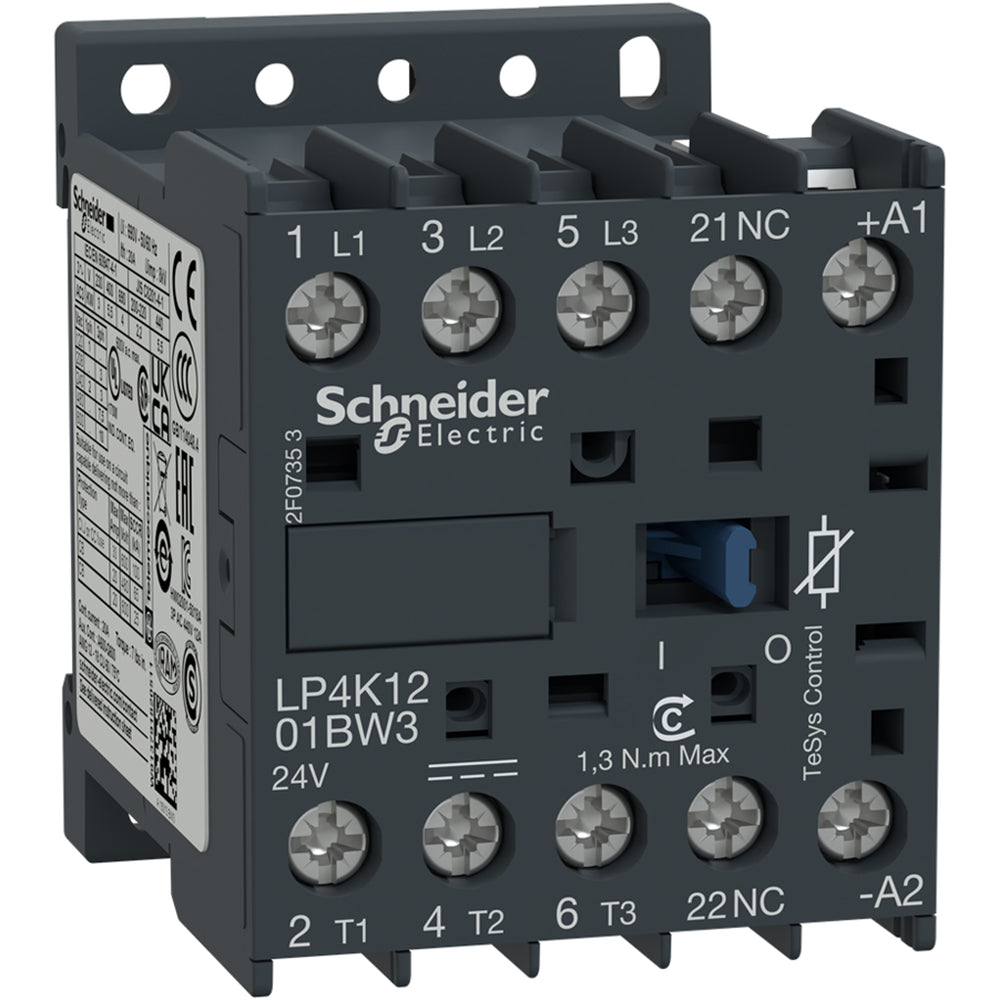

LP4K1201BW3 is a Schneider Electric TeSys K 3-pole motor contactor designed for reliable motor control applications.This contactor supports up to 12A load current at 690V AC-3 rating, suitable for motors up to 5.5 kW at 400V. It features a low consumption 24V DC coil, 3 normally open poles, and 1 normally closed auxiliary contact. The device uses screw clamp terminals and is built for DIN rail mounting with a compact frame.
- Manufacturer: Schneider Electric
- Series: TeSys K
- Poles: 3 (3NO)
- Load Current: 12A (AC-3)
- Voltage Rating: 690V AC
- Coil Voltage: 24V DC (low consumption)
- Auxiliary Contacts: 1 NC
- Mounting Type: DIN rail
- Terminal Type: Screw clamps
- Interrupt Rating: 20A AC1 switching current
- Applications: Motor control up to 5.5 kW at 400V
- Certifications: IEC 60947 compliant
Specifications
- Part Number: LP4K1201BW3
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24V
- Coil Voltage Minimum : 24V
Product Data
- UPC : 785901823971
- GTIN : 03389110791167
- Country of Origin : Indonesia
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
- Weight : 0.485
- Certification : CSA, UKCA, UL Listed
