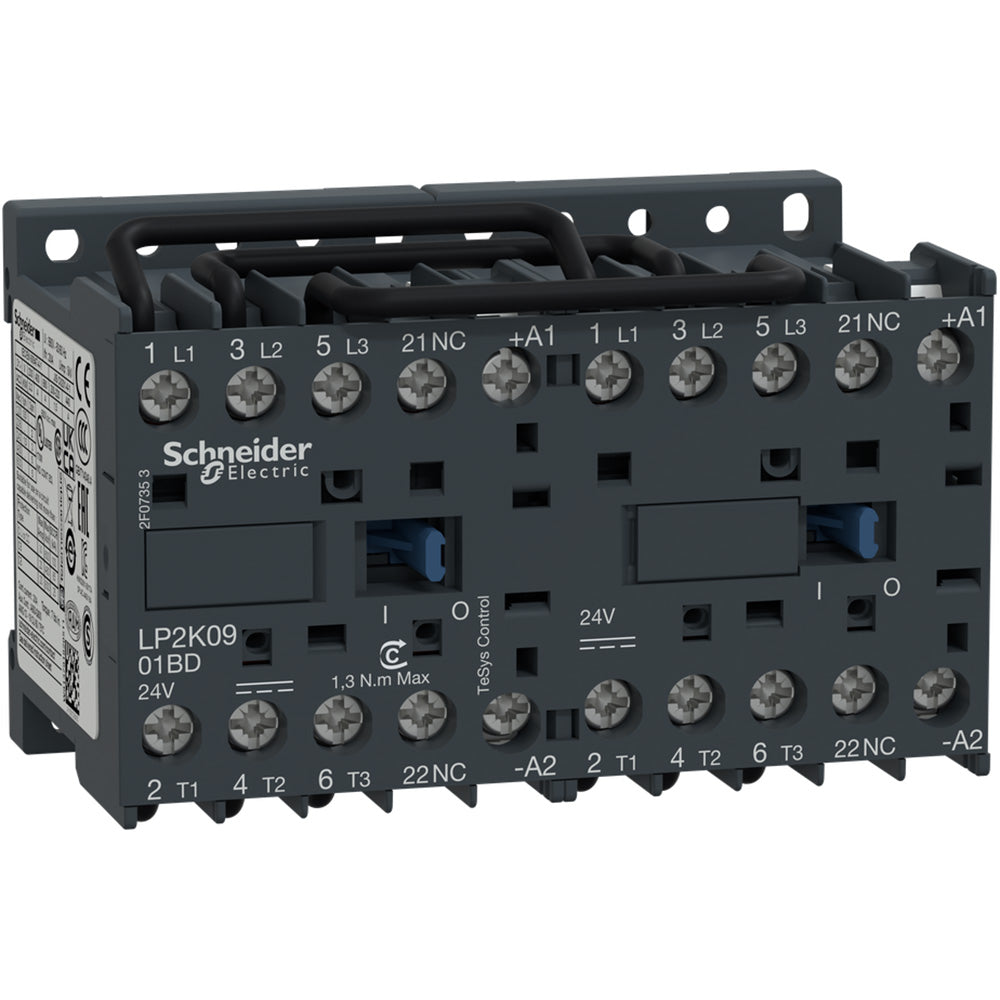

LP2K0901BD - Schneider Electric TeSys K Reversing Contactor 3P 9A 24V DC Coil AC-3 440V

LP2K0901BD

LP2K0901BD is a Schneider Electric TeSys K reversing contactor designed for motor control applications with a 3-pole configuration and a 24 V DC coil.This compact contactor supports a rated operational current of 9 A at up to 440 V AC (AC-3 utilization category) and is suitable for controlling motors up to 4 kW at 400 V AC. It features 3 normally open (NO) power poles and 1 normally closed (NC) auxiliary contact. The device is rated for up to 690 V AC operational voltage and includes screw clamp terminals for easy installation. It complies with IEC 60947-4-1 standards and has an impulse withstand voltage of 8 kV with an overvoltage category III rating.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: LP2K0901BD
• Product Type: Reversing Contactor
• Poles: 3P (3 Normally Open)
• Rated Operational Current: 9 A (AC-3, up to 440 V AC)
• Rated Operational Voltage: 690 V AC
• Control Coil Voltage: 24 V DC
• Auxiliary Contacts: 1 NC
• Motor Power Rating: 4 kW at 400 V AC
• Utilization Categories: AC-1, AC-3, AC-4
• Impulse Withstand Voltage: 8 kV
• Mounting Type: Screw Clamp Terminals
• Standards: IEC 60947-4-1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 24 VDC coil.

Specifications

• Part Number: LP2K0901BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Poles : 3
• Aux Contacts : 3 NO

Product Data

• UPC : 10782113804757
• GTIN : 03389110428537
• Country of Origin : France
• Dimensions : 3.54 in x 3.54 in
• Weight : 0.994
• Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
