LP-CC-9 - Bussmann 9 Amp 600 Volt Class CC Time-Delay Fuse Dual Element Rejection Type 200kA Interrupt Rating

LP-CC-9

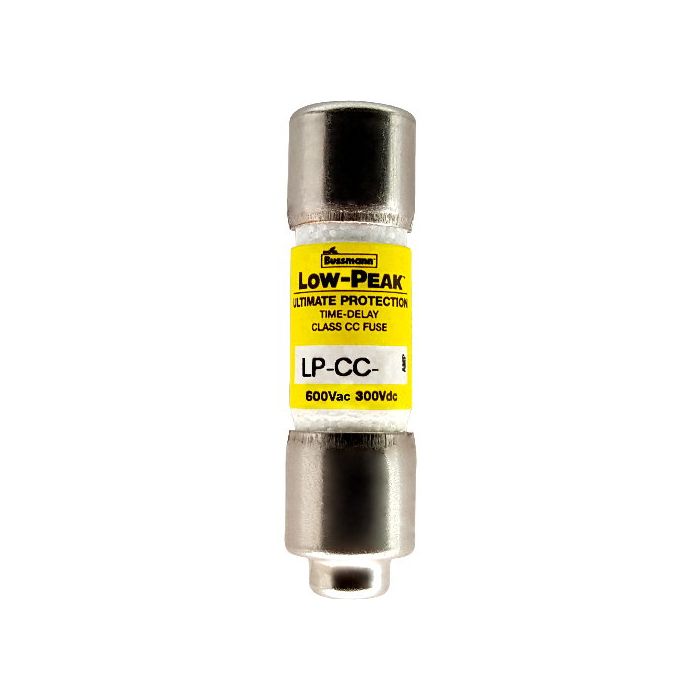

LP-CC-9 is a Bussmann 9 Amp, 600 Volt Class CC time-delay fuse designed for small horsepower motor circuit protection.This dual-element, rejection-type fuse features a minimum 12-second time delay at 200% rated current, a compact size of 0.41" x 1.5", and an interrupting rating of 200,000 AIC RMS at 600 VAC and 20,000 AIC at 150 VDC. It is UL Listed, CSA Certified, and meets UL Std. 248-4 requirements.

Key Specifications
• Amperage: 9 A
• Voltage Rating AC: 600 VAC
• Voltage Rating DC: 150 VDC
• Fuse Type: Time-Delay, Dual Element
• Interrupting Rating: 200,000 AIC RMS @ 600 VAC, 20,000 AIC @ 150 VDC
• Physical Size: 0.41" x 1.5"
• Rejection Type: Yes
• Certifications: UL Listed, CSA Certified, CE
• Series: Low-Peak Class CC
• Application: Small horsepower motor circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LP-CC-9
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 9
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712180535
• GTIN : 00051712180535
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
