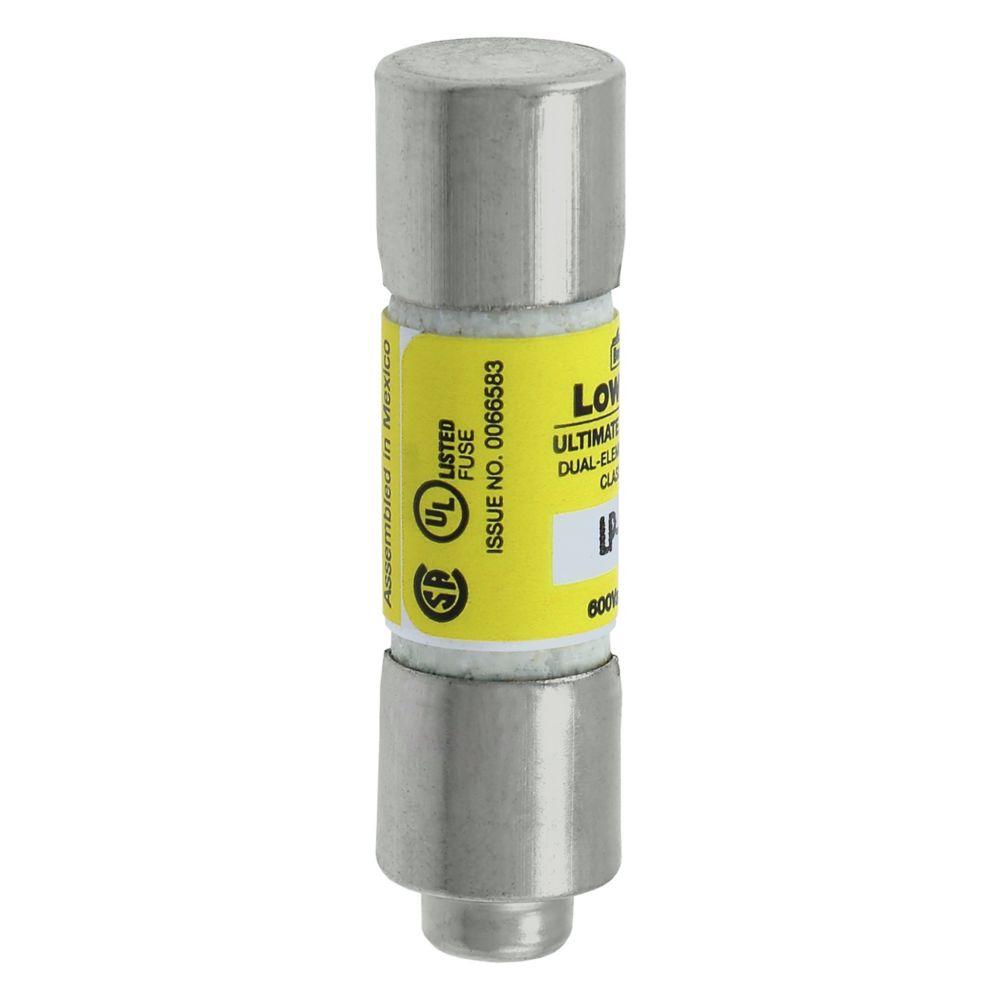

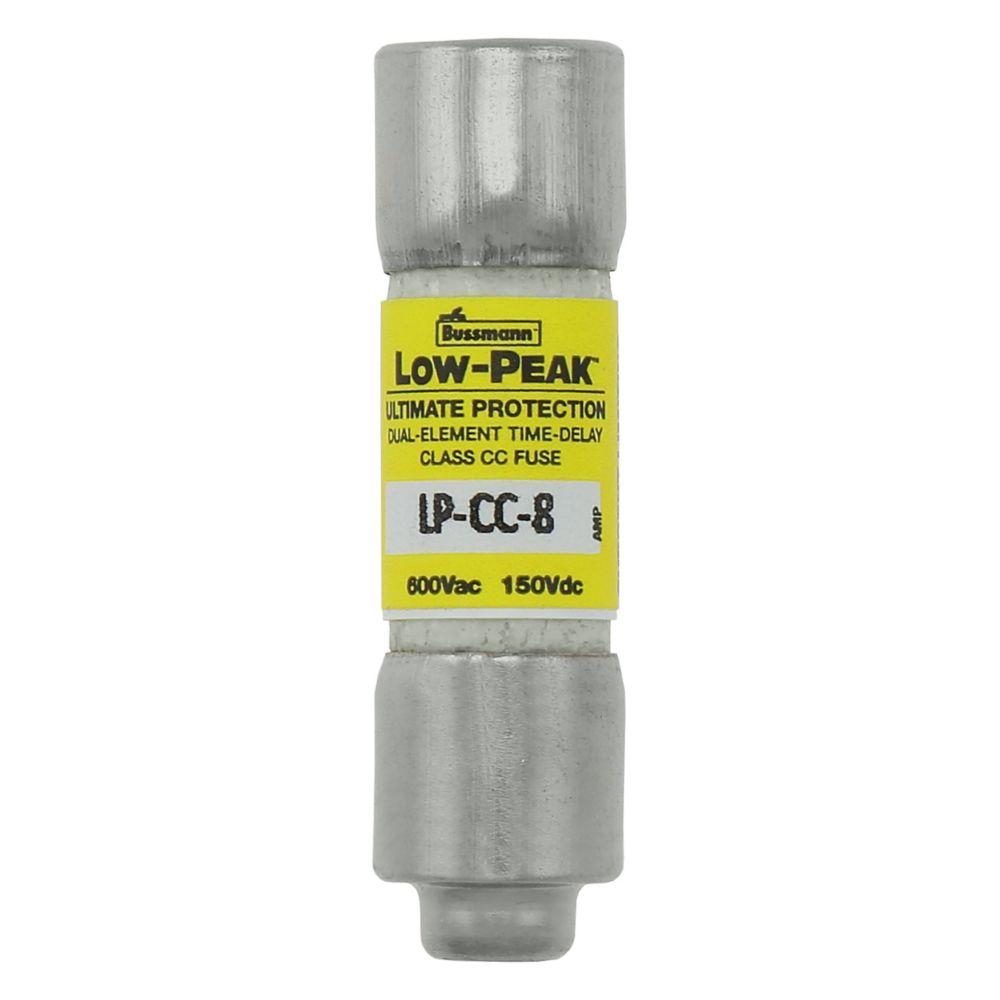

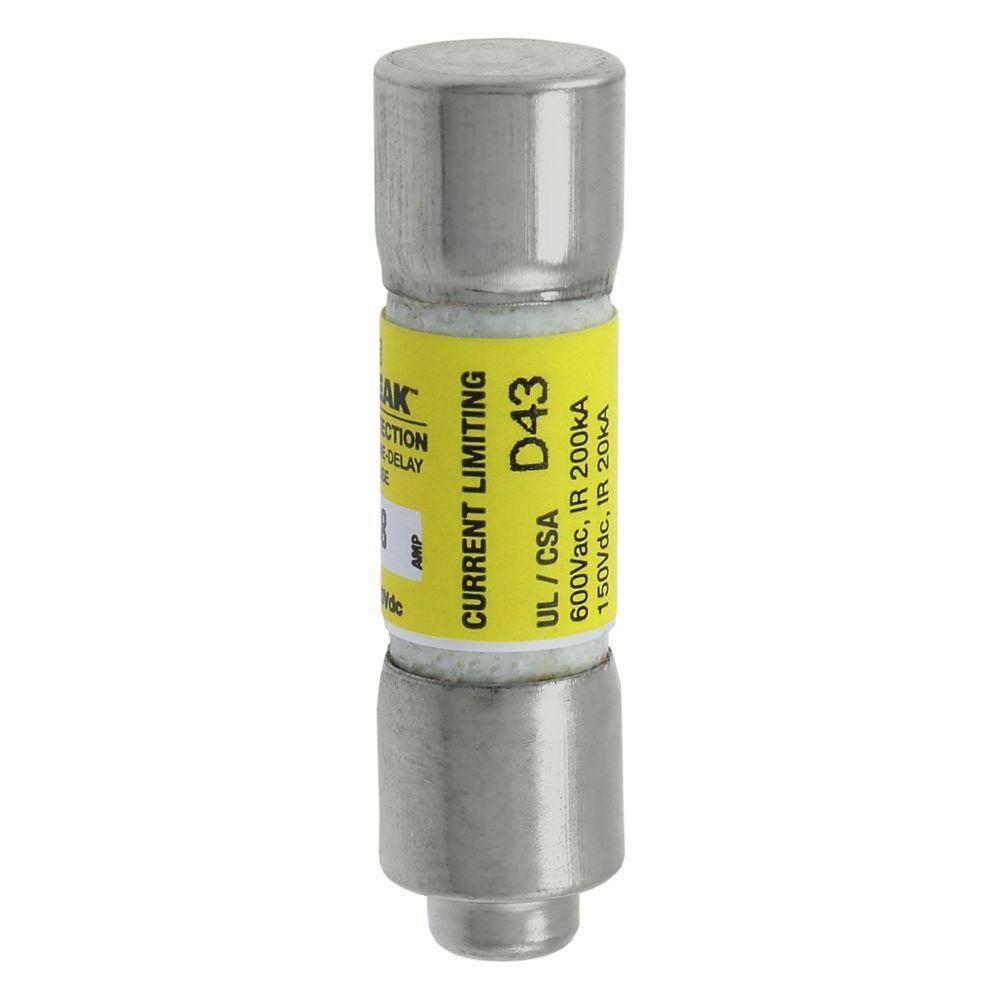

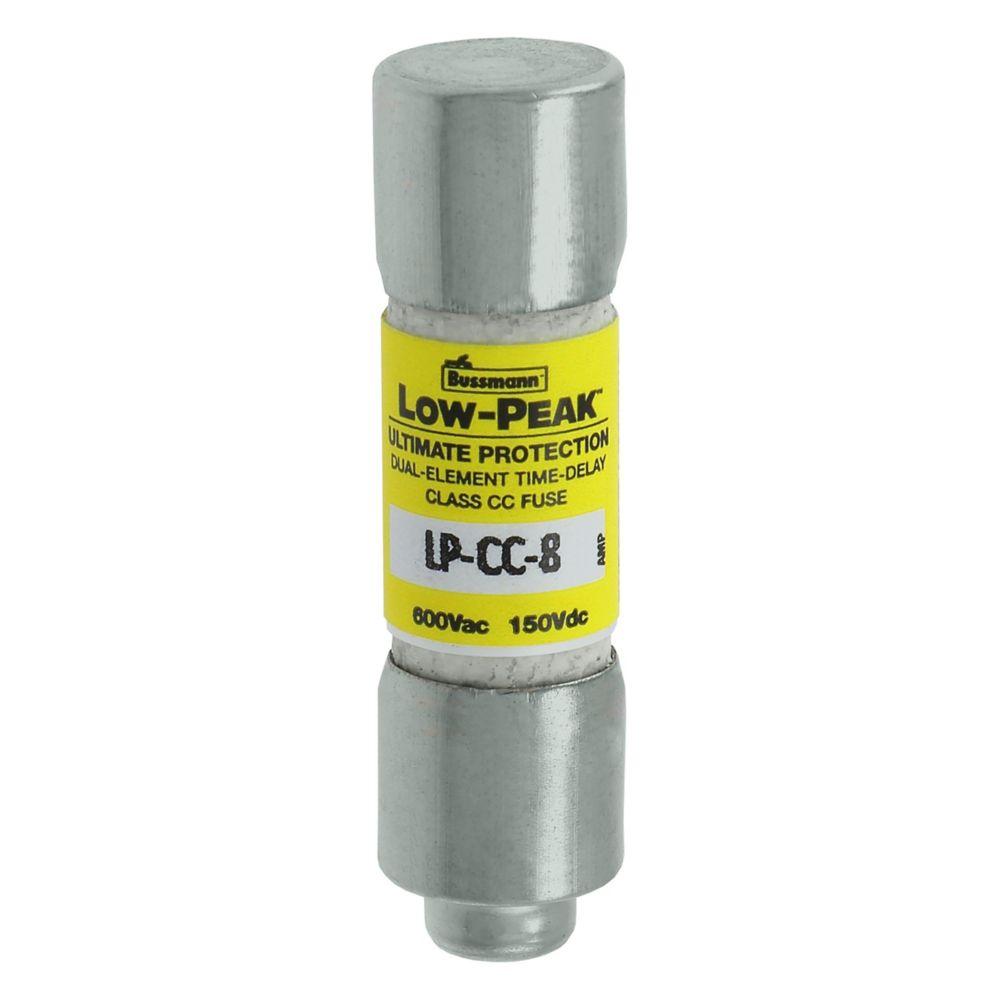

LP-CC-8 - Eaton Bussmann 8 Amp 600V AC 150V DC Class CC Time-Delay Dual-Element Current-Limiting Rejection Fuse

LP-CC-8

LP-CC-8 is a Bussmann by Eaton Class CC, time-delay, dual-element, current-limiting fuse designed for reliable circuit protection in specialized and industrial control applications.

This rejection-style fuse features a 12-second minimum time delay at 200% of rated current, providing enhanced protection against overloads and short circuits. Its compact design and high interrupting rating make it ideal for protecting small horsepower motor circuits and other sensitive equipment.

Key Specifications
• Amperage: 8 A
• Voltage: 600 V AC, 150 V DC
• Poles: Not applicable (fuse, not a breaker)
• Mounting Type: Ferrule end x ferrule end (rejection style)
• Interrupt Rating: 200,000 AIC RMS @ 600 V AC, 20,000 AIC @ 150 V DC
• Series/Frame: LP-CC (Low-Peak Class CC)
• Trip Unit: Dual-element, time-delay (12 sec at 200%)
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Physical Size: 0.41" x 1.5"
• Fuse Indicator: Non-indicating
• Application: Protection of small horsepower motor circuits, industrial control
• Packaging: Standard (typically 10 per pack)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LP-CC-8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 8
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712180399
• GTIN : 00051712180399
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
