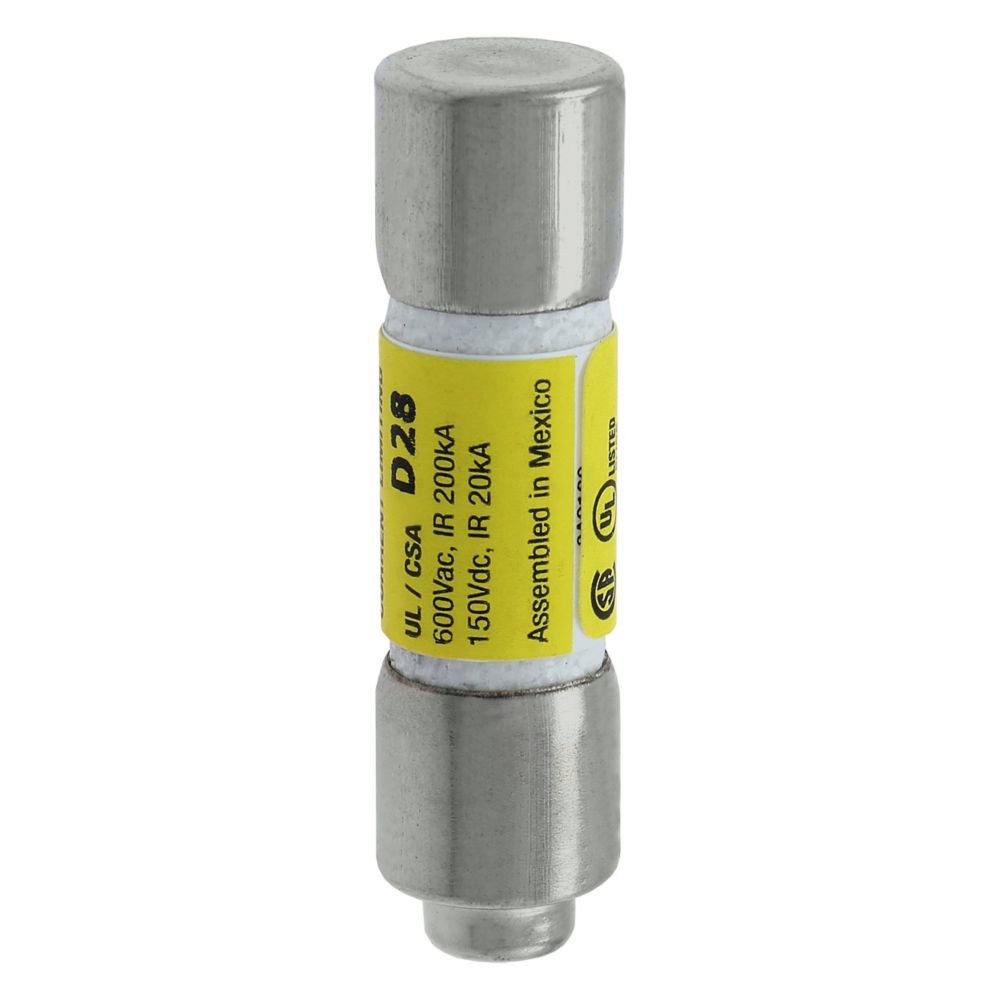

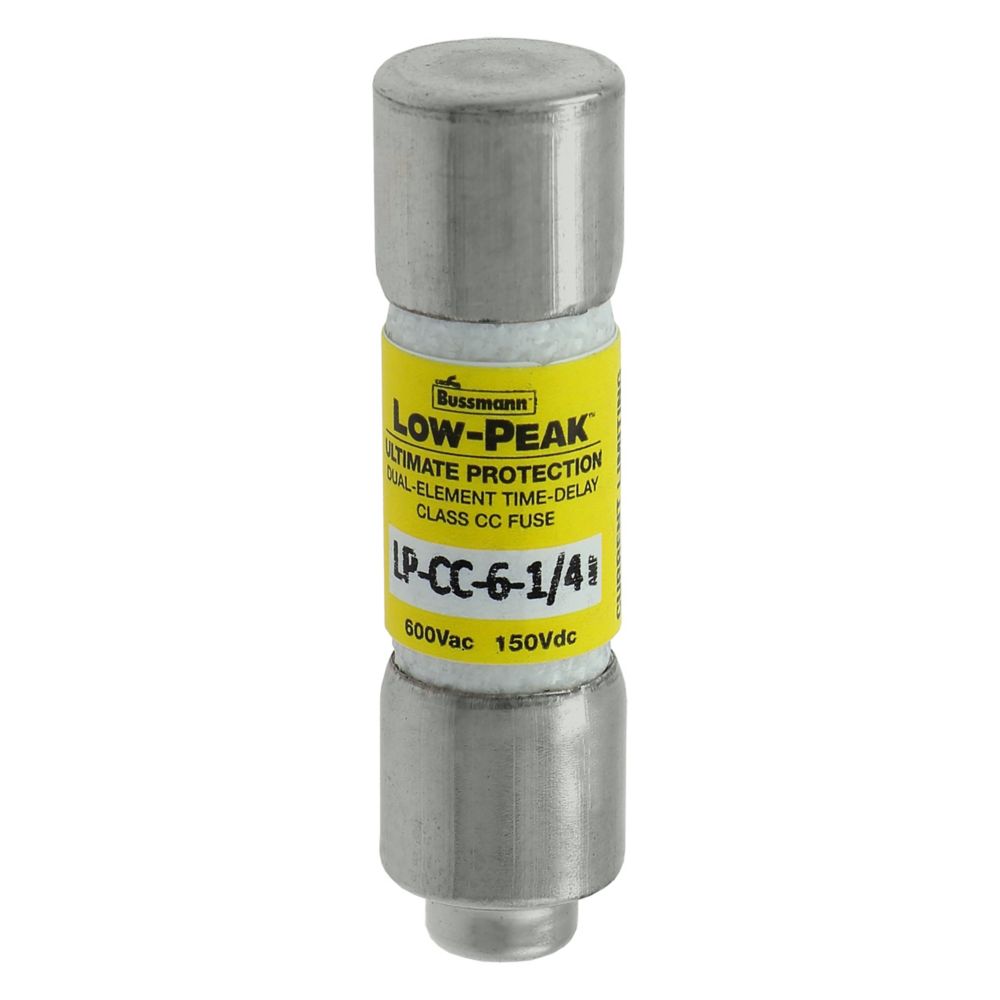

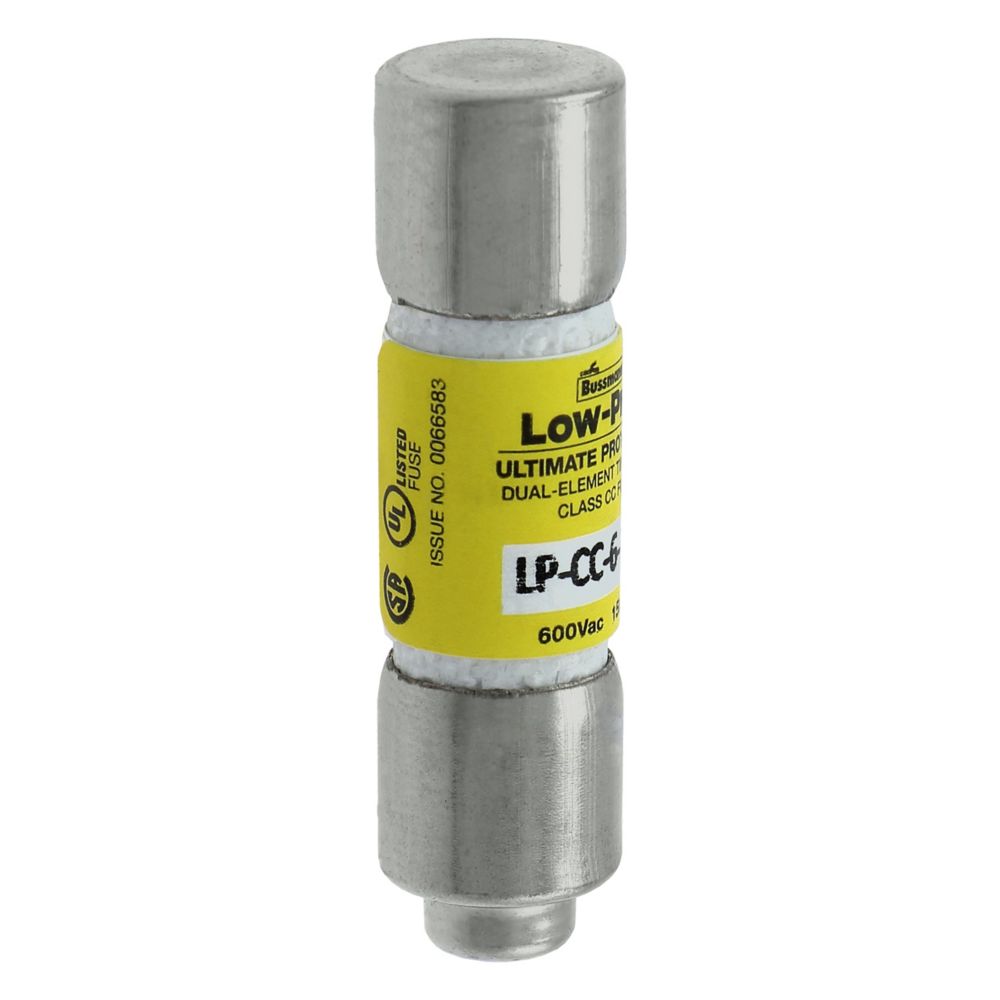

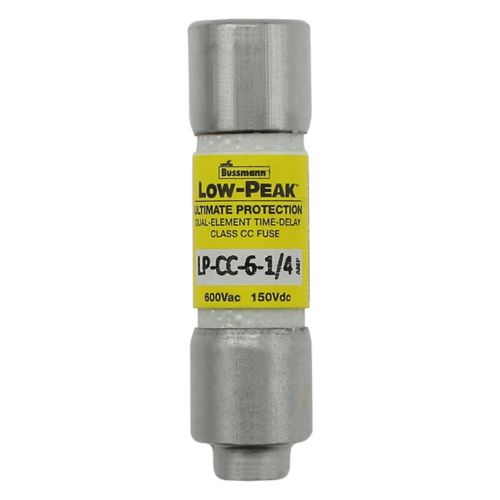

LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE

Save $953.34
SKU: LP-CC-6-1/4-New
Condition: New
Price:
$11.06 $964.40
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Cooper Bussmann LP-CC-6-1/4 Low Voltage Low-Peak 600V 6A Fuse - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Cooper Bussmann LP-CC-6-1/4 Low Voltage Low-Peak 600V 6A Fuse - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply
LP-CC-6-1/4 - Eaton Bussmann Cooper Bussmann Low-Peak Class CC Time-Delay Current-Limiting Fuse, 6.25A, 600VAC/150VDC, 200kA Interrupt, Rejection Style, Dual Element, UL/CSA/CE - Essential Electric Supply

Description

LP-CC-6-1/4


LP-CC-6-1/4 is a Low-Peak Class CC time-delay, current-limiting fuse from Eaton Bussmann (Cooper Bussmann), designed for specialized circuits and industrial control applications.

This rejection-style fuse features a dual-element construction for reliable protection of small horsepower motor circuits, with a melamine tube body and ferrule terminals. It offers a high interrupting rating and time-delay characteristics to withstand temporary overloads without nuisance tripping.

    Key Specifications
  • Amperage: 6.25A
  • Voltage: 600VAC, 150VDC
  • Poles: 1
  • Mounting Type: In-line, ferrule end
  • Interrupt Rating: 200,000A RMS symmetrical (AC), 20,000A (DC)
  • Series/Frame: Low-Peak LP-CC
  • Trip Unit: Time-delay, 12 seconds minimum at 200% of rated current
  • Certifications: UL Listed (UL 248-4), CSA Certified, CE Marked
  • Class: CC
  • Type: Current-limiting, dual-element
  • Style: Rejection
  • Dimensions: 0.41" x 1.5"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LP-CC-6-1/4
  • Manufacturer : Eaton
  • Brand : Bussmann
  • Category : Fuse
  • Item Subcategory : Medium Voltage Fuse
  • Family : Low-Peak
  • Type : LP-CC
  • Voltage : 600
  • Amperage : 6
  • AIC rating : 200kA@600V
  • Diameter : 0.41
  • Class Rating : CC
  • Barrels : 1

Product Data

  • UPC : 051712180375
  • GTIN : 00051712180375
  • Country of Origin : Mexico
  • Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
  • Weight : 0.15
  • Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
