LP-CC-4 - Eaton Bussmann Cooper Bussmann 4A 600VAC 150VDC Class CC Time-Delay Dual-Element Current-Limiting Fuse, Rejection Style, 200kA Interrupt, UL Listed, CSA Certified

LP-CC-4

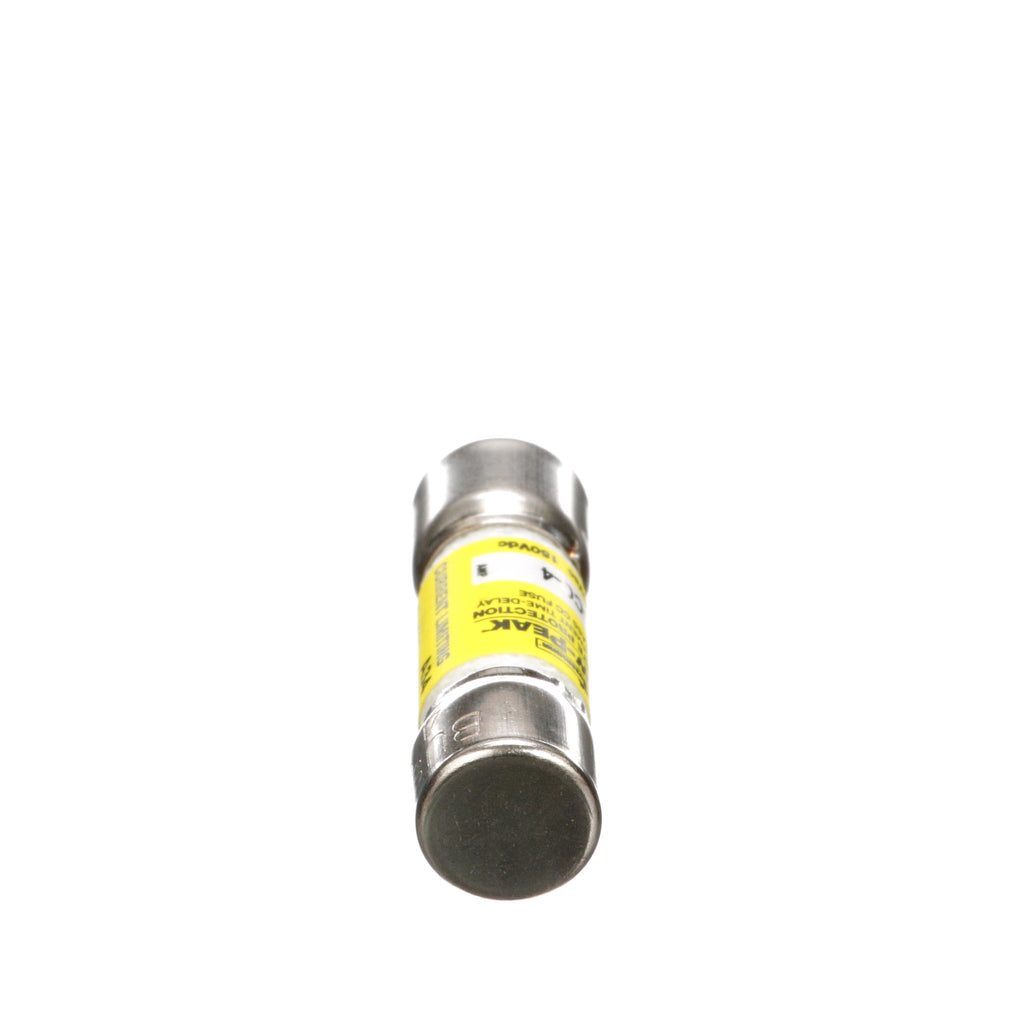

LP-CC-4 is a Class CC, time-delay, dual-element, current-limiting fuse from Eaton Bussmann (Cooper Bussmann), designed for specialized circuits and industrial control applications.

This rejection-style fuse features a melamine tube construction, non-indicating design, and ferrule end connections. It is engineered to provide reliable overcurrent protection with a 12-second minimum time delay at 200% of rated current, making it suitable for motor circuit and control applications where inrush currents are present.

Key Specifications
• Amperage: 4 A
• Voltage Rating: 600 VAC, 150 VDC
• Poles: Single
• Mounting Type: Ferrule (rejection style)
• Interrupt Rating: 200,000 AIC RMS @ 600 VAC, 20,000 AIC @ 150 VDC
• Series/Frame: LP-CC Low-Peak
• Trip Unit: Time-delay, dual-element
• Response Time: 12 seconds at 200% rated current
• Dimensions: 1.5 in L x 0.41 in D
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Application: Specialized circuits, industrial control, small horsepower motor protection
• Packaging: Standard (quantity may vary)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LP-CC-4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 4
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712180320
• GTIN : 00051712180320
• Country of Origin : Mexico
• Dimensions : 1.5 in x 0.41 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
