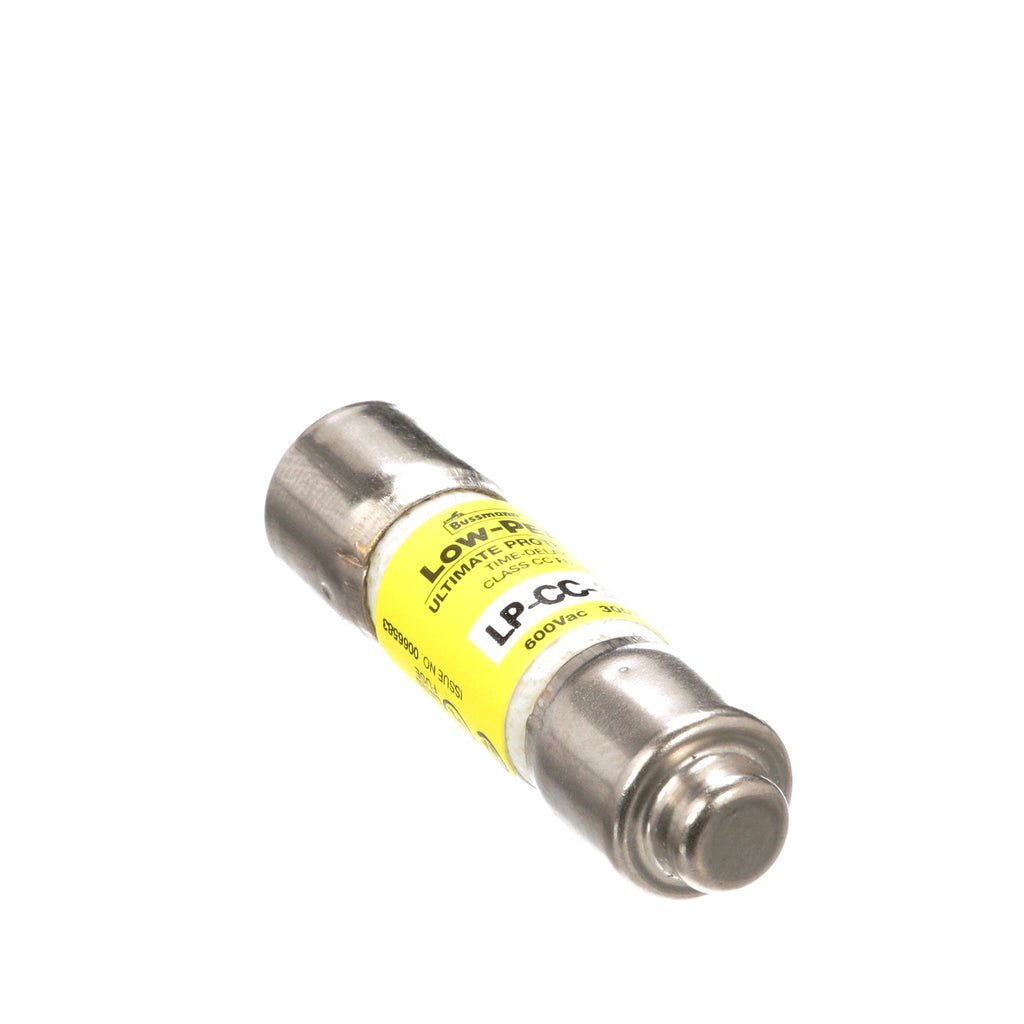

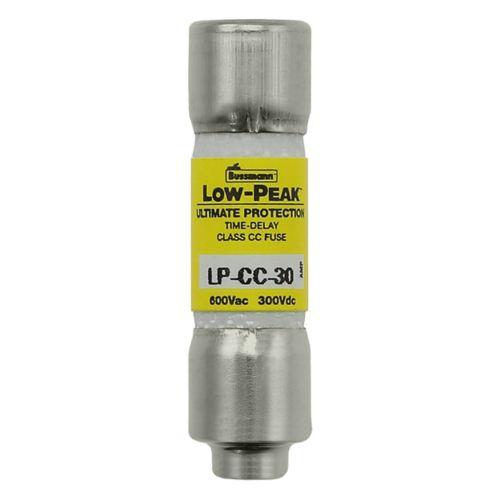

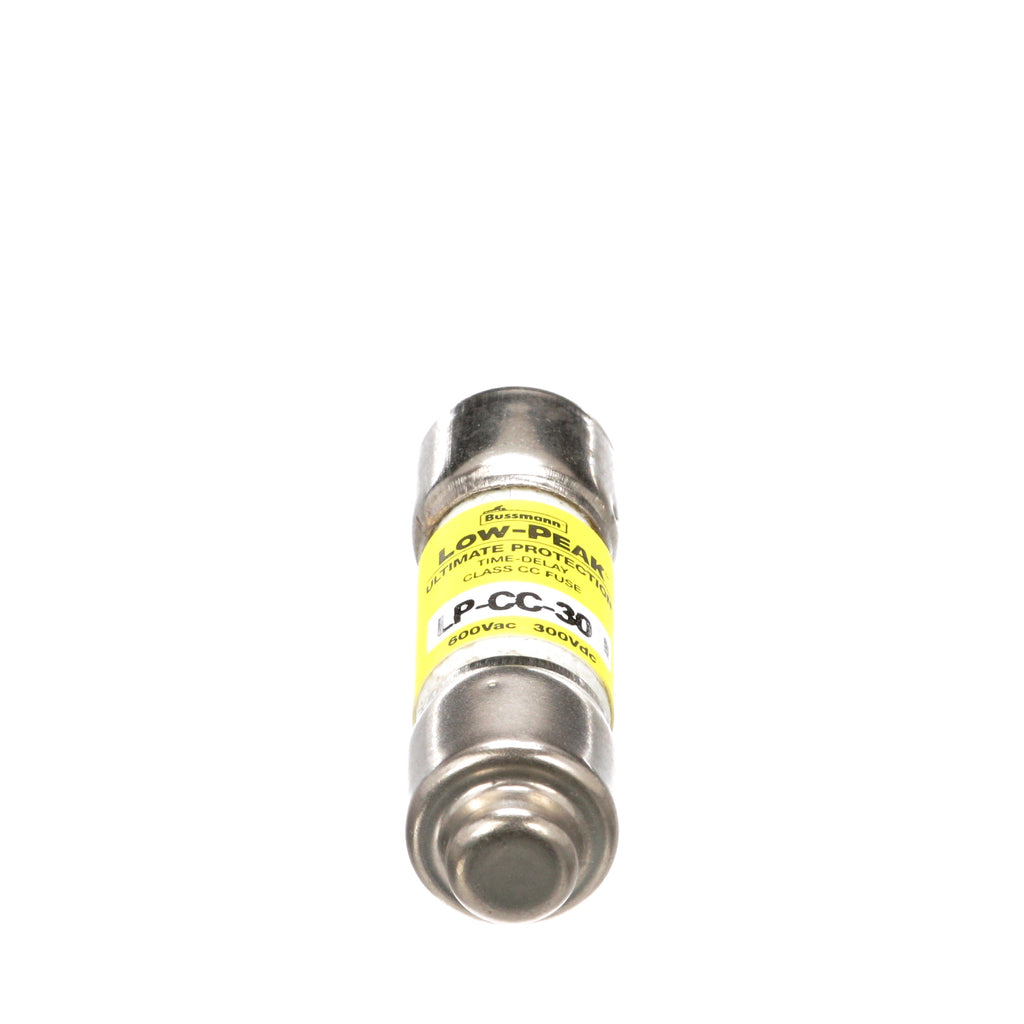

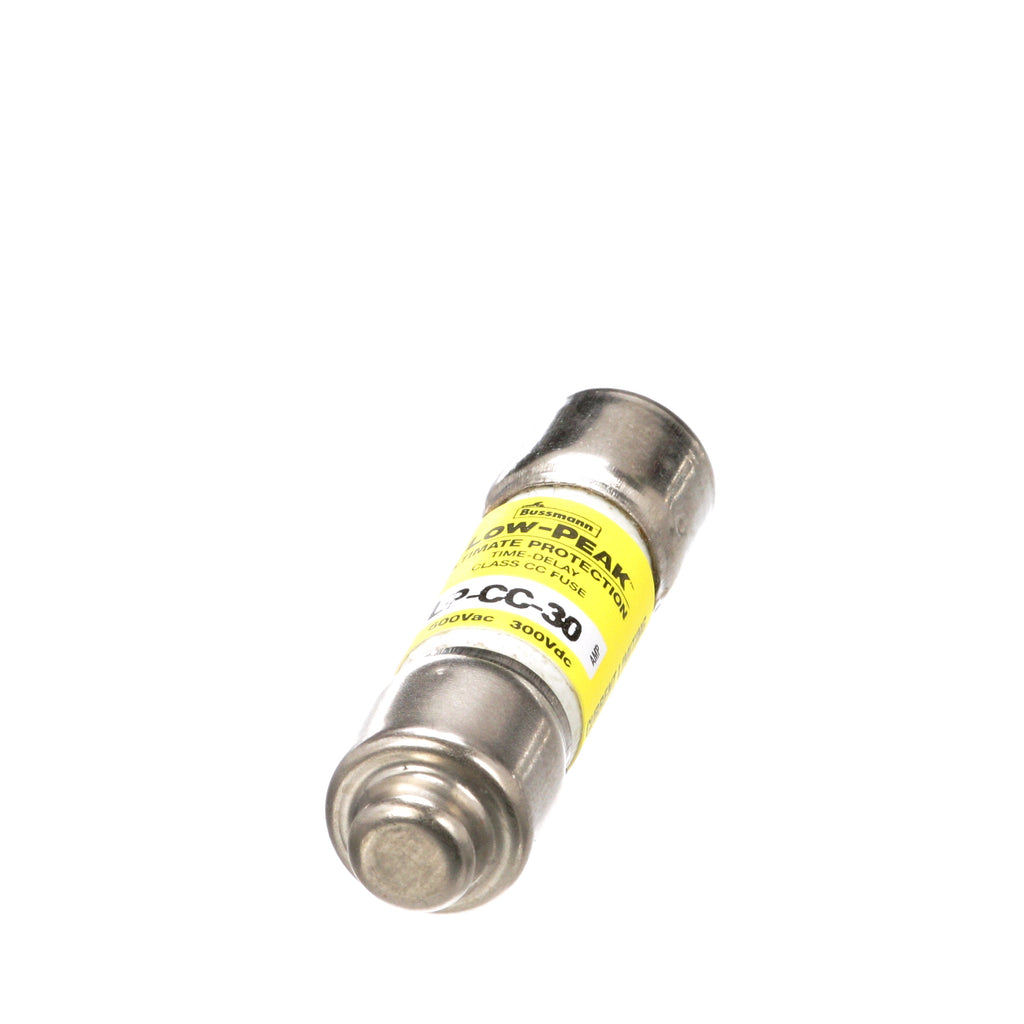

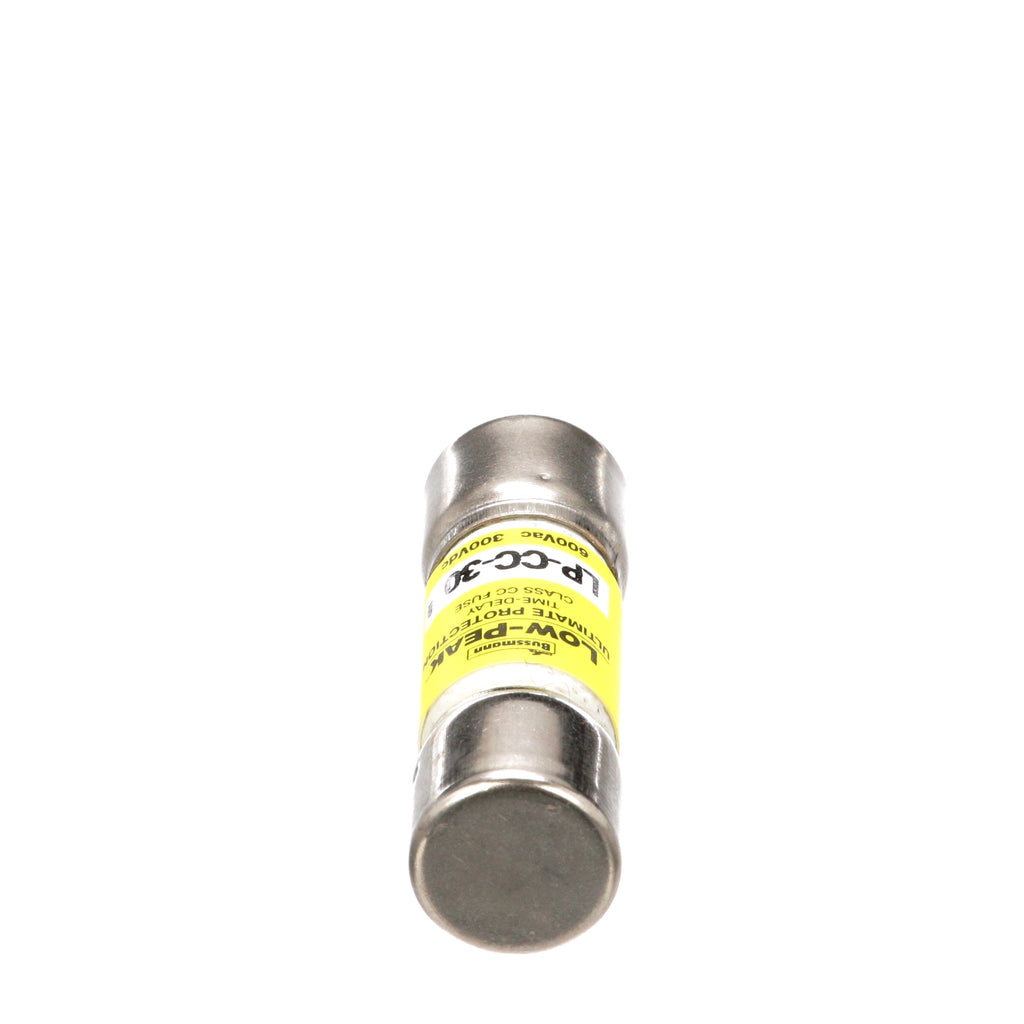

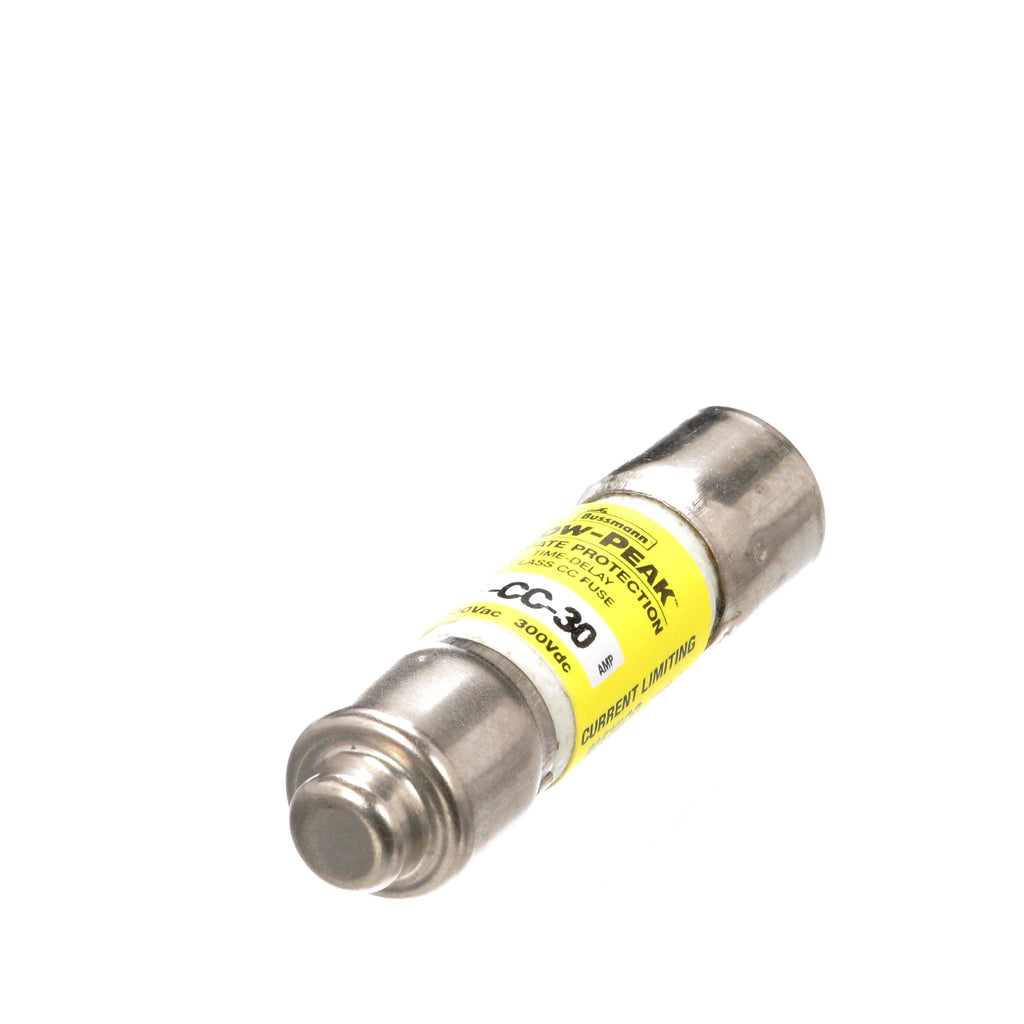

LP-CC-30 - Eaton Bussmann 30A 600V Class CC Time-Delay Current-Limiting Fuse Dual Element Rejection Style

LP-CC-30

LP-CC-30 is a 30 amp, 600 volt Class CC time-delay current-limiting fuse from Eaton Bussmann designed for specialized circuits and industrial control applications.This dual-element, rejection style fuse features a 12 second time-delay at 200% rated current, an interrupt rating of 200 kA at 600 VAC and 20 kA at 300 VDC, and a compact melamine tube construction. It is UL Listed, CSA Certified, CE Marked, and RoHS Compliant, providing reliable protection for small horsepower motor circuits and other sensitive equipment.

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC, 300 VDC
• Class: Class CC
• Fuse Type: Time-delay, current-limiting
• Interrupt Rating: 200 kAIC at 600 VAC, 20 kAIC at 300 VDC
• Number of Elements: Dual
• Fuse Indicator: Non-indicating
• Connection Type: Ferrule end x ferrule end
• Response Time: 12 seconds at 200% rated current
• Material: Melamine tube
• Special Features: Rejection style for proper fuse selection
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LP-CC-30
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712180313
• GTIN : 00051712180313
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
