LP-CC-25 - Eaton Bussmann 25A 600V Class CC Time-Delay Current-Limiting Fuse, Dual Element, Rejection Style

LP-CC-25

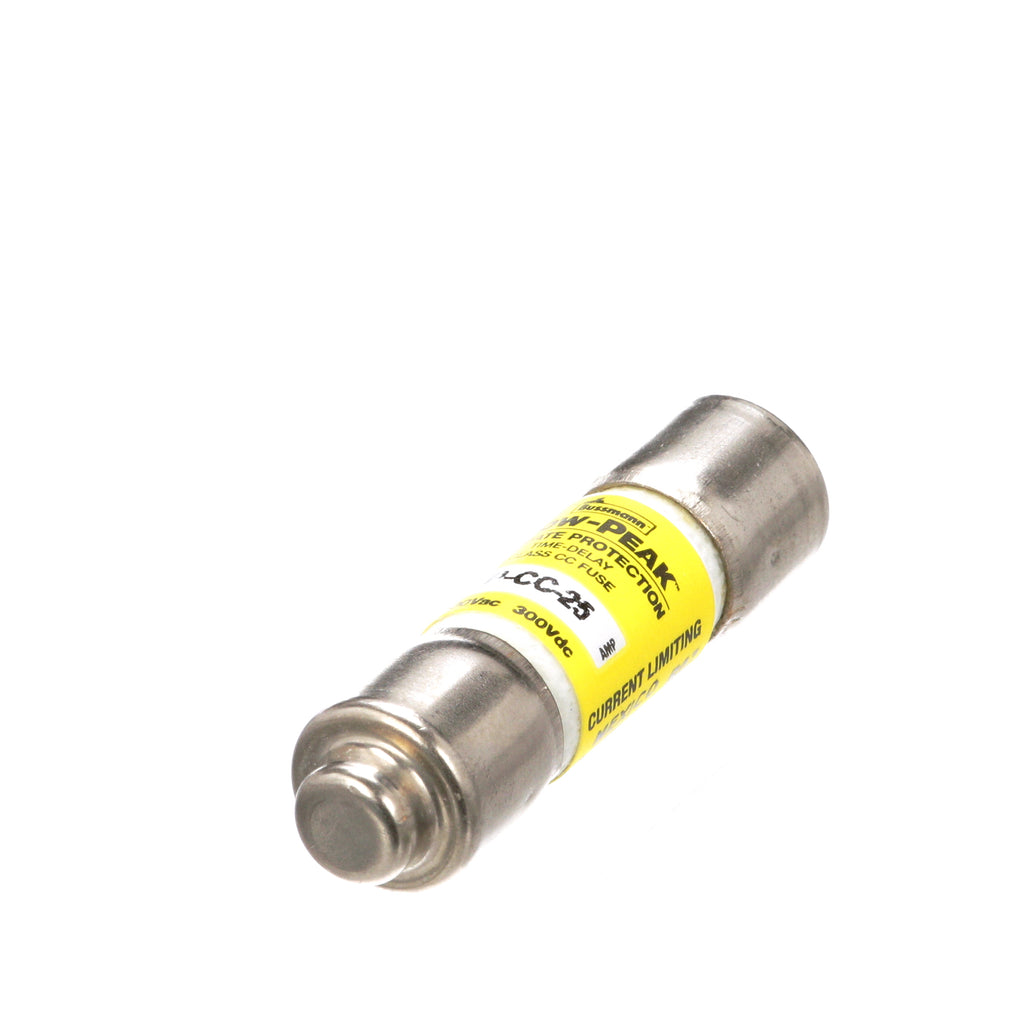

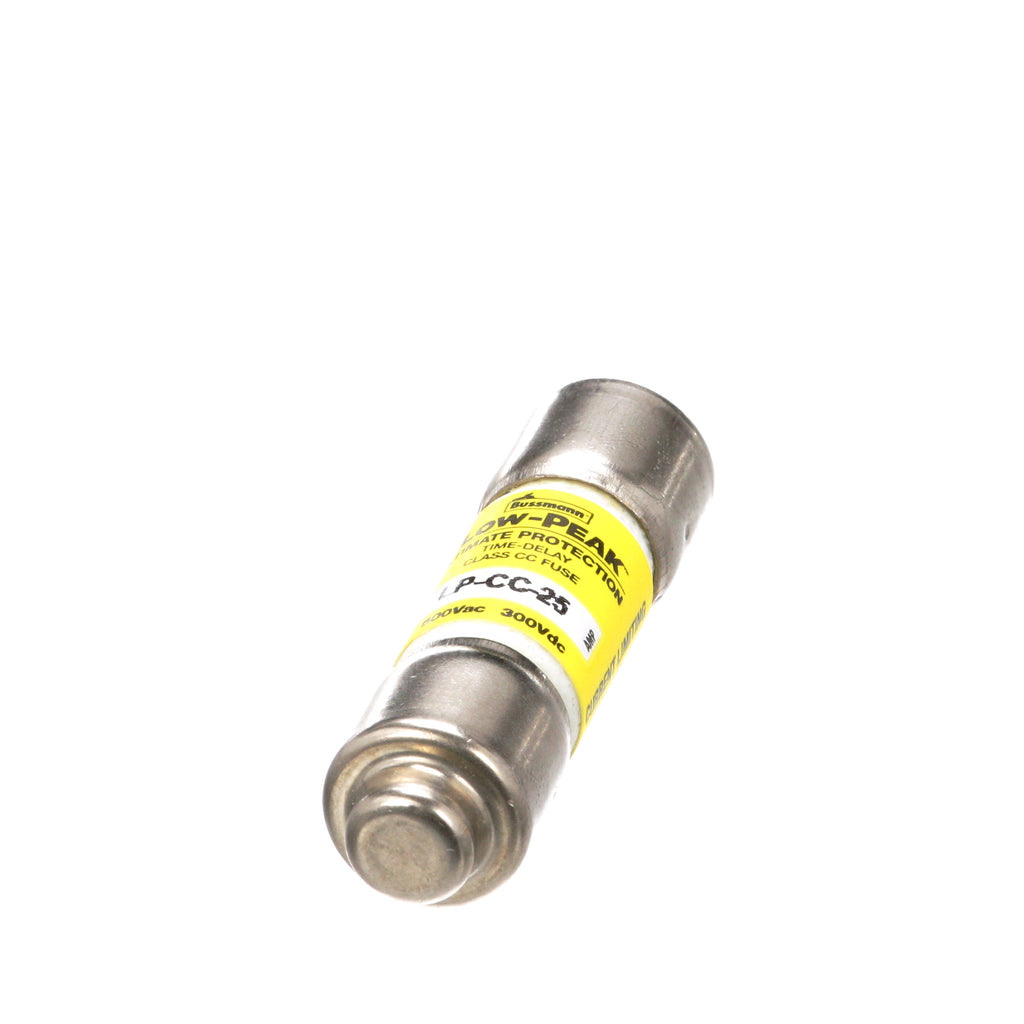

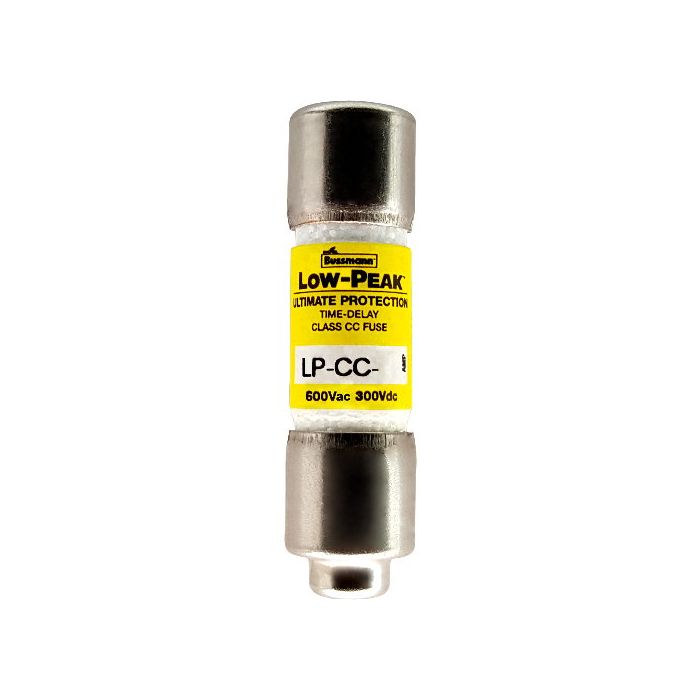

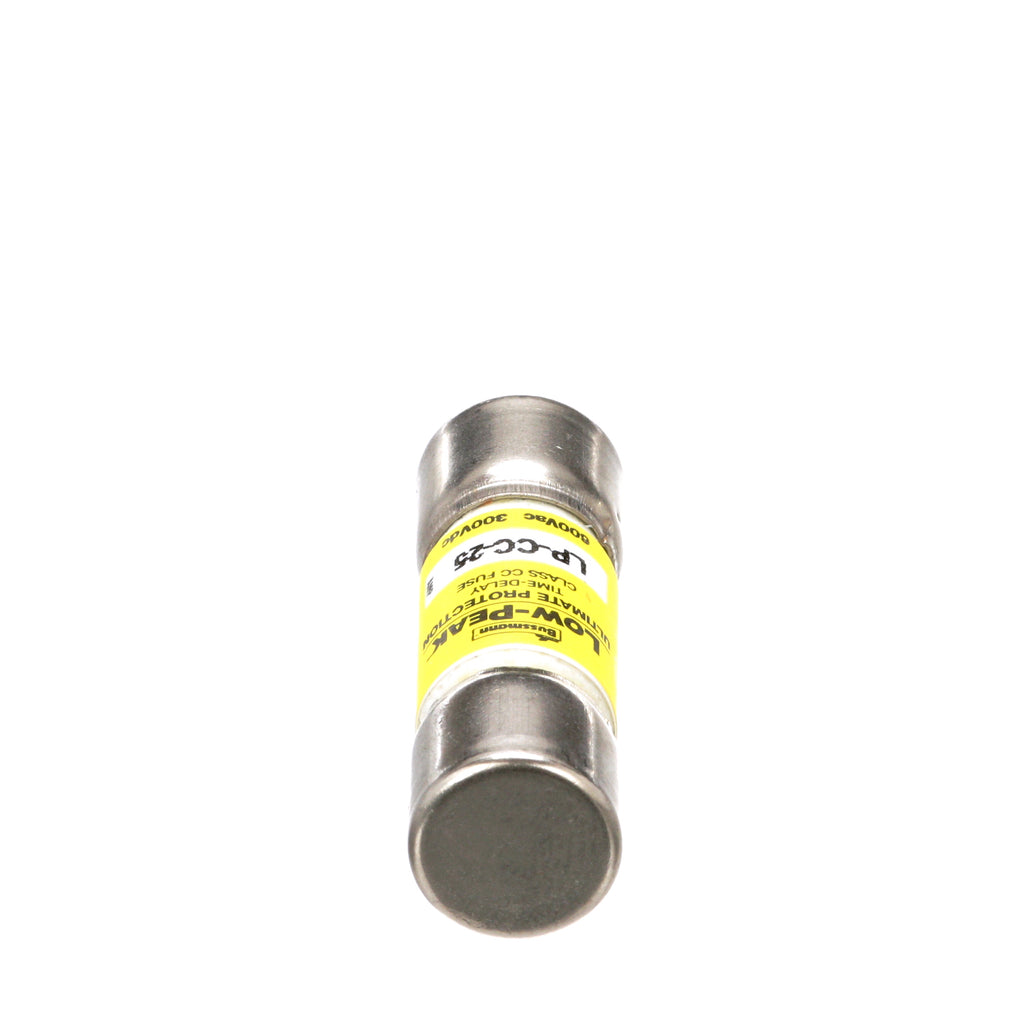

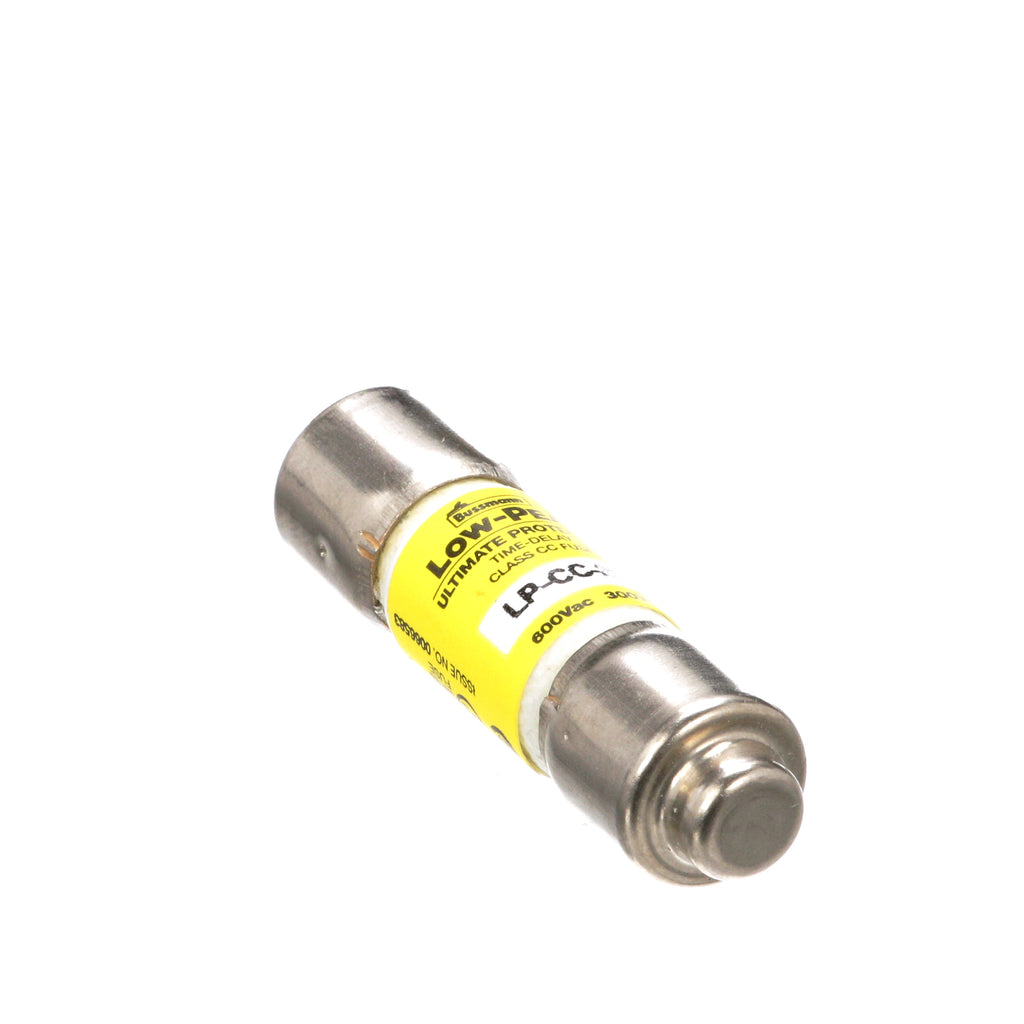

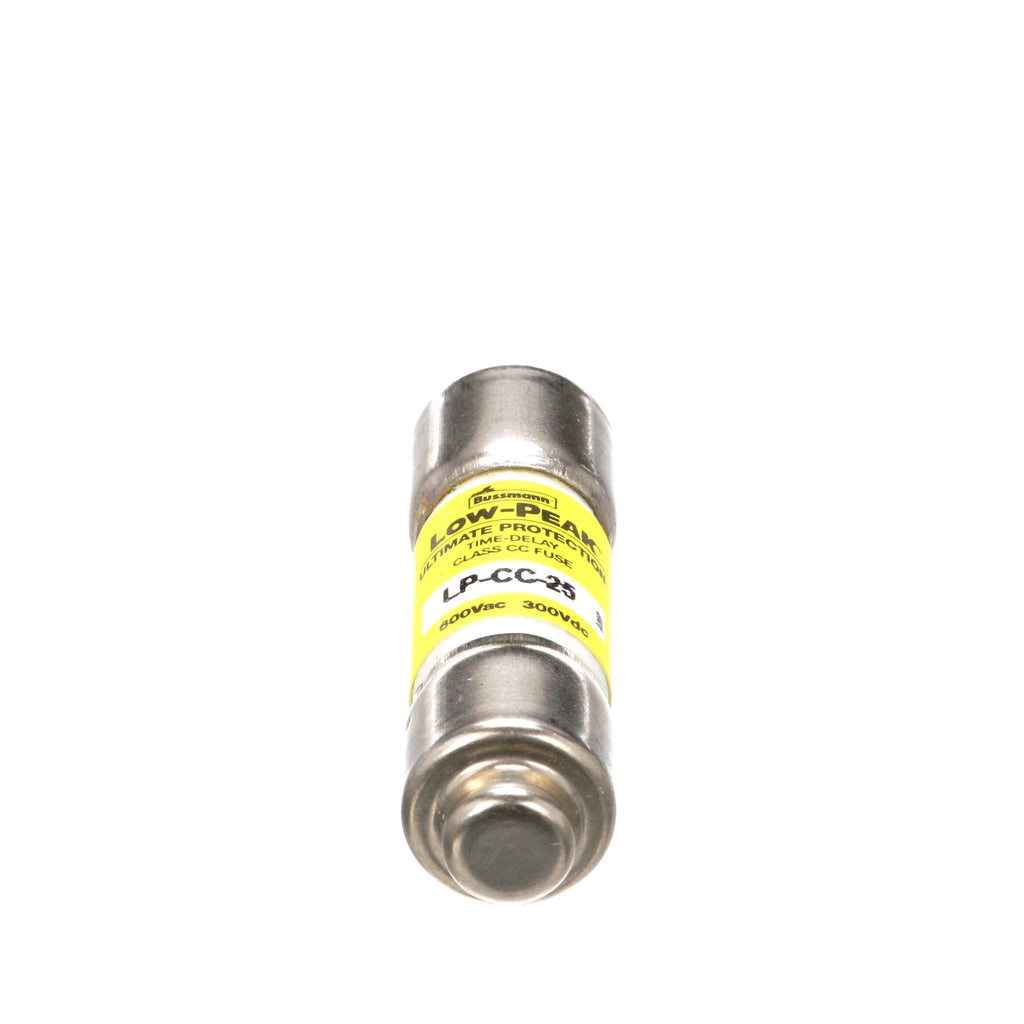

LP-CC-25 is an Eaton Bussmann series Class CC fuse designed for specialized circuit protection with a 25 Amp rating and 600 Vac/300 Vdc voltage capability.This current-limiting, time-delay fuse features a dual-element design with a rejection style to prevent misapplication. It has an interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc, a 12-second time delay at 200% rated current, and ferrule end x ferrule end connections. The fuse body is made of melamine tube material and is UL Listed, CSA Certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage Rating: 25 A
• Voltage Rating: 600 Vac, 300 Vdc
• Class: CC
• Fuse Type: Current-limiting, Time-delay
• Number of Elements: Dual
• Interrupting Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
• Connection Type: Ferrule end x ferrule end
• Response Time: 12 seconds at 200% rated current
• Fuse Indicator: Non-indicating
• Material: Melamine tube
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Special Feature: Rejection style

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LP-CC-25
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 25
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712180283
• GTIN : 00051712180283
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
