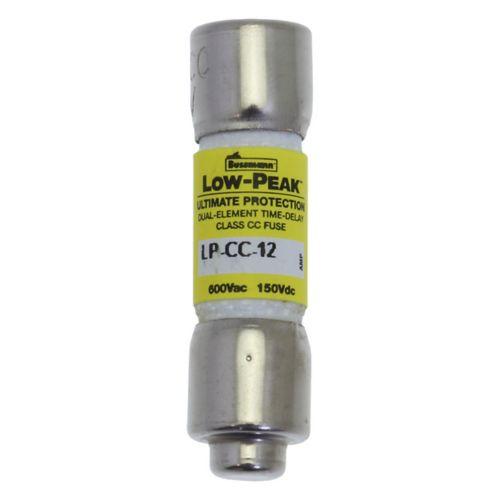

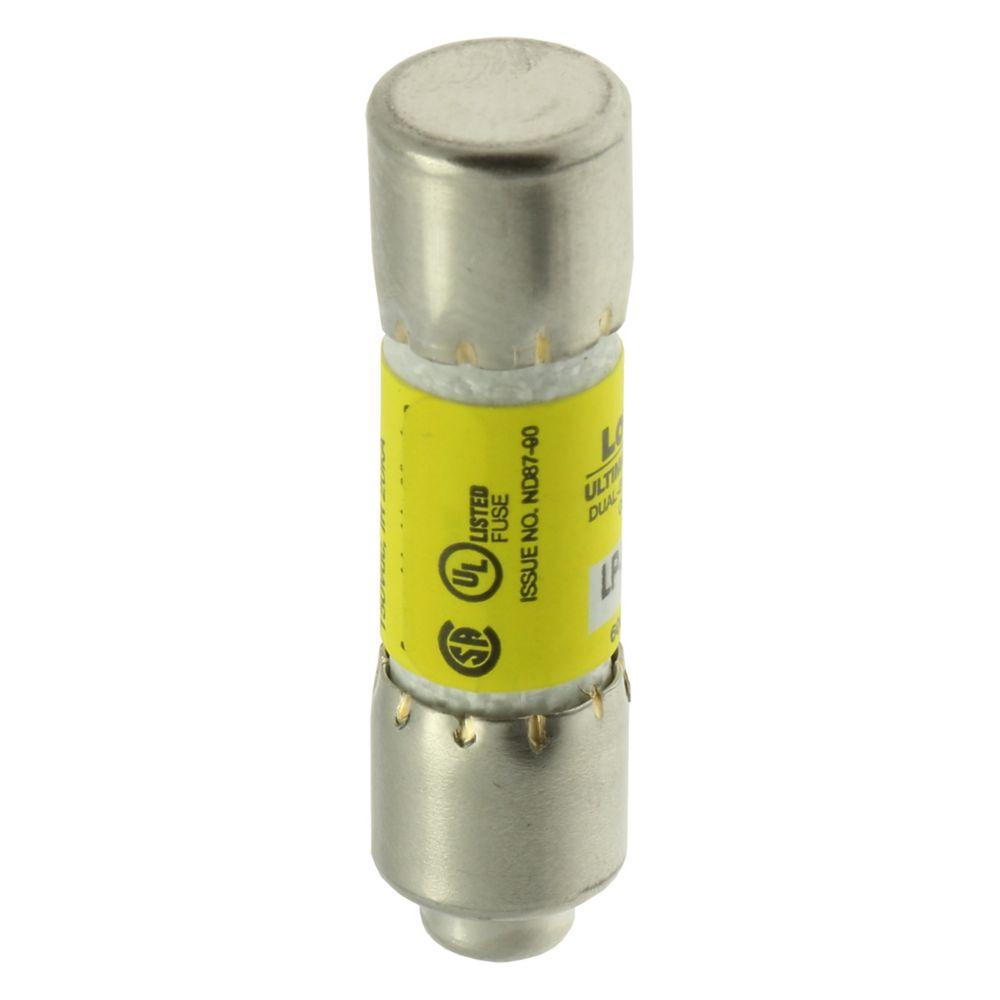

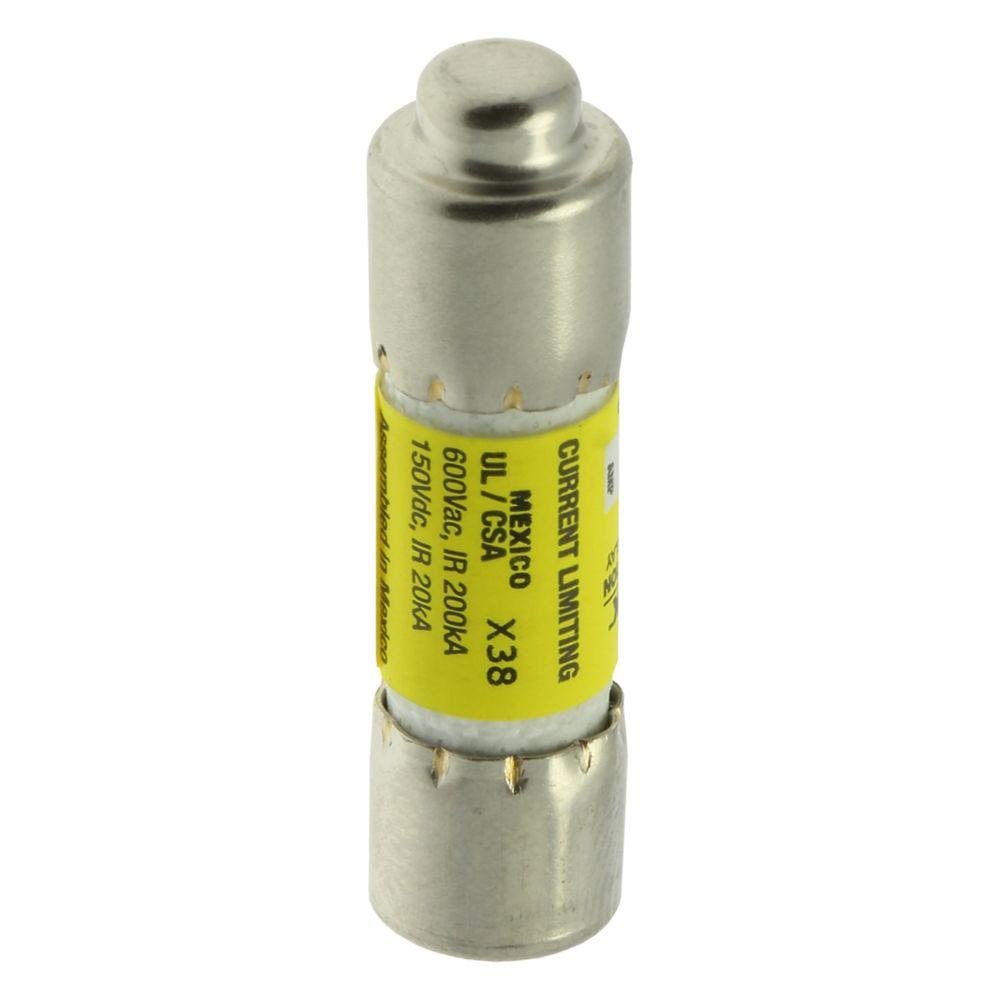

LP-CC-12 - Bussmann 12 Amp 600 Volt Class CC Time-Delay Fuse, Dual Element, Rejection Type

LP-CC-12

LP-CC-12 is a Bussmann Class CC fuse designed for motor circuit protection with a 12 amp rating and 600 volt capacity.LP-CC-12 features a time-delay of 12 seconds minimum at 200% rated current, dual element construction, and a rejection type design to prevent misapplication. It has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 150 VDC. The fuse measures 0.41" x 1.5" and complies with UL 248-4, CSA, and CE certifications.

Key Specifications
• Amperage: 12 Amp
• Voltage Rating: 600 VAC, 150 VDC
• Fuse Class: CC
• Time Delay: 12 seconds minimum at 200% rated current
• Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 150 VDC
• Fuse Type: Dual Element, Current-Limiting
• Physical Size: 0.41" x 1.5"
• Mounting Type: Rejection Style
• Certifications: UL Listed, CSA Certified, CE Compliant
• Standards: UL 248-4, Class CC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LP-CC-12
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 12
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 051712180252
• GTIN : 00051712180252
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
