LP-CC-1-8/10 - Eaton Low-Peak Class CC Time-Delay Fuse 1.8A 600VAC 200kA Interrupt Rating

LP-CC-1-8/10

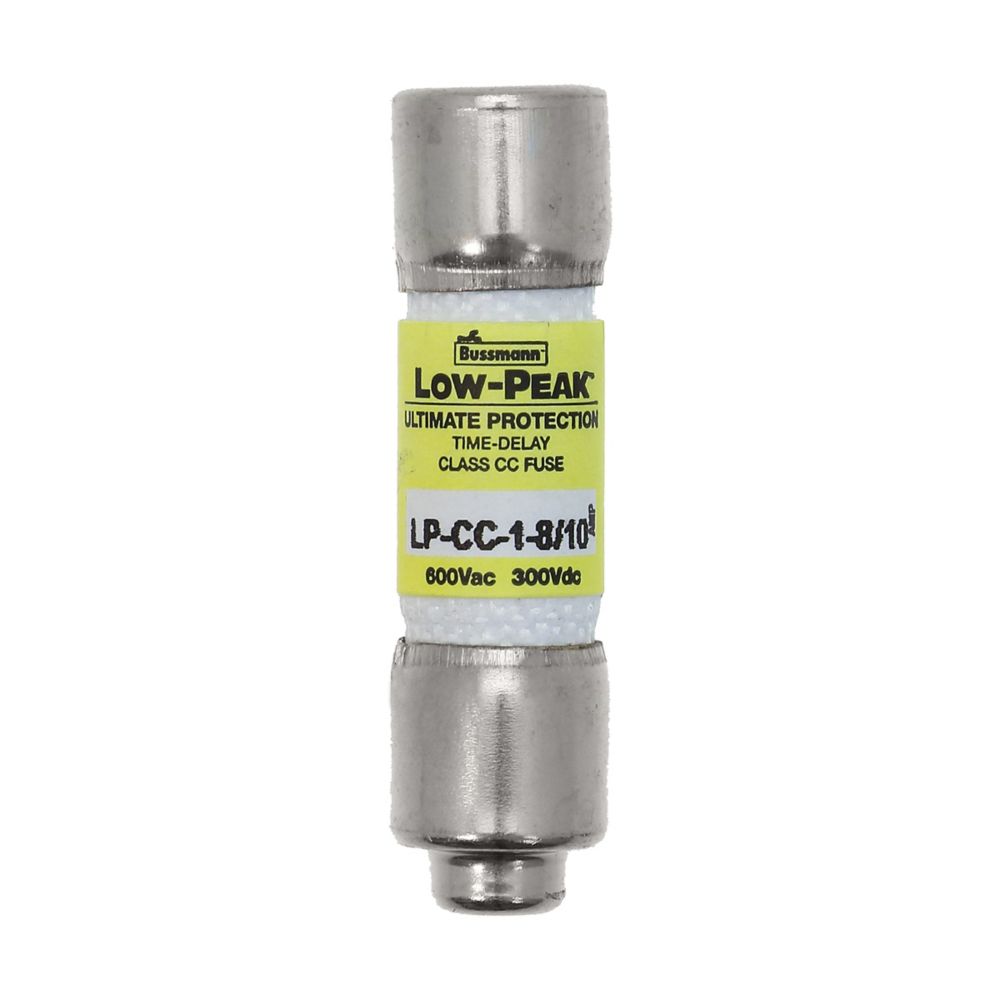

LP-CC-1-8/10 is an Eaton Low-Peak Class CC time-delay fuse designed for reliable branch circuit protection.This fuse features a 1.8 ampere rating with a voltage capacity of 600 VAC and 300 VDC. It offers a high interrupting rating of 200,000 amperes (200 kA) for superior short-circuit protection. The dual-element, current-limiting design provides fast response to faults while allowing time-delay for temporary surges, making it ideal for motor circuits and control panels. The compact 13/32" x 1-1/2" size includes a rejection tip to prevent misapplication and complies with NEC Section 110.9.

Key Specifications
• Amperage: 1.8 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200 kA
• Fuse Type: Time-Delay, Dual-Element
• Size: 13/32" x 1-1/2" (10 x 38 mm)
• Class: CC Low-Peak
• Rejection Style: Yes
• Mounting: Fuse block or holder compatible with Class CC
• Standards: NEC Section 110.9 compliant
• Typical Applications: Branch circuits, motor protection, industrial controls
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LP-CC-1-8/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1



Product Data

• UPC : 051712180498
• GTIN : 00051712180498
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
