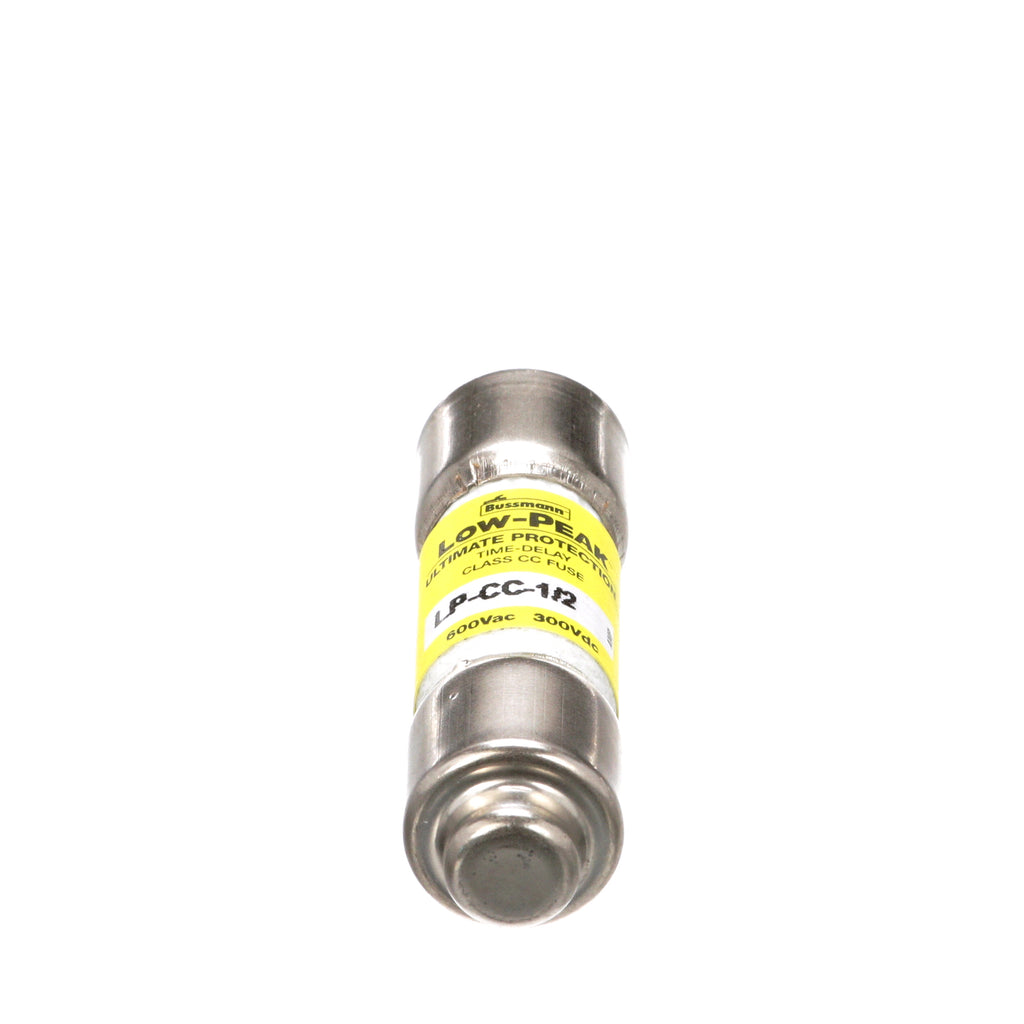

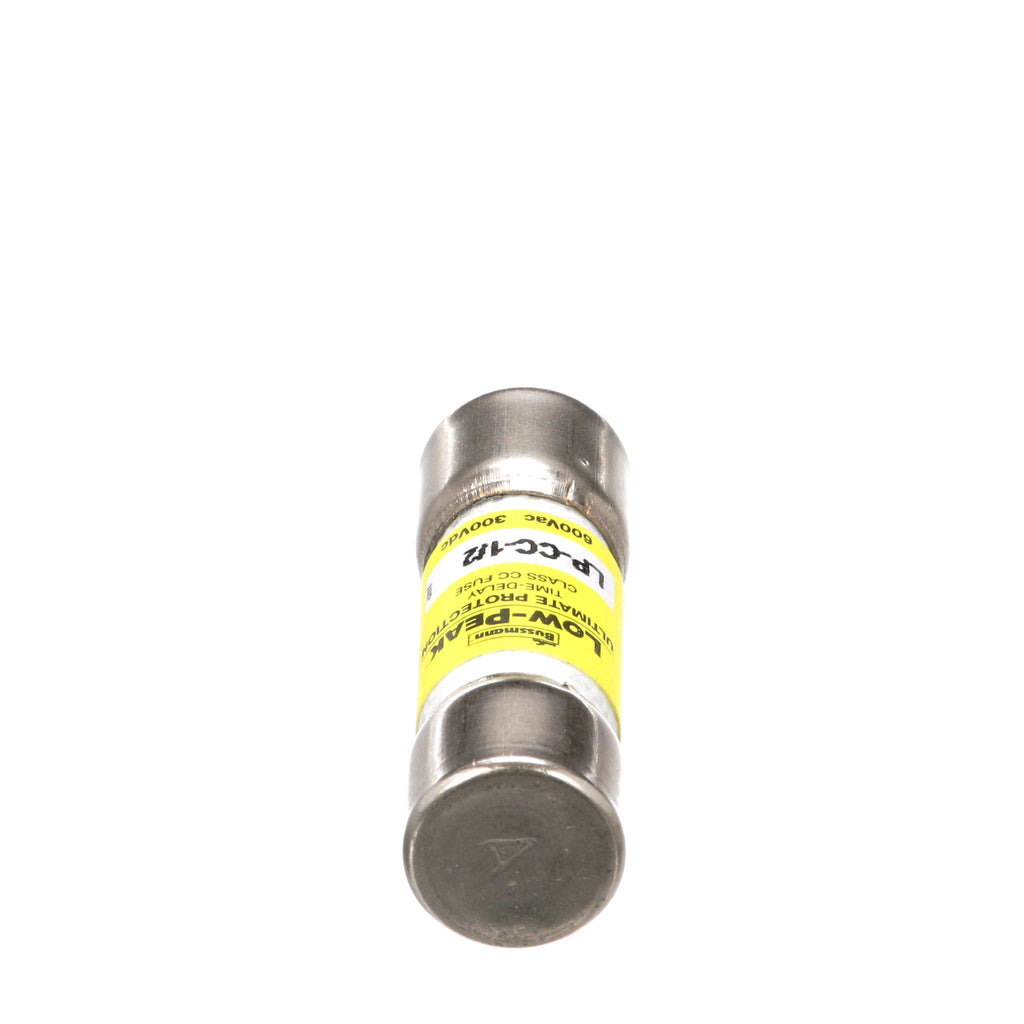

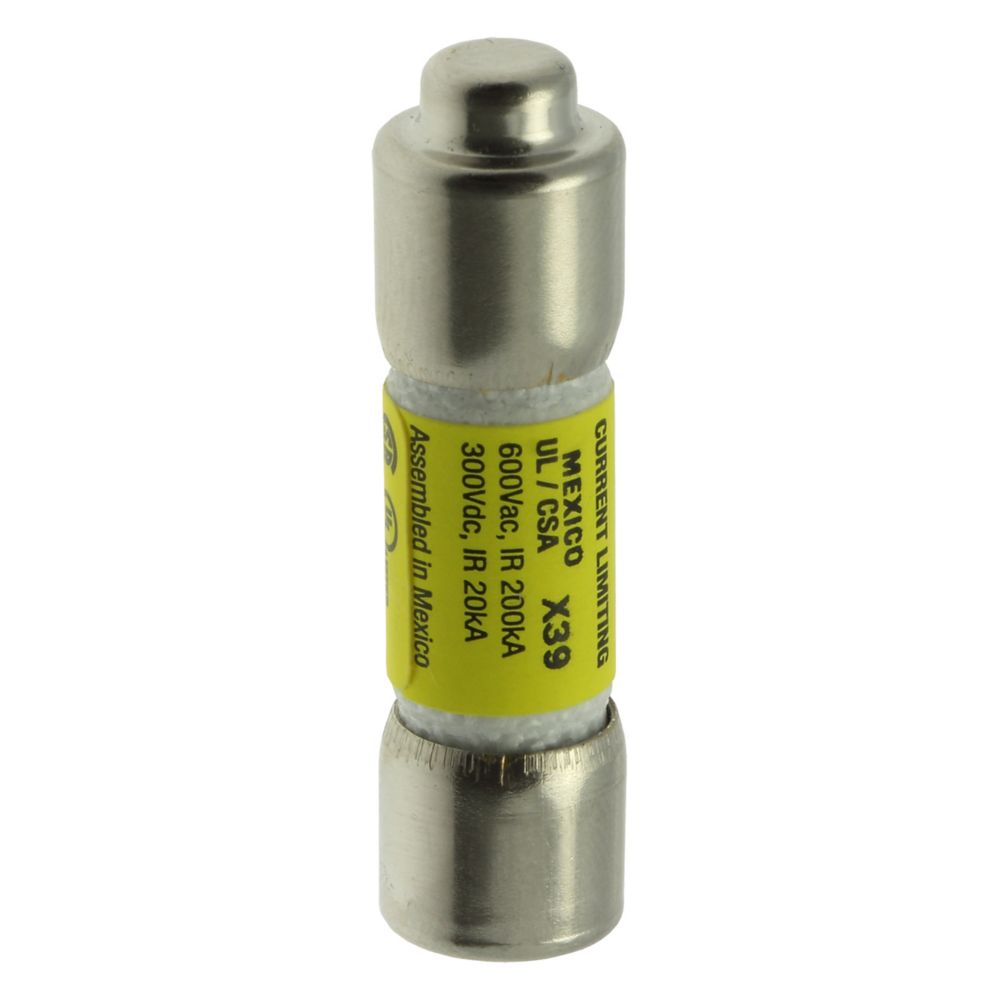

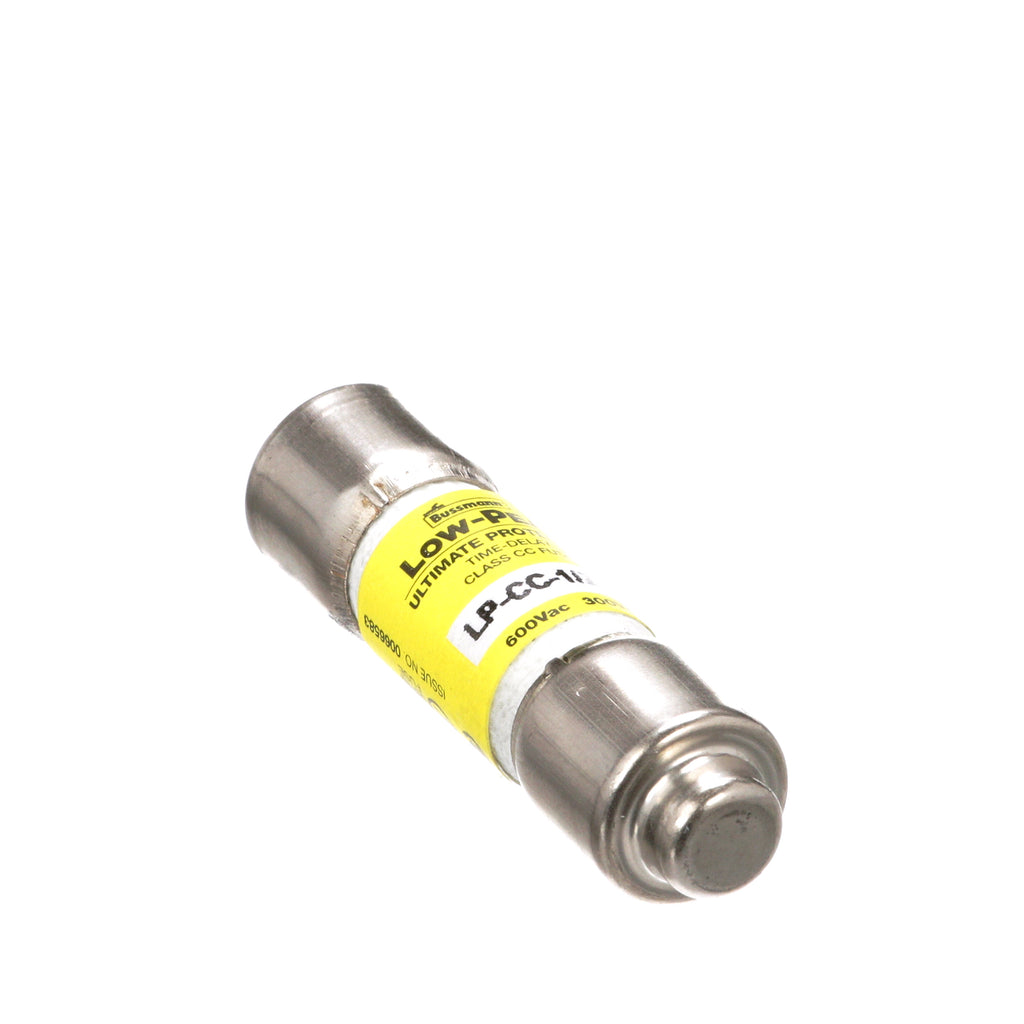

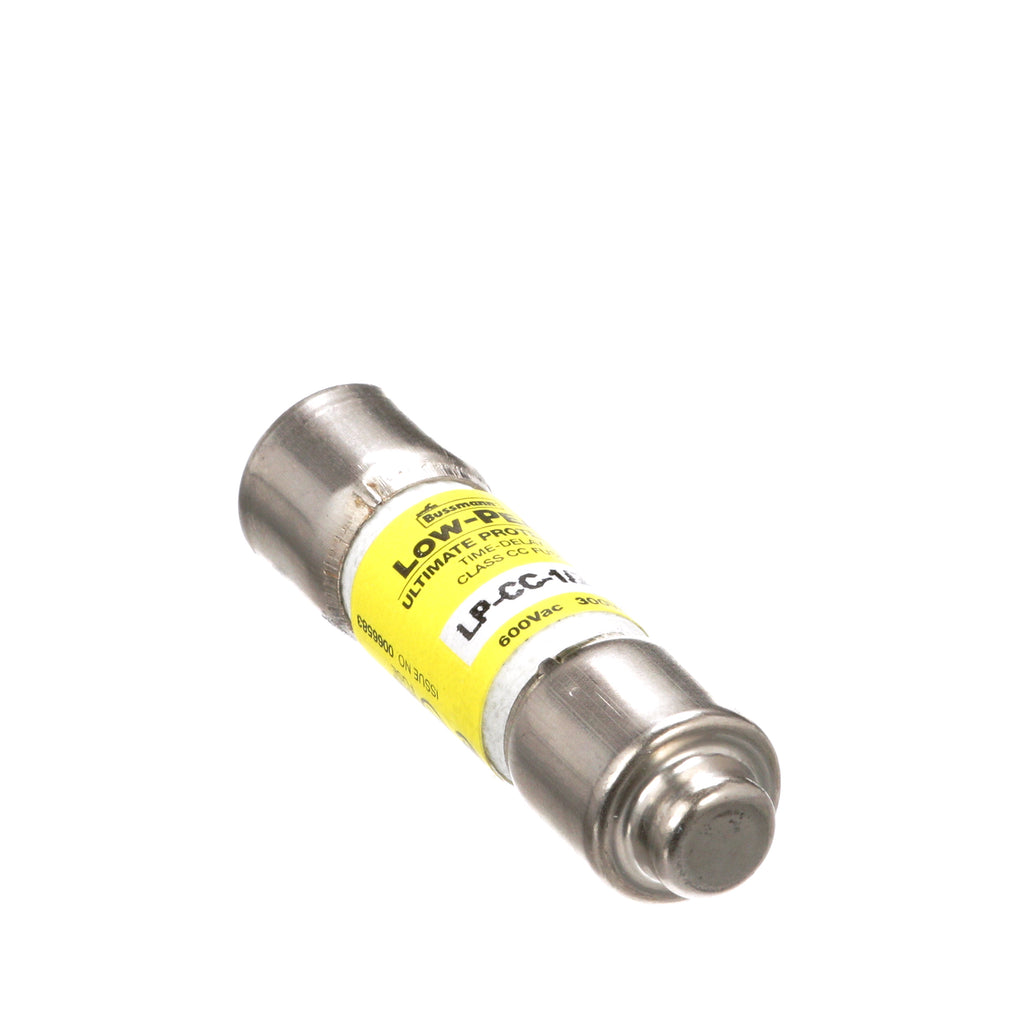

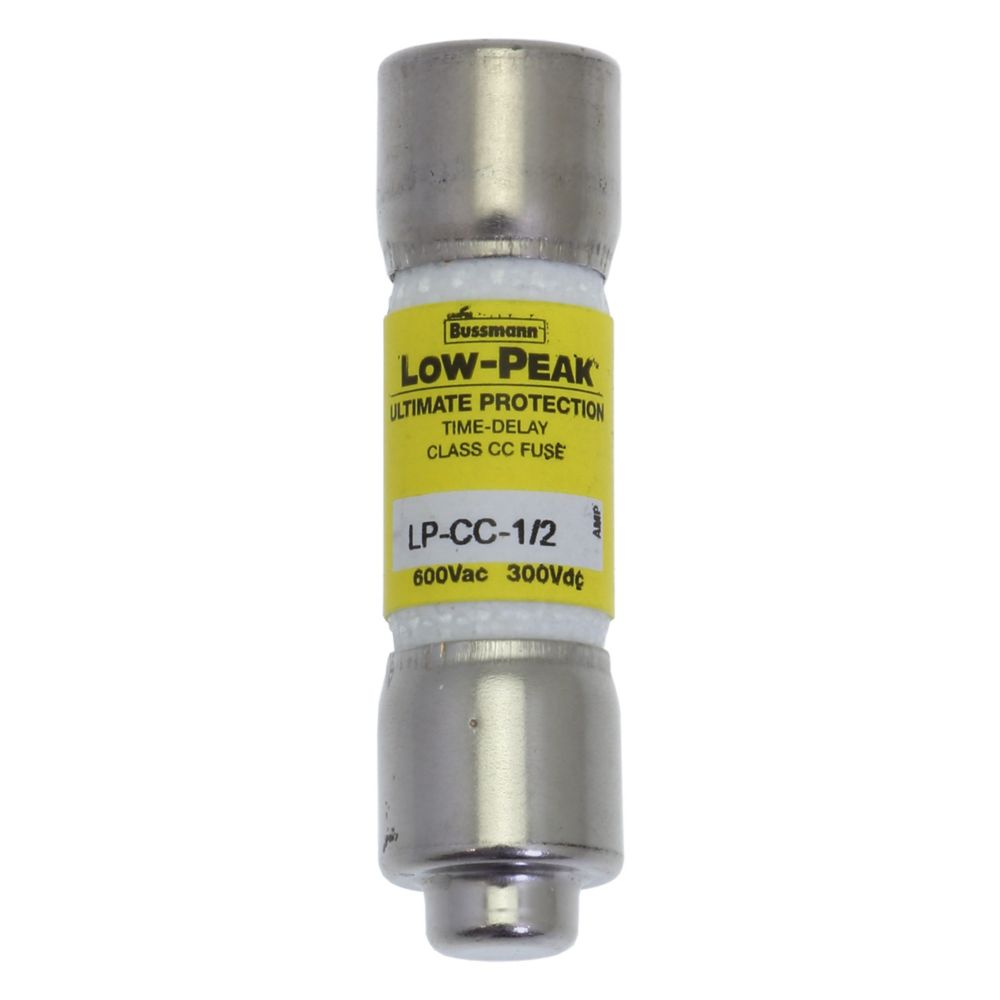

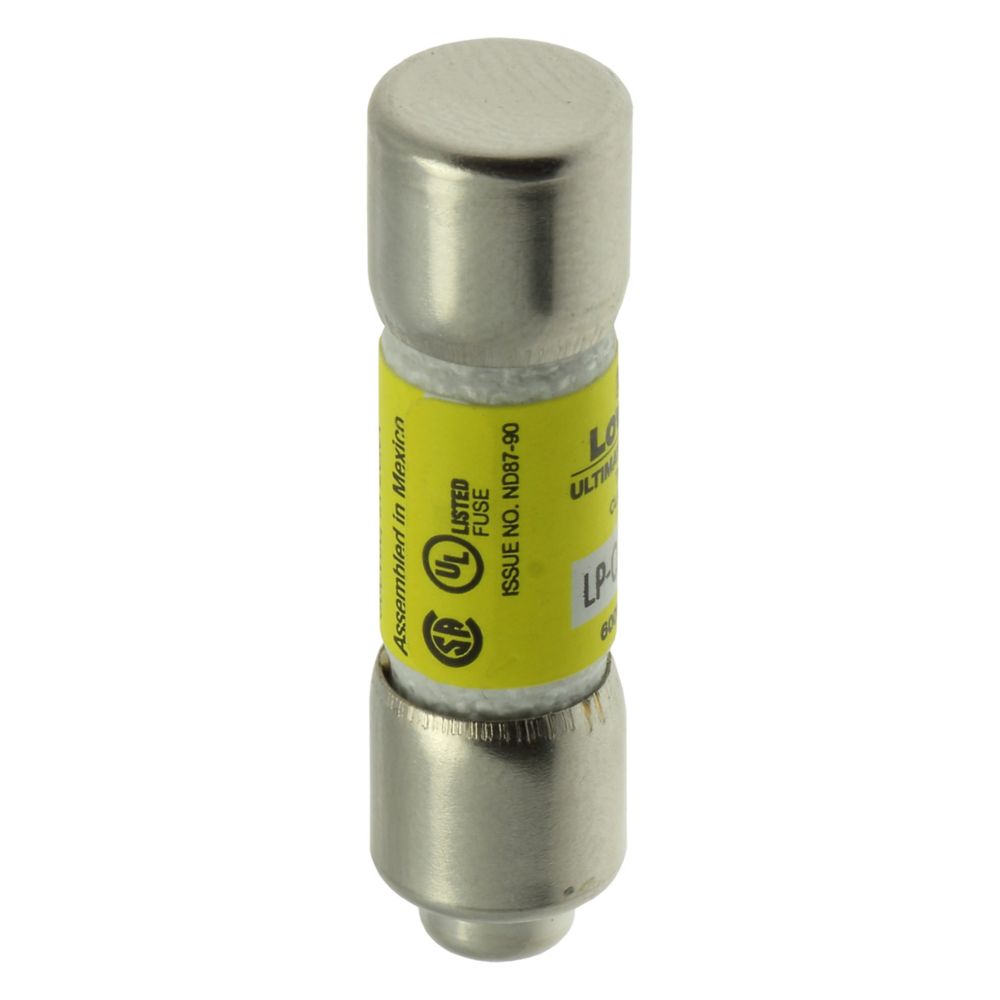

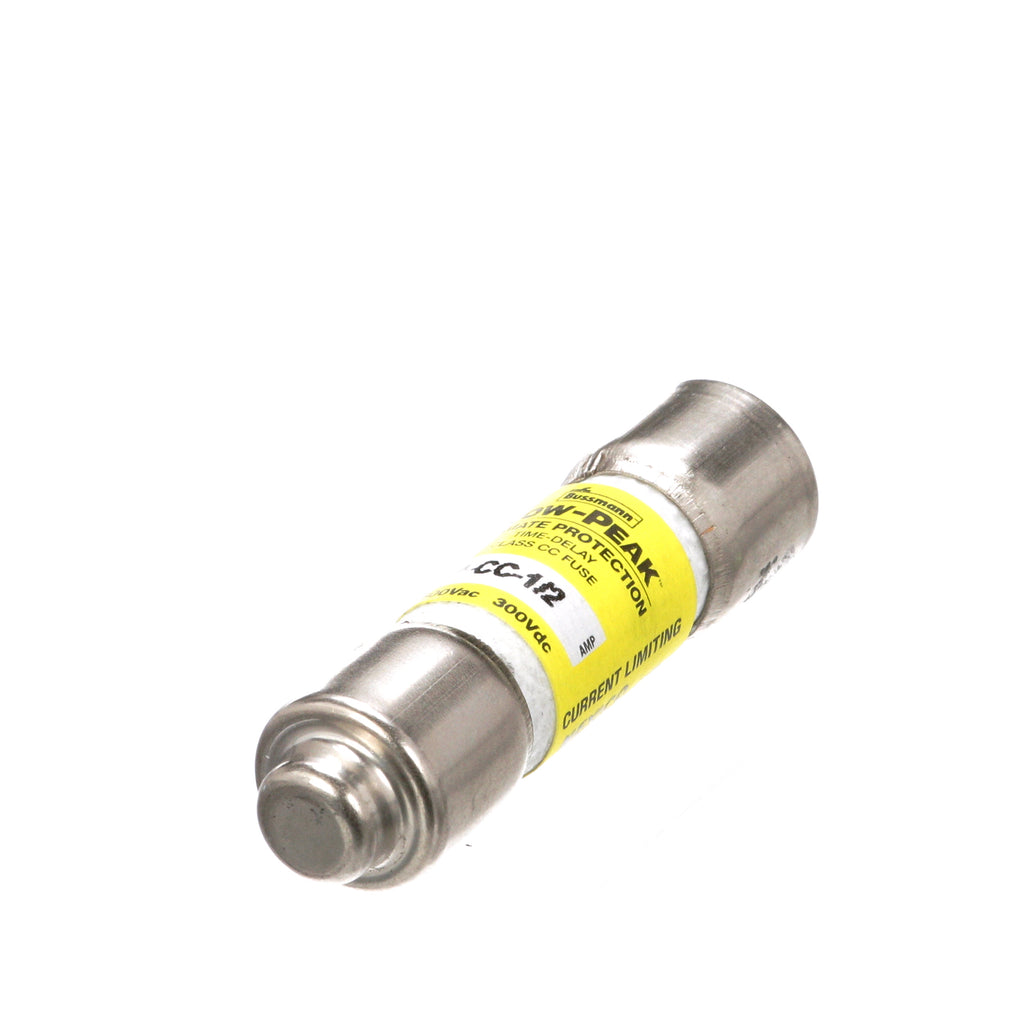

LP-CC-1/2 - Eaton Bussmann Series LP-CC 0.5A 600VAC/300VDC Class CC Current-Limiting Time-Delay Fuse, Ferrule End, Dual-Element, Non-Indicating, Rejection Style

LP-CC-1/2

LP-CC-1/2 is a current-limiting, time-delay, dual-element fuse from Eaton Bussmann Series LP-CC, designed for specialized circuits and industrial control applications.

This Class CC fuse features a compact, rejection-style design with ferrule end connections, offering fast short-circuit protection and time-delay performance to avoid nuisance tripping from surge currents. It provides superior current limitation to protect downstream components and is suitable for use where either time-delay or fast-acting protection is required.

Key Specifications
• Amperage: 0.5 A
• Voltage: 600 VAC, 300 VDC
• Poles: Single
• Mounting Type: Ferrule end x ferrule end
• Interrupt Rating: 200 kAIC at 600 VAC, 20 kAIC at 300 VDC
• Series/Frame: LP-CC
• Trip Unit: Dual-element, time-delay (12 seconds at 200% of rated current)
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Fuse Indicator: Non-indicating
• Body Material: Melamine
• Dimensions: 1.5 in x 0.41 in x 0.41 in
• Application: Specialized circuits, industrial control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LP-CC-1/2
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LP-CC
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 005171218040
• GTIN : 00051712180405
• Country of Origin : Mexico
• Dimensions : 0.41 in x 1.5 in x 0.41 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
