Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK600ID

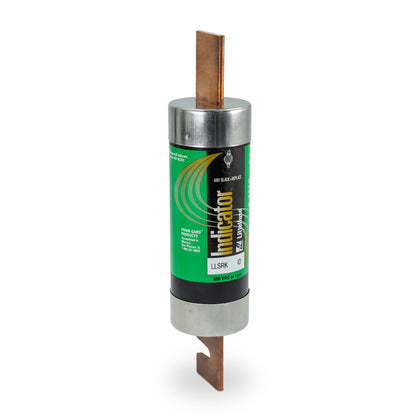

LLSRK600ID is a Littelfuse POWR-GARD Class RK1 time delay dual element fuse designed for industrial power protection applications. This fuse provides reliable circuit protection with high interrupting capacity and robust dual-element construction. The LLSRK600ID features a cartridge body with knife-blade mounting, making it suitable for use in general purpose circuits and motor starters. Its true dual-element design withstands repeated surges within the rated time delay, reducing unnecessary downtime caused by power surges or equipment demands. The fuse is rated for 600 amps and 600 volts AC, with a DC rating of 300 volts. It is UL Class RK1 listed and offers extremely current limiting performance.
- 600 Amps
- 600 Volts AC
- 300 Volts DC
- UL Class RK1
- Time Delay
- Dual Element
- Cartridge Body
- Knife-Blade Mounting
- Interrupting Rating: 200,000 AIC @ 600VAC
- Interrupting Rating: 20,000 AIC @ 300VDC
- Physical Size: 3 3/32" x 13 3/8"
- UL Listed
- CSA Certified
Specifications
- Part Number: LLSRK600ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK_ID
- Type : LLSRK_ID
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Connection : Clip
- Diameter : 0.56
- Class Rating : K5
- Barrels : 1
Product Data
- UPC : 079458060744
- GTIN : 00079458060744
- Weight : 3
