Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK400

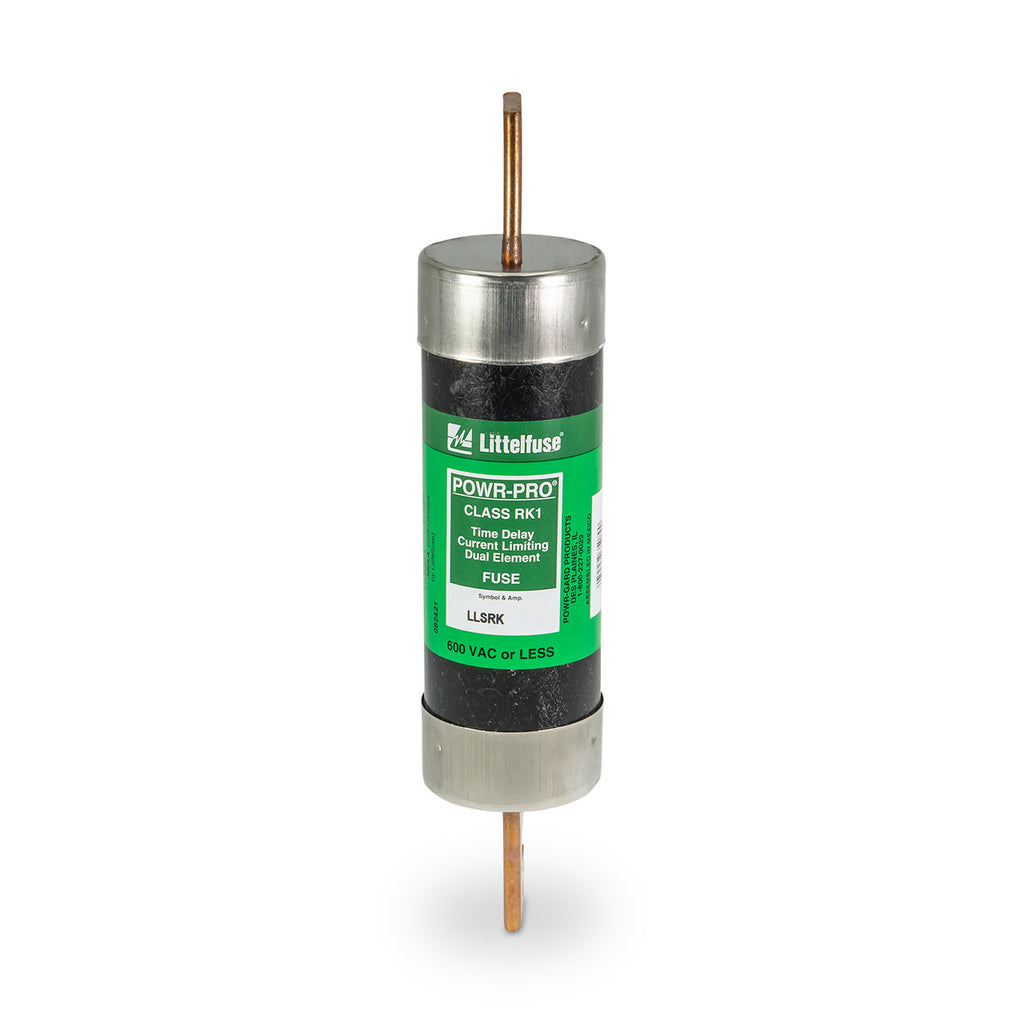

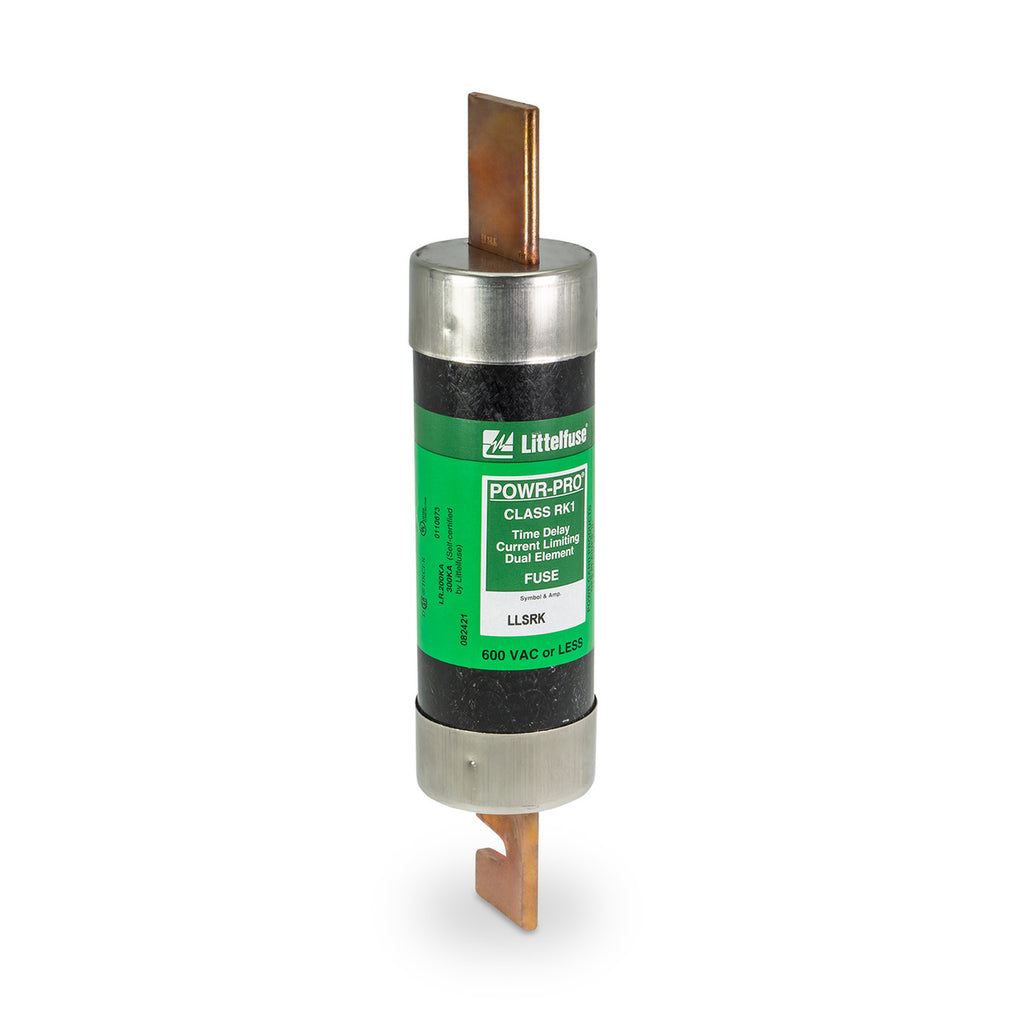

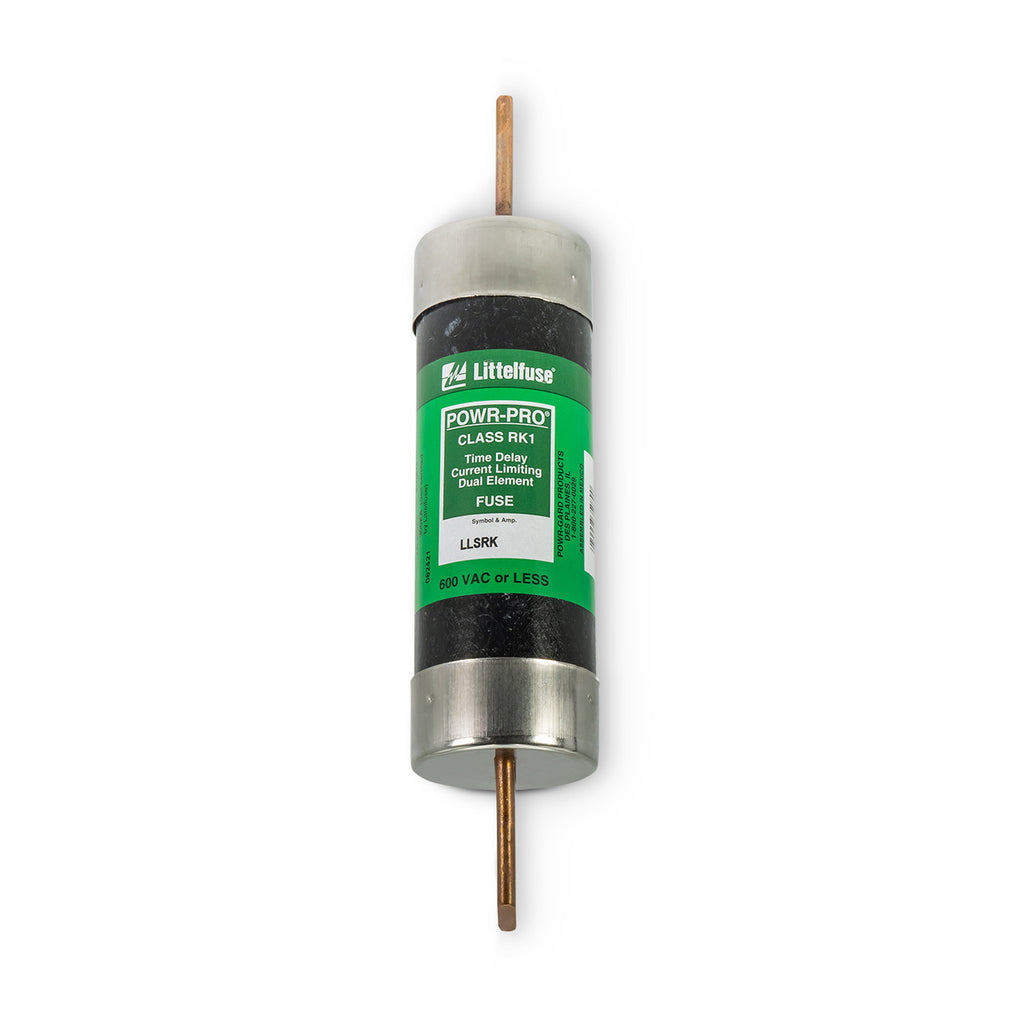

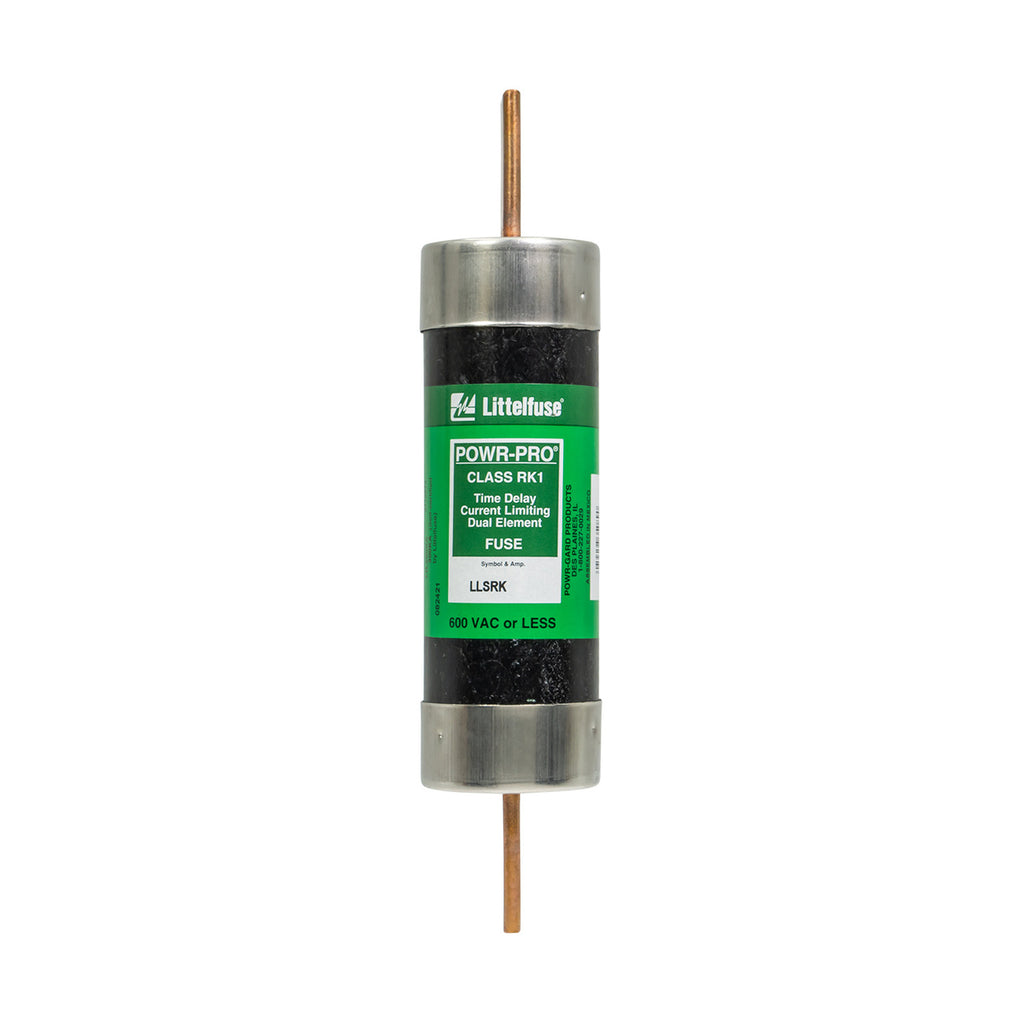

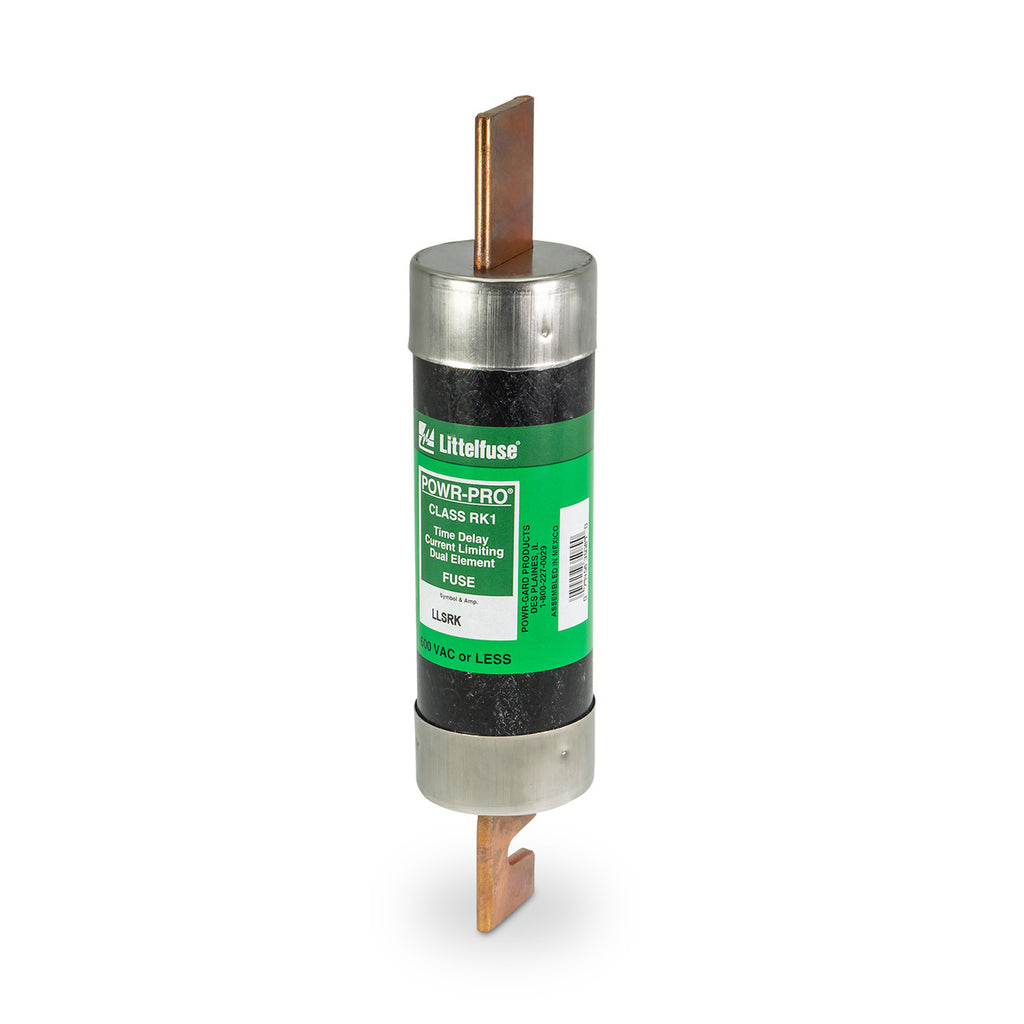

LLSRK400 is a 400 Amp, 600 Volt AC Class RK1 time delay fuse from Littelfuse designed for reliable overload and short circuit protection.LLSRK400 features a dual element, extremely current limiting design suitable for general purpose circuits and motor starters. It has a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, meeting UL and IEC standards. The fuse dimensions are approximately 2 19/32" x 11 5/8" and it is compatible with existing Class H fuse blocks for system upgrades.
- Key Specifications
- Amperage: 400 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK1
- Fuse Type: Time Delay (Slo-Blo)
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Dual Element Design
- Dimensions: 2 19/32" x 11 5/8"
- UL and CSA Certified
- IEC Type 2 Protection
- Extremely Current Limiting
- Compatible with Class H Fuse Blocks
Specifications
- Part Number: LLSRK400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK
- Type : LLSRK
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458350937
- GTIN : 00079458350937
- Country of Origin : Mexico
- Weight : 2
- Certification : Standard 248-12 UL Listed/CSA
