Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK350

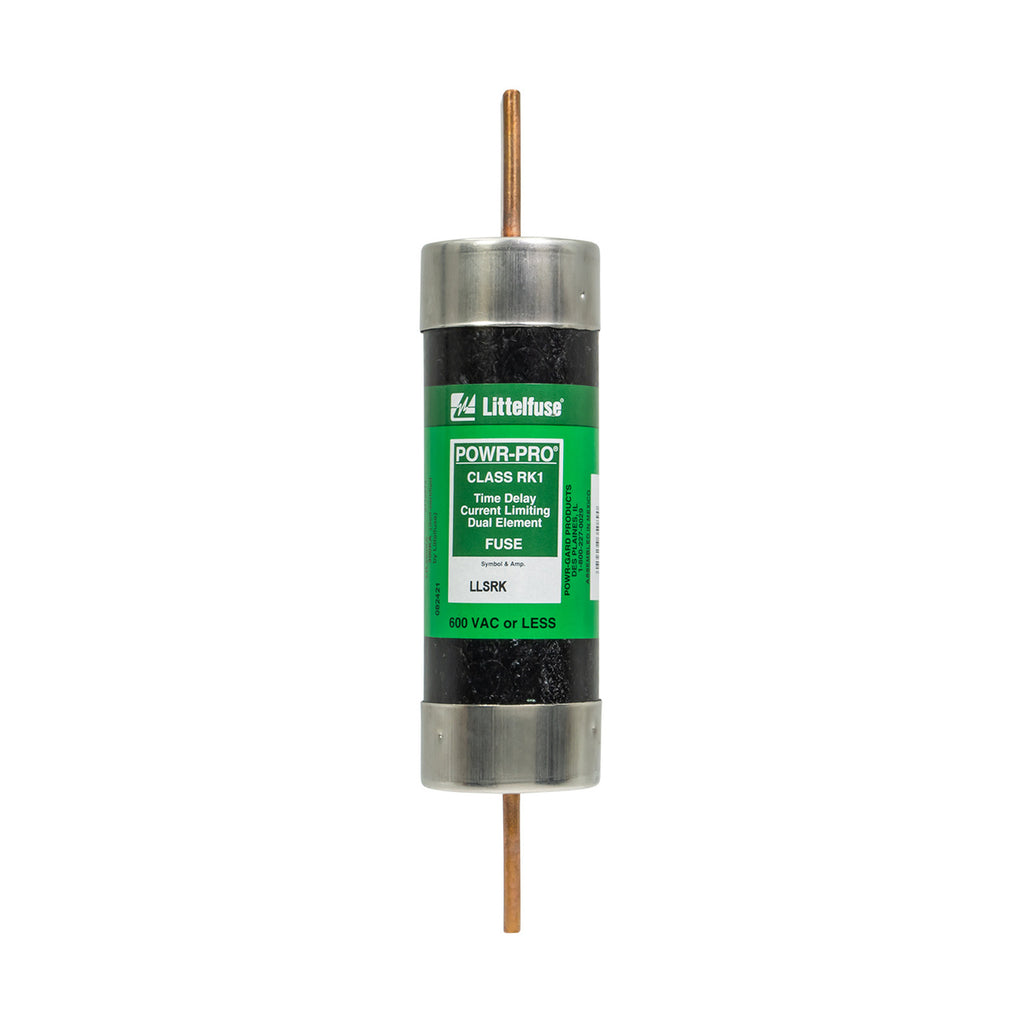

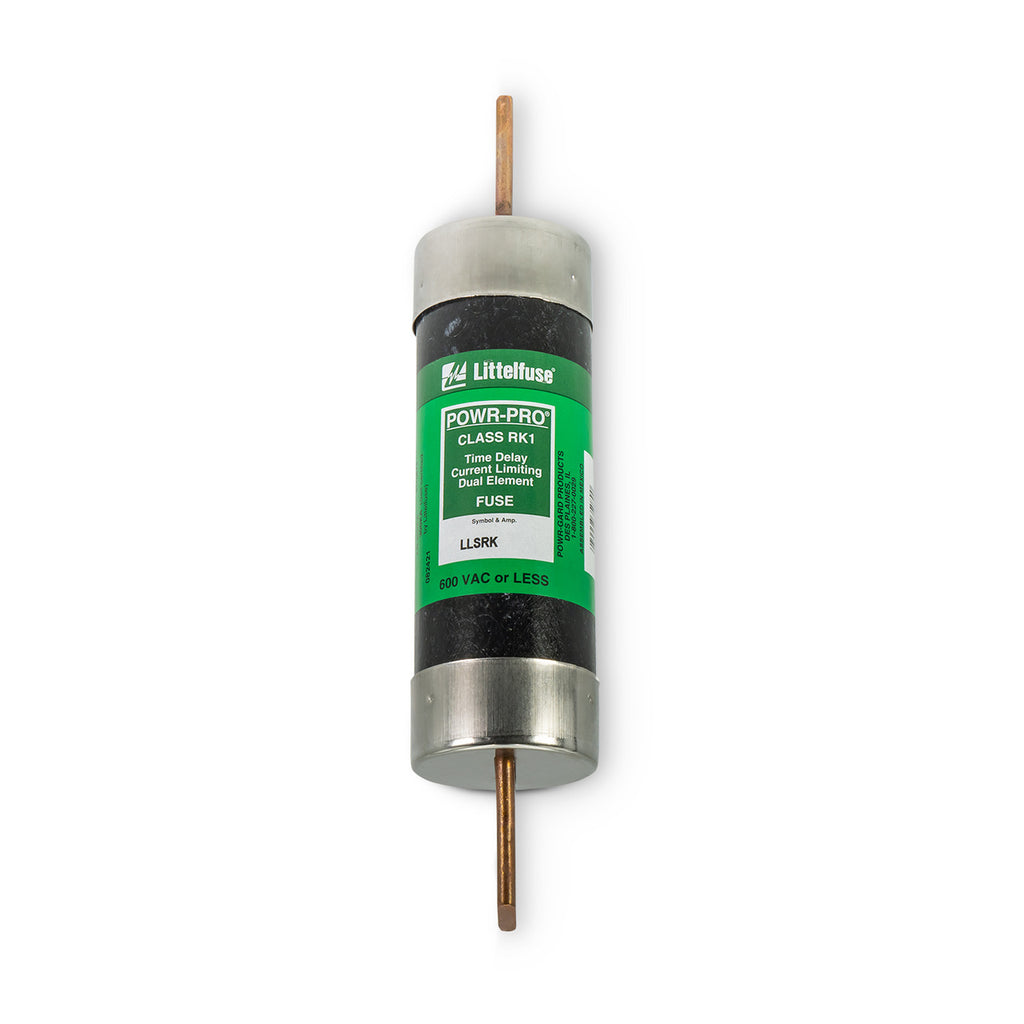

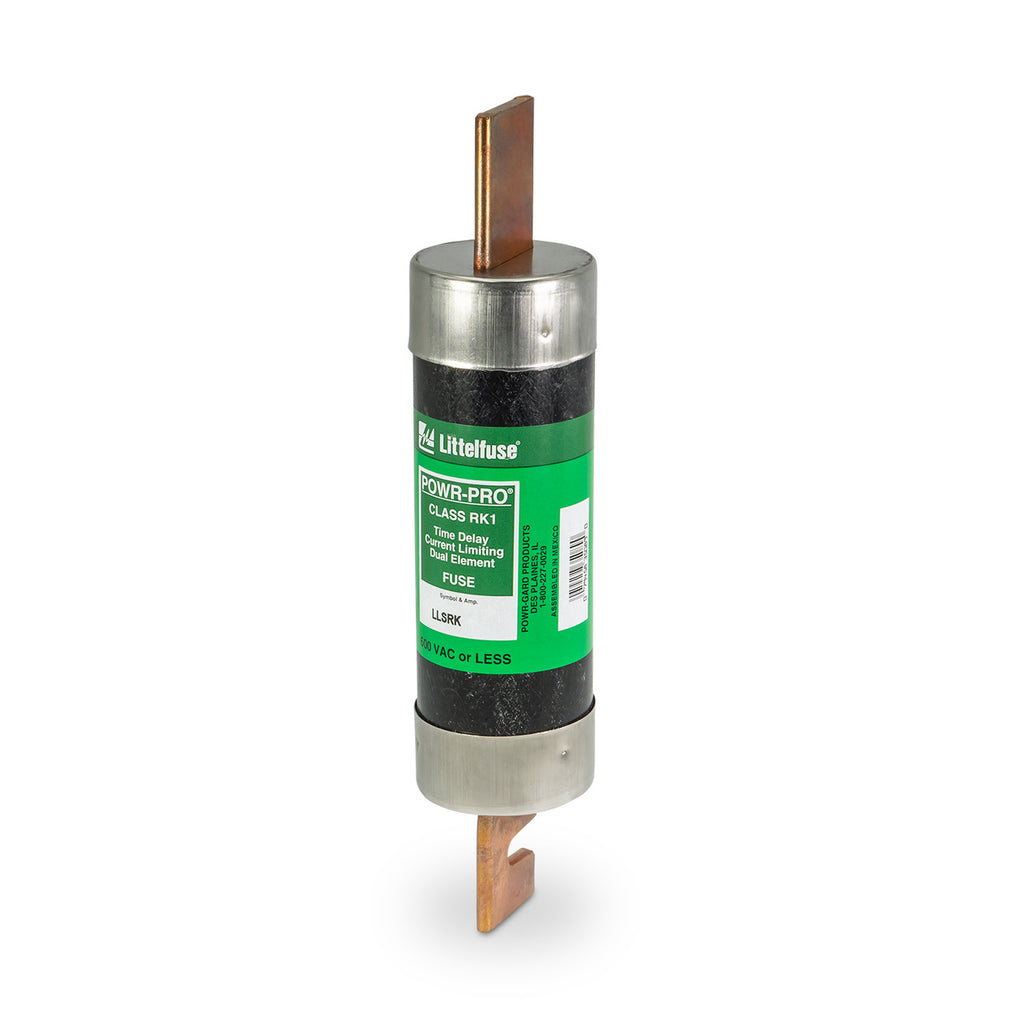

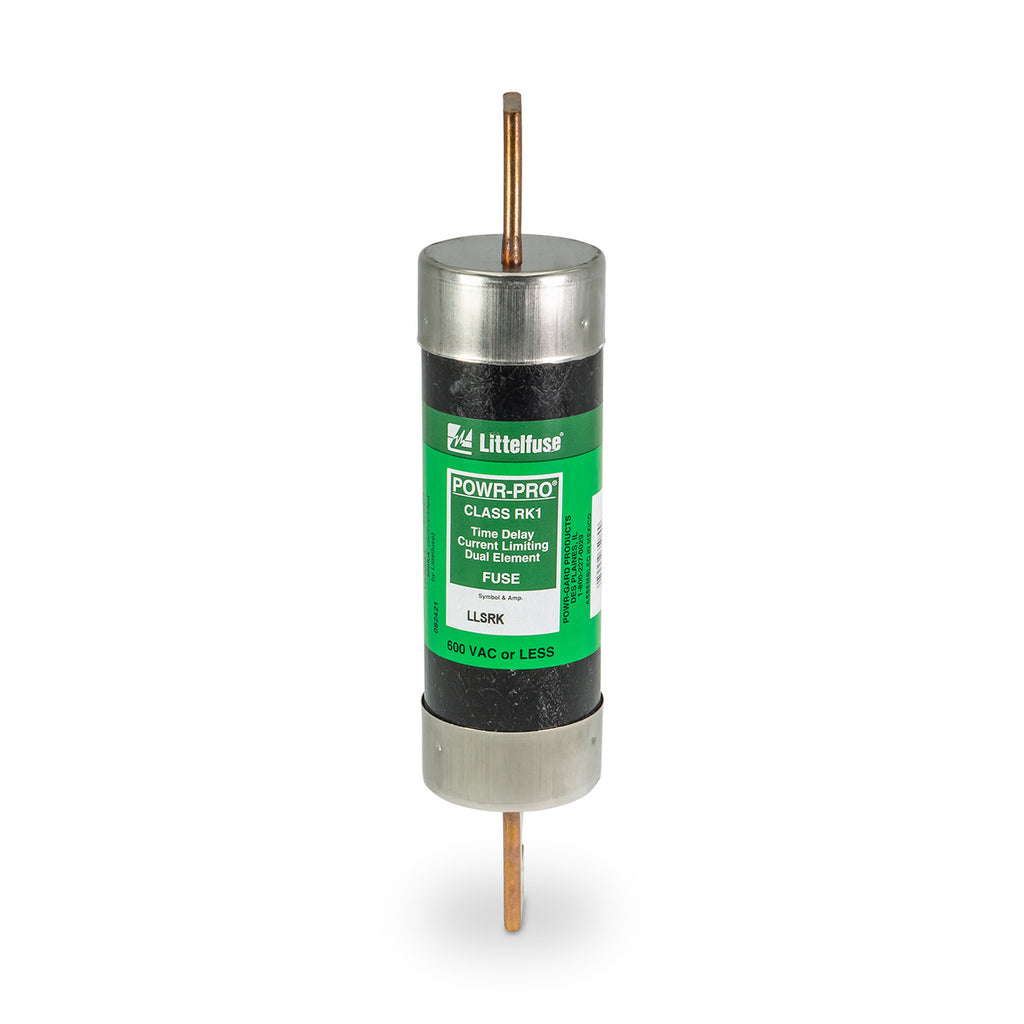

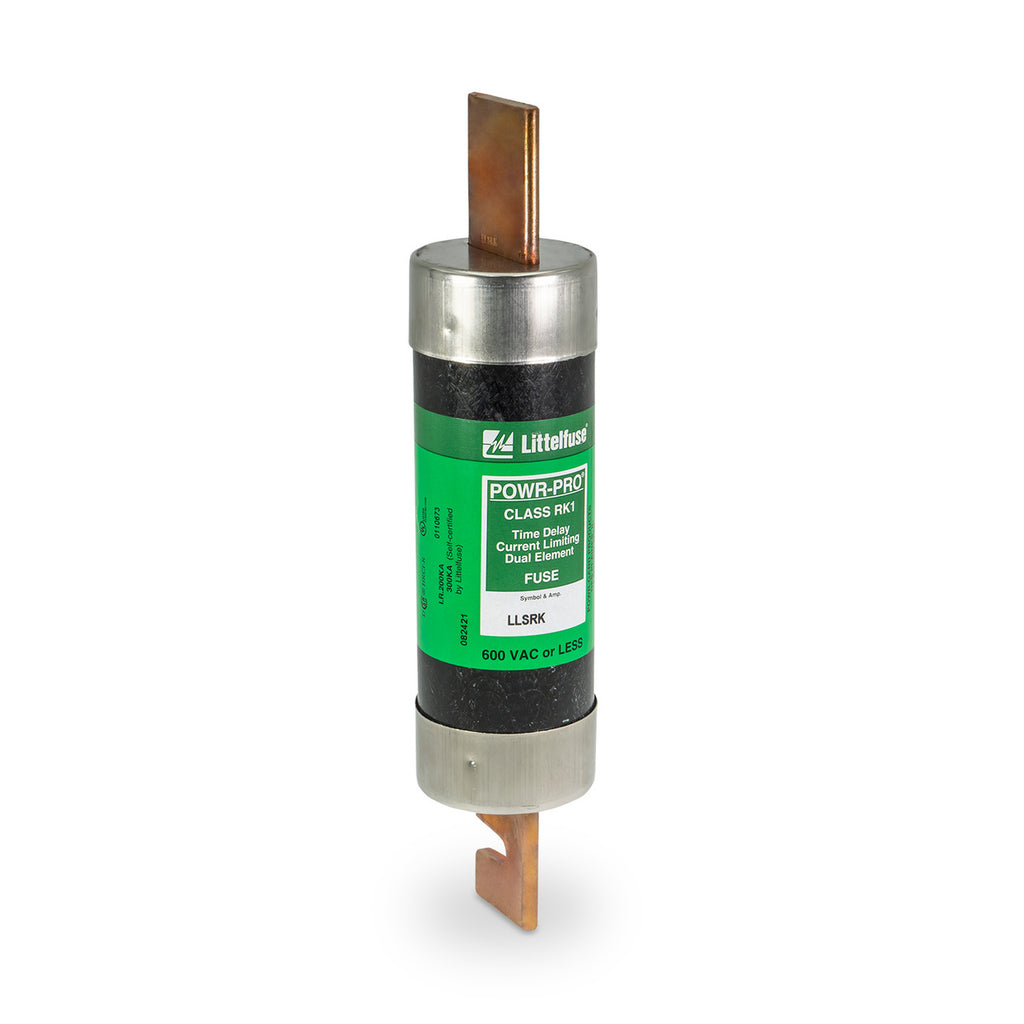

LLSRK350 is a Littelfuse 350 Amp, 600 Volt RK1 low voltage fuse designed for reliable circuit protection.This Class RK1 fuse features a time delay dual-element design, suitable for protecting electrical circuits with high inrush currents. It has a voltage rating of 600 VAC and 300 VDC, an interrupting rating of 300kAIC at 600 VAC, and a physical size of approximately 11-5/8 inches in length with a diameter near 2.6 inches. The fuse is UL 248-12, CSA, and CE certified, ensuring compliance with industry safety standards.
- Key Specifications
- Amperage: 350A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK1
- Time Delay Dual Element
- Interrupting Rating: 300kAIC at 600 VAC
- Physical Size: 11-5/8 inch length, 2.59 inch diameter
- Mounting Type: Cartridge (1 barrel)
- Certifications: UL 248-12, CSA, CE
- Series: LLSRK
- Part Number: LLSRK350
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK
- Type : LLSRK
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK1
- Barrels : 1
- UPC : 007945835092
- GTIN : 00079458350920
- Weight : 2
