Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK300ID

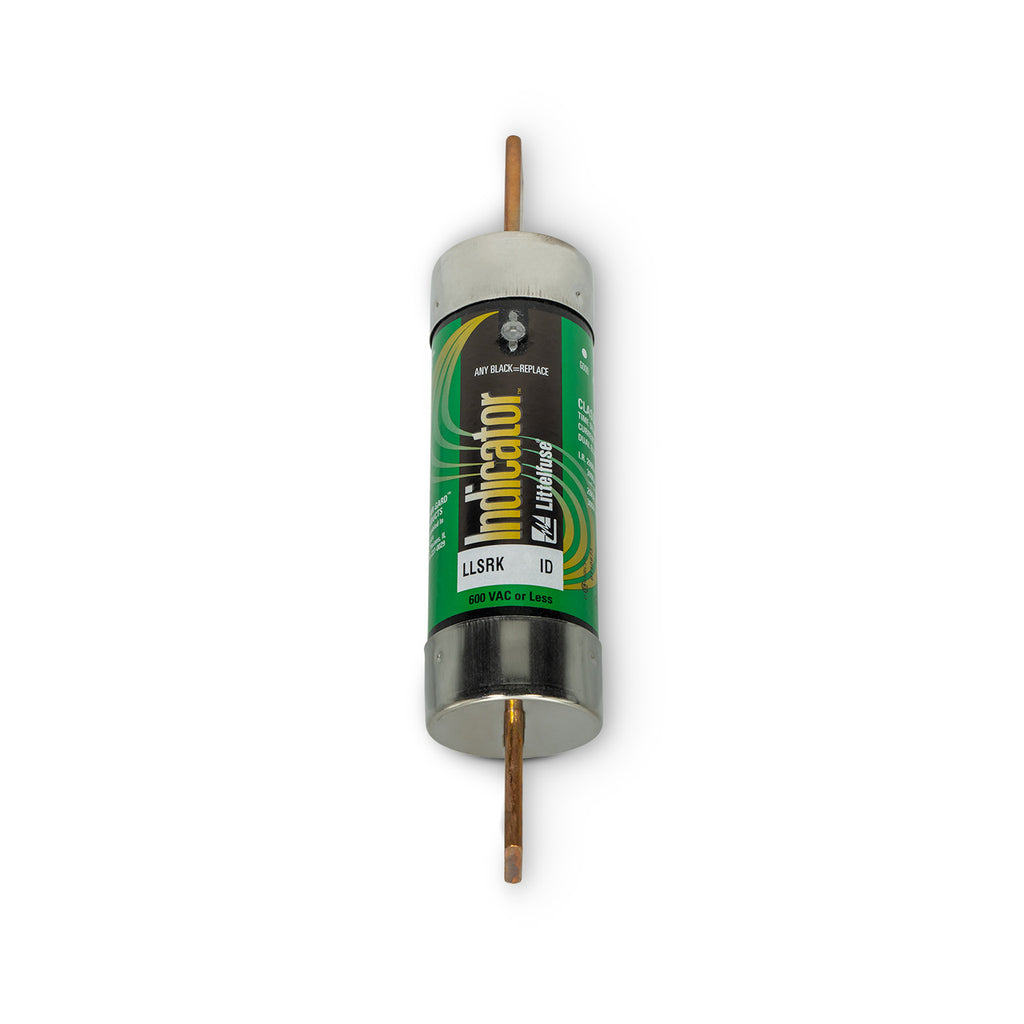

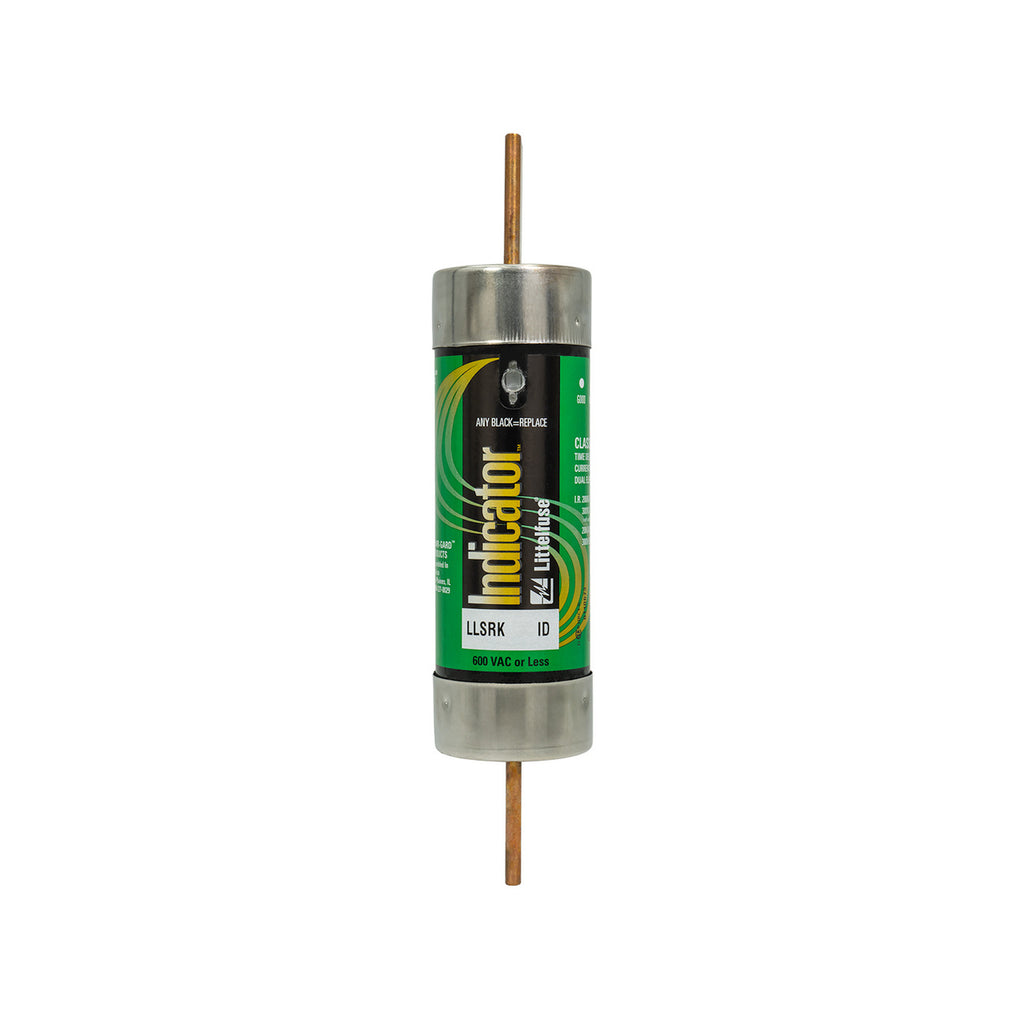

LLSRK300ID is a Littelfuse 300 amp, 600 volt AC / 300 volt DC RK1 Class time delay fuse designed for low voltage power protection.
This Littelfuse POWR-GARD LLSRK300ID fuse features a current limiting, dual-element design with a time delay response to protect electrical circuits from overloads and short circuits. It has a cartridge body measuring approximately 2-19/32 inches in diameter and 11-5/8 inches in length. The fuse is rated for 200 kA interrupting capacity at AC and 20 kA at DC, meeting UL 248-12, CSA, and CE certifications for safety and performance.
- Key Specifications
- Amperage: 300 A
- Voltage Rating: 600 V AC / 300 V DC
- Fuse Class: RK1
- Fuse Type: Time Delay, Dual Element
- Interrupt Rating: 200 kA AC / 20 kA DC
- Dimensions: 2-19/32 inch diameter x 11-5/8 inch length
- Mounting Type: Cartridge
- Certifications: UL 248-12, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LLSRK300ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK_ID
- Type : LLSRK_ID
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458060690
- GTIN : 00079458060690
- Weight : 2
