Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK250ID

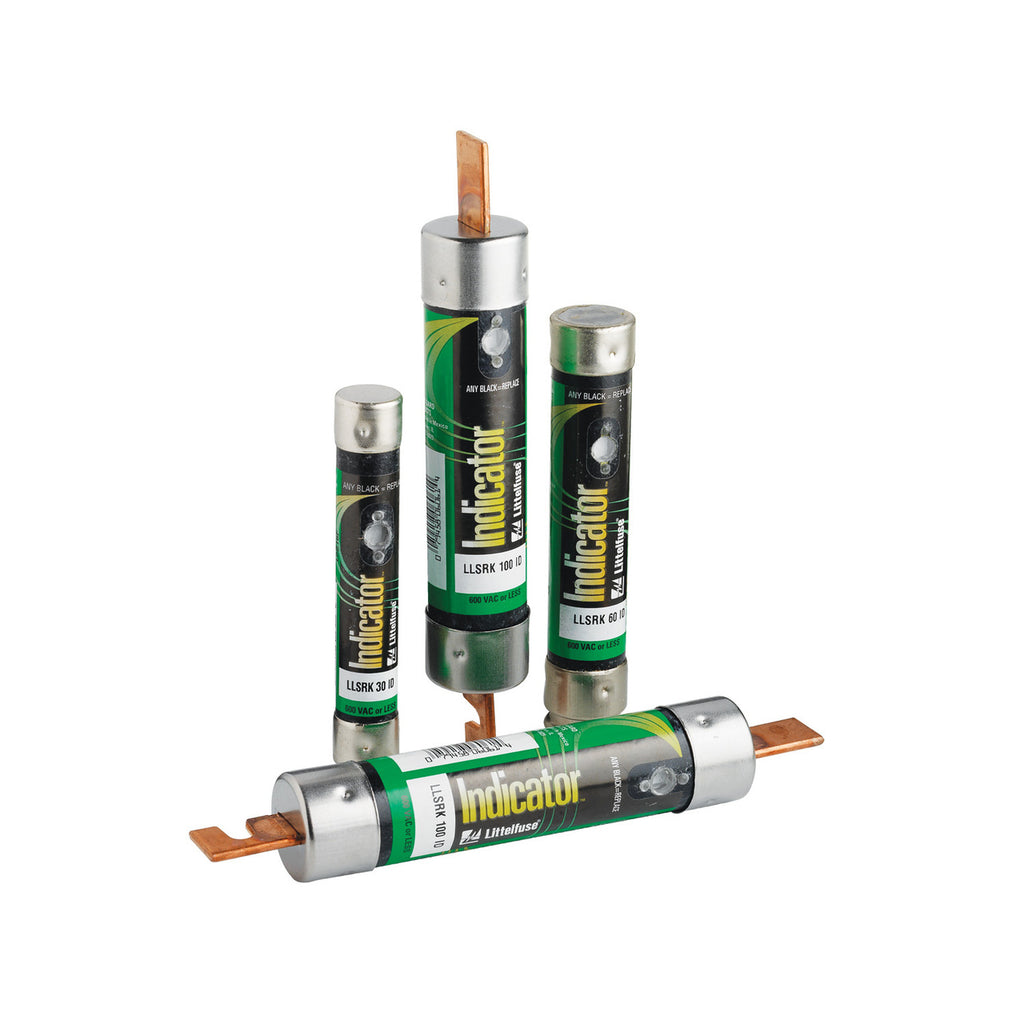

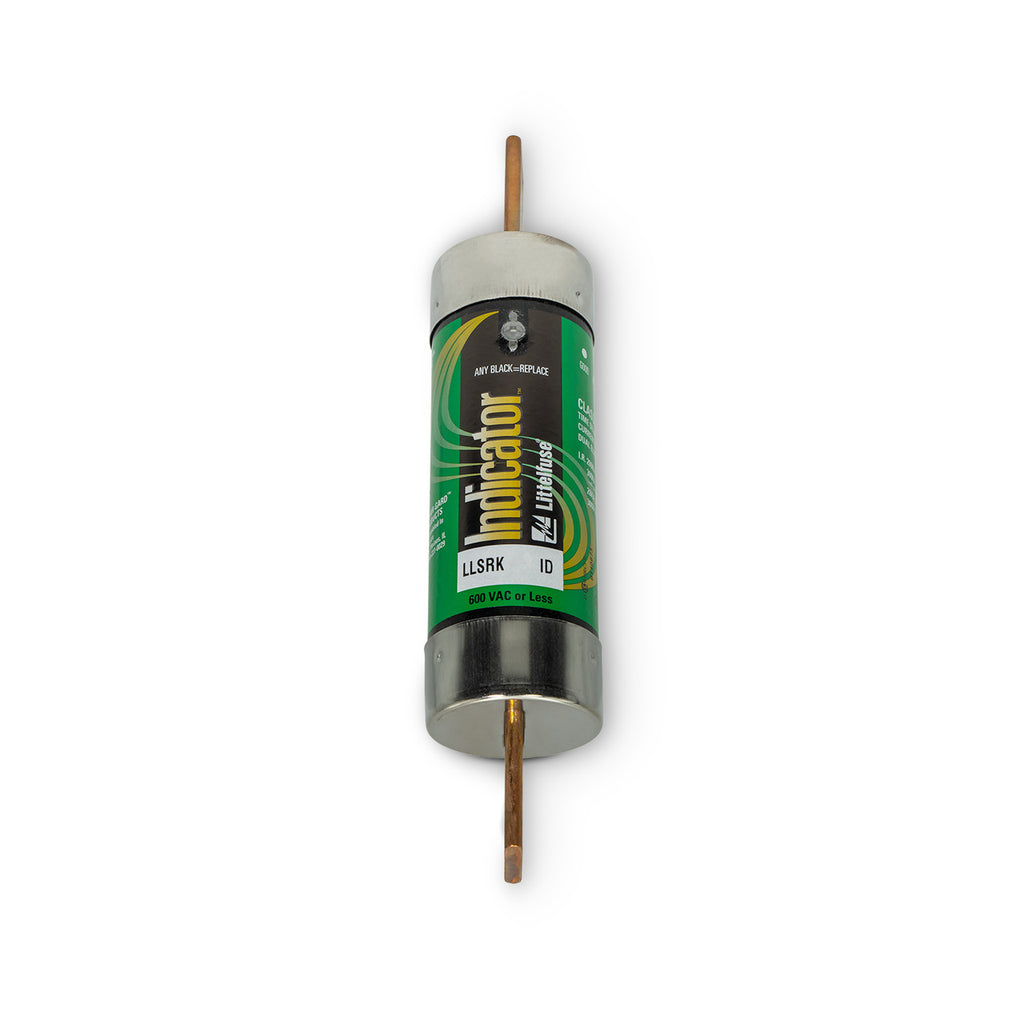

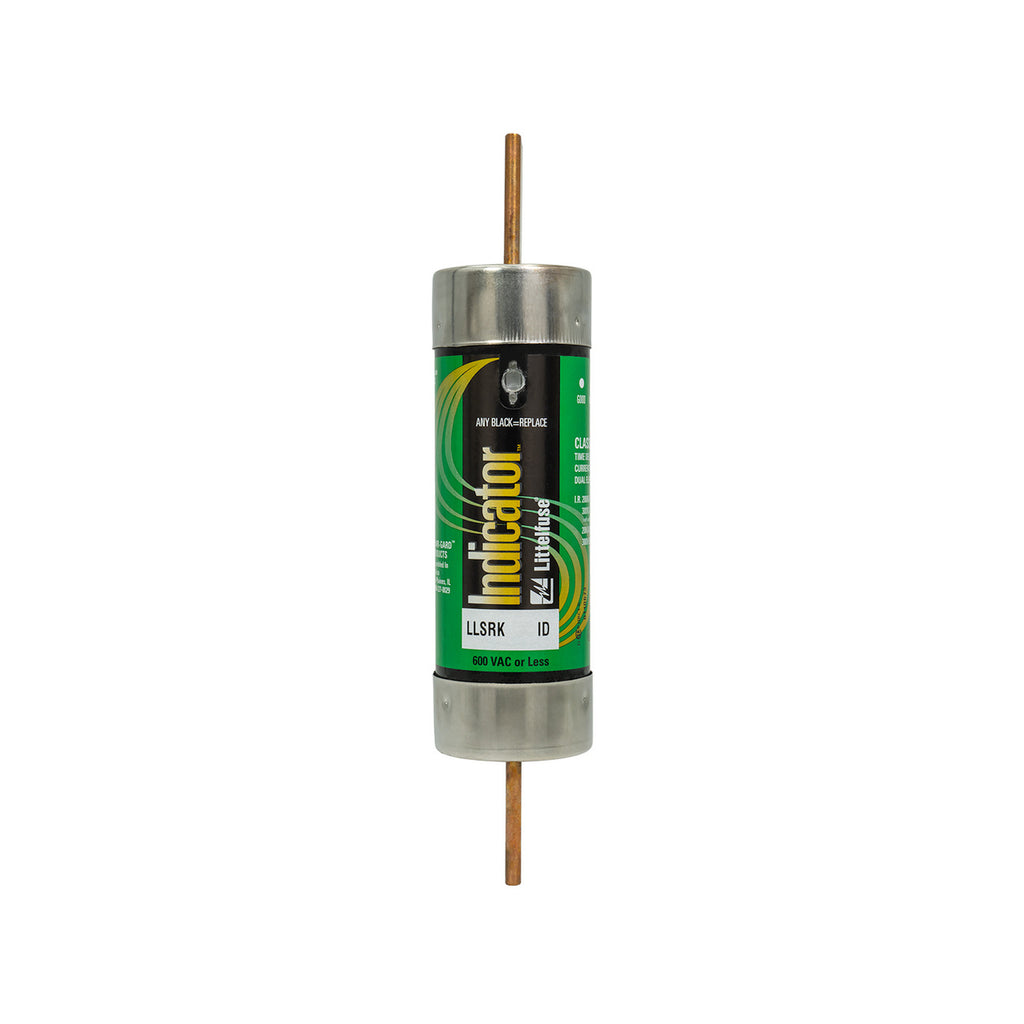

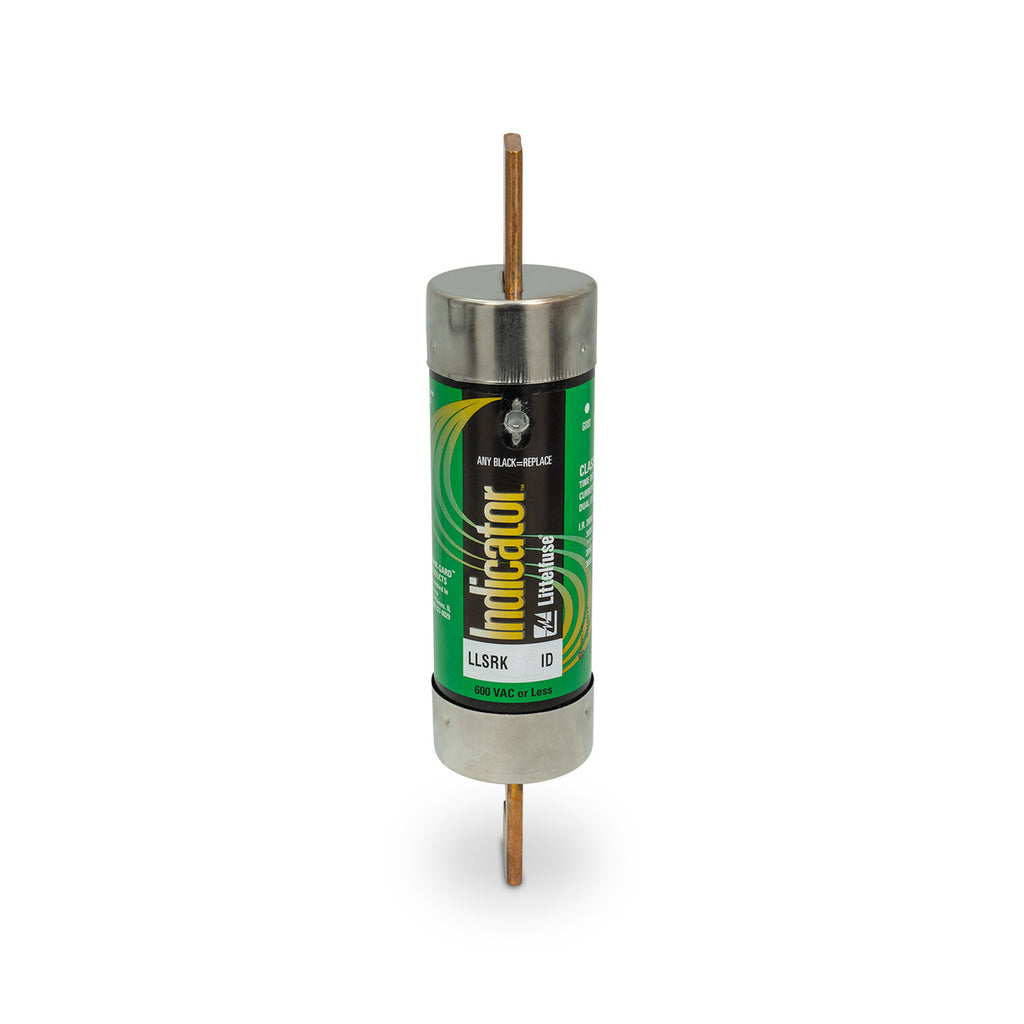

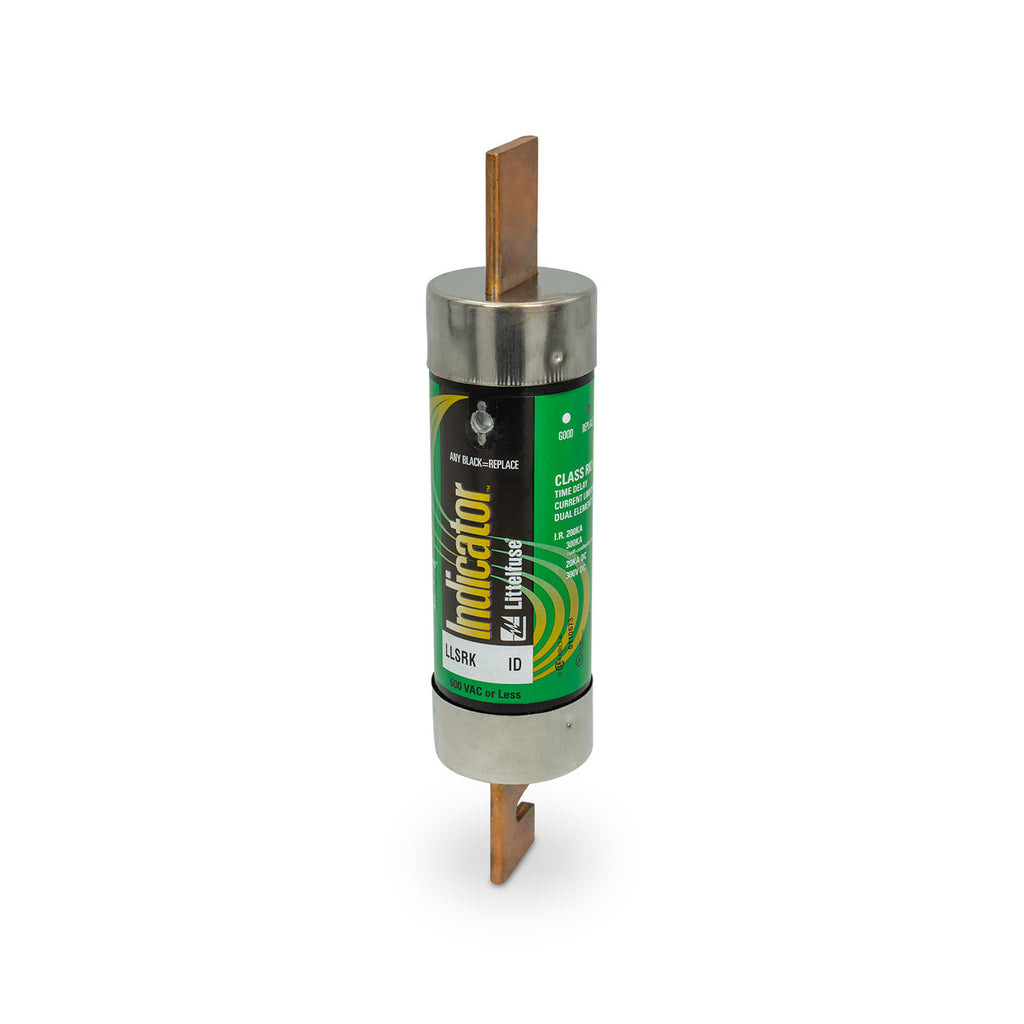

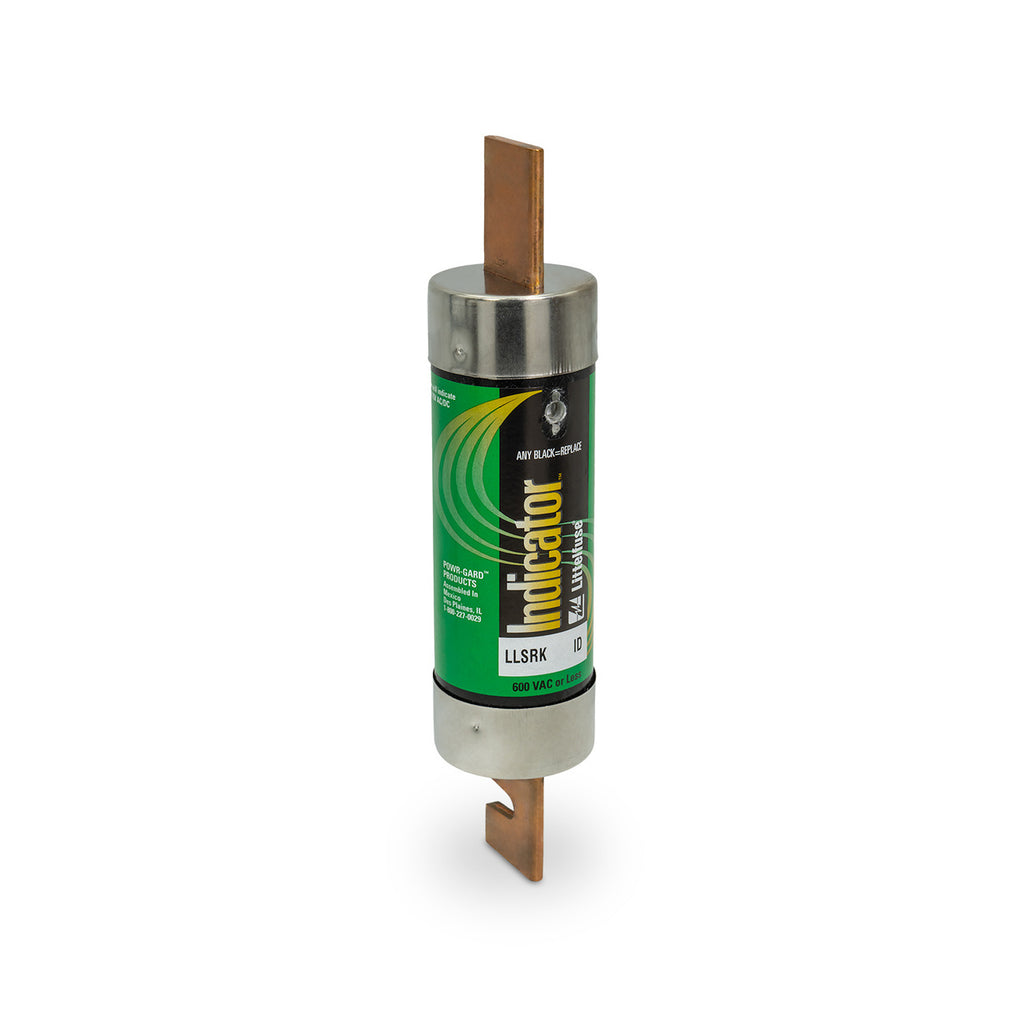

LLSRK250ID is a Class RK1 industrial power fuse designed for reliable overcurrent protection in power distribution systems. This dual-element, time-delay fuse combines robust construction with current-limiting performance to protect equipment from electrical faults while withstanding repeated surges without unnecessary nuisance trips. The fuse features a blown fuse indicator for easy identification of blown elements and is constructed with granular quartz filling, precision-formed short circuit elements, and elastomeric silicone overload sections for superior reliability. Key Specifications
- Current Rating: 250 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Class RK1, Dual Element, Time Delay
- Interrupting Rating: 300 kA rms symmetrical (AC)
- Interrupting Rating: 20 kA (DC)
- Physical Dimensions: 2 19/32 inch diameter x 11 5/8 inch length
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), UL 248-12, QPL-WF-1814, CE Approved
- Construction: Fiberglass reinforced pultruded body with plated end caps
- Indicator: Blown fuse indicator assembly included
Specifications
- Part Number: LLSRK250ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK_ID
- Type : LLSRK_ID
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458060683
- GTIN : 00079458060683
- Weight : 2
