Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

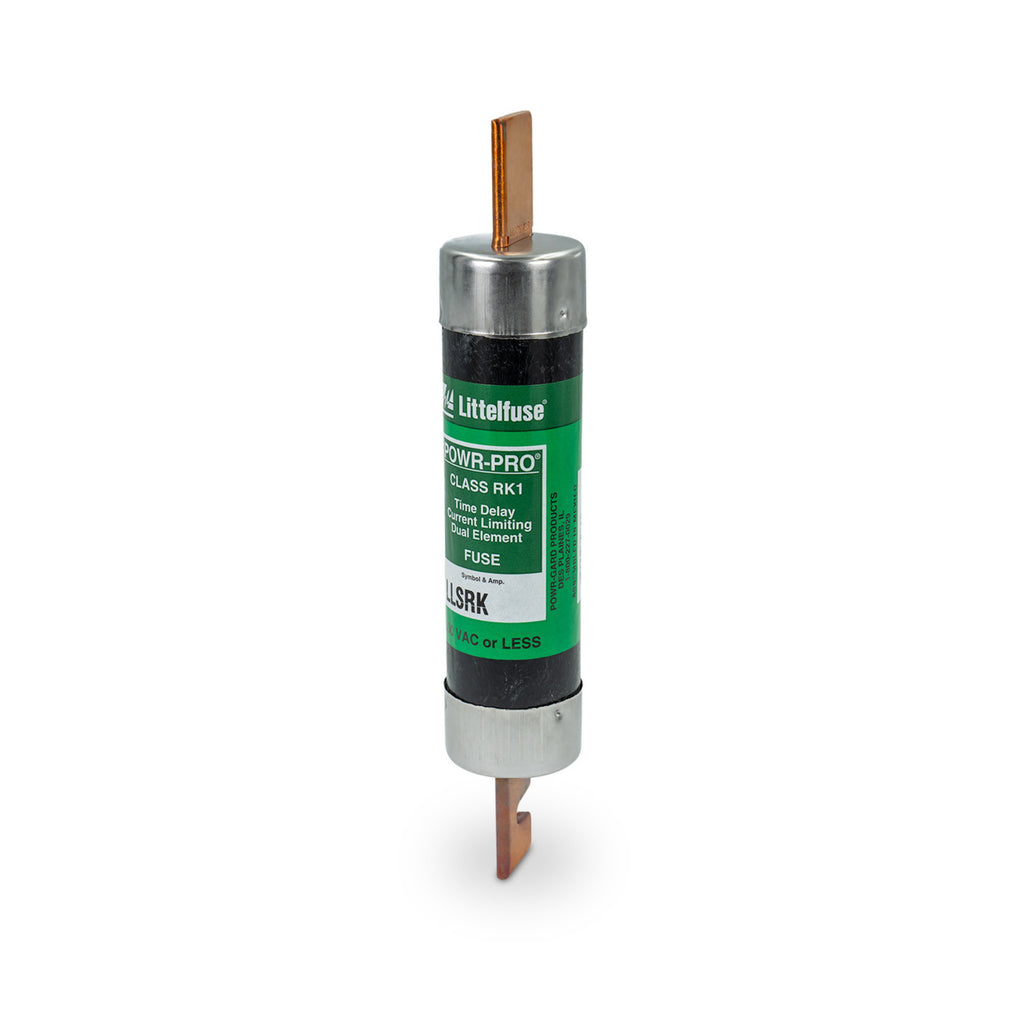

LLSRK200

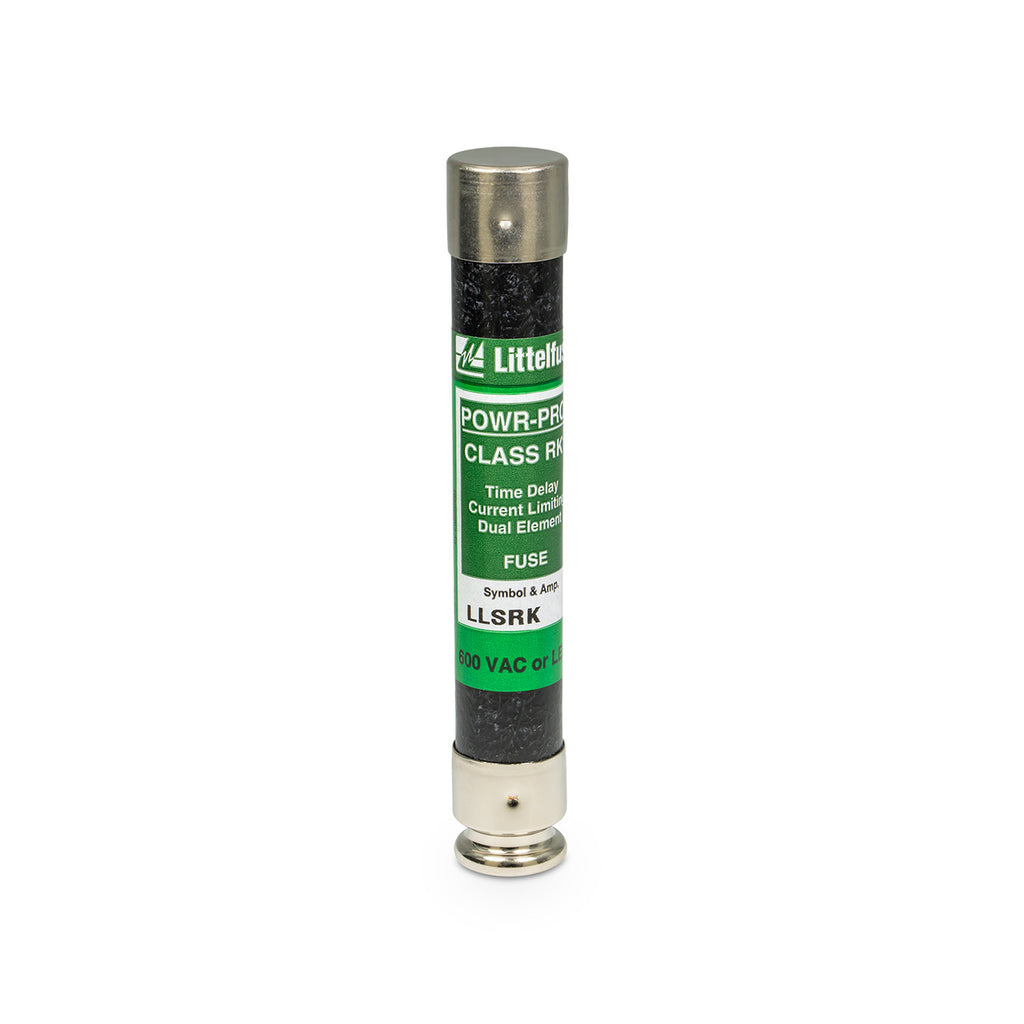

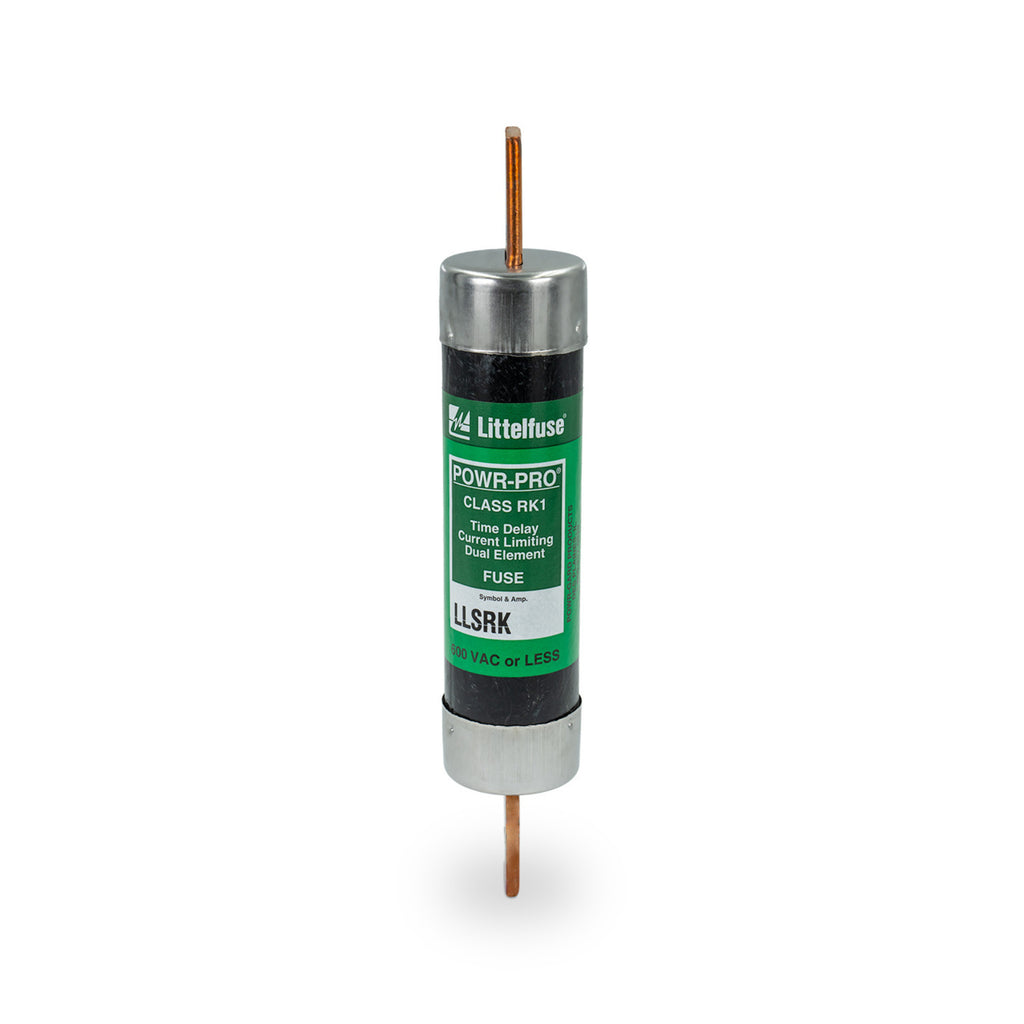

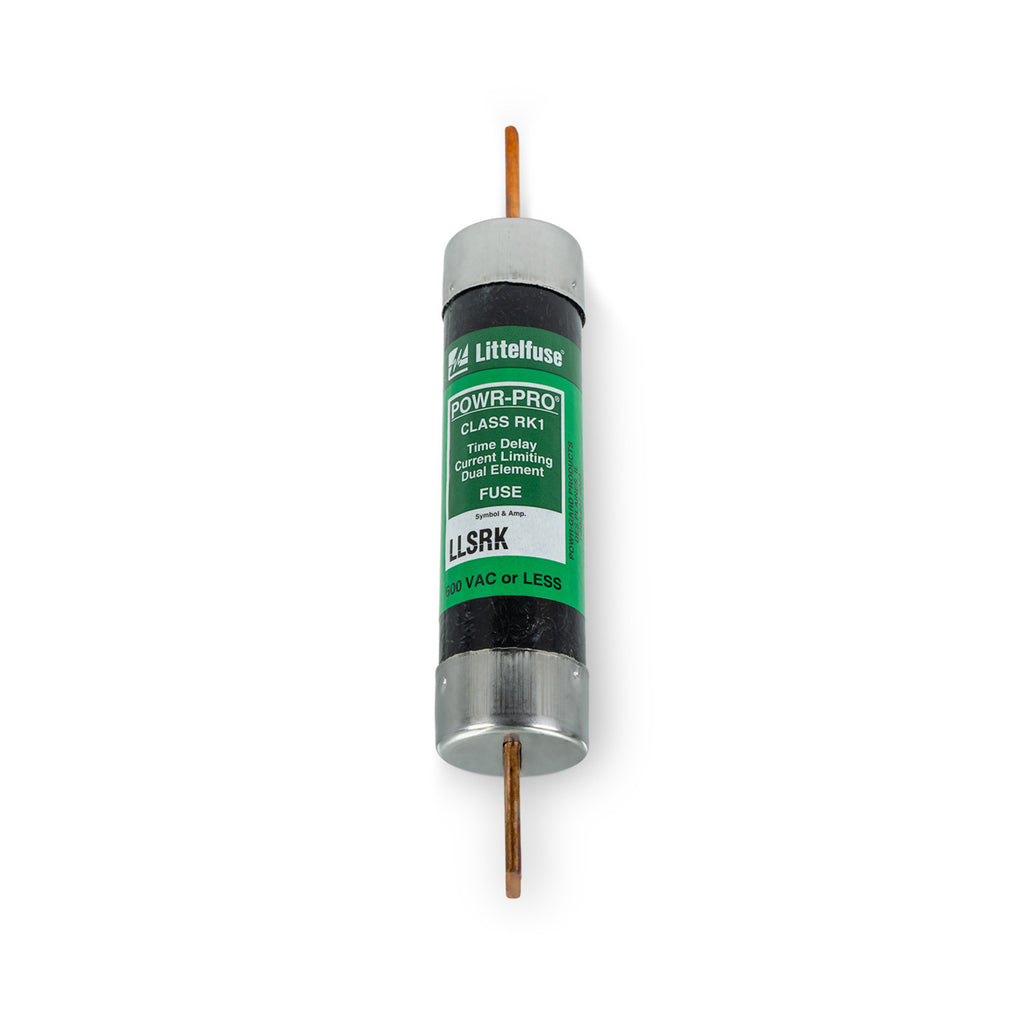

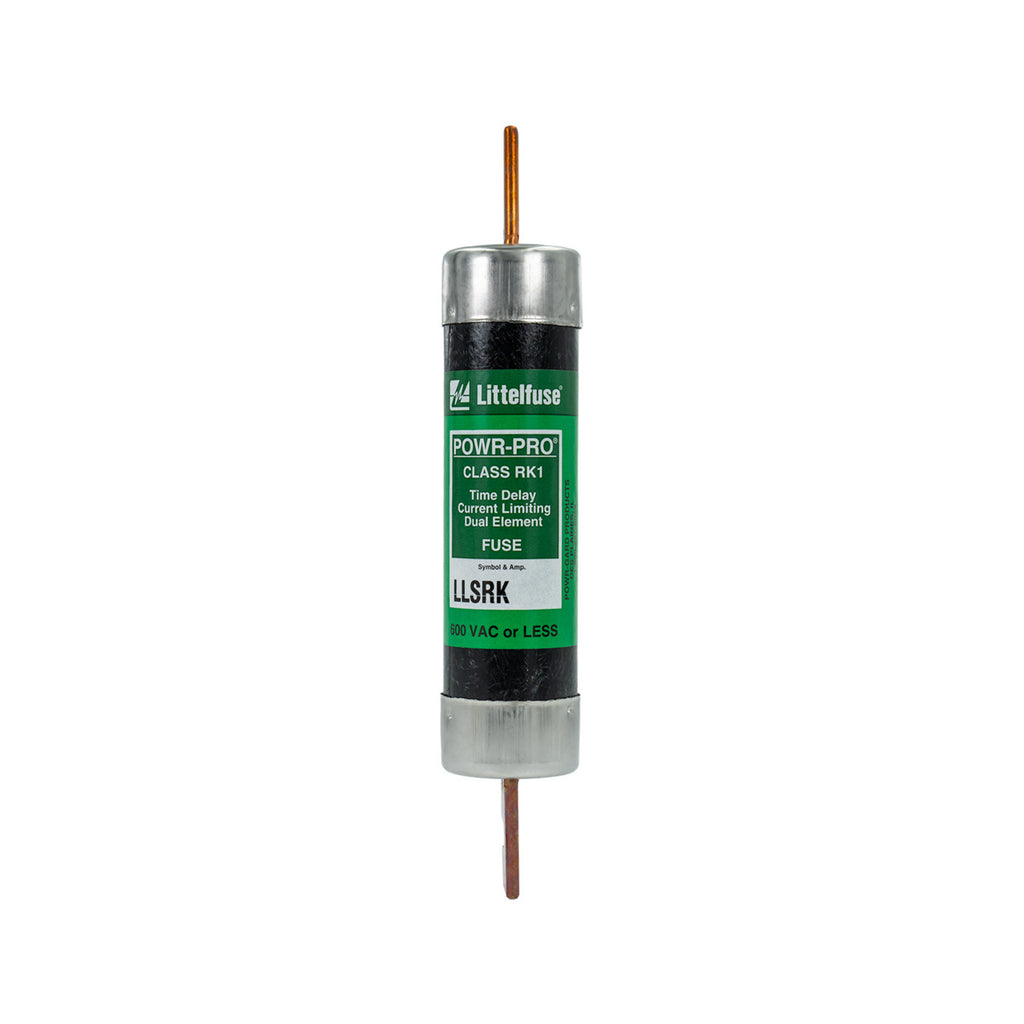

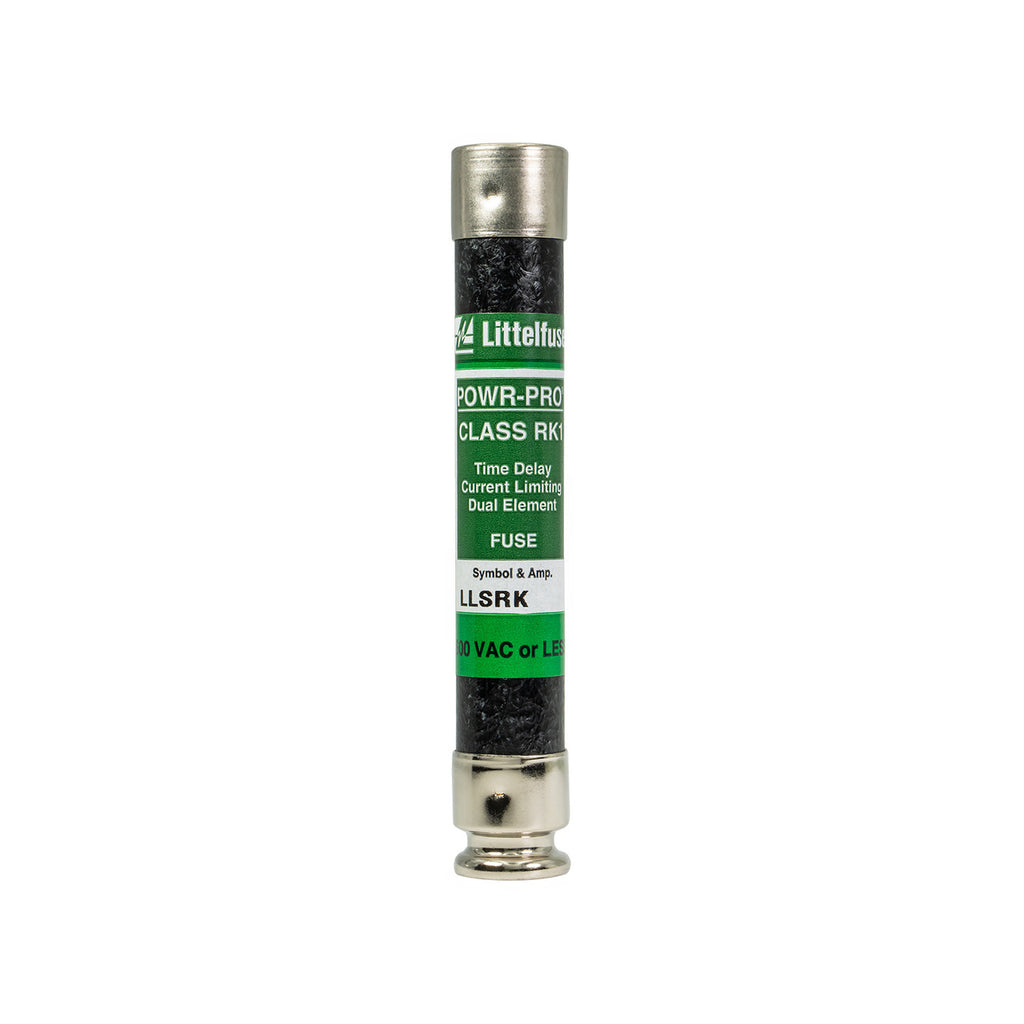

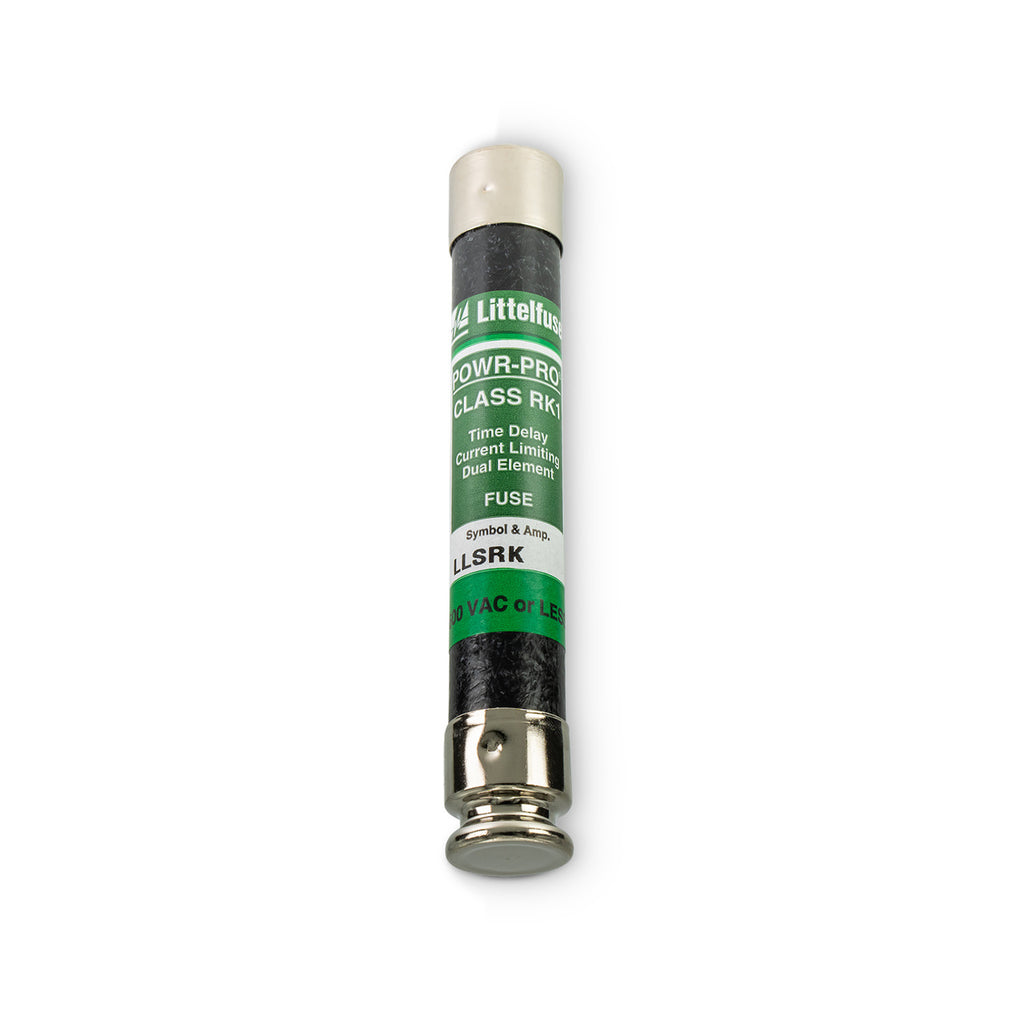

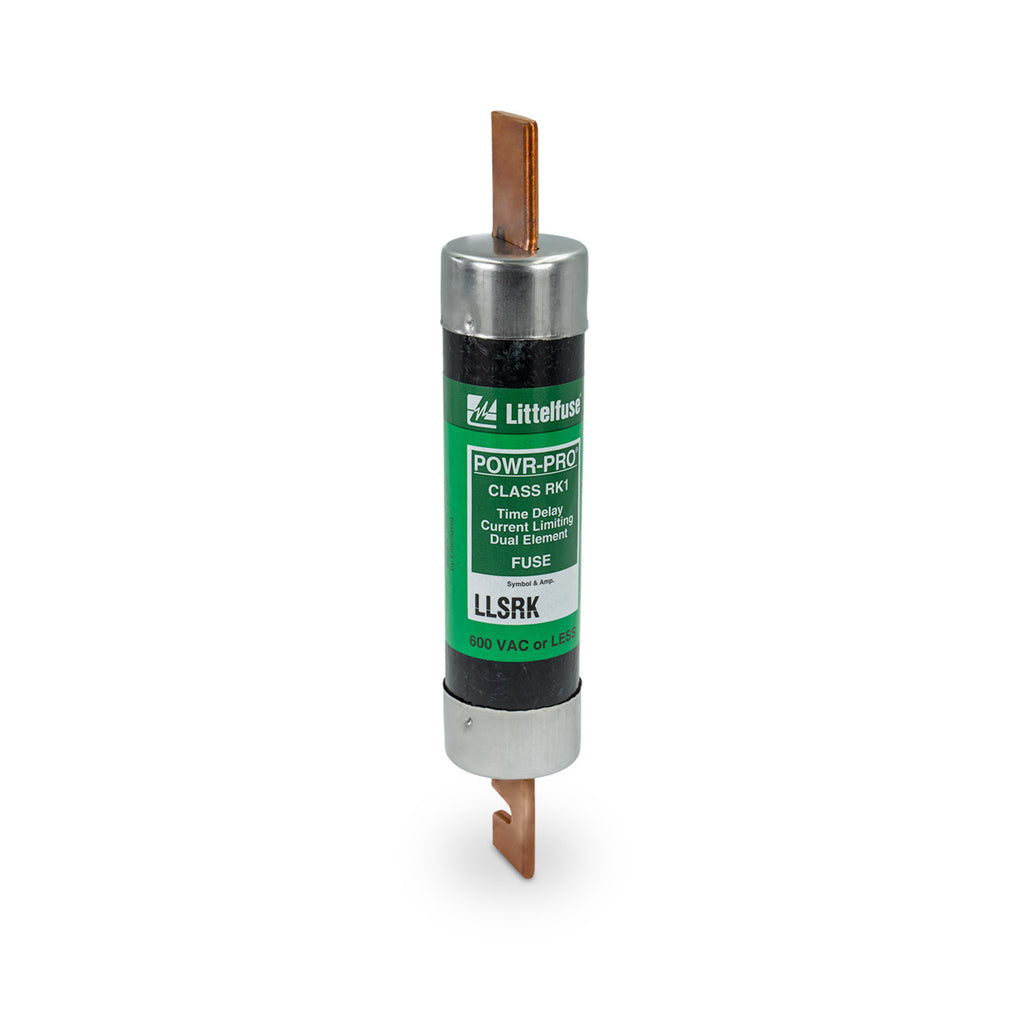

LLSRK200 is a Littelfuse Class RK1 time delay fuse rated for 200 amps and 600 volts AC, designed for reliable overload and short circuit protection.This fuse features a dual-element, current-limiting design with a slow-blow/time delay opening characteristic, suitable for service entrance, main, feeder, and general-purpose branch circuits. It has a 20 kA interrupting rating at 300 VDC and 200 kA symmetrical interrupt rating at 600 VAC. The fuse is compatible with fuse blocks, clips, or holders and is part of the Powr-Pro series, providing excellent protection for motors, transformers, and circuits with high inrush currents.
- Key Specifications
- Current Rating: 200 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK1
- Interrupting Rating: 20 kA @ 300 VDC, 200 kA Symmetrical @ 600 VAC
- Opening Type: Slow-Blow / Time Delay
- Mounting Method: Fuse Block / Clip / Holder
- Fuse Style: Powr-Pro Dual Element
- Size: Knife-Blade
- UL and CSA Certified
- Extremely Current Limiting
- Thermally Reversible Spring-Loaded Thermal Overload Element
Specifications
- Part Number: LLSRK200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK
- Type : LLSRK
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458350883
- GTIN : 00079458350883
- Country of Origin : Mexico
- Weight : 1
- Certification : Standard 248-12 UL Listed/CSA
