Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK110

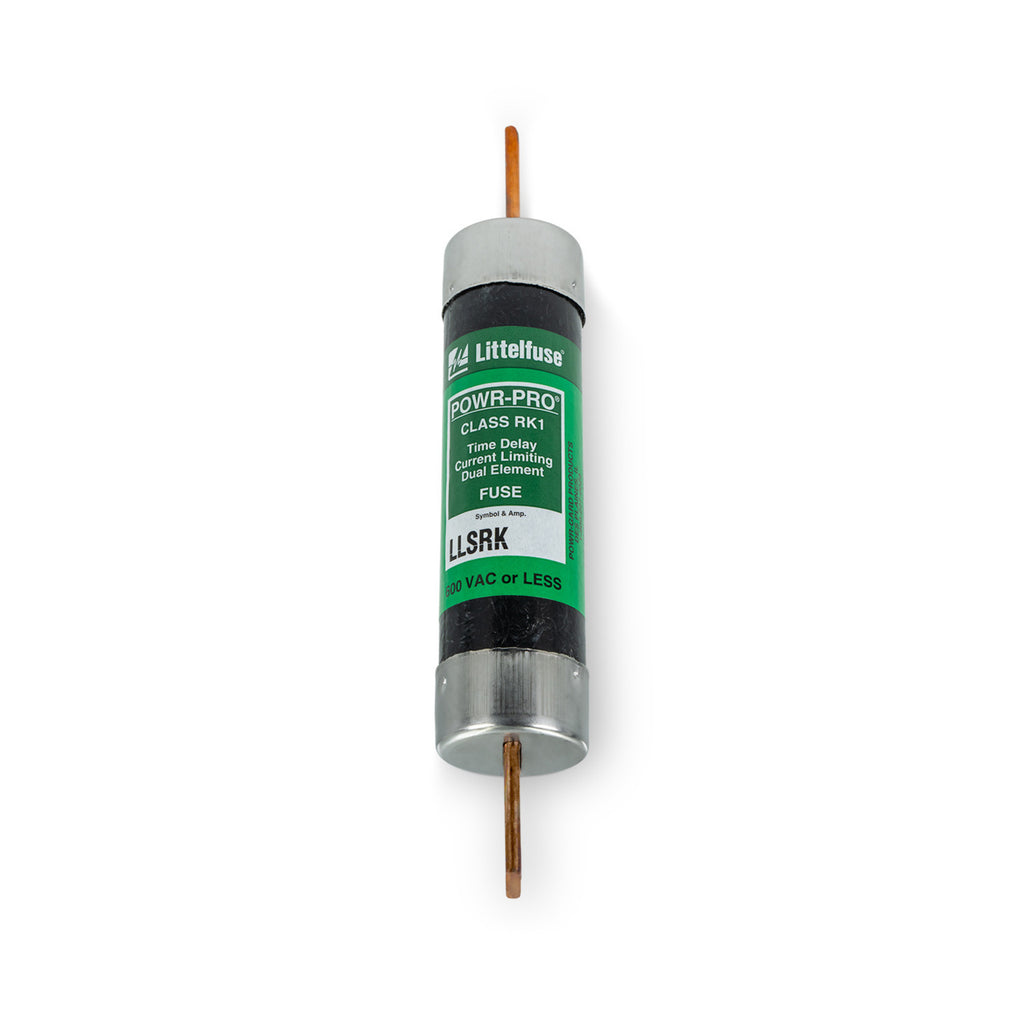

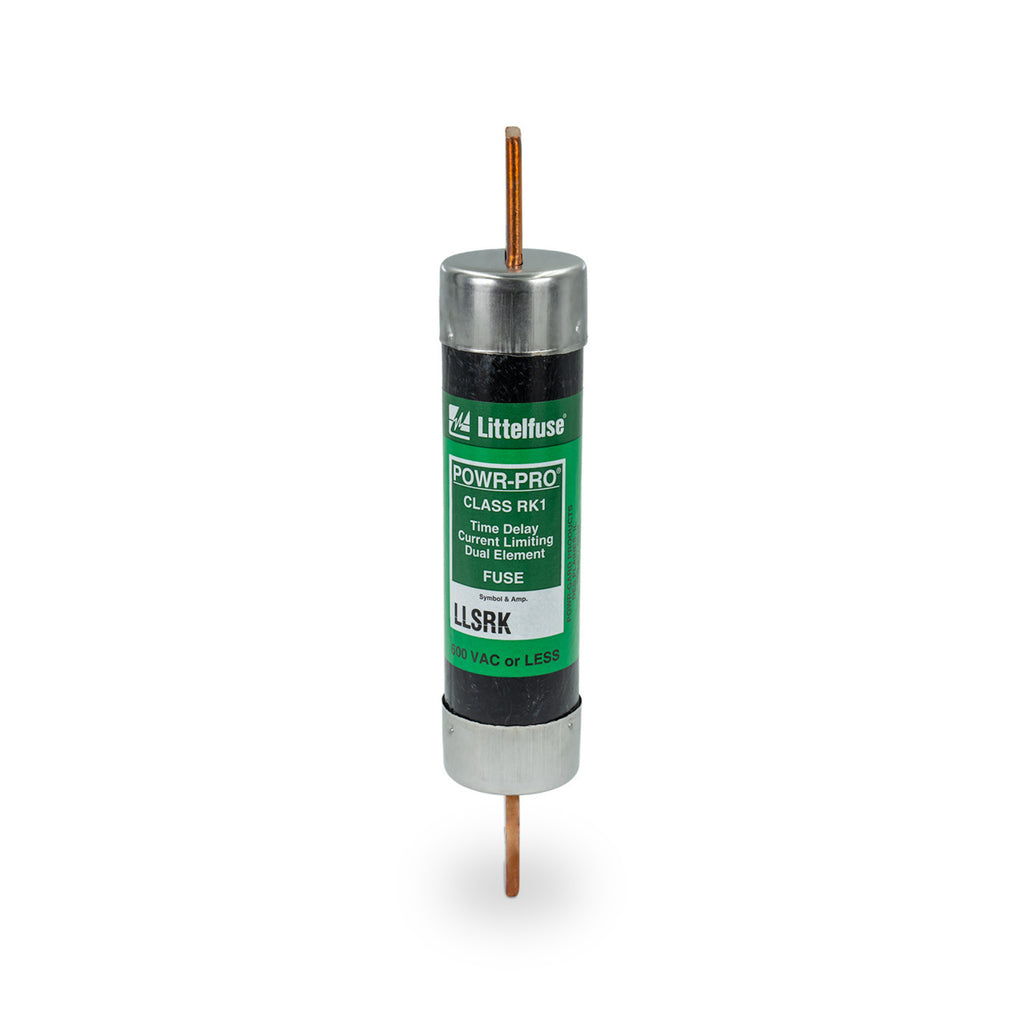

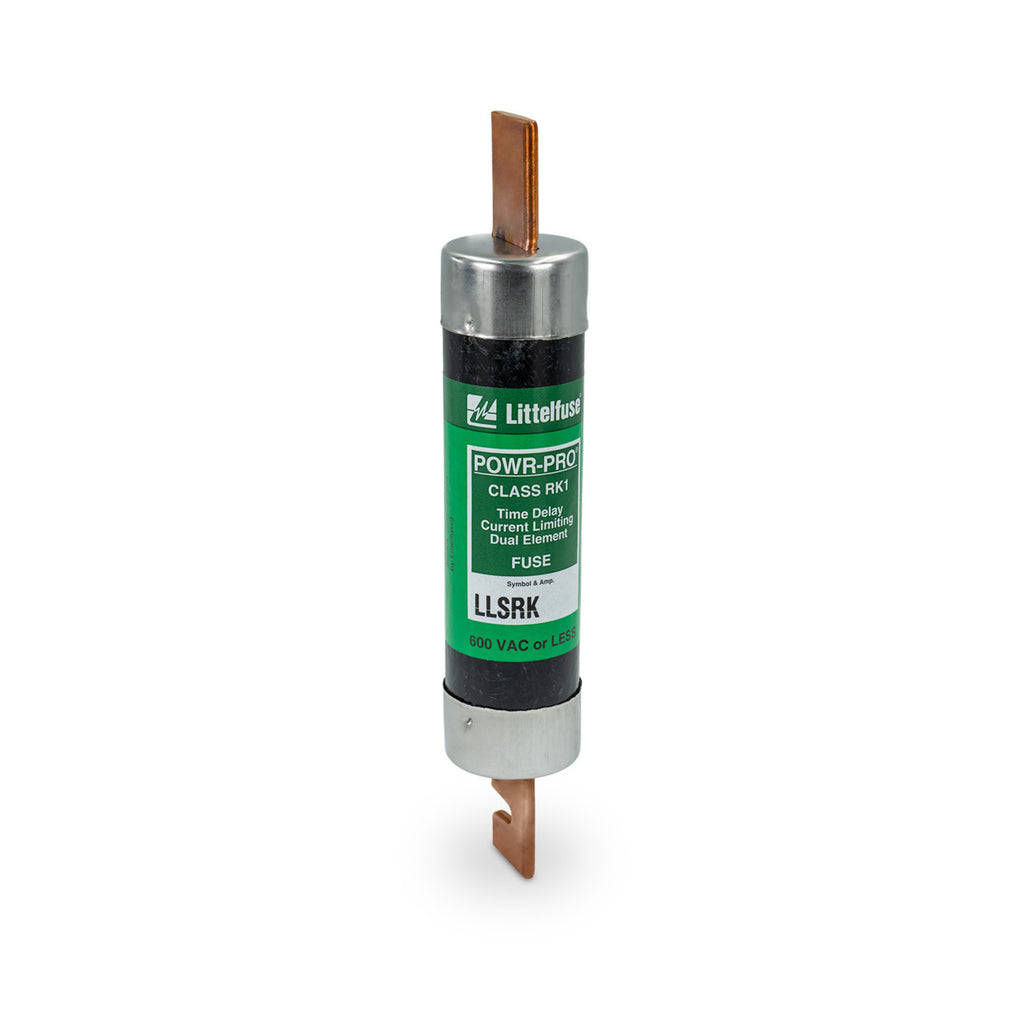

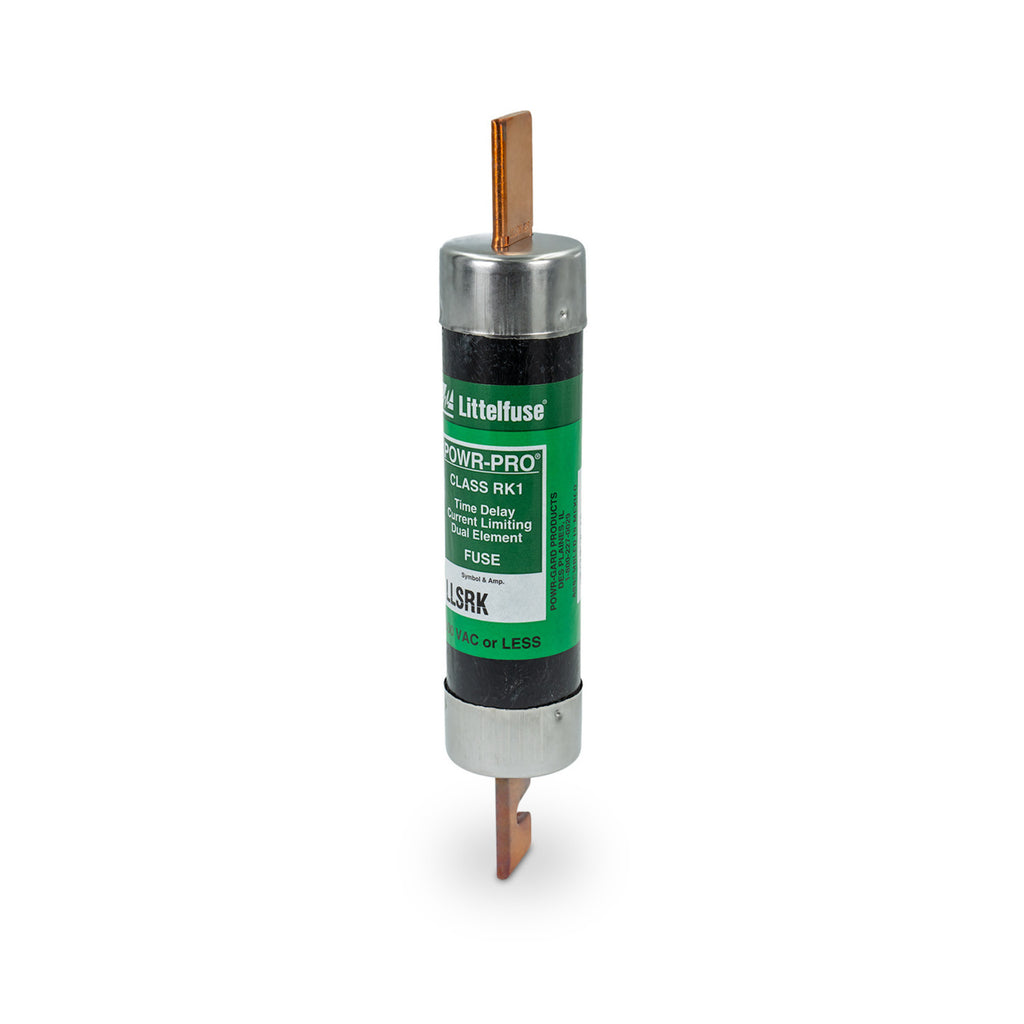

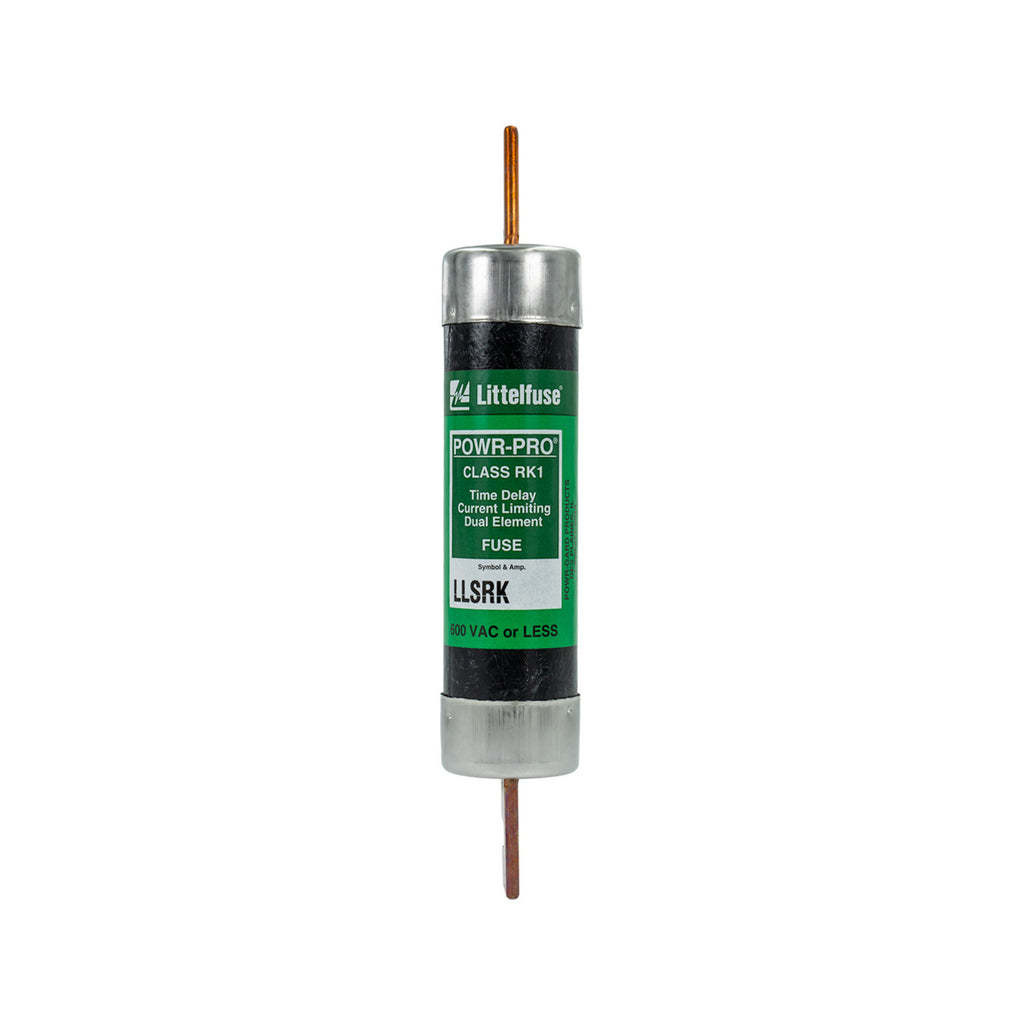

LLSRK110 is a Littelfuse POWR-GARD Series Class RK1 time delay fuse designed for reliable overload and short circuit protection in industrial and commercial power systems. This fuse features a dual-element design for controlled response and is suitable for use in general-purpose circuits, motors, transformers, and solenoids. The LLSRK110 fuse offers a 110A current rating, 600VAC/300VDC voltage rating, and a 20 kA interrupt rating at 300VDC. It is constructed as a cartridge blade fuse with knife-blade mounting, making it compatible with existing Class H fuse blocks for easy system upgrades. The fuse is extremely current-limiting and provides superior protection for service entrance, main, feeder, and branch circuits.
- 110A Amperage
- 600VAC/300VDC Voltage Rating
- 20 kA Interrupt Rating at 300VDC
- Class RK1 Fuse
- Time Delay / Slow Blow Speed
- Cartridge Blade Shape
- Knife-Blade Mounting
- Dual-Element Design
- Extremely Current-Limiting
- UL 248-12, CSA, CE Approvals
Specifications
- Part Number: LLSRK110
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK
- Type : LLSRK
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945835083
- GTIN : 00079458350838
- Weight : 1.61
