Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

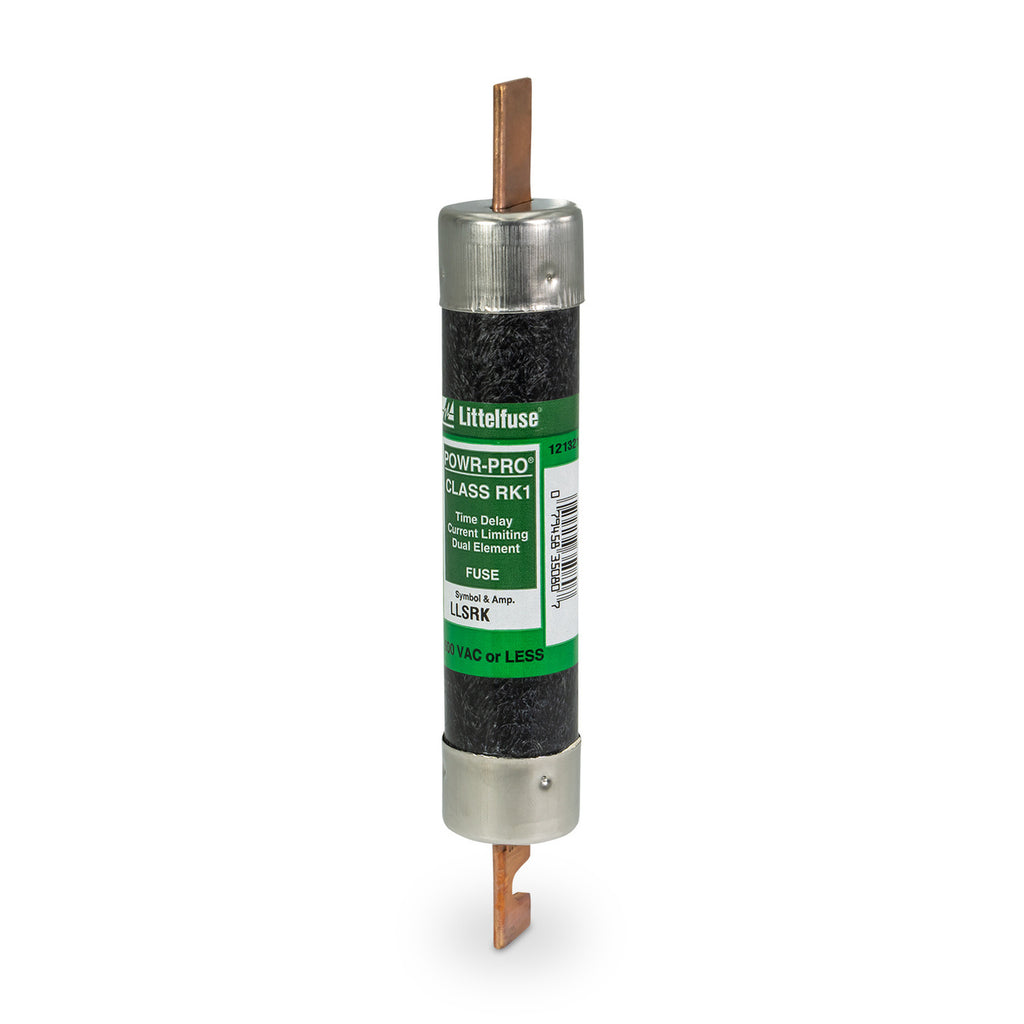

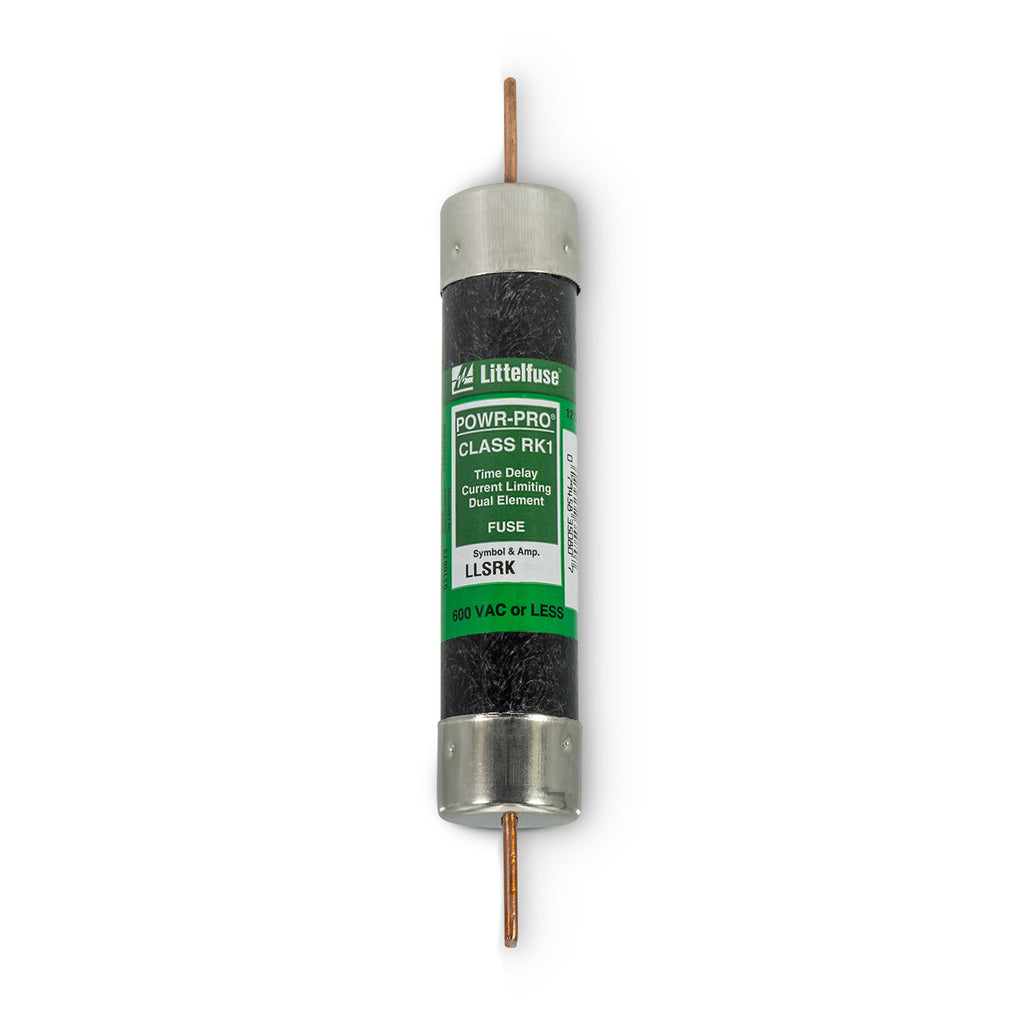

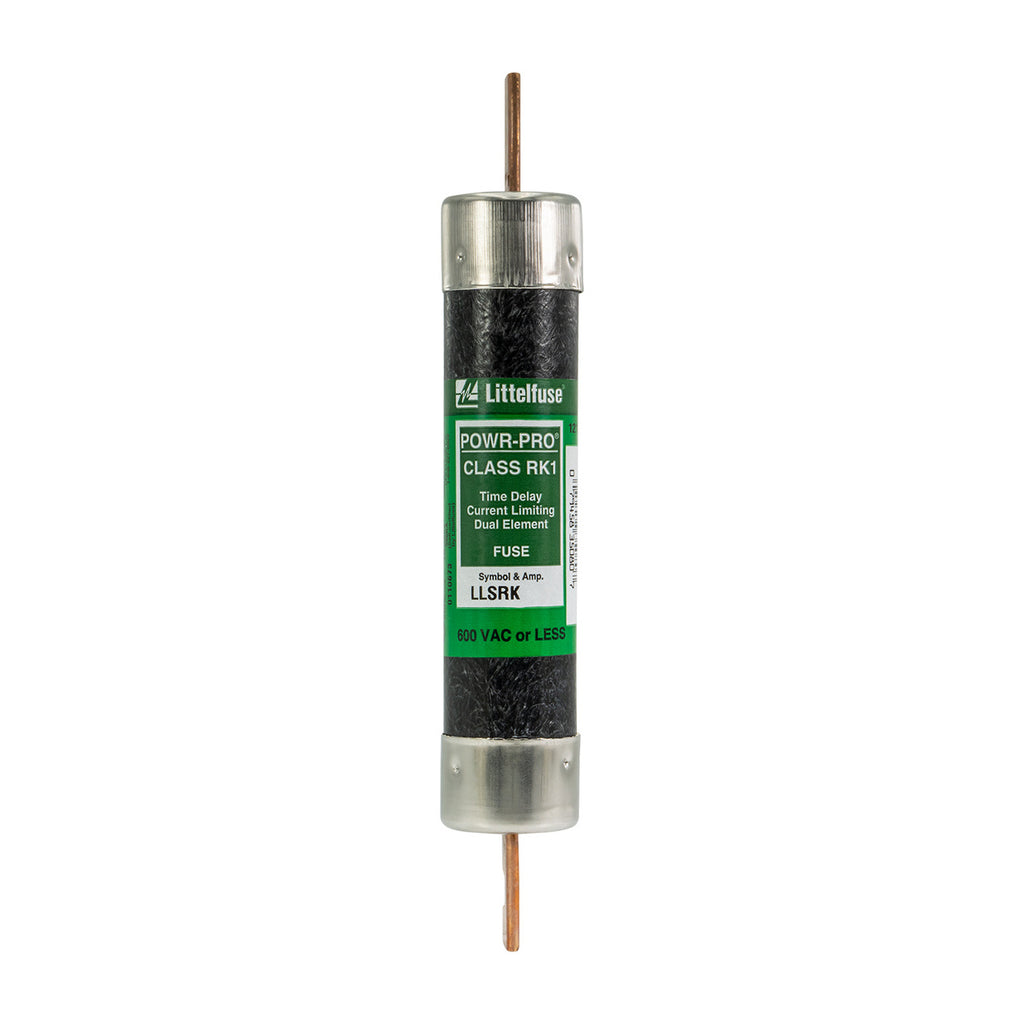

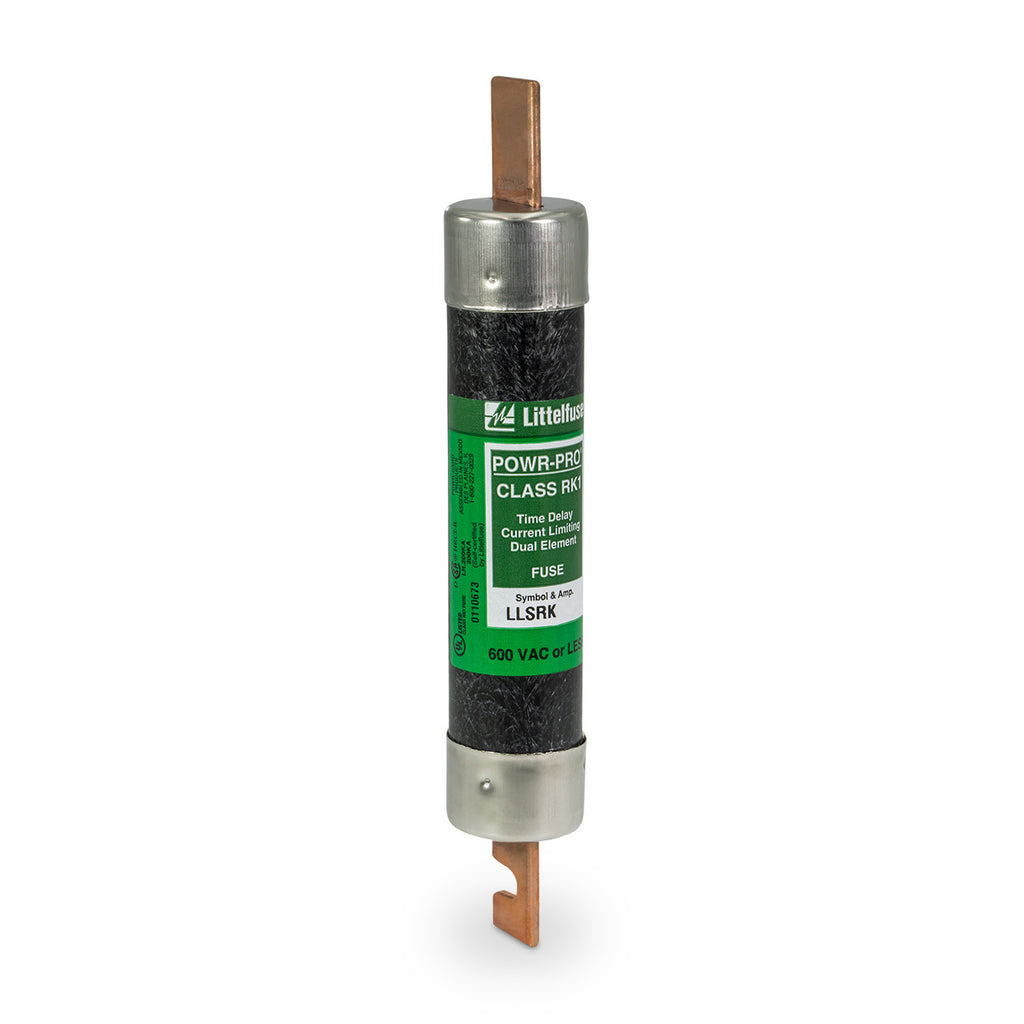

LLSRK090
LLSRK090 is a Littelfuse Class RK1 time-delay fuse designed for reliable circuit protection in general purpose, motor, and transformer applications. This fuse features a robust dual-element construction for enhanced surge resistance and dependable performance. The LLSRK090 fuse is rated for 90 amps and 600 VAC/300 VDC, making it suitable for a wide range of industrial and commercial power distribution systems. Its time-delay design allows it to withstand temporary overloads without nuisance tripping, while its current-limiting capability provides effective protection against short circuits.
- 90 Amp amperage rating
- 600 VAC/300 VDC voltage rating
- Class RK1 fuse type
- Time-delay (slow-blow) operation
- Knife blade terminal type
- 200 kA AC interrupt rating
- 20 kA DC interrupt rating
- Dual-element construction
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- CE Approval
- 7-7/8 inch length
- 1-5/16 inch diameter
Specifications
- Part Number: LLSRK090
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK
- Type : LLSRK
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Connection : Clip
- Diameter : 1.31
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945835081
- GTIN : 00079458350814
- Weight : 5.19
