Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK015

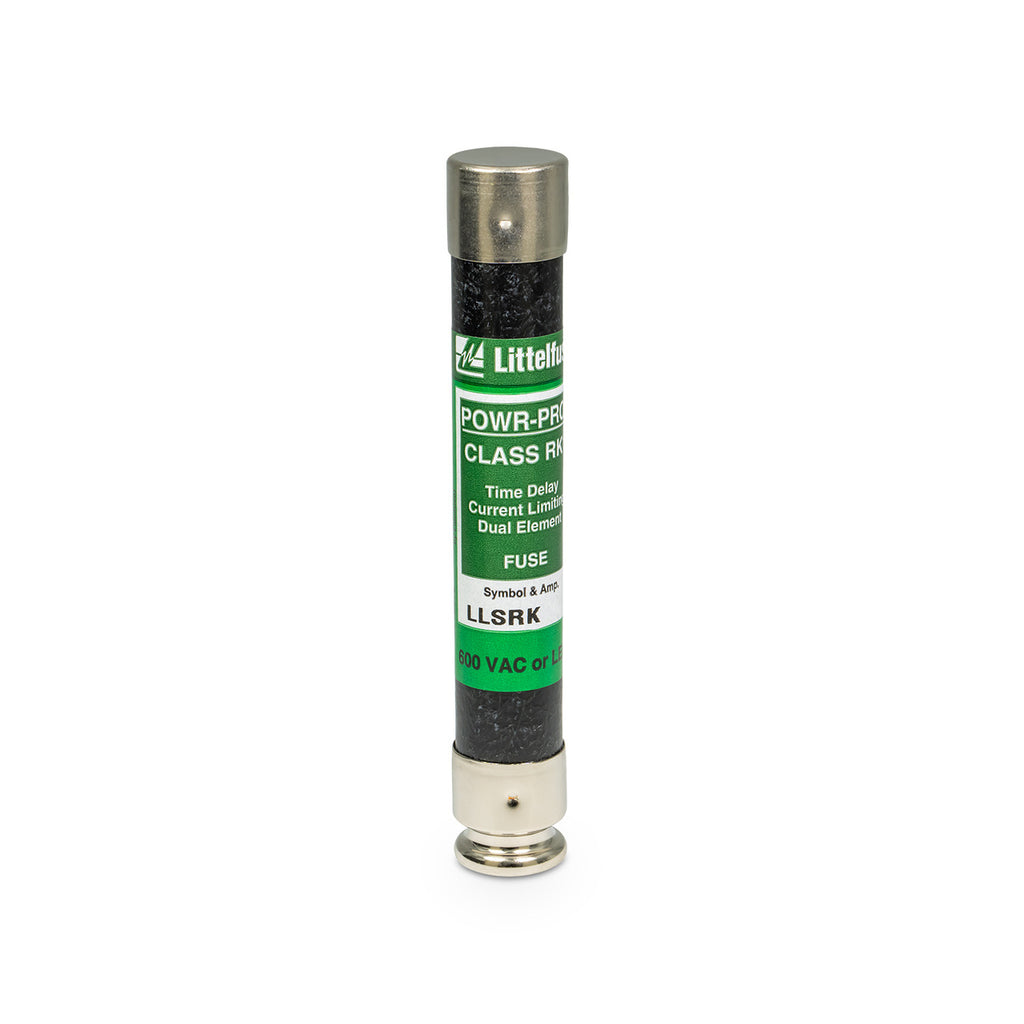

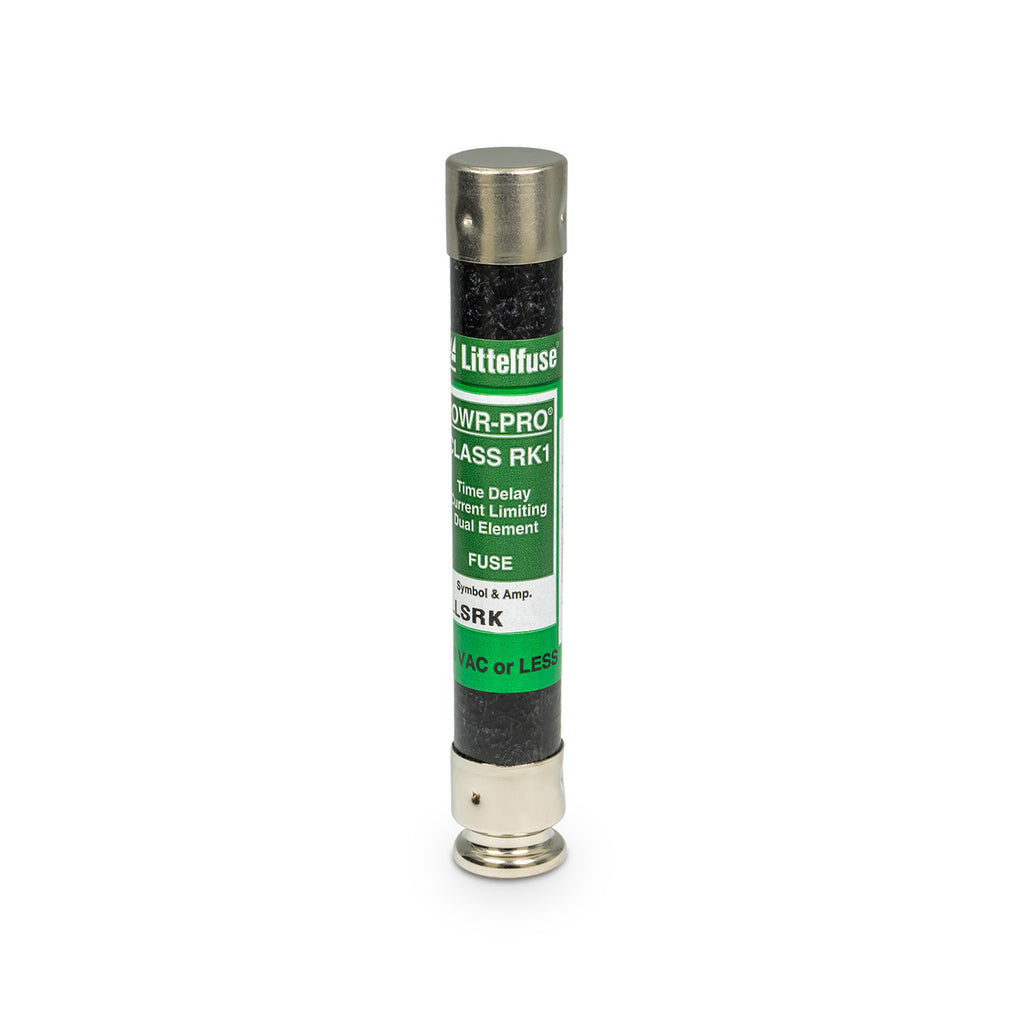

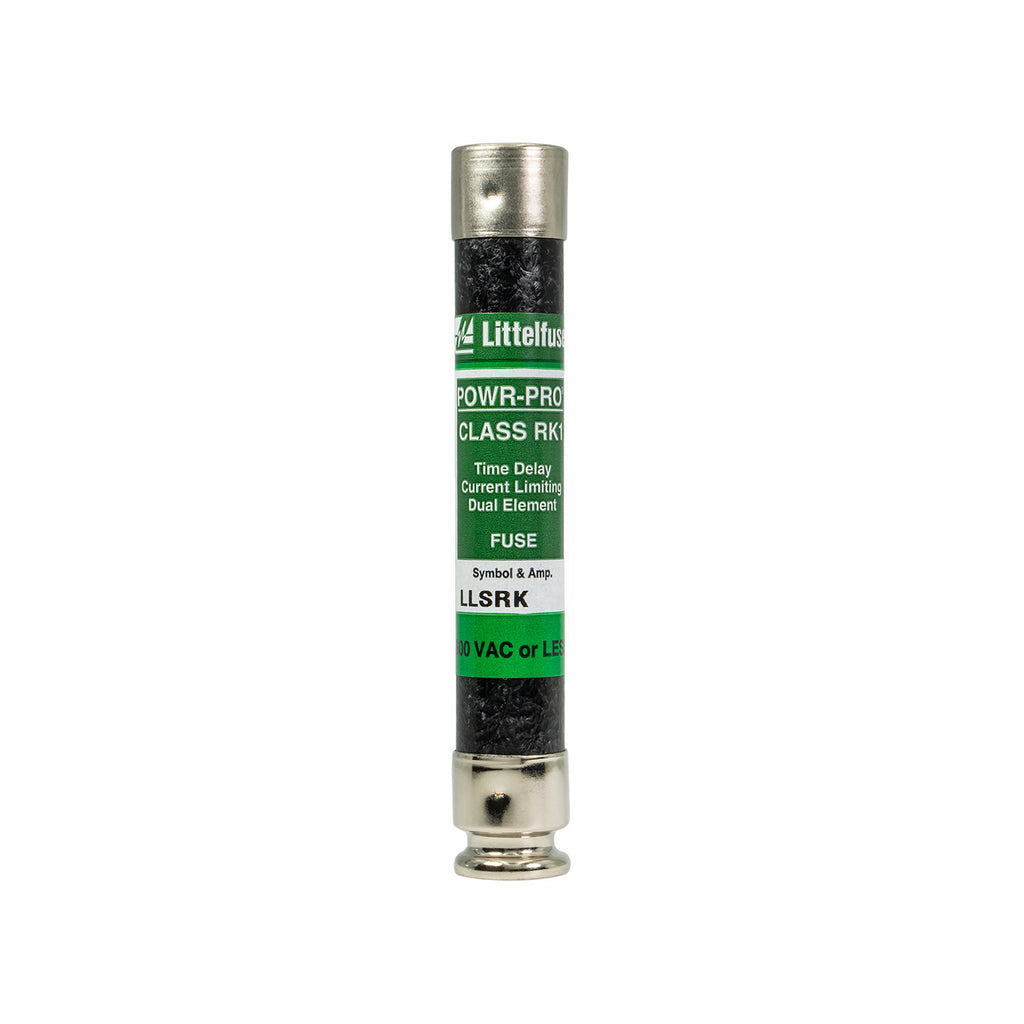

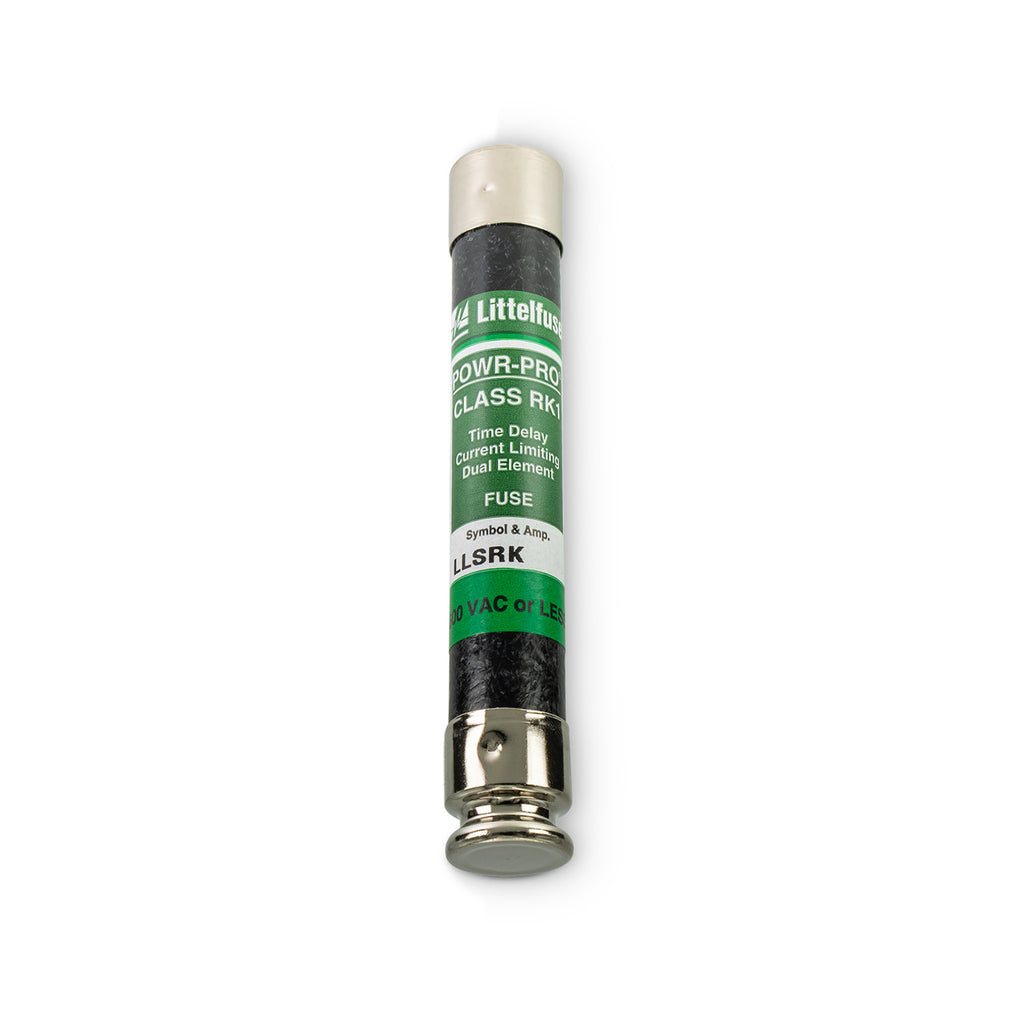

LLSRK015 is a Littelfuse POWR-GARD current limiting time delay fuse designed for service entrance, main, feeder and general-purpose branch circuits. This Class RK1 cartridge fuse provides superior overload and short circuit protection with dual-element construction that withstands repeated surges without nuisance opening. Key Specifications
- Current Rating: 15 Amperes
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
- Fuse Class: RK1
- Body Style: Industrial Cartridge
- Opening Characteristic: Time Delay (Slo-Blo)
- Physical Size: 13/16 inch x 5 inch
- Mounting: Fuse Block / Clip / Holder
- Construction: Dual-Element with Thermally Reversible Spring-Loaded Thermal Overload Element
- Features: Extremely Current Limiting, Granular Quartz Filling, Precision Formed Short Circuit Element
- Certifications: UL Listed, CSA Certified
- Applications: General Purpose Circuits, Motors, Transformers, Safety Upgrades
Specifications
- Part Number: LLSRK015
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK
- Type : LLSRK
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945835068
- GTIN : 00079458350685
- Weight : 25
