Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLSRK010

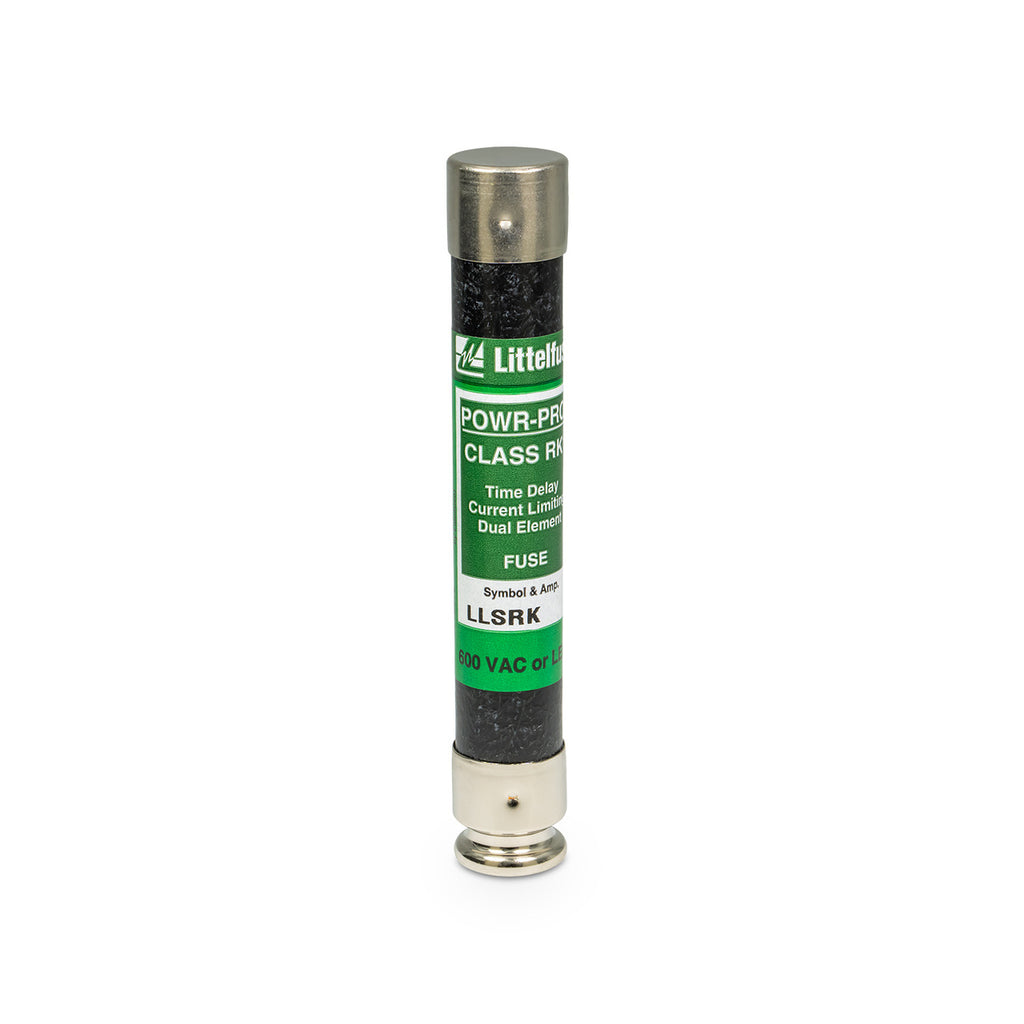

LLSRK010 is a Littelfuse Class RK1 time delay current limiting fuse rated for 10 amps and 600 VAC/300 VDC operation.
This fuse features dual-element construction for time delay and extremely current limiting protection, reducing damage to circuits and equipment under short-circuit conditions. It has a cartridge body measuring 13/16 inch by 5 inches and meets UL 248-12 and CSA certifications. The fuse interrupts up to 200,000 amperes at 600 VAC and 20,000 amperes at 300 VDC, suitable for general purpose industrial power applications.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Class: RK1
- Type: Time Delay, Dual Element
- Physical Size: 13/16" diameter x 5" length
- Mounting Type: Cartridge
- Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LLSRK010
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLSRK
- Type : LLSRK
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 007945835065
- GTIN : 00079458350654
- Weight : 5.19
