2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

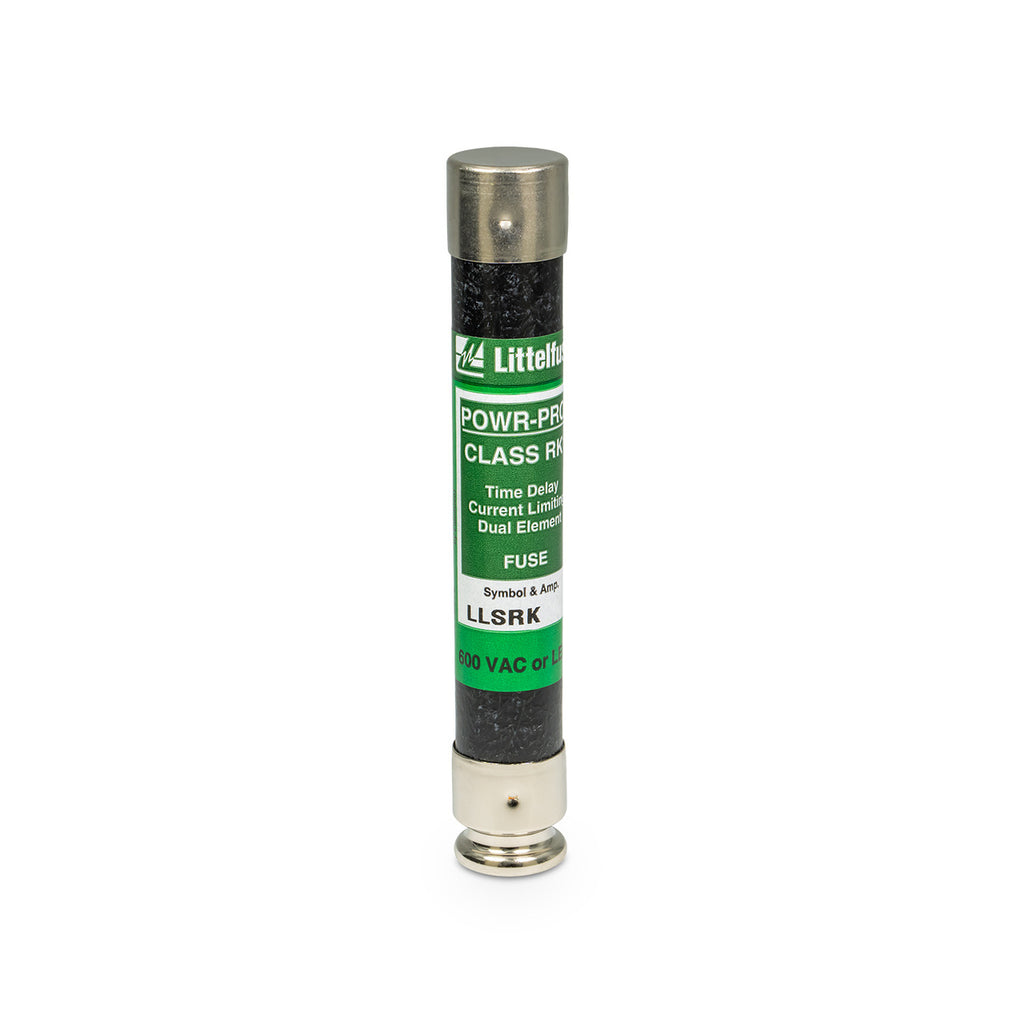

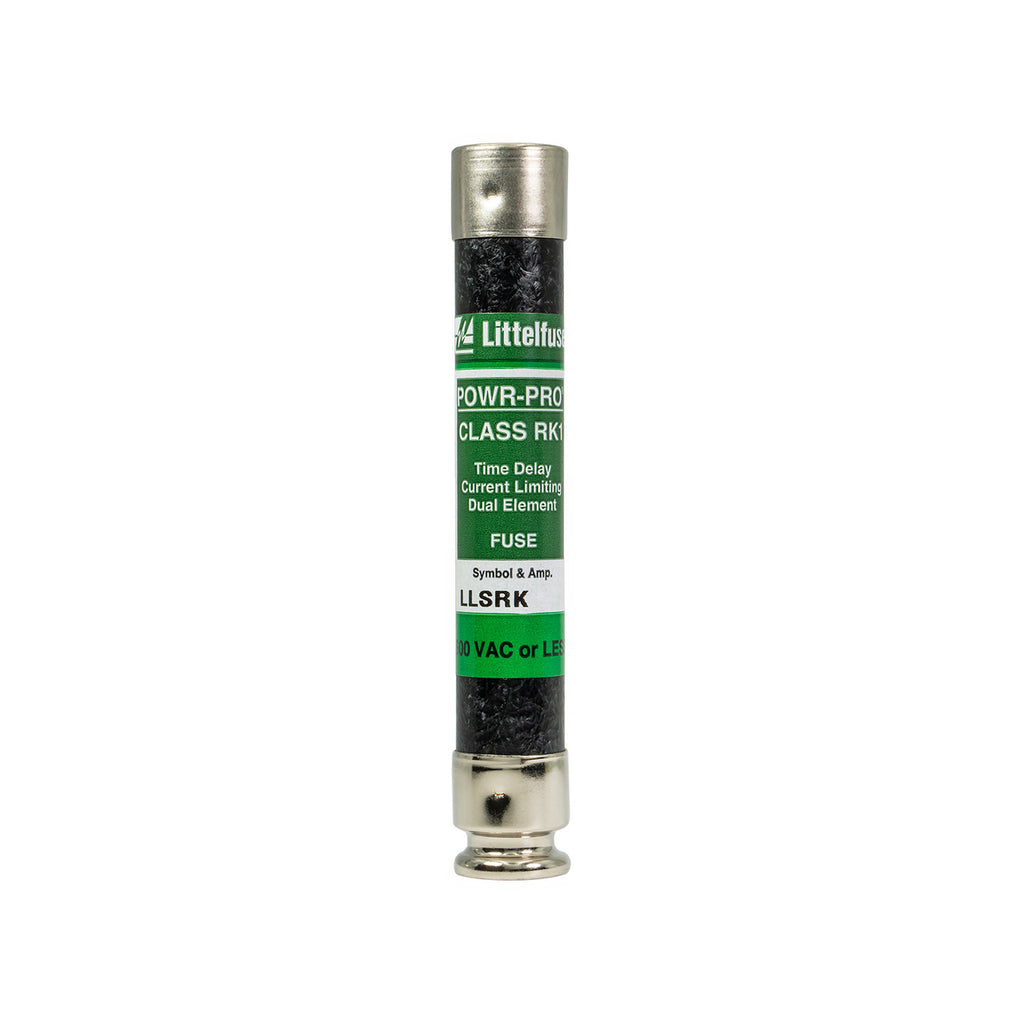

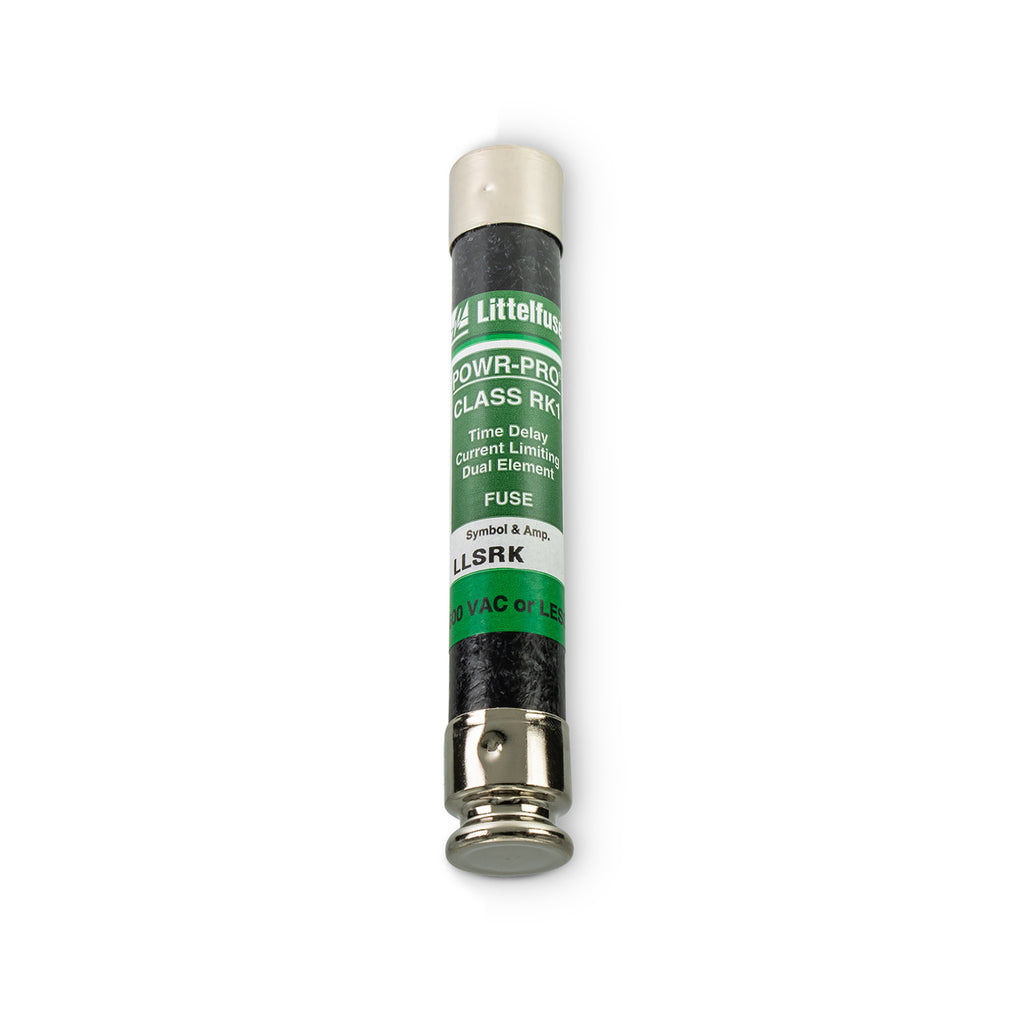

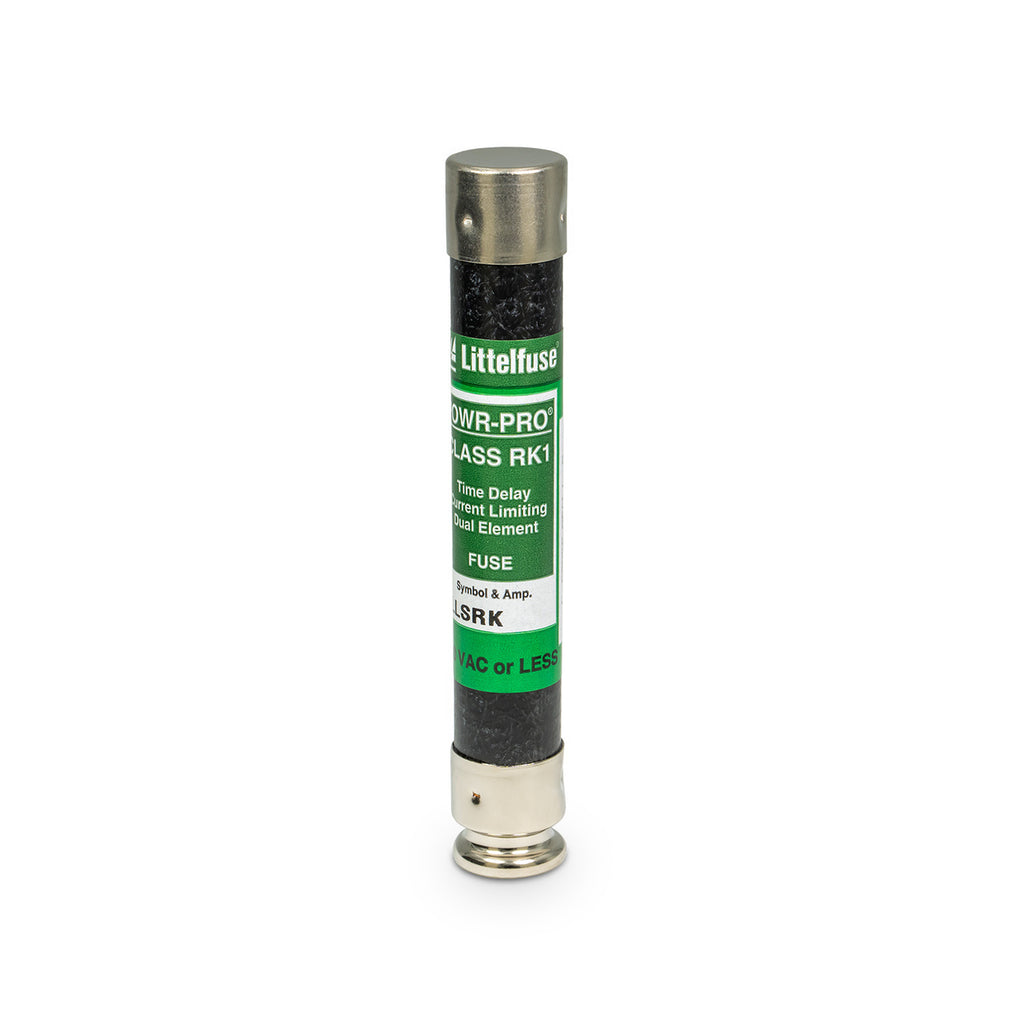

LLSRK-600
LLSRK-600 is a Littelfuse 600 Amp, 600 Volt Class RK1 time delay fuse designed for industrial power protection.This fuse features a dual-element design with extremely current-limiting performance, providing superior overload and short circuit protection for service entrance, main, feeder, and general-purpose branch circuits. It has a 20,000 A interrupt rating at 300 VDC and 200,000 AIC at 600 VAC. The fuse is a POWR-PRO series cartridge type with slo-blo/time delay opening characteristics, suitable for use in fuse blocks, clips, or holders. It meets IEC Type 2 protection standards for motor starters and is UL Class RK1 certified.
- Key Specifications
- Amperage: 600 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK1
- Fuse Type: Time Delay / Slo-Blo
- Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Poles: Single Pole (cartridge fuse)
- Mounting Type: Fuse Block / Clip / Holder
- Series: POWR-PRO LLSRK
- Dual Element: Yes
- Certifications: UL Listed, IEC Type 2
- Part Number: LLSRK-600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : LLSRK
- Voltage : 600
- Amperage : 600
- AIC rating : 300kA@600Vac
- Connection : Clip
- Diameter : 3.09
- Class Rating : RK1
- Barrels : 1
- UPC : 07945835098
- GTIN : 00079458350982
- Weight : 5.19
Specifications
Product Data
