Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
LLSRK-30ID

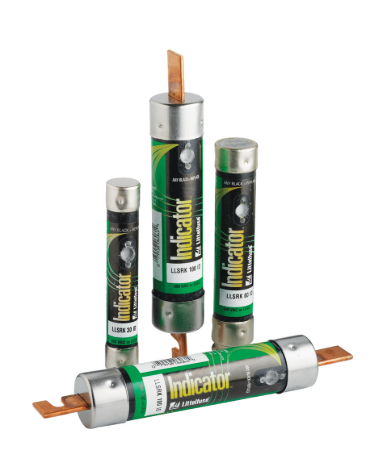

LLSRK-30ID is a Littelfuse Powr-Gard series Class RK1 fuse designed for reliable circuit protection in general purpose, motor, and transformer applications. This fuse features a dual-element construction for enhanced surge protection and includes a blown fuse indicator for easy status monitoring. The LLSRK-30ID is rated for 30 amps and 600 volts AC, with a DC rating of 300 volts. It is extremely current-limiting and provides IEC Type 2 protection for motor starters. The robust design withstands repeated surges within its time delay rating, reducing unnecessary downtime. Suitable for use in a wide range of industrial and commercial power distribution systems.
- 30 Amps
- 600 Volts AC / 300 Volts DC
- UL Class RK1
- Dual Element Construction
- Blown Fuse Indicator
- Extremely Current-Limiting
- IEC Type 2 Protection
- Interrupting Rating: 200,000 AIC @ 600VAC
- Interrupting Rating: 20,000 AIC @ 300VDC
- Physical Size: 13/16" x 5"
- UL Listed
- CSA Certified
Specifications
- Part Number: LLSRK-30ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : LLSRK_ID
- Voltage : 600
- Amperage : 30
- AIC rating : 300kA@600Vac
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- Weight : 5
