Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
LLSRK-300

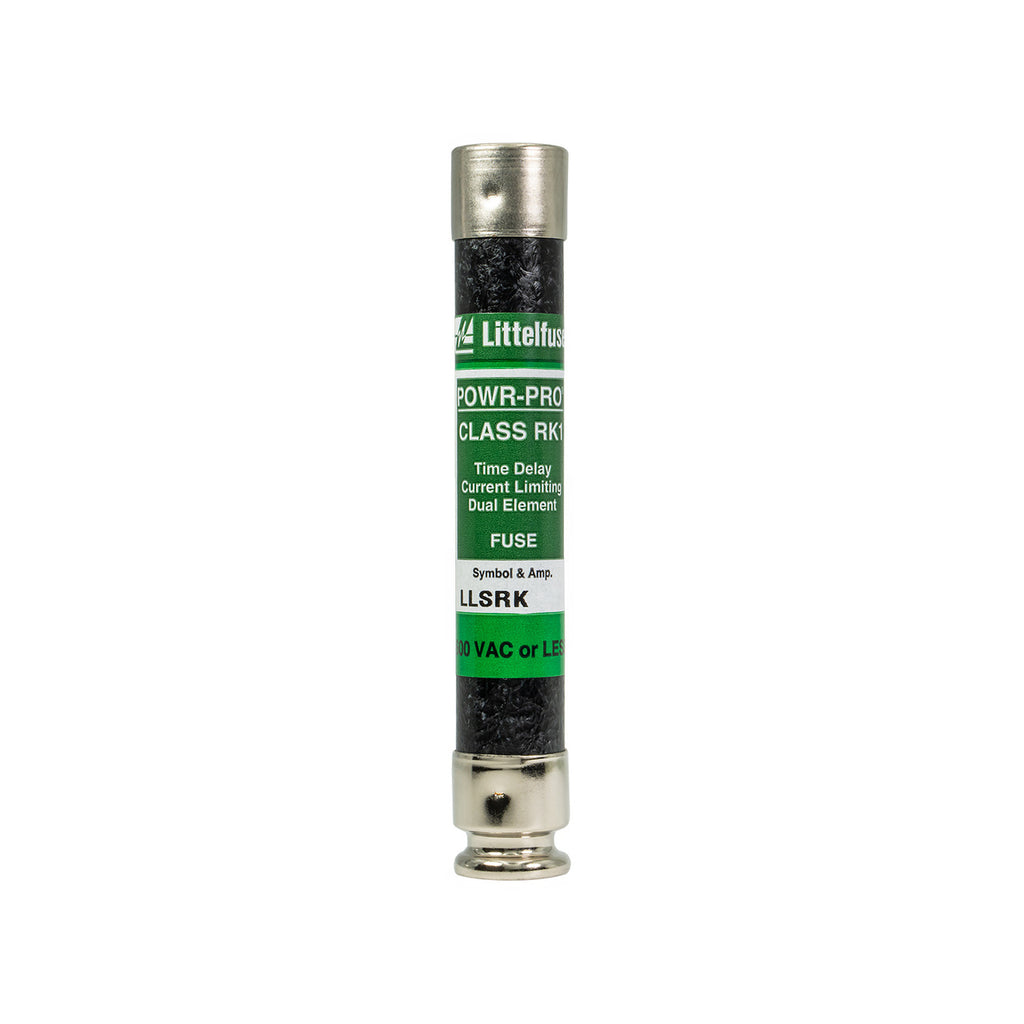

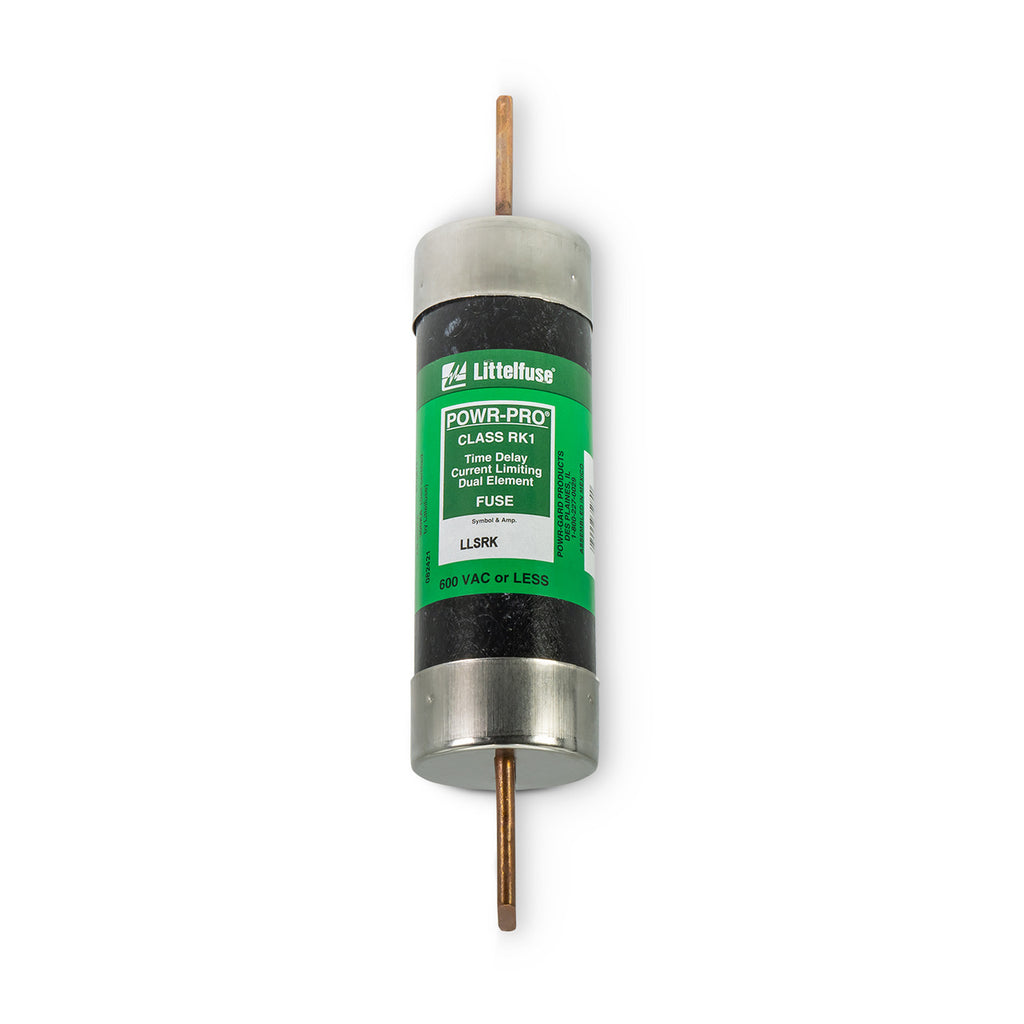

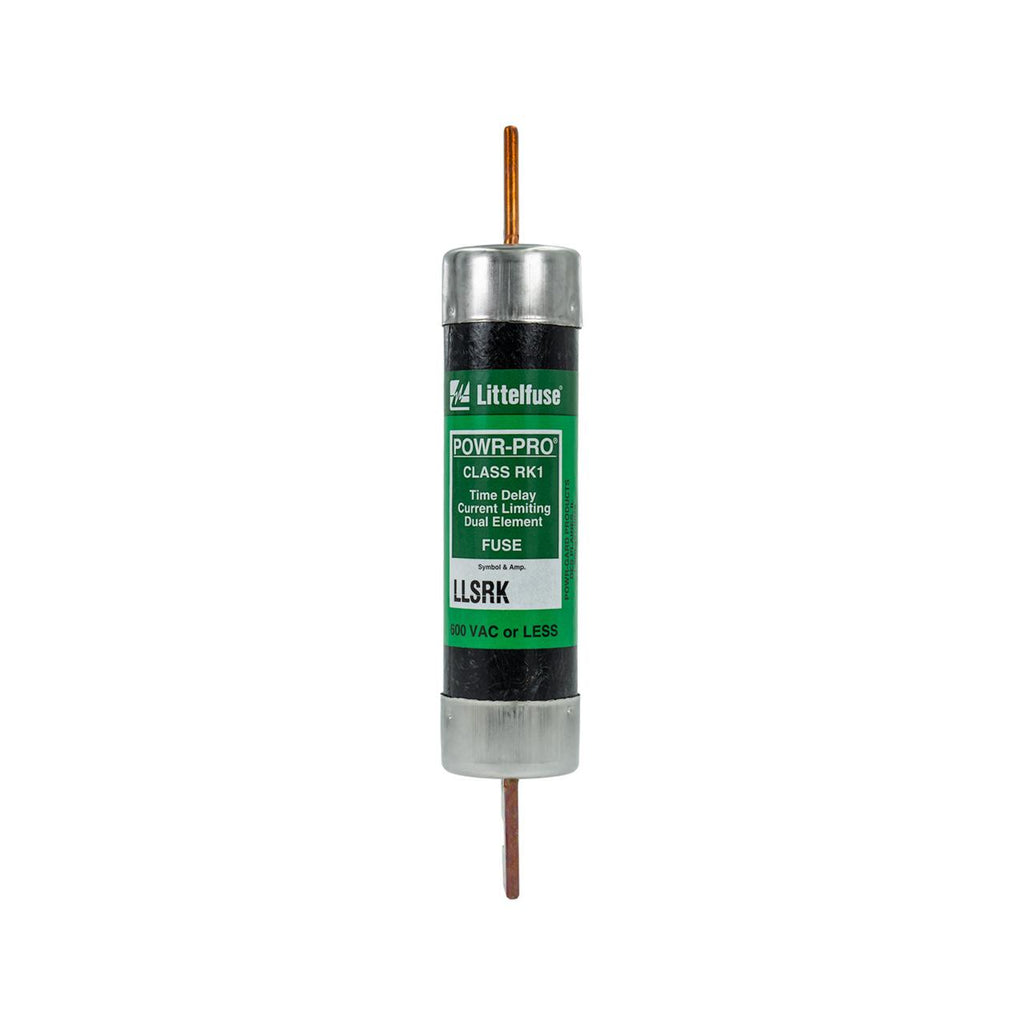

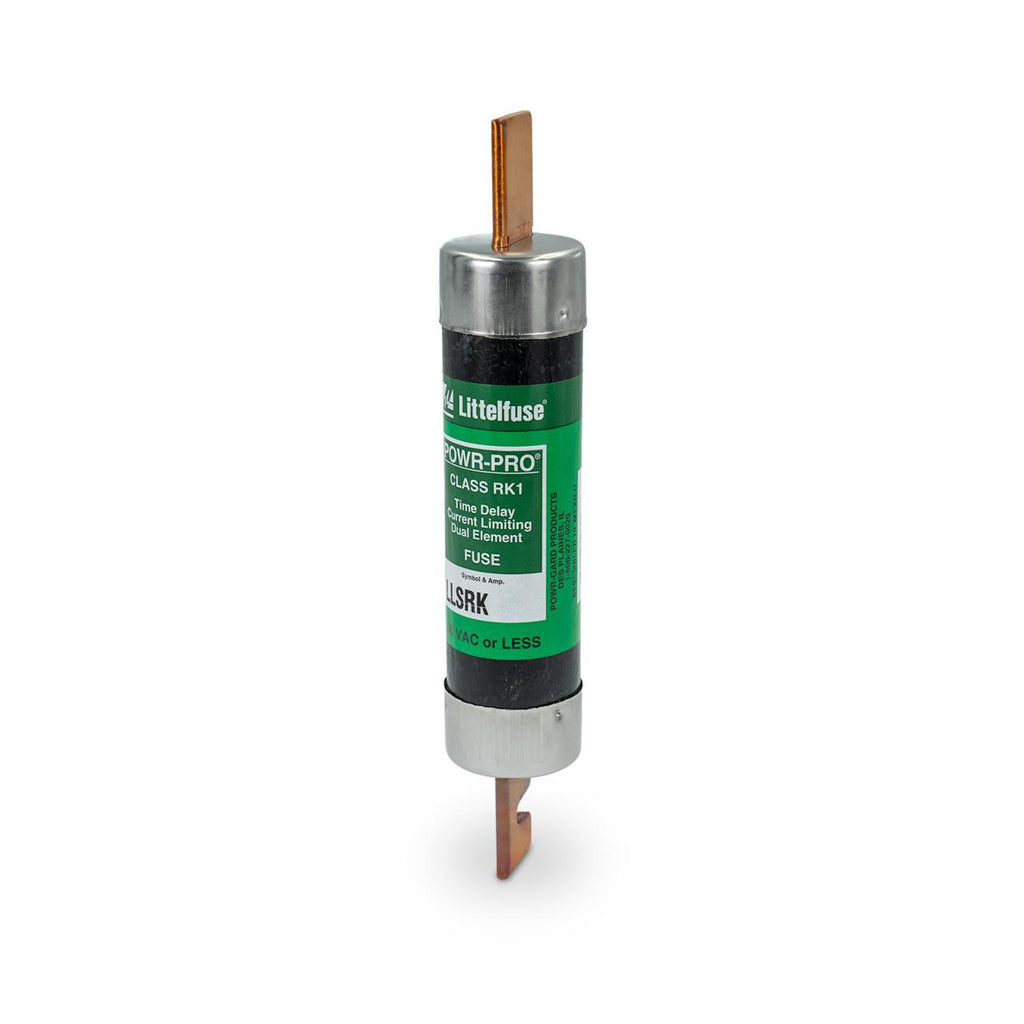

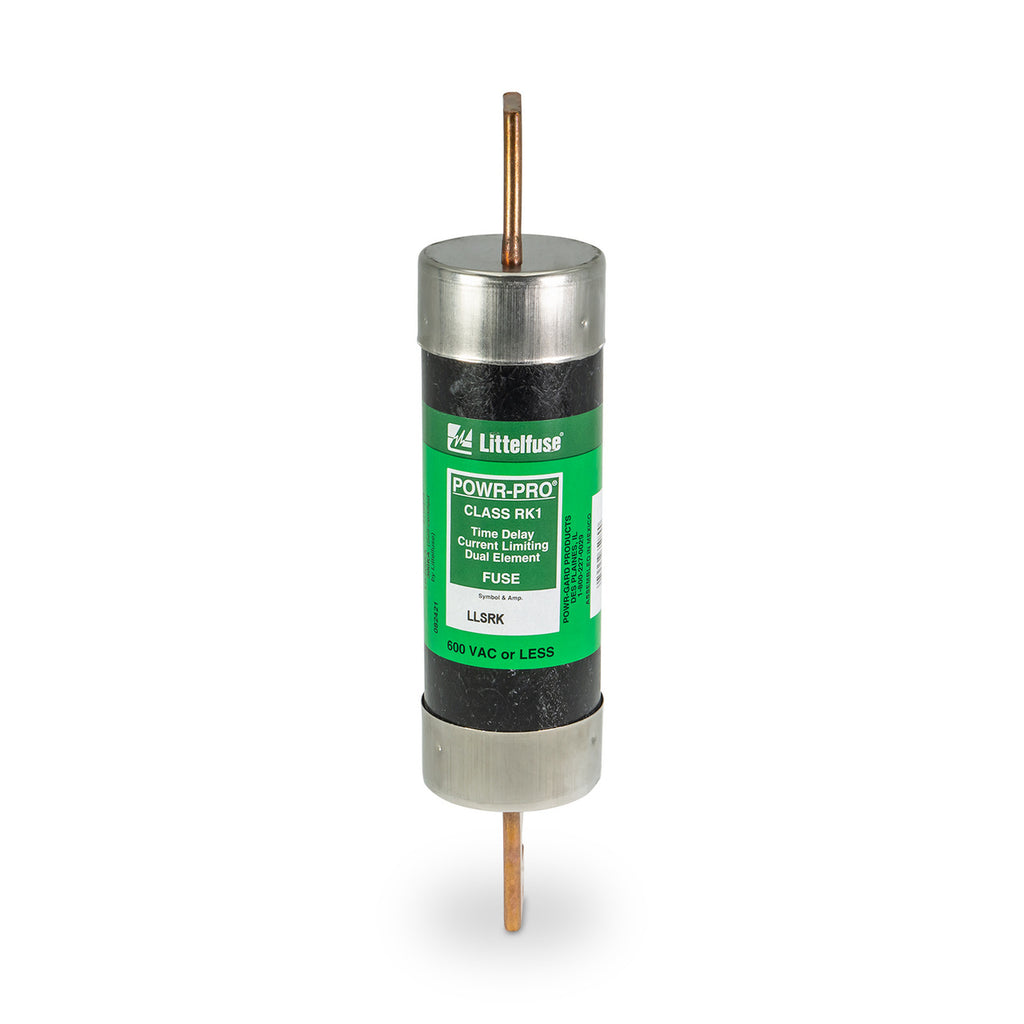

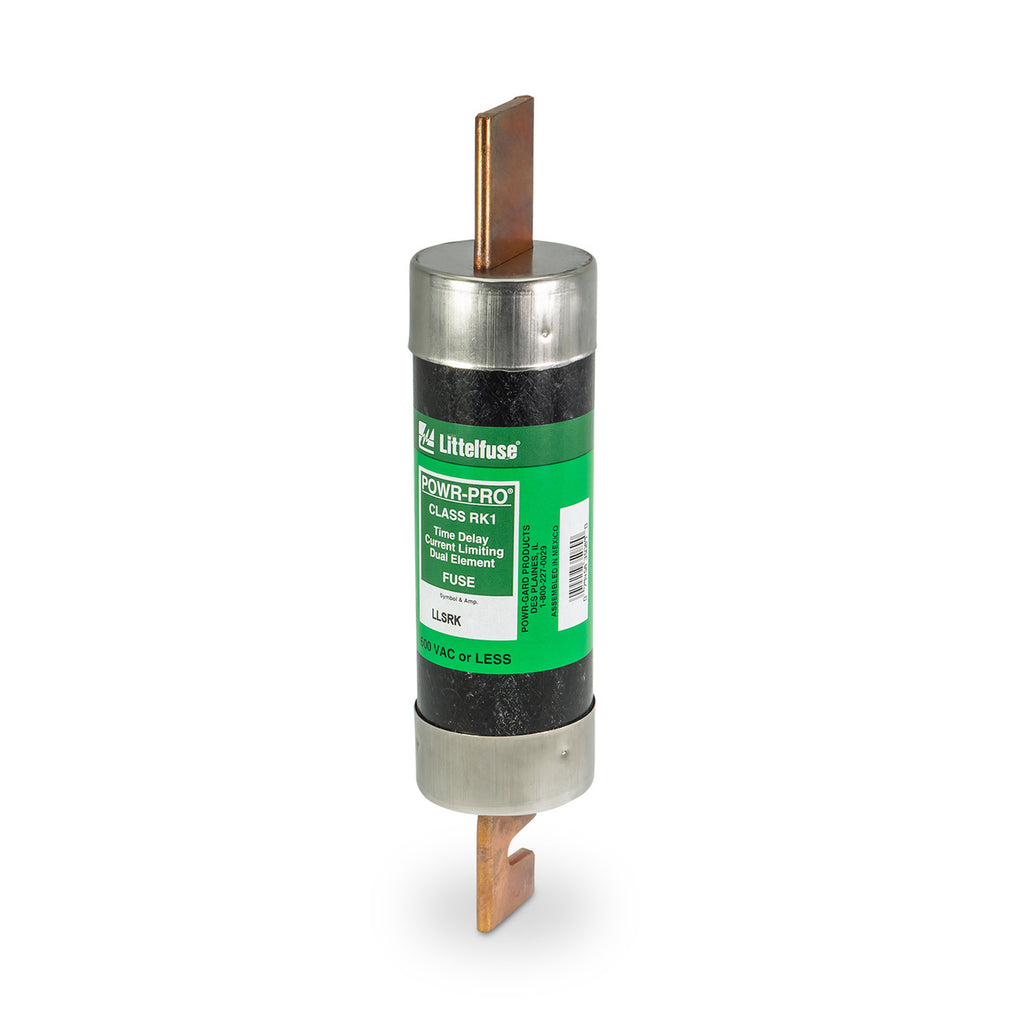

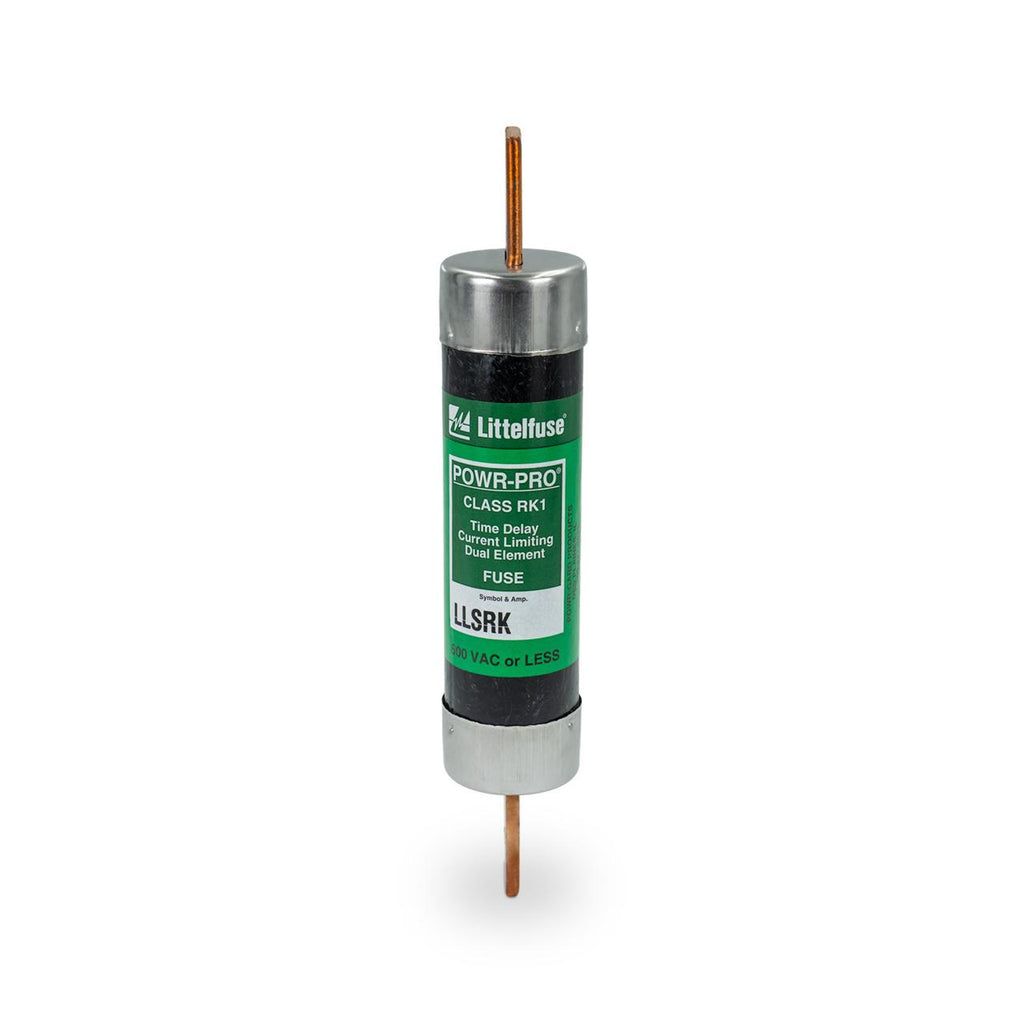

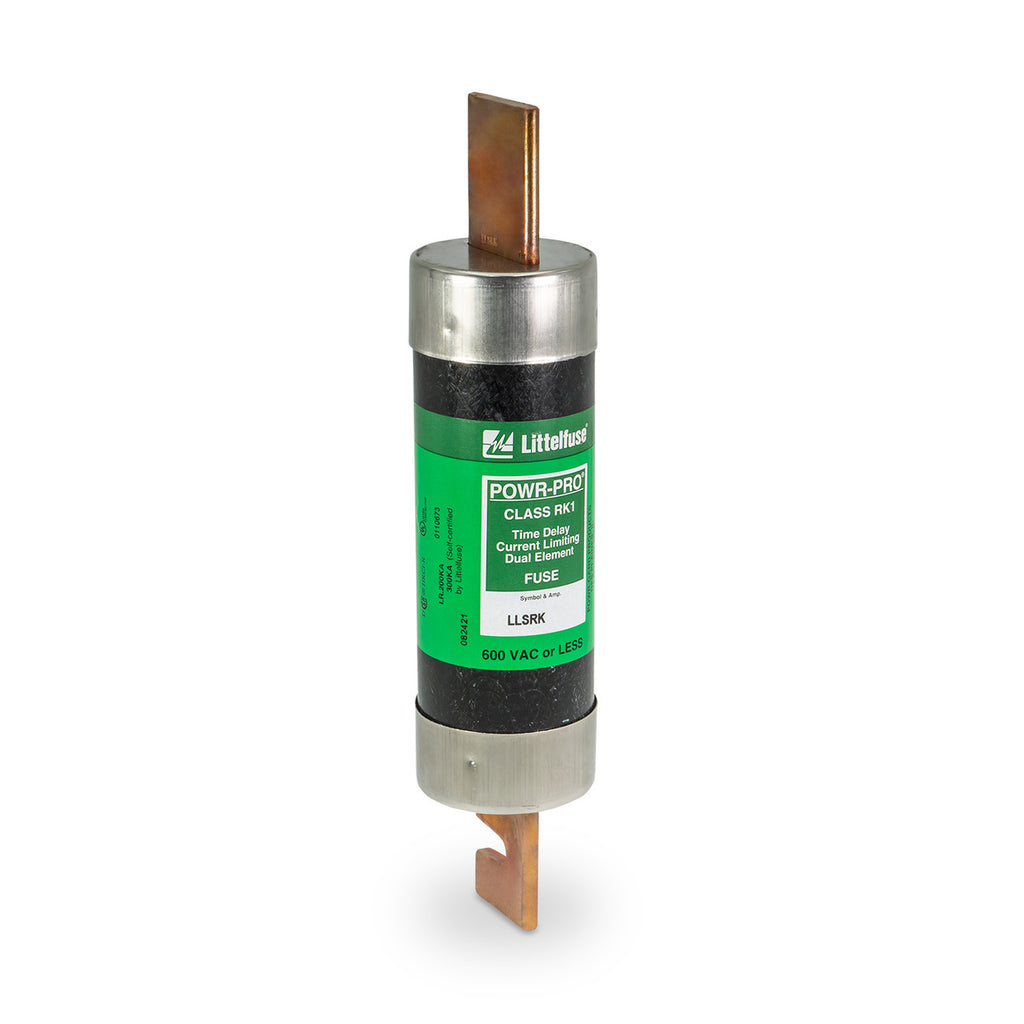

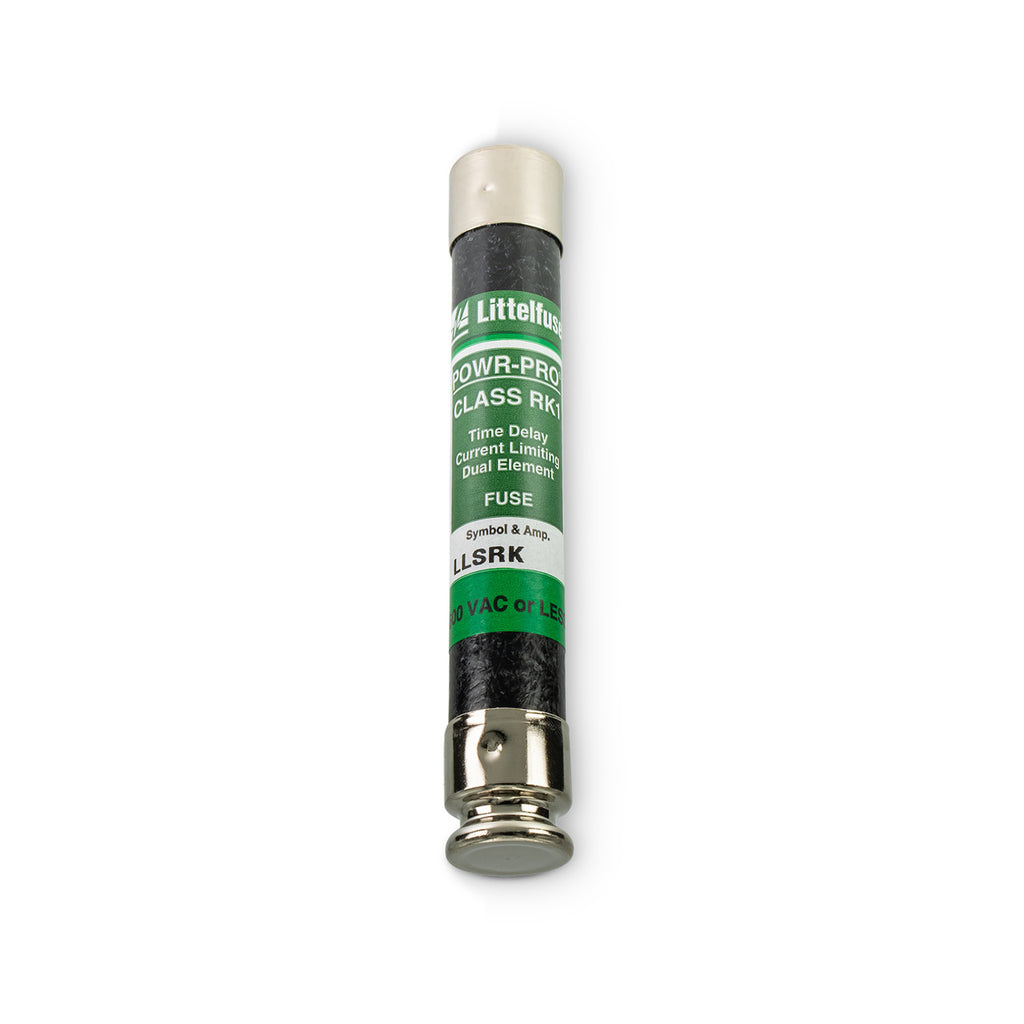

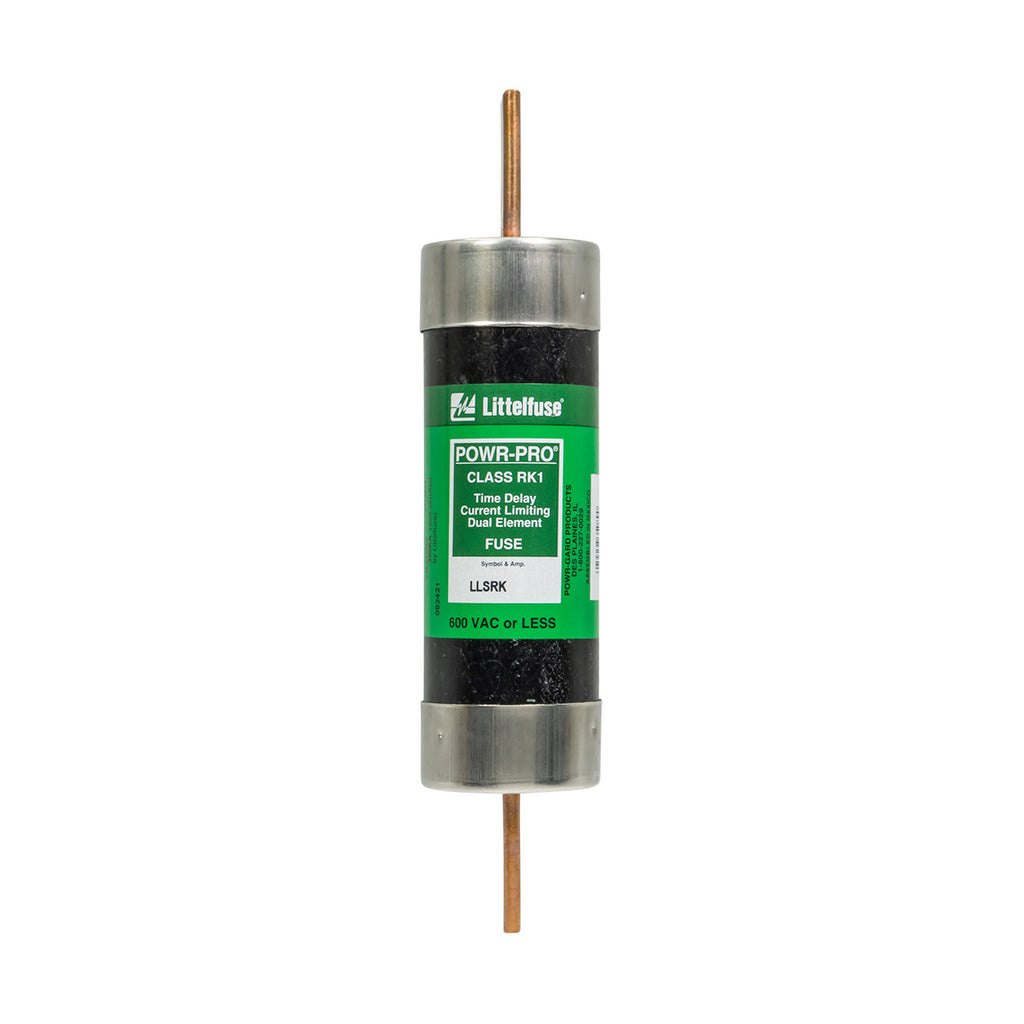

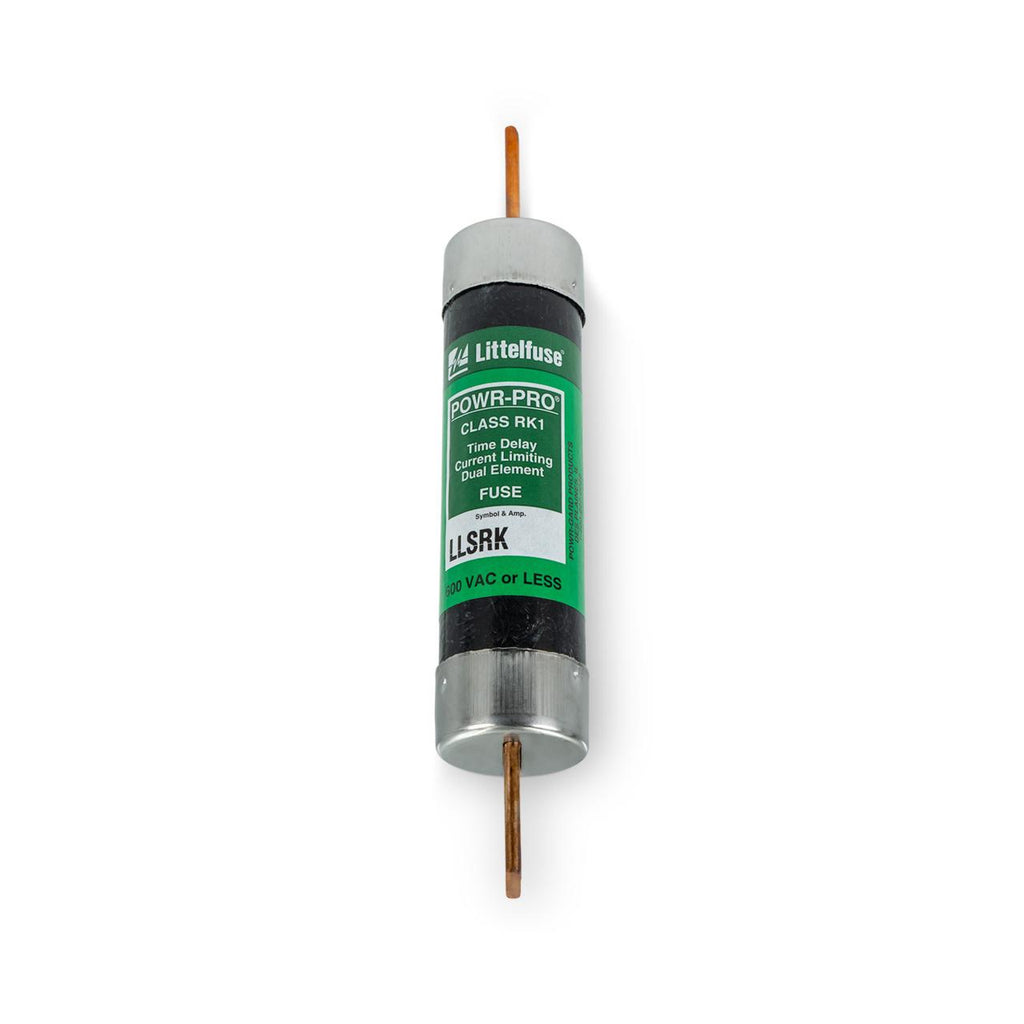

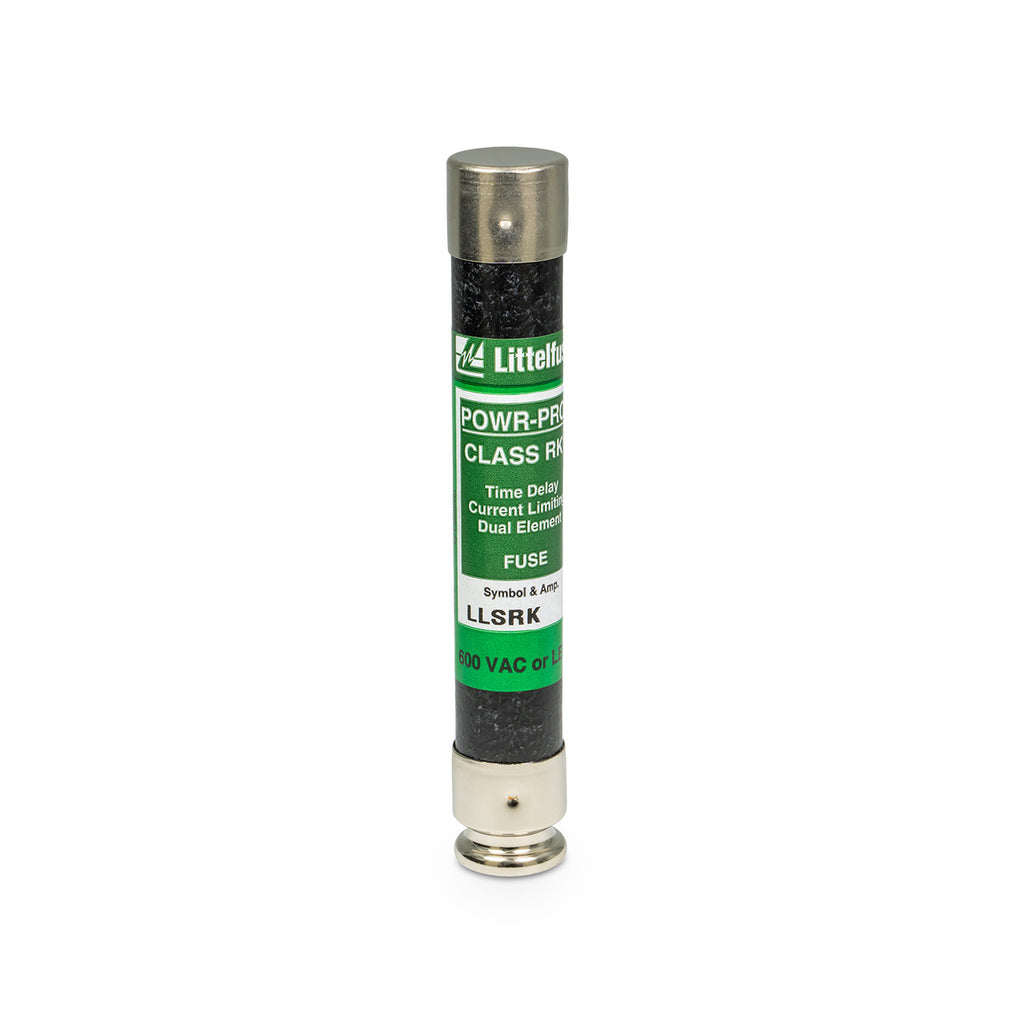

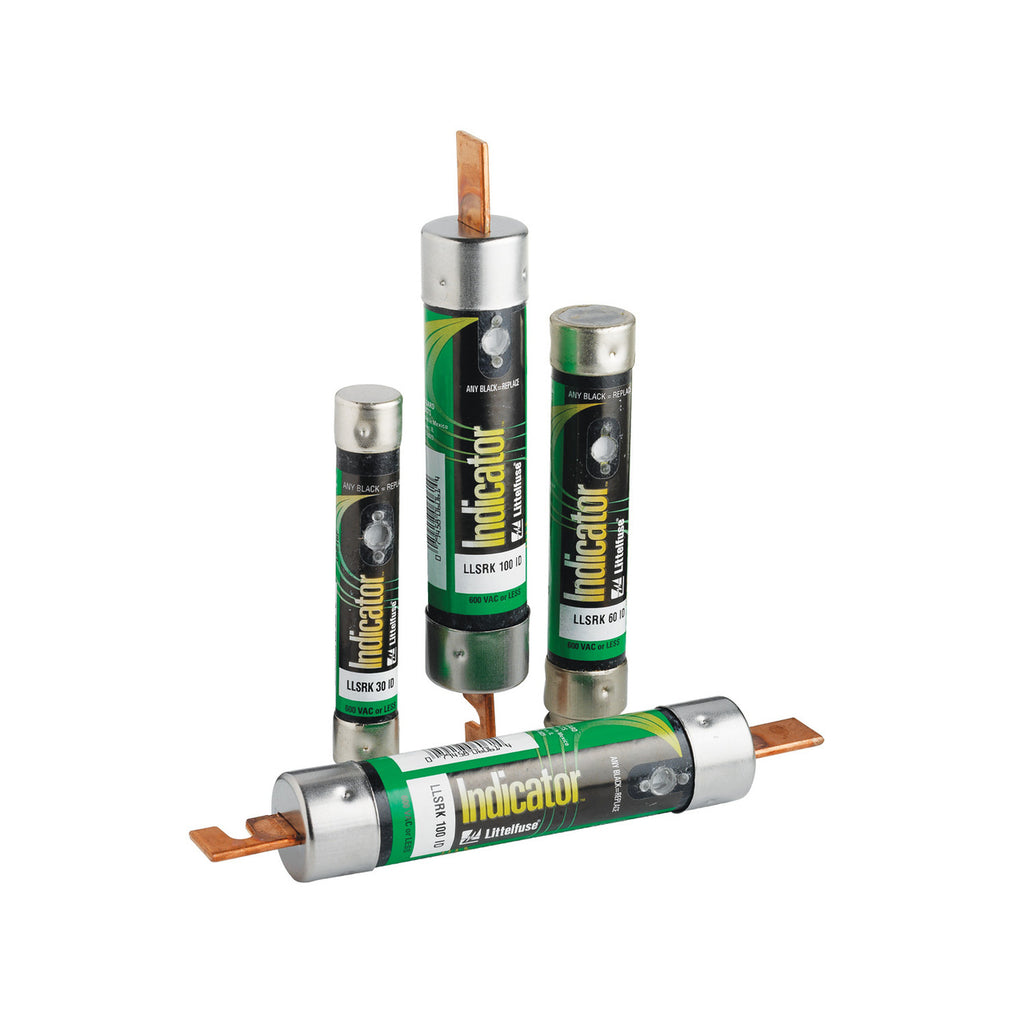

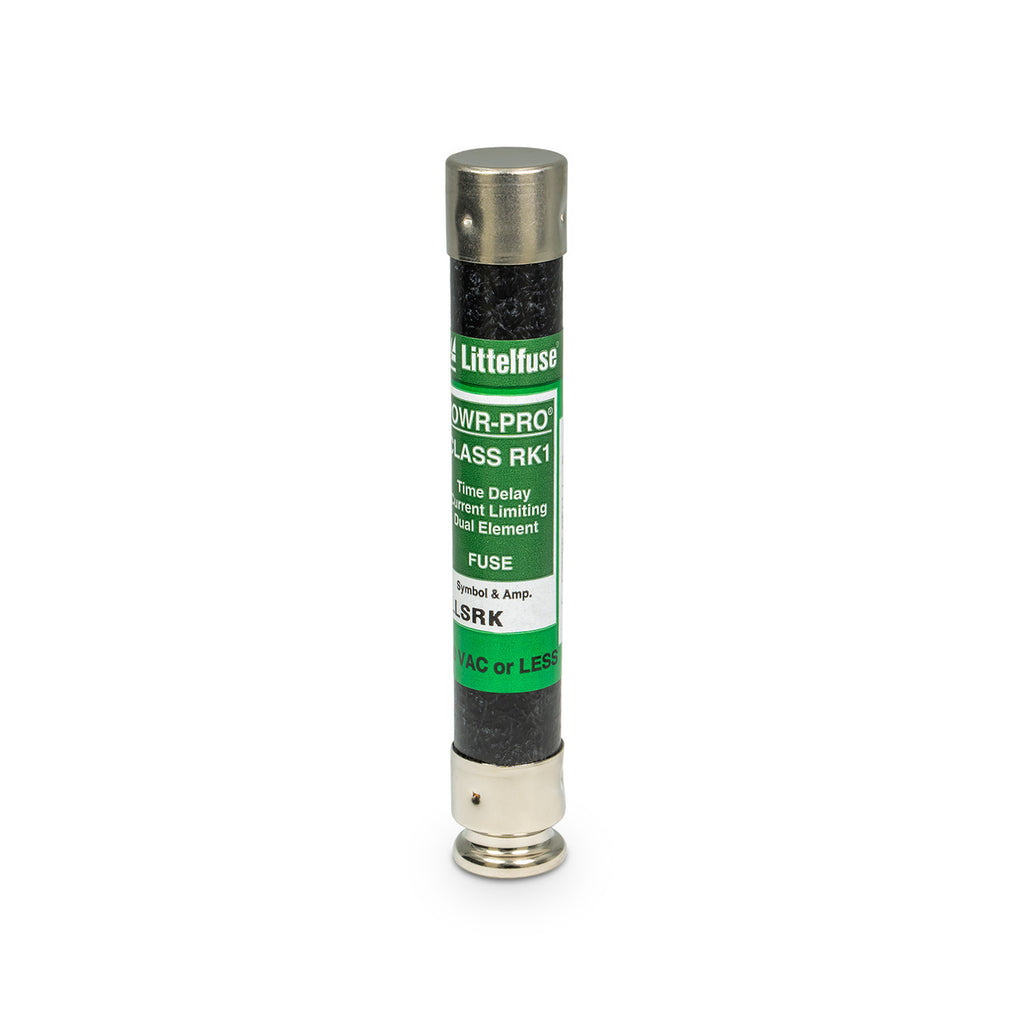

LLSRK-300 is a Littelfuse Class RK1 fuse rated for 300 Amps and 600 Volts AC / 300 Volts DC with time delay protection.LLSRK-300 features a dual-element, time-delay design providing extremely current-limiting performance to protect industrial power circuits, motors, transformers, and general-purpose branch circuits. It has a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, suitable for use in fuse blocks and holders. This fuse complies with UL 248-12 and CSA standards and offers IEC Type 2 "No Damage" protection to IEC and NEMA motor starters.
- Amperage: 300 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: UL Class RK1
- Fuse Type: Time Delay / Slow Blow
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Mounting: Industrial cartridge fuse block / holder
- Dual-element design for current limiting
- IEC Type 2 protection for motor starters
- Compliance: UL, CSA, CE
- Physical Size: Approximately 2 19/32" x 11 5/8"
Specifications
- Part Number: LLSRK-300
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : LLSRK
- Voltage : 600
- Amperage : 300
- AIC rating : 300kA@600Vac
- Connection : Clip
- Diameter : 2.59
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 007945835091
- GTIN : 00079458350913
- Weight : 15
