Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

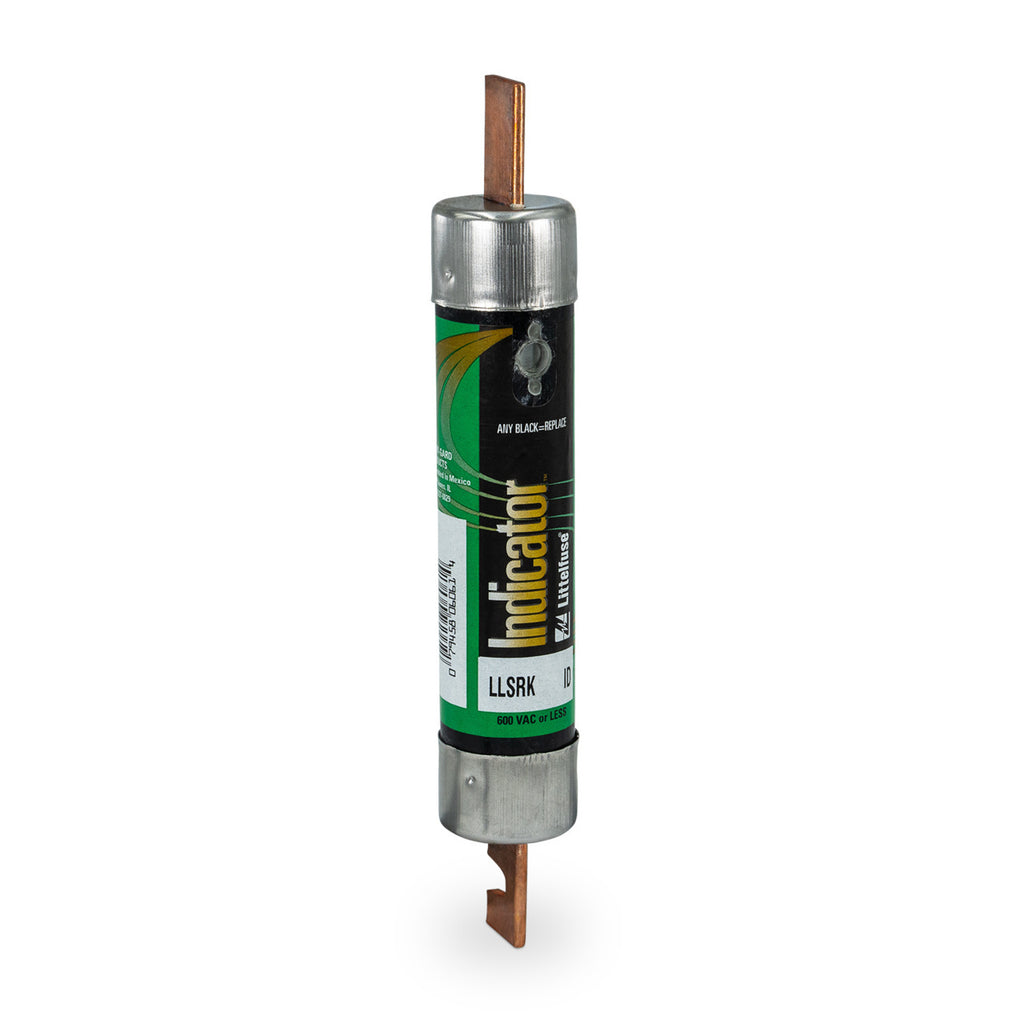

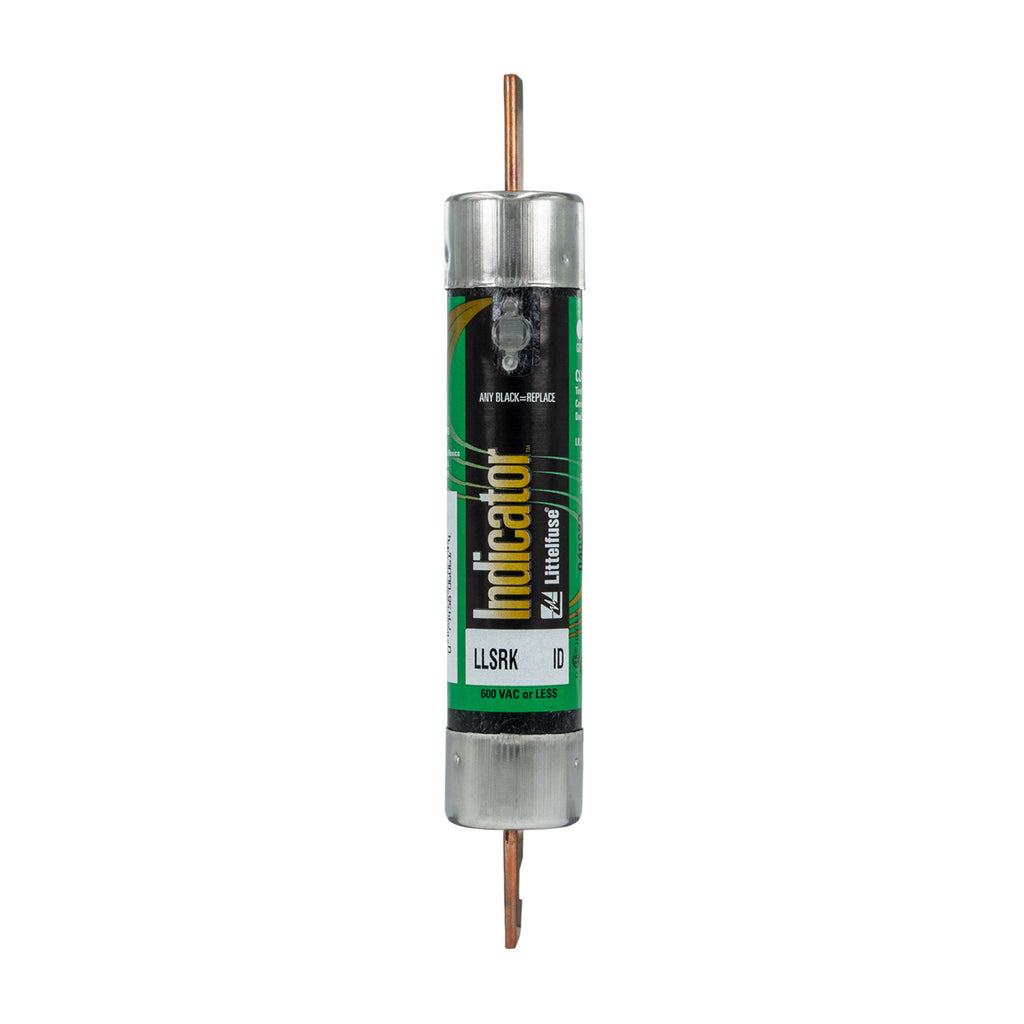

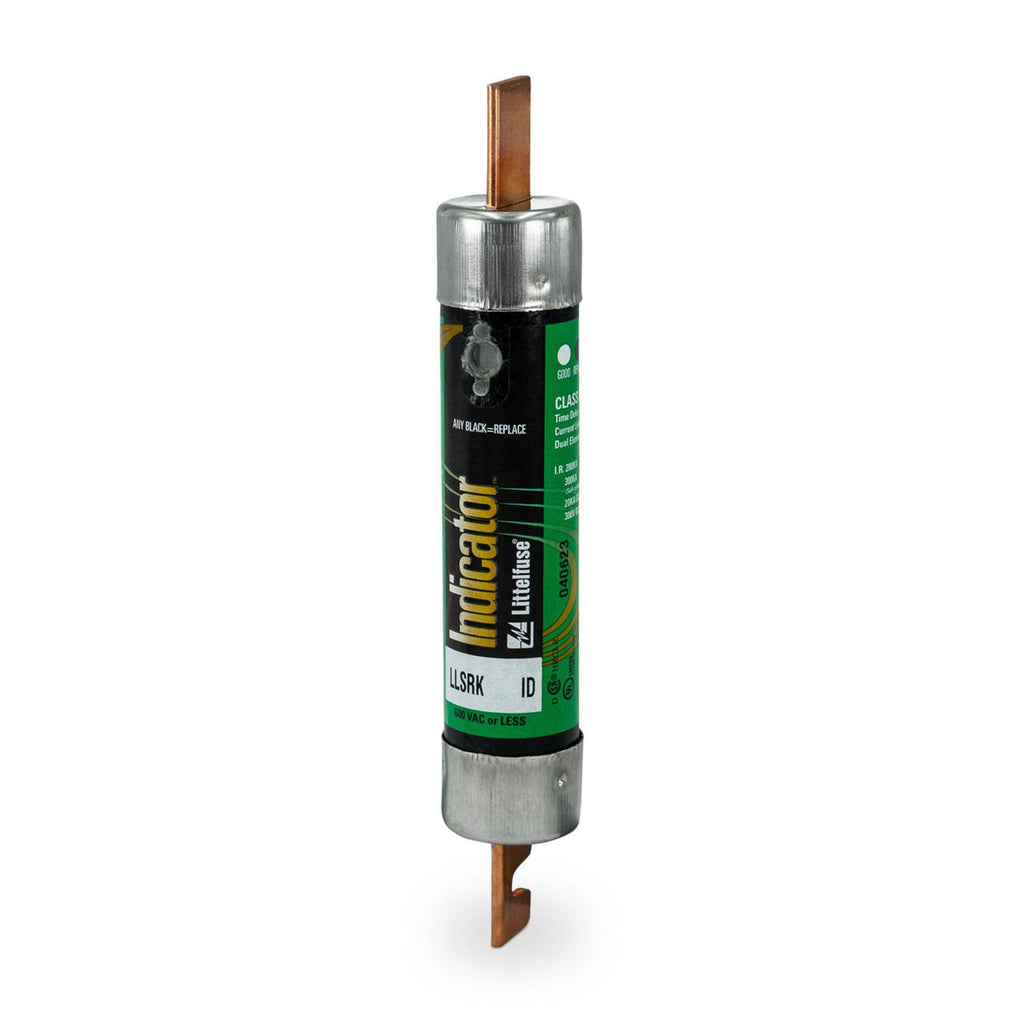

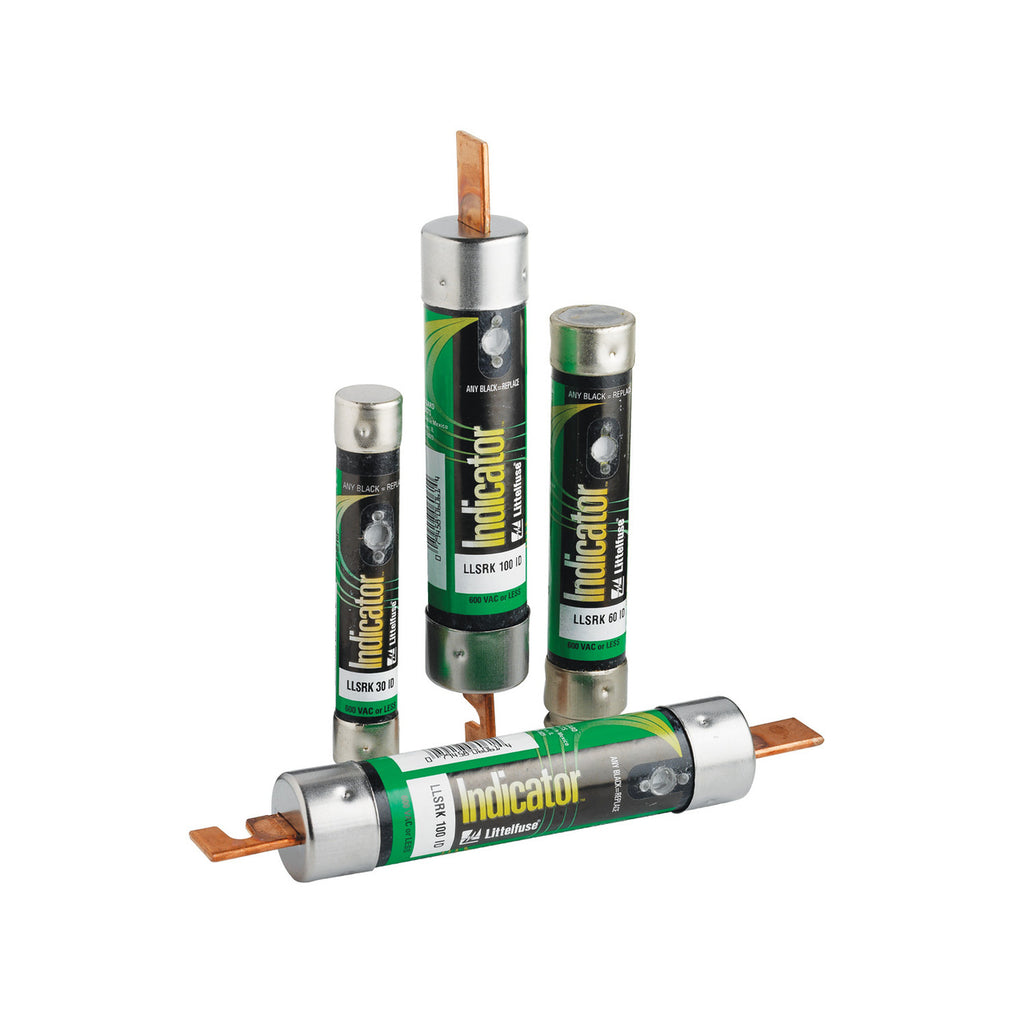

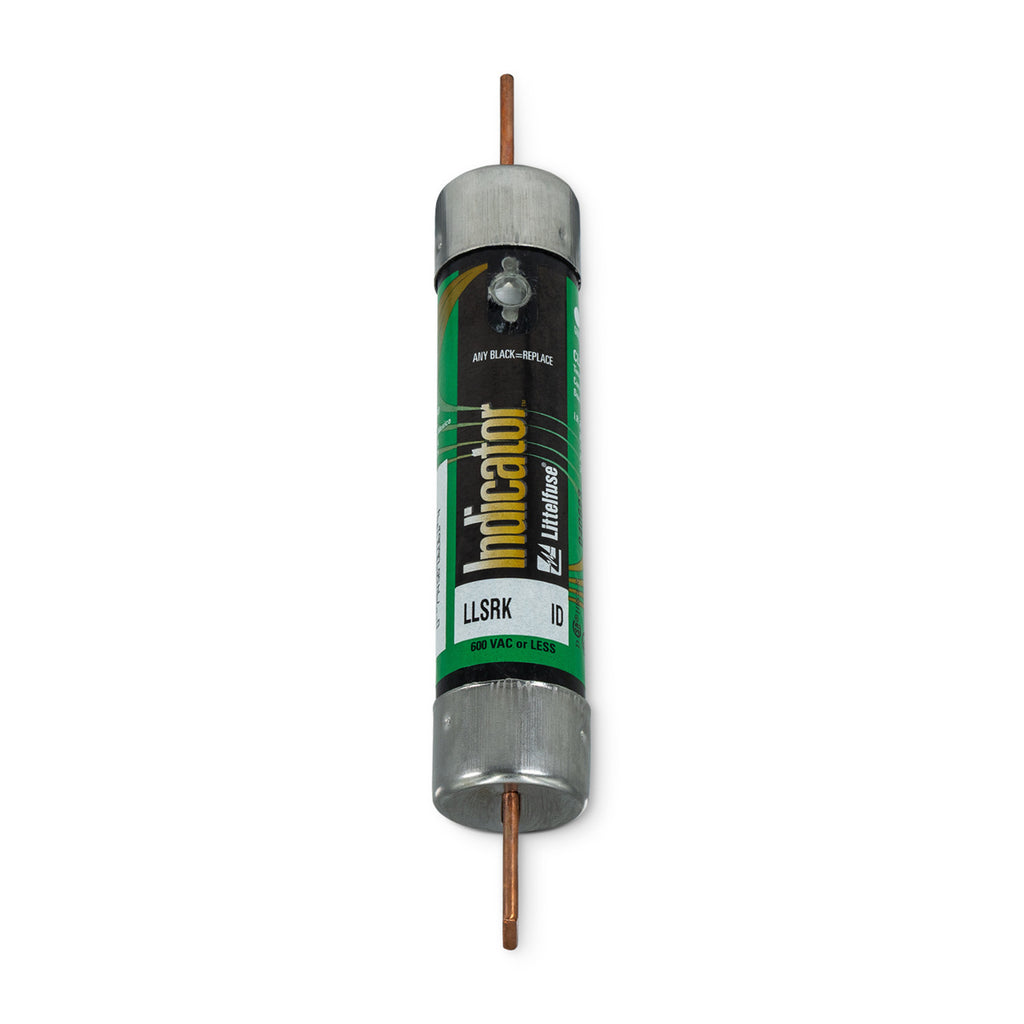

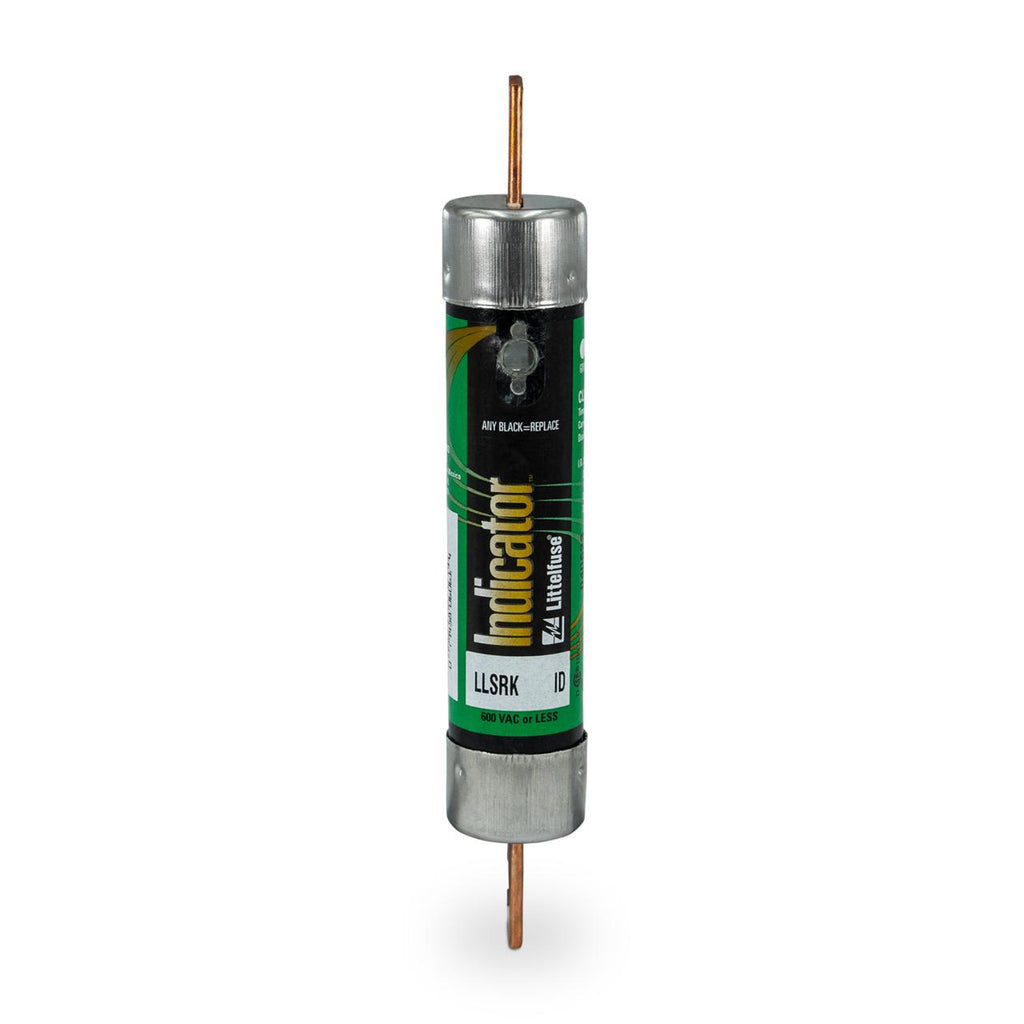

LLSRK-200ID
LLSRK-200ID is a Littelfuse 200 Amp, 600 Volt AC Class RK1 time delay fuse with dual-element construction and indicator for reliable circuit protection.This fuse features extremely current-limiting performance with a 200,000 A interrupt rating at 600 VAC and 20,000 A at 300 VDC. It is designed for general purpose circuits, motors, and transformers, providing IEC Type 2 "No Damage" protection to IEC and NEMA type motor starters. The fuse has a physical size of 1 27/32" diameter by 9 5/8" length and includes a blown fuse indicator. It meets UL 248-12, CSA, and CE certifications.
- Amperage: 200 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Class: RK1
- Time Delay, Dual Element
- Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Physical Size: 1 27/32" x 9 5/8"
- Indicator included
- IEC Type 2 protection
- Mounting: Cartridge, Knife-Blade
- Certifications: UL 248-12, CSA, CE
Specifications
- Part Number: LLSRK-200ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : LLSRK_ID
- Voltage : 600
- Amperage : 200
- AIC rating : 300kA@600Vac
- Connection : Clip
- Diameter : 1.84
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 007945806066
- GTIN : 00079458060669
- Weight : 15
