Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
LLSRK-150ID

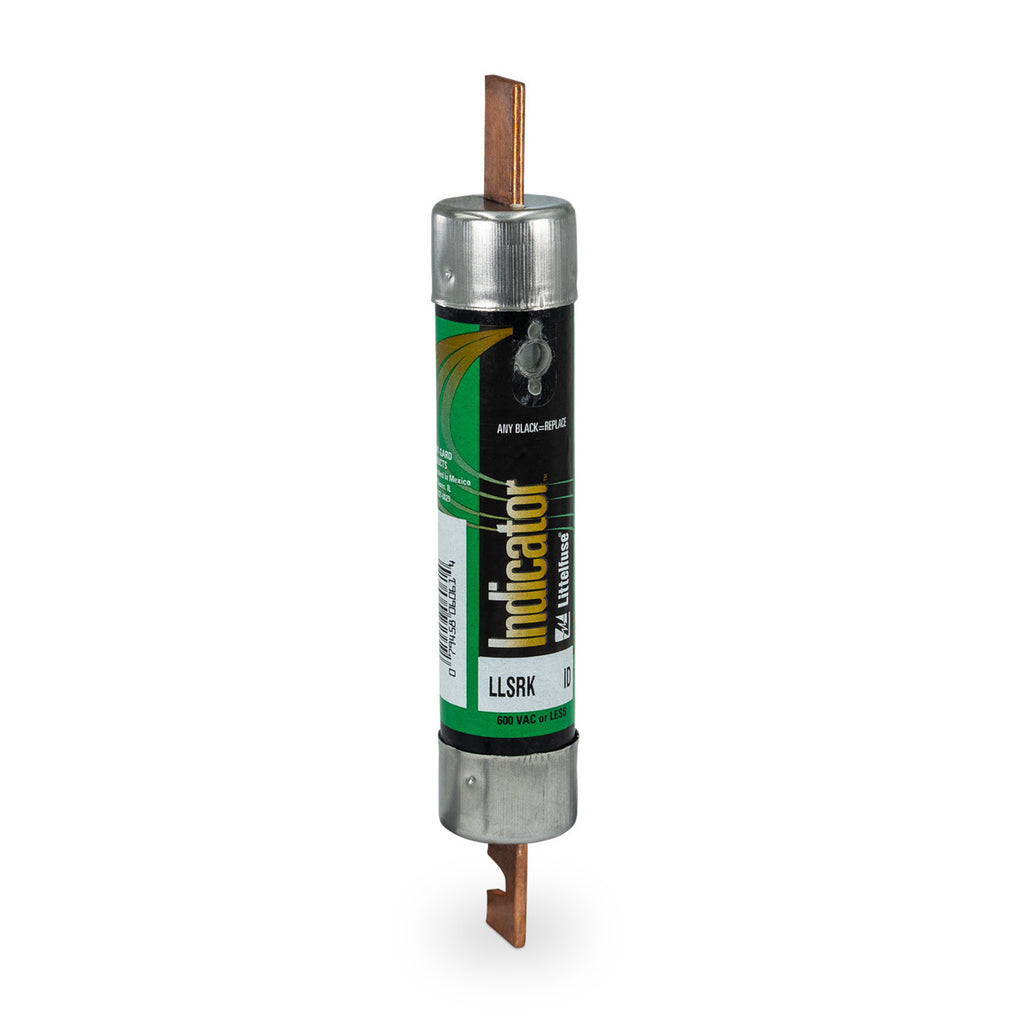

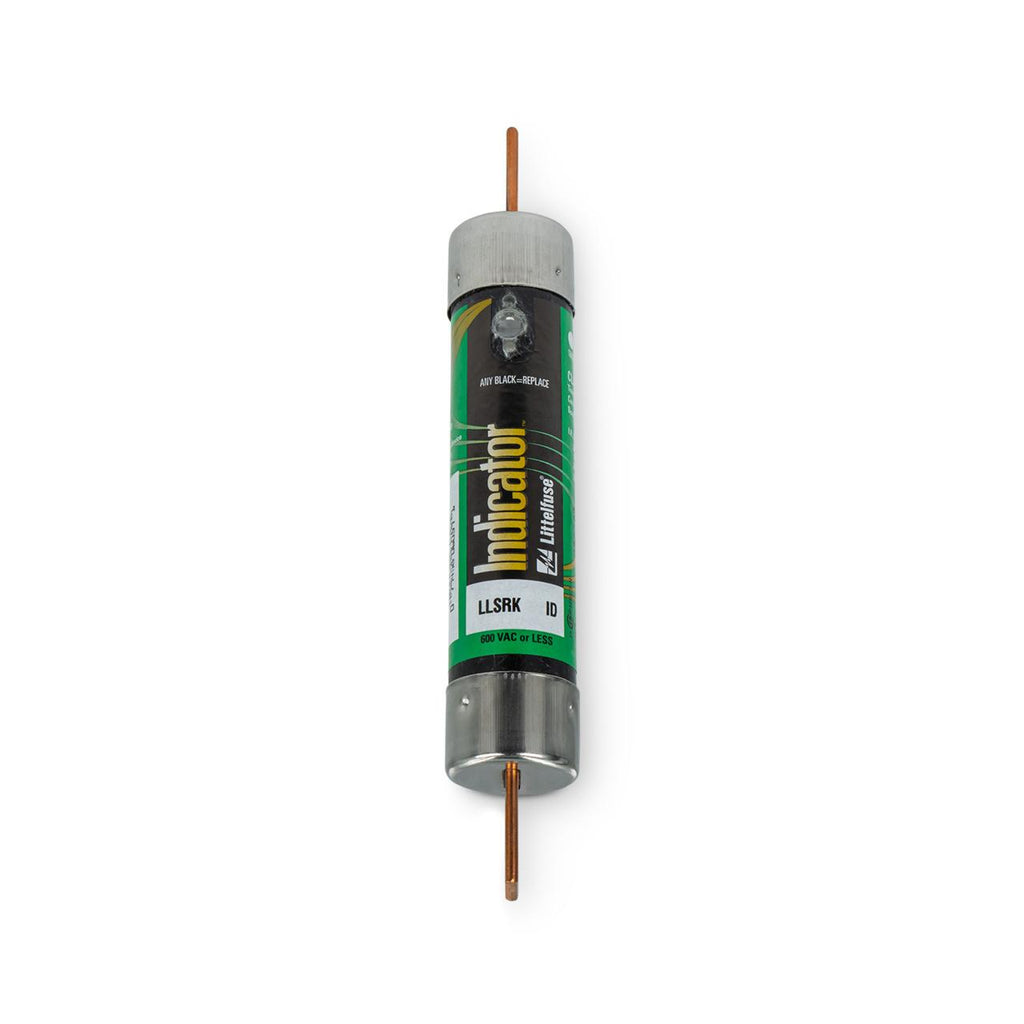

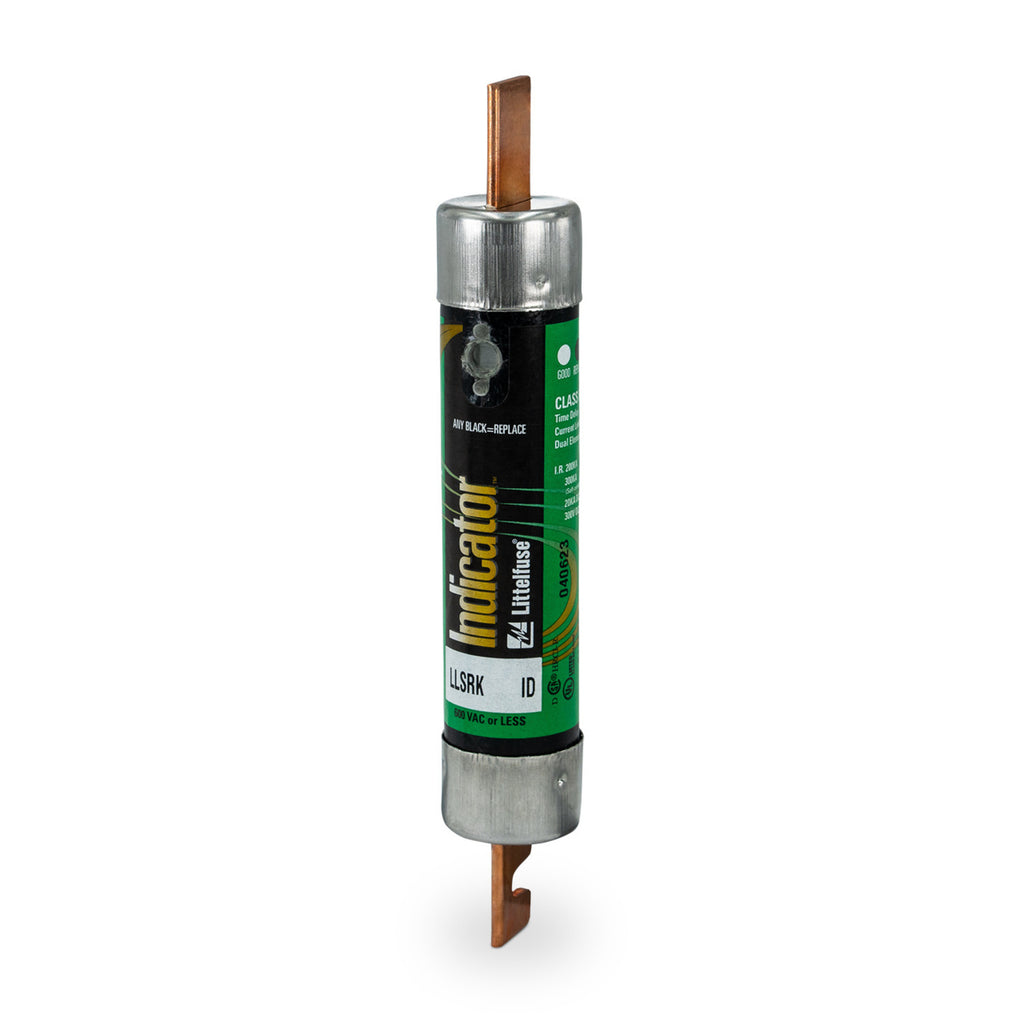

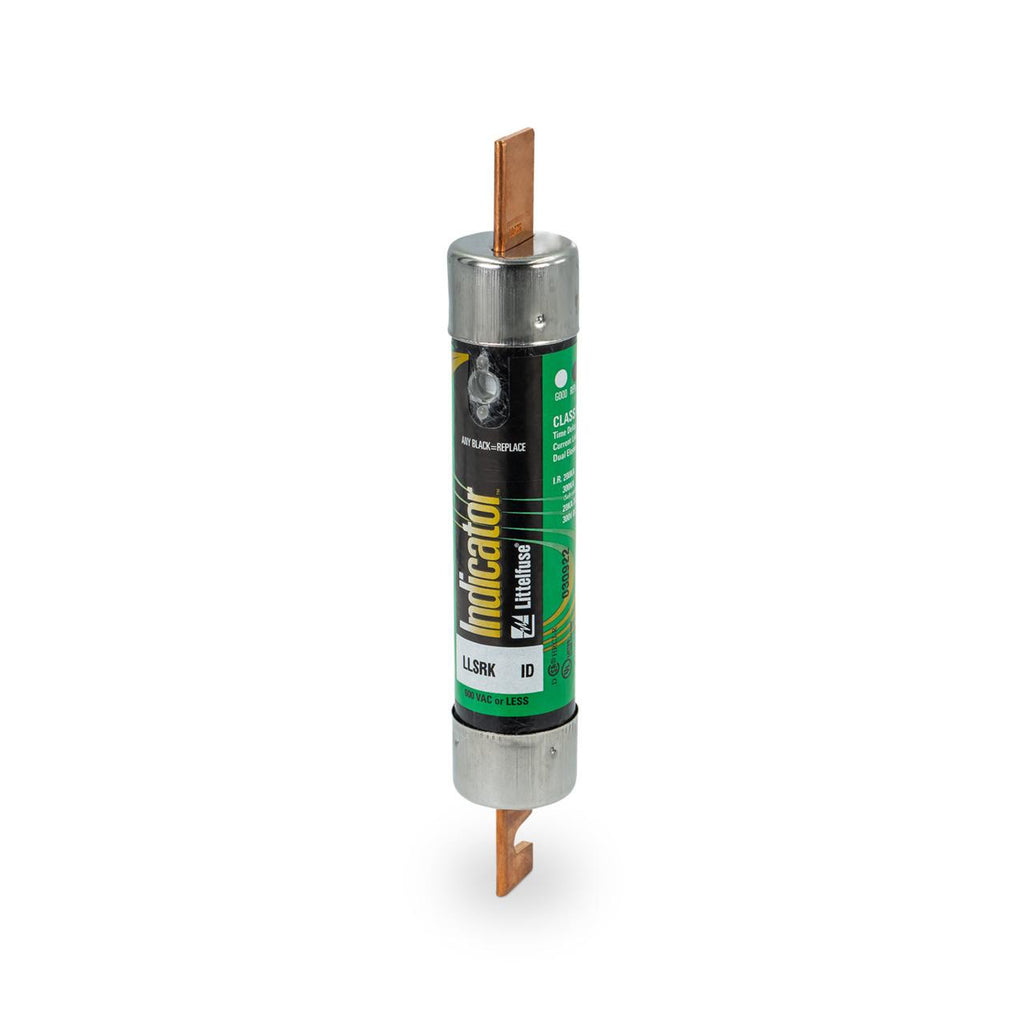

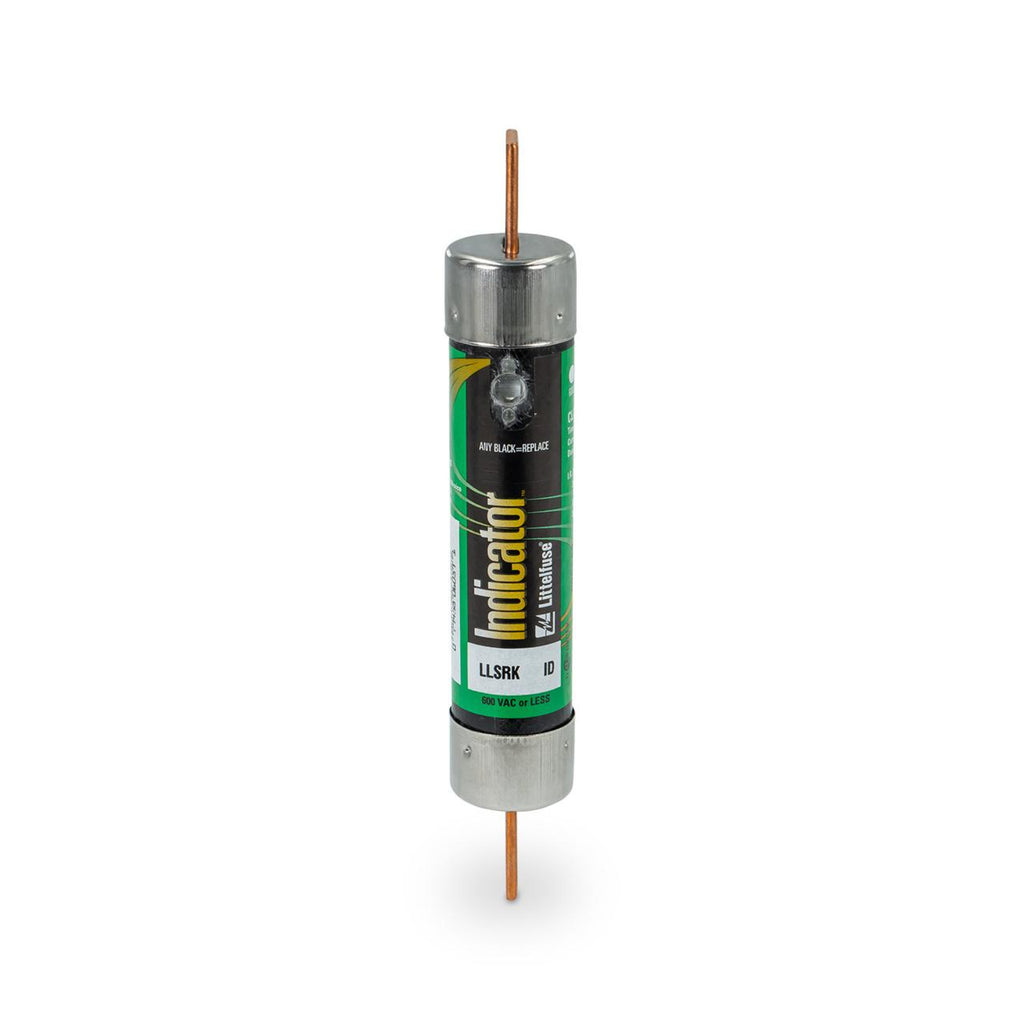

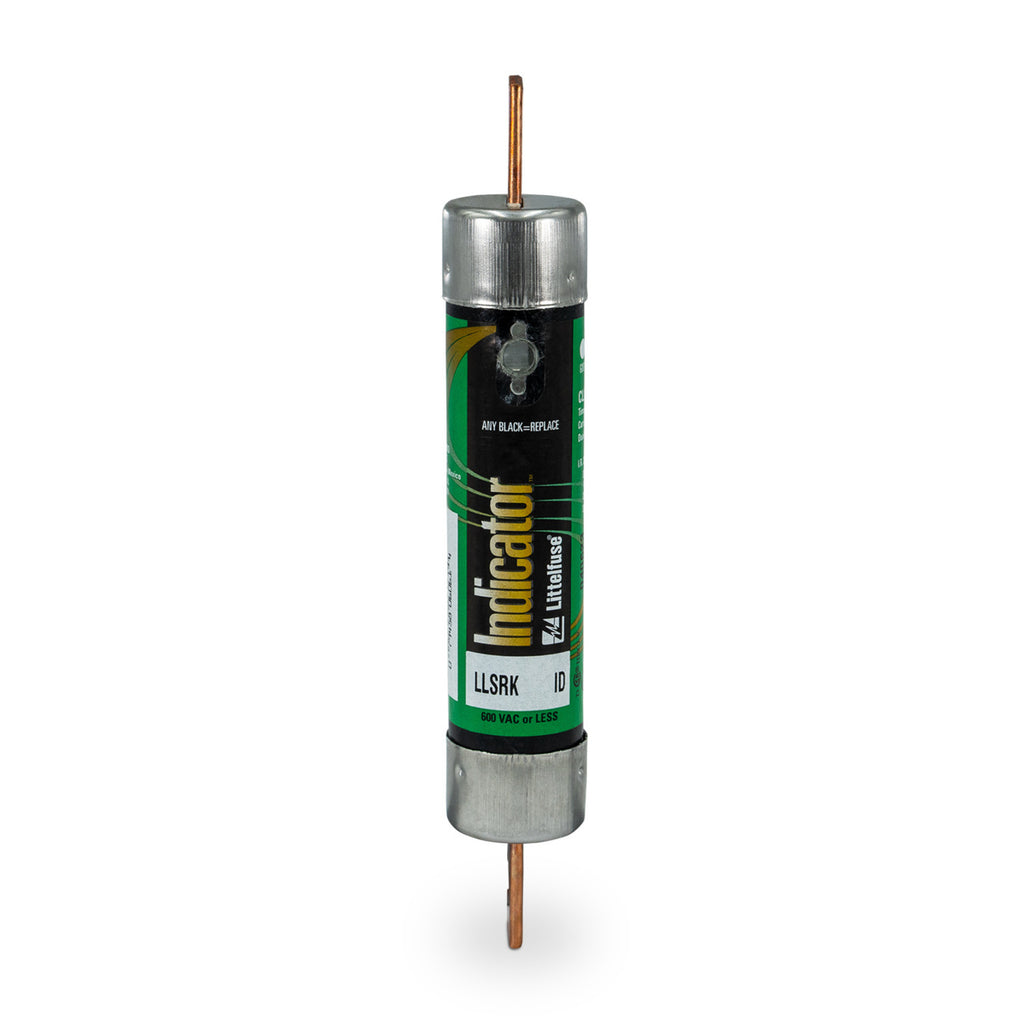

LLSRK-150ID is a Littelfuse Powr-Gard low voltage fuse designed for reliable circuit protection in general purpose, motor, and transformer applications. This fuse features true dual-element construction for robust surge handling and a time-delay design to prevent nuisance tripping. The LLSRK-150ID is an extremely current-limiting fuse, providing high-level protection against short-circuit conditions. It includes a blown fuse indicator for easy status monitoring and is suitable for use in a wide range of industrial and commercial settings.
- Part Number: LLSRK-150ID
- Manufacturer: Littelfuse
- Series: Powr-Gard
- Amperage: 150A
- Voltage Rating: 600V AC / 300V DC
- Class: RK1
- Protection Type: Dual Element, Time Delay
- Interrupting Rating: 200,000 AIC @ 600V AC
- Physical Size: 1 27/16" x 9 5/8"
- Mounting Type: 1 Barrel
- Certifications: UL 248-12, CSA, CE
- Indicator: Yes
Specifications
- Part Number: LLSRK-150ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : LLSRK_ID
- Voltage : 600
- Amperage : 150
- AIC rating : 300kA@600Vac
- Connection : Clip
- Diameter : 1.84
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 007945806064
- GTIN : 00079458060645
- Weight : 15
