Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
LLSRK-125ID

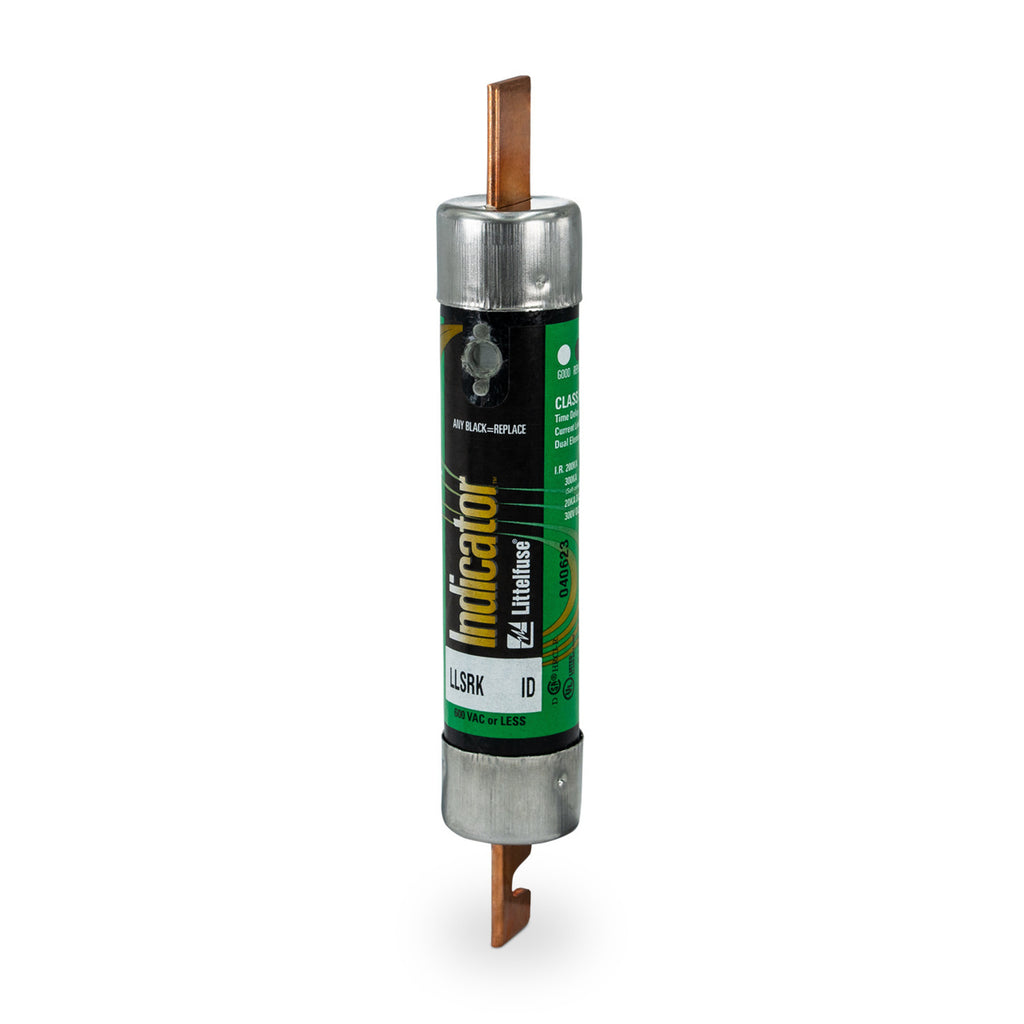

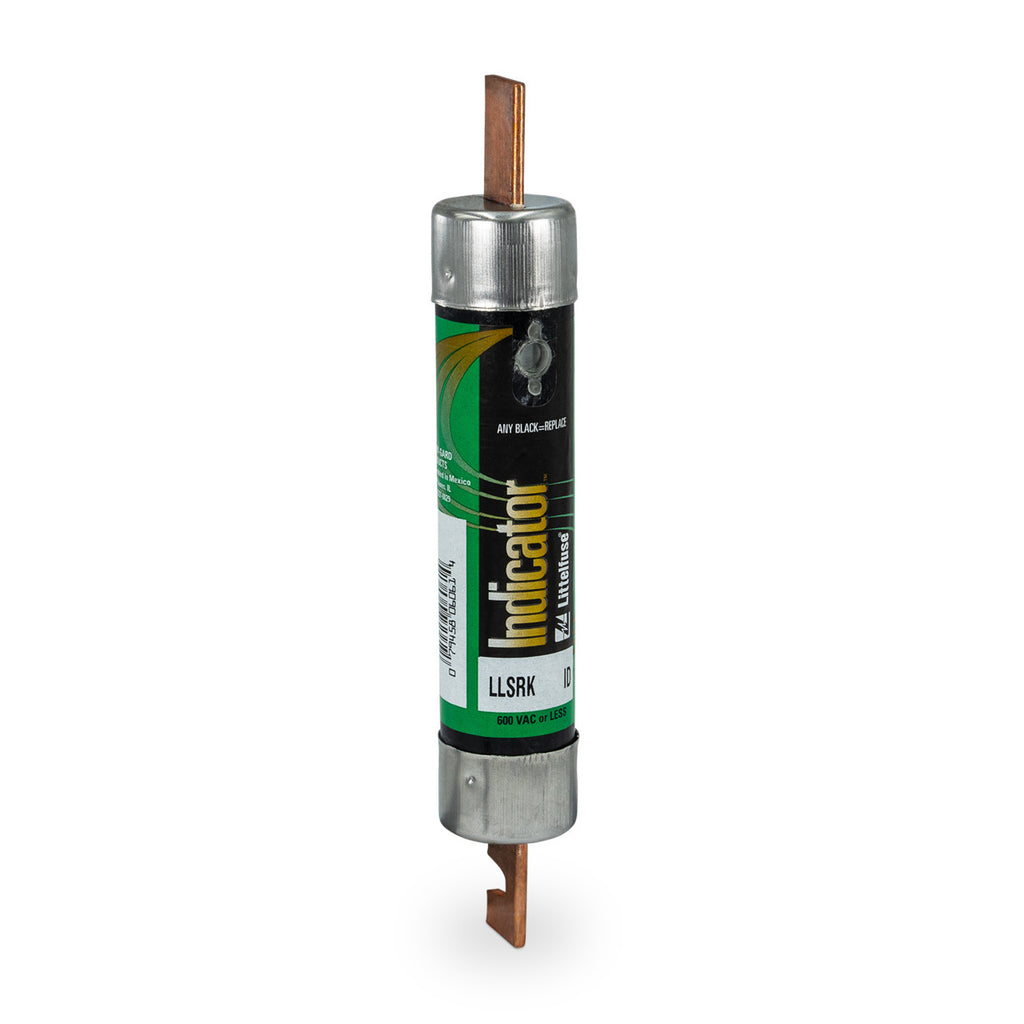

LLSRK-125ID is a Littelfuse 125 Amp, 600 Volt AC Class RK1 time delay fuse with indicator designed for reliable circuit protection.This fuse features a dual-element, time delay design with extremely current limiting characteristics. It is UL Class RK1 rated and suitable for general purpose circuits, providing IEC Type 2 protection for motor starters. The fuse has a cartridge body measuring approximately 1 27/32 inches in diameter by 9 5/8 inches in length. It offers a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse is constructed with a fiberglass reinforced pultruded body and plated end caps, ensuring durability and performance.
- Key Specifications
- Amperage: 125 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Class: RK1
- Fuse Type: Time Delay, Dual Element
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Body Size: 1 27/32 in diameter x 9 5/8 in length
- Mounting Type: Cartridge
- Indicator: Fuse blown indicator included
- Certifications: UL 248-12, CSA, CE
- Series: POWR-GARD
- Part Number: LLSRK-125ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : LLSRK_ID
- Voltage : 600
- Amperage : 125
- AIC rating : 300kA@600Vac
- Connection : Clip
- Diameter : 1.84
- Class Rating : RK1
- Barrels : 1
- UPC : 007945806063
- GTIN : 00079458060638
- Weight : 15
