Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLNRK300

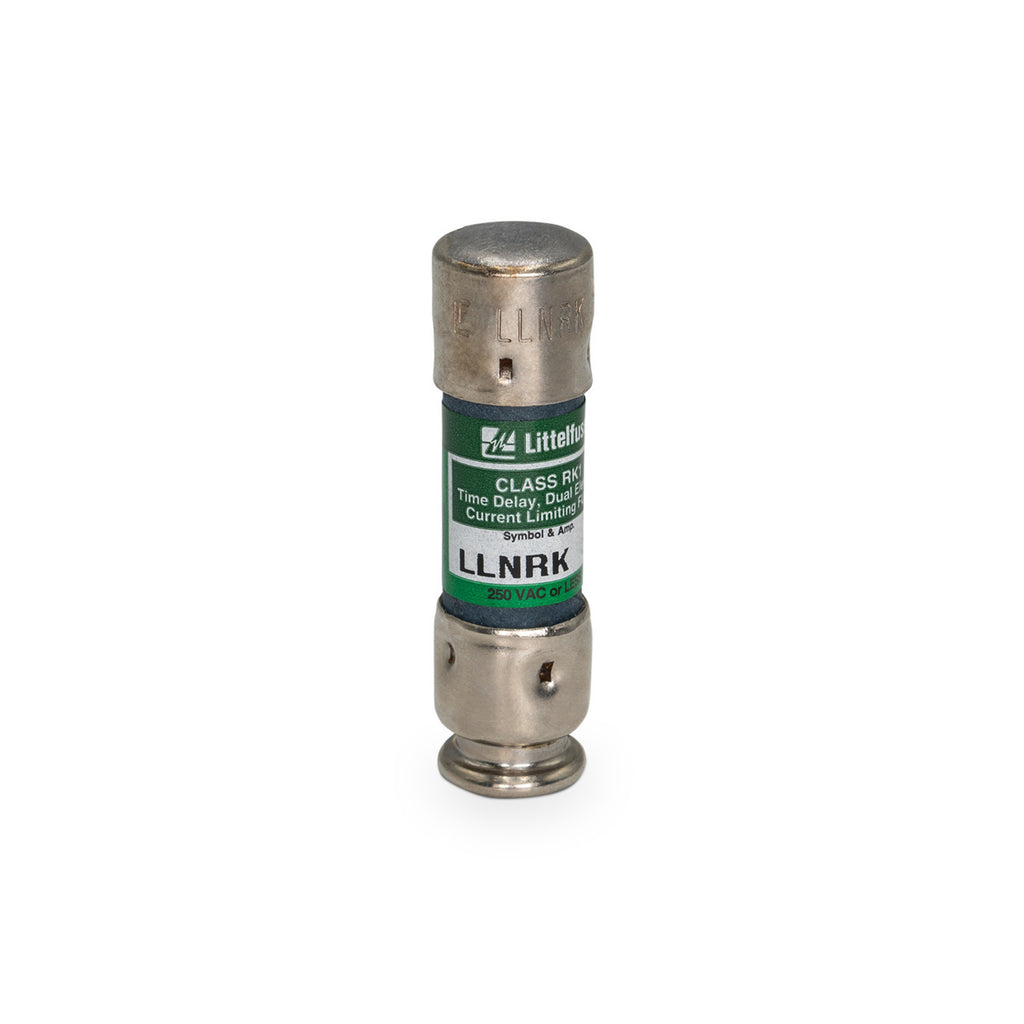

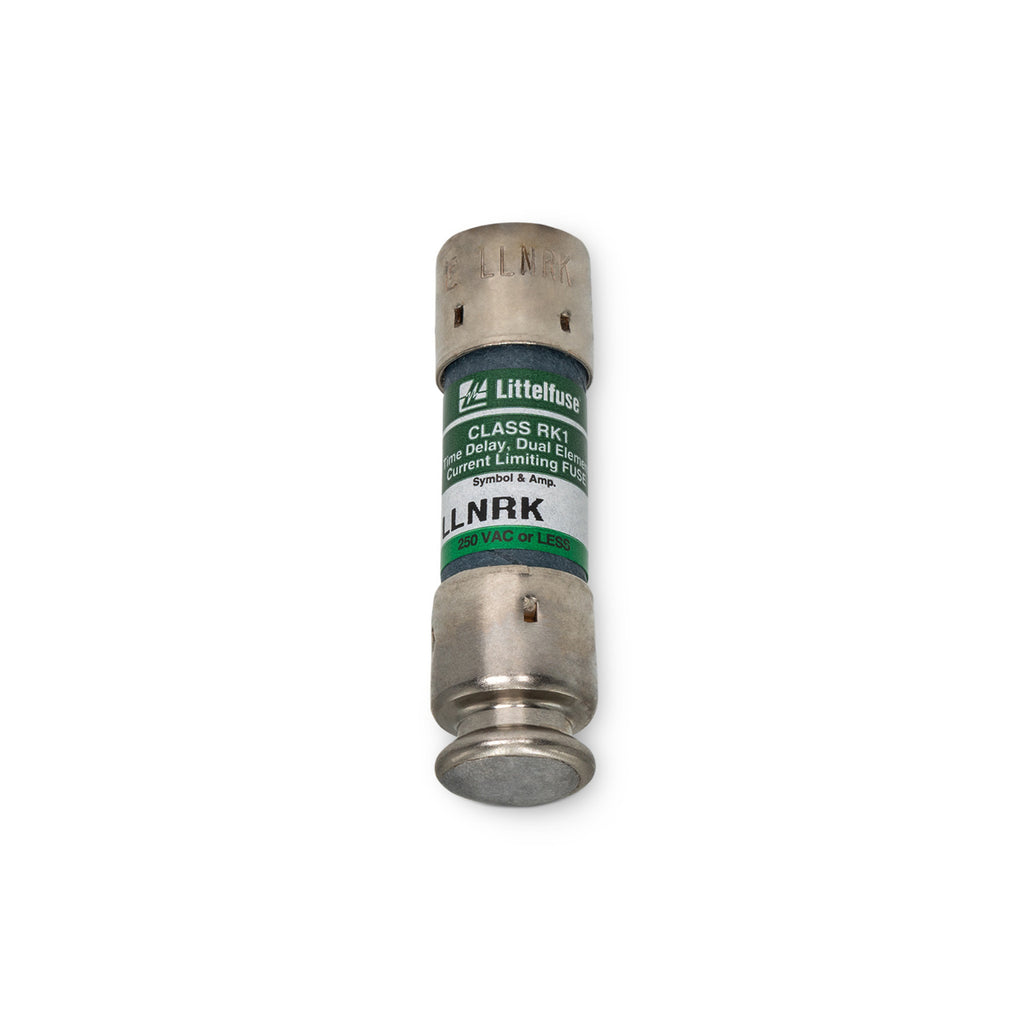

LLNRK300 is a Littelfuse Class RK1 dual element time delay fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a robust construction for high in-rush current environments and offers superior short-circuit protection. The LLNRK300 fuse is engineered for use in general-purpose circuits, motors, transformers, and other equipment requiring high interrupting capacity and time-delay characteristics. Its dual element design provides resistance to nuisance tripping from surges and ensures long service life.
- Part Number: LLNRK300
- Manufacturer: Littelfuse
- Series: POWR-PRO
- Fuse Class: Class RK1
- Amperage: 300A
- Voltage Rating: 250VAC / 125VDC
- Interrupt Rating: 200,000A symmetrical
- Mounting Type: Dual element, standard fuse holder
- Time Delay: Yes
- Physical Size: 2 3/32" x 8 5/8"
- Certifications: UL 248-12, CSA
- Applications: Motors, transformers, lighting, general circuits
Specifications
- Part Number: LLNRK300
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 300
- AIC rating : 200kA@250V
- Diameter : 2.09
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945833091
- GTIN : 00079458330915
- Country of Origin : Mexico
- Dimensions : Length 8 5/8 inches X Diameter 2 3/32 inches
- Weight : 2 lb
