Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLNRK250

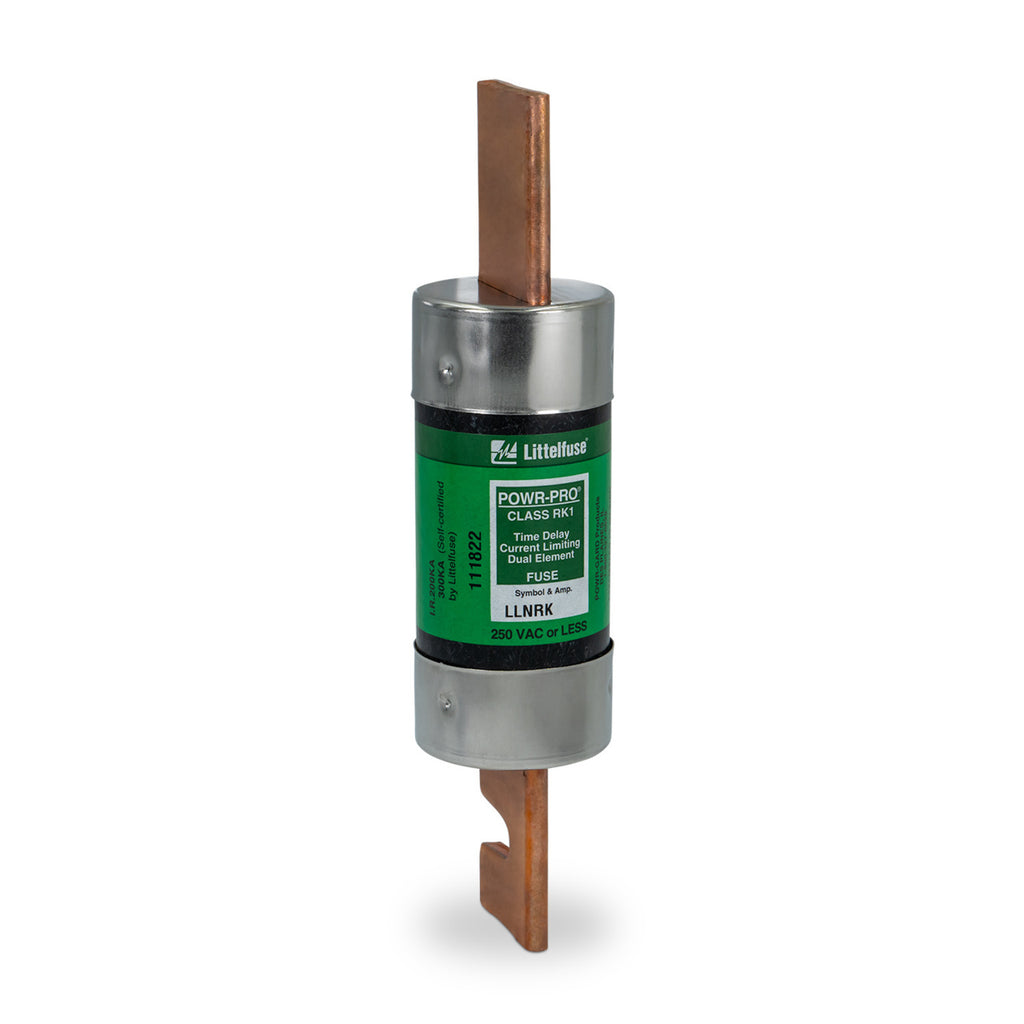

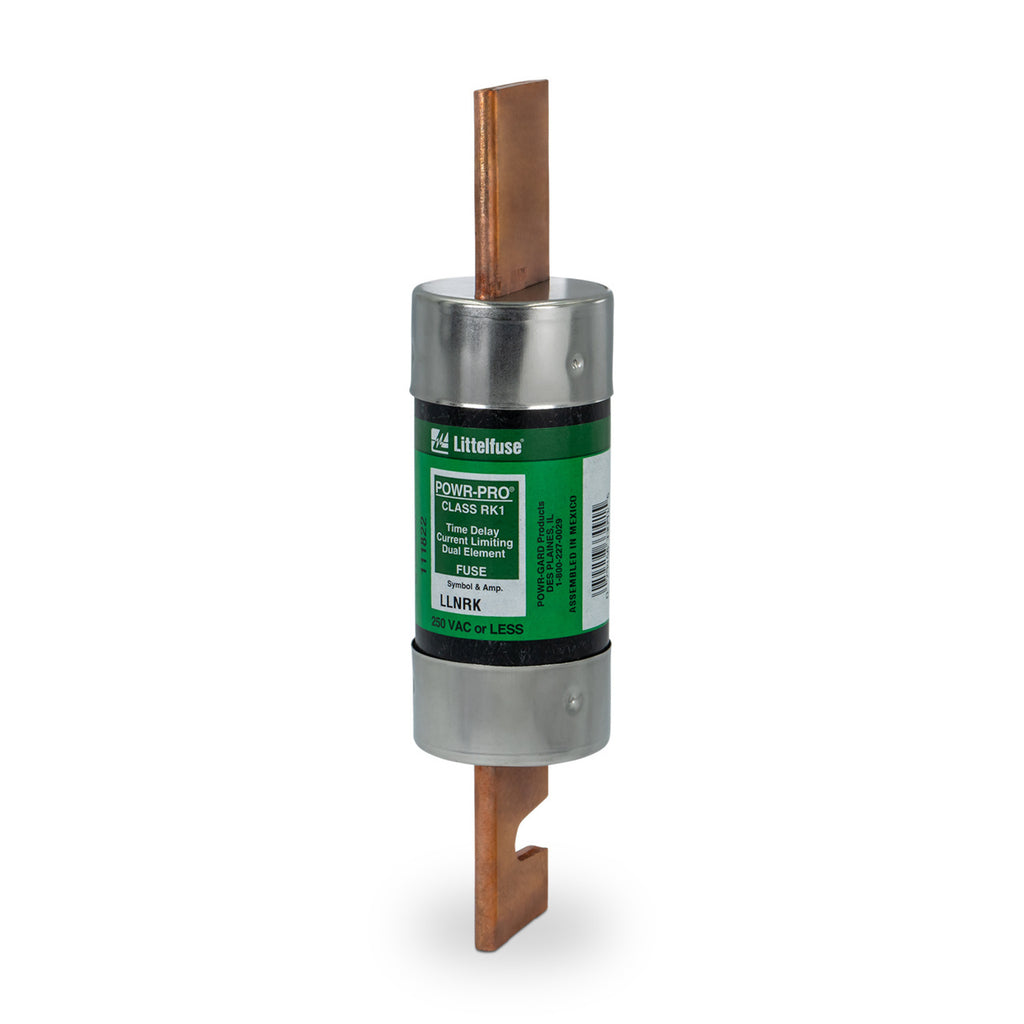

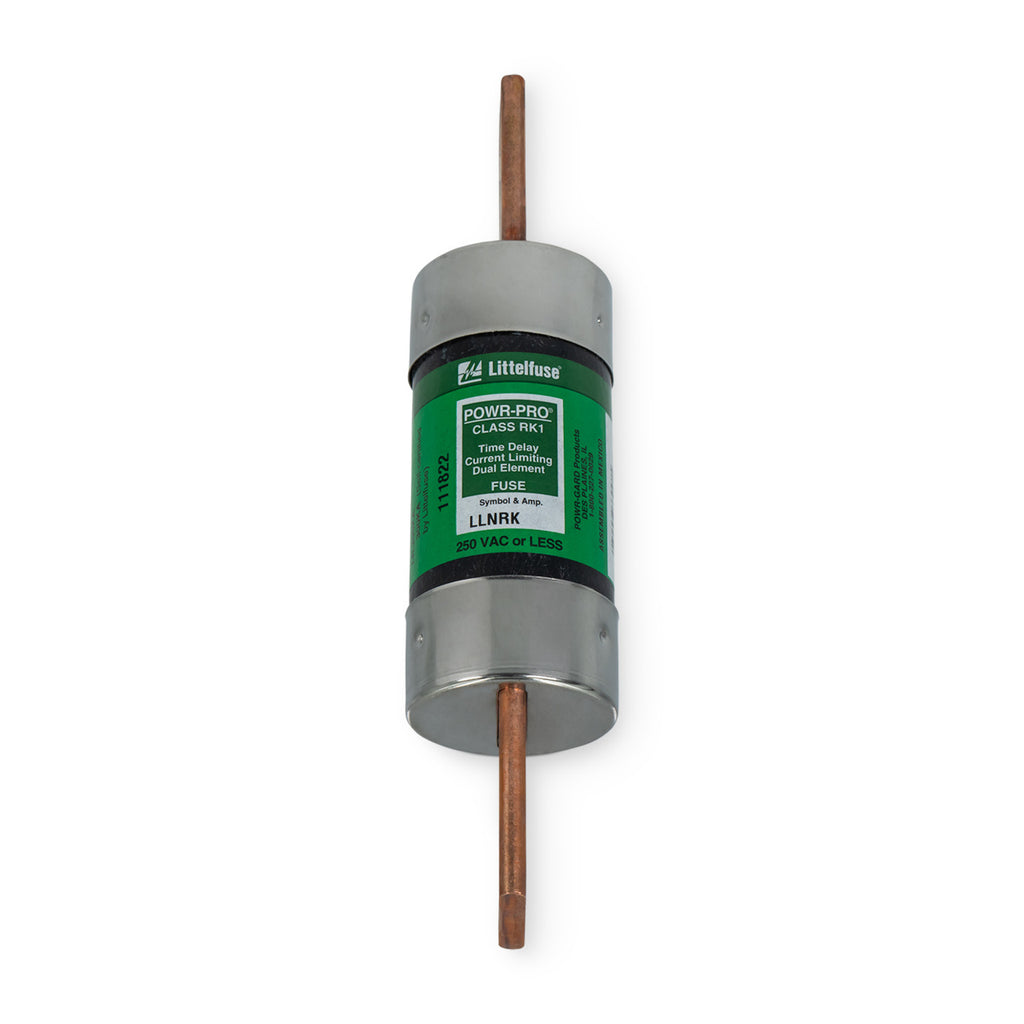

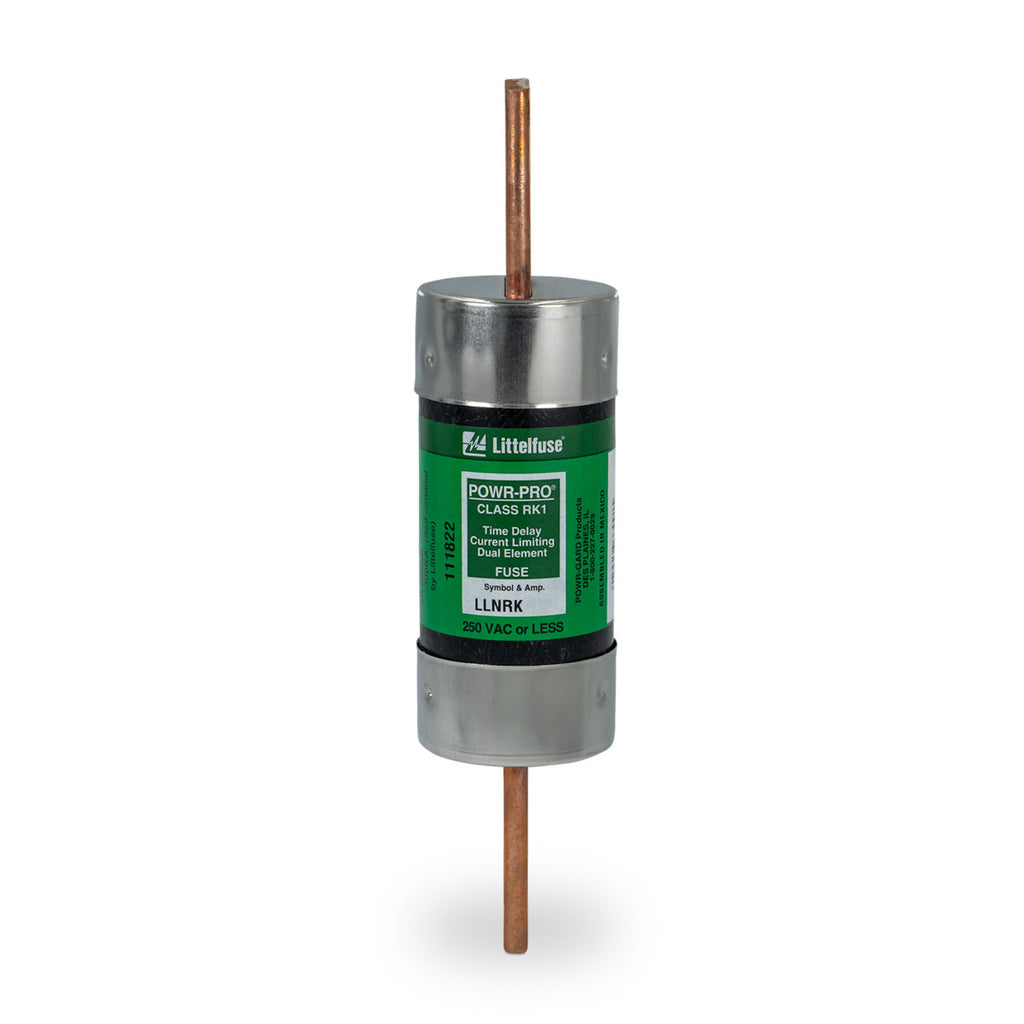

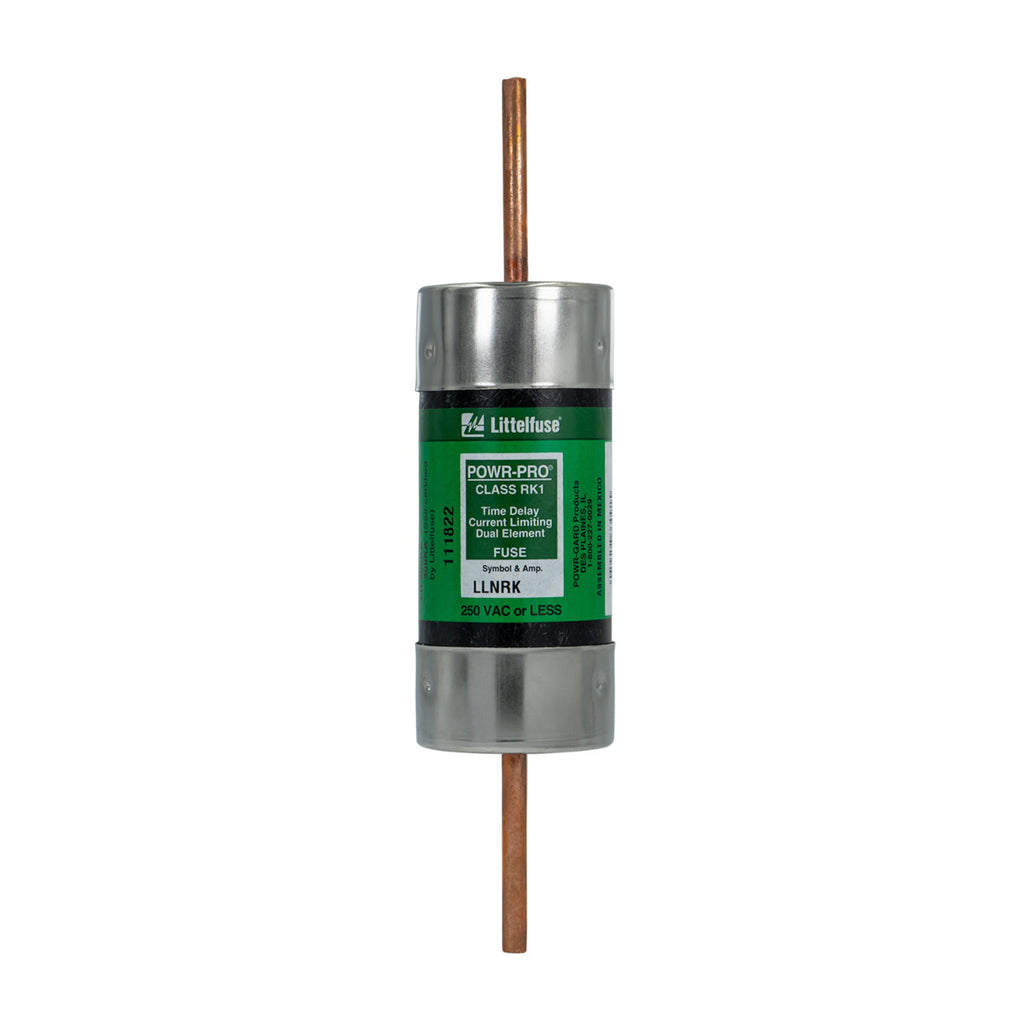

LLNRK250 is a Littelfuse Class RK1 fuse designed for reliable circuit protection in general purpose applications.This fuse features a 250 ampere rating with 250 volts AC and 125 volts DC voltage ratings. It is a dual-element, time-delay fuse that provides extremely current-limiting protection to reduce damage from short circuits. The fuse body is fiberglass reinforced with plated end caps and granular quartz filling for enhanced performance. It meets UL 248-12, CSA, and CE certifications and is suitable for motor, transformer, and safety upgrade applications.
- Class RK1 fuse type
- 250 Amp current rating
- 250 VAC / 125 VDC voltage rating
- Dual-element, time-delay design
- Extremely current-limiting
- Fiberglass reinforced body
- Plated end caps
- Dimensions: 2-3/32" diameter x 8-5/8" length
- UL 248-12, CSA, CE certified
- Interrupt rating: 300kA at 250 VAC
Specifications
- Part Number: LLNRK250
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 250
- AIC rating : 200kA@250V
- Diameter : 2.09
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945833090
- GTIN : 00079458330908
- Weight : 2
