Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
LLNRK175

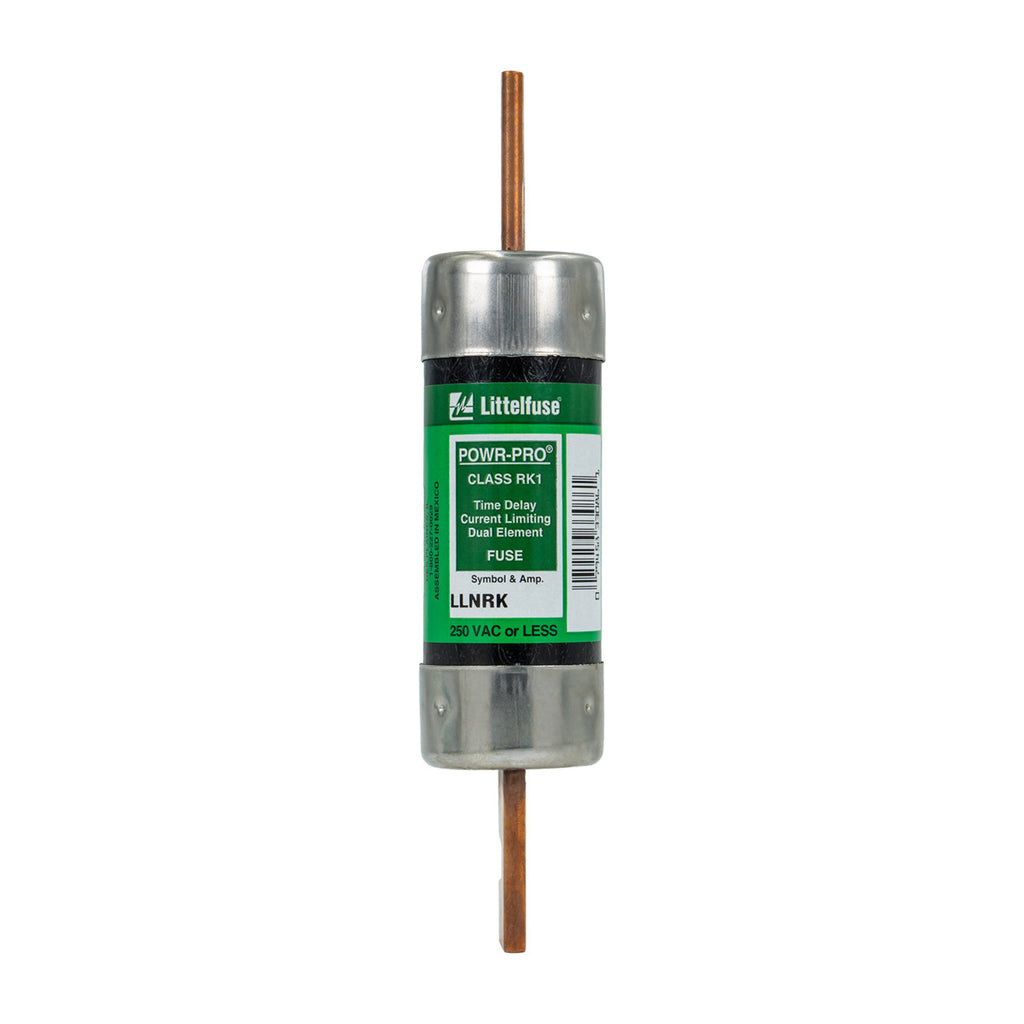

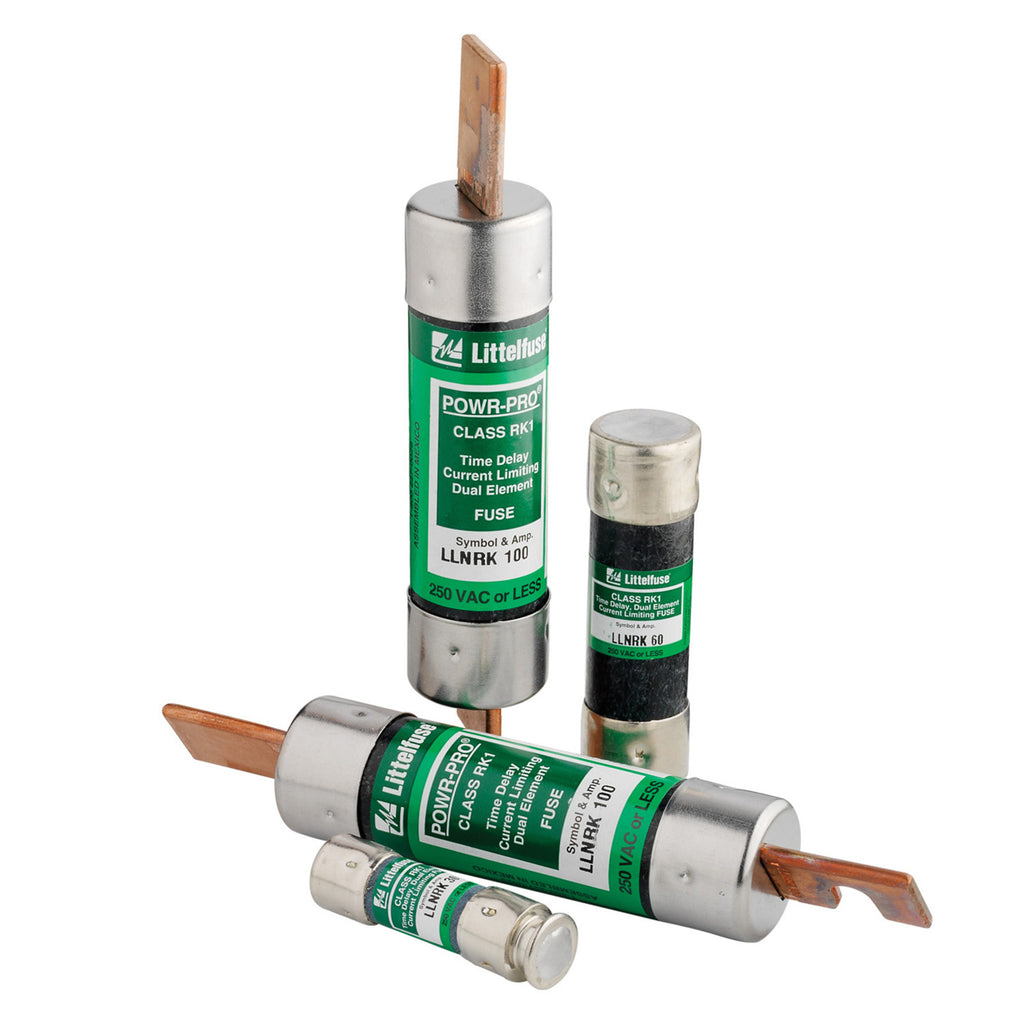

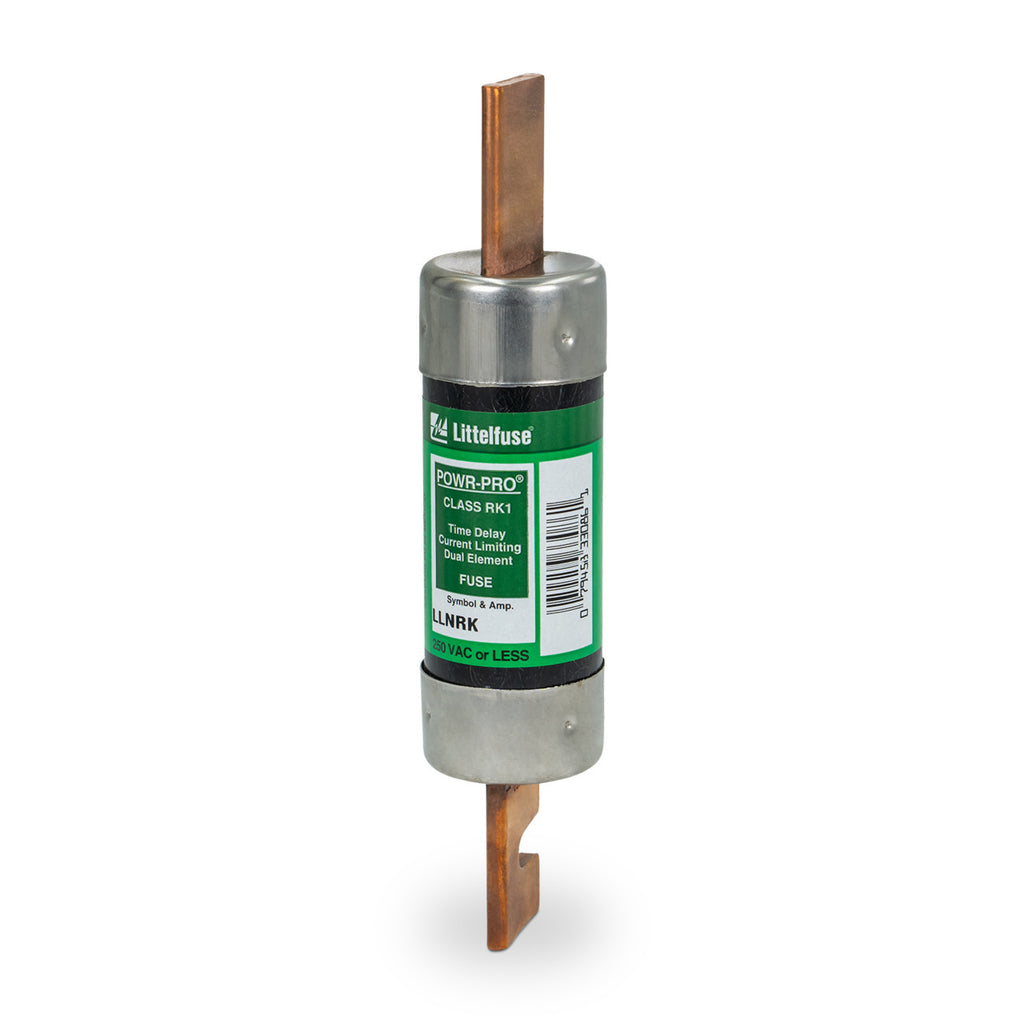

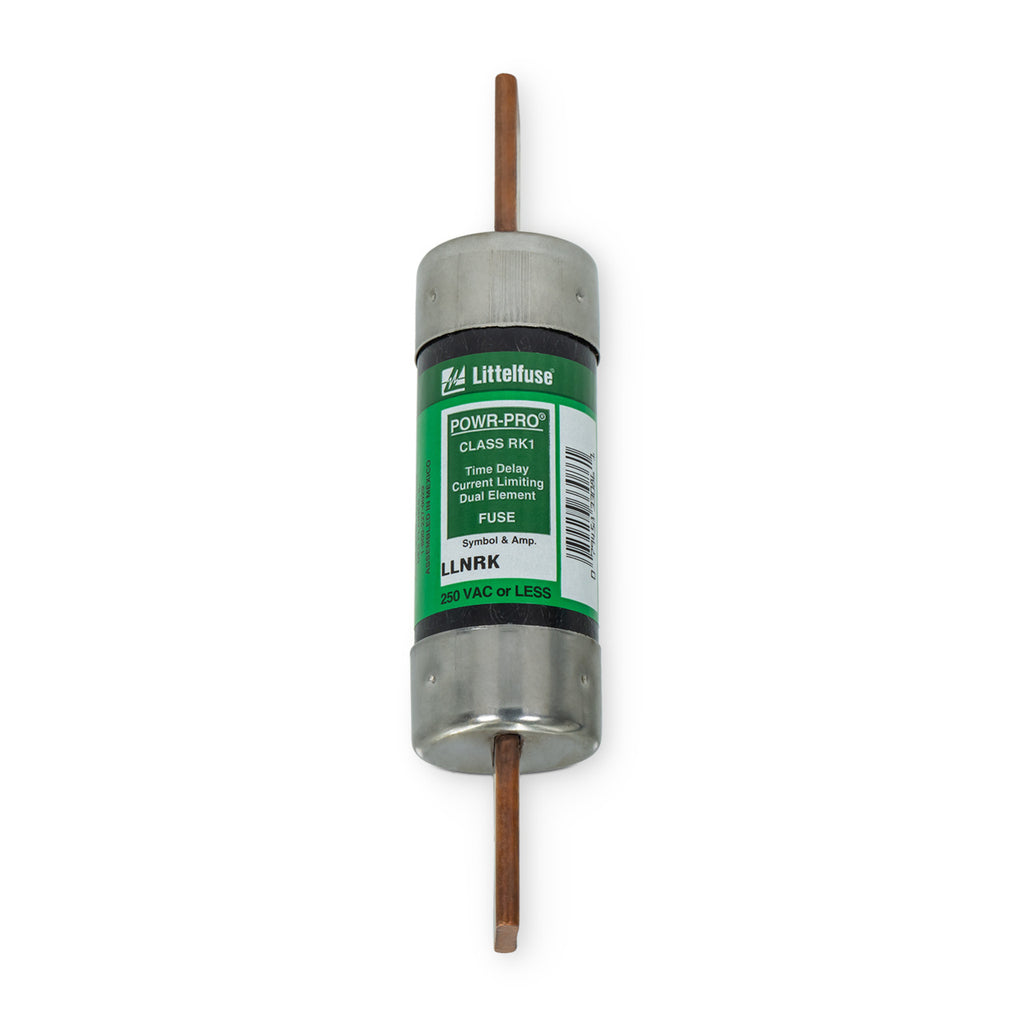

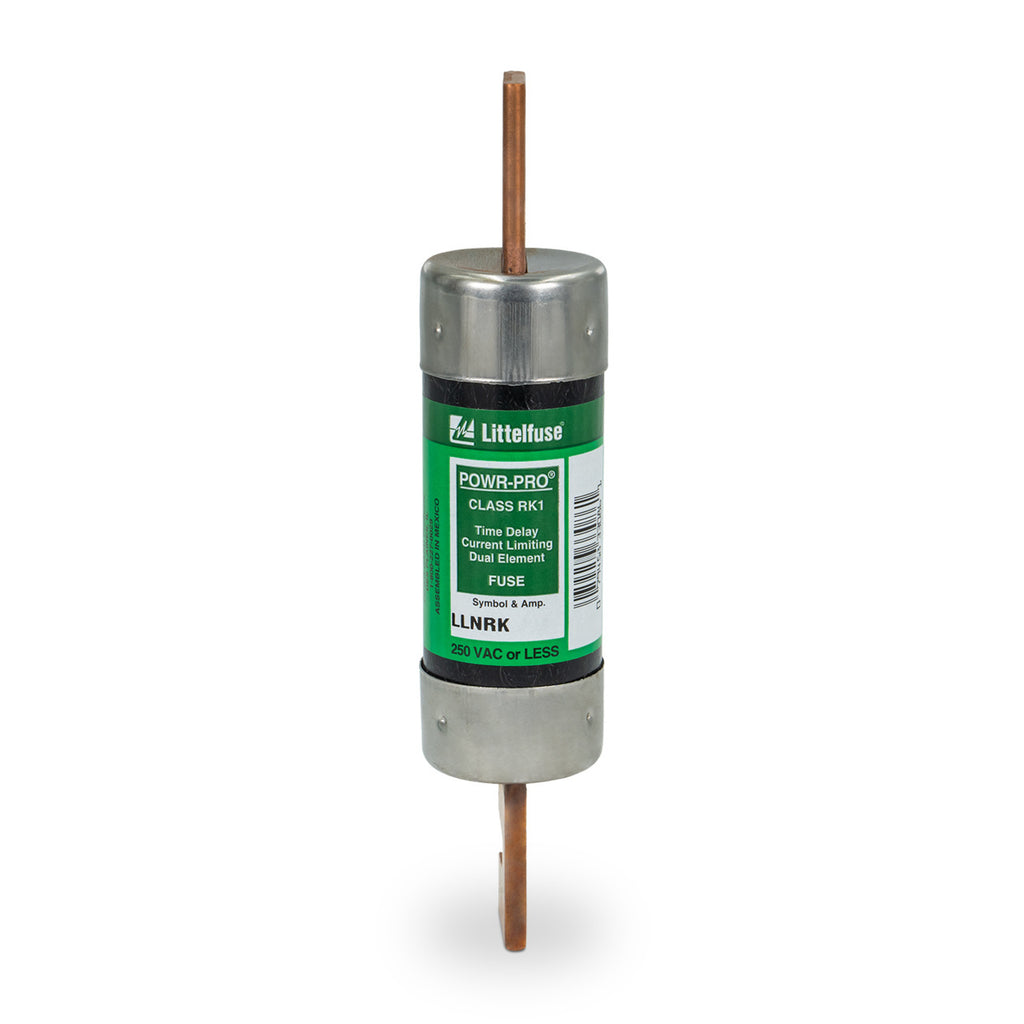

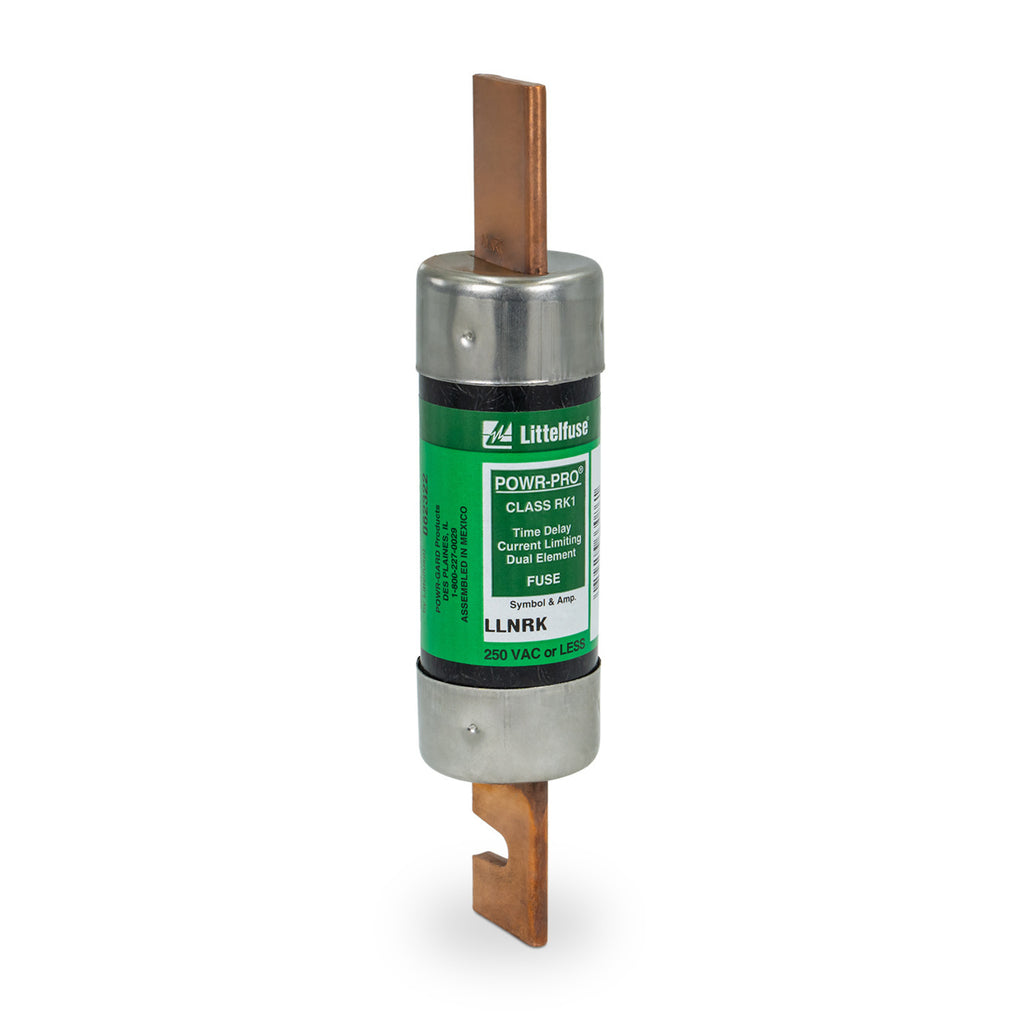

LLNRK175 is a Littelfuse 175 amp, 250 volt AC, Class RK1 time delay fuse designed for reliable circuit protection.This fuse features a dual element design providing extremely current limiting performance with a 250 VAC and 125 VDC voltage rating. It requires a fuse holder for mounting and meets UL 248-12, CSA, and CE certifications. The fuse is 7-1/8 inches long with a diameter of approximately 1-19/32 inches and has an interrupt rating of 300,000 A at 250 VAC and 20,000 A at 125 VDC.
- Key Specifications
- Amperage: 175 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: UL Class RK1
- Time Delay: Yes
- Element Type: Dual Element
- Interrupt Rating: 300,000 A @ 250 VAC, 20,000 A @ 125 VDC
- Mounting Type: Requires Holder
- Length: 7-1/8 inches
- Diameter: 1-19/32 inches
- Certifications: UL 248-12, CSA, CE
Specifications
- Part Number: LLNRK175
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : LLNRK
- Voltage : 250
- Amperage : 175
- AIC rating : 200kA@250V
- Diameter : 1.59
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458330878
- GTIN : 00079458330878
- Weight : 1
