Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLNRK110

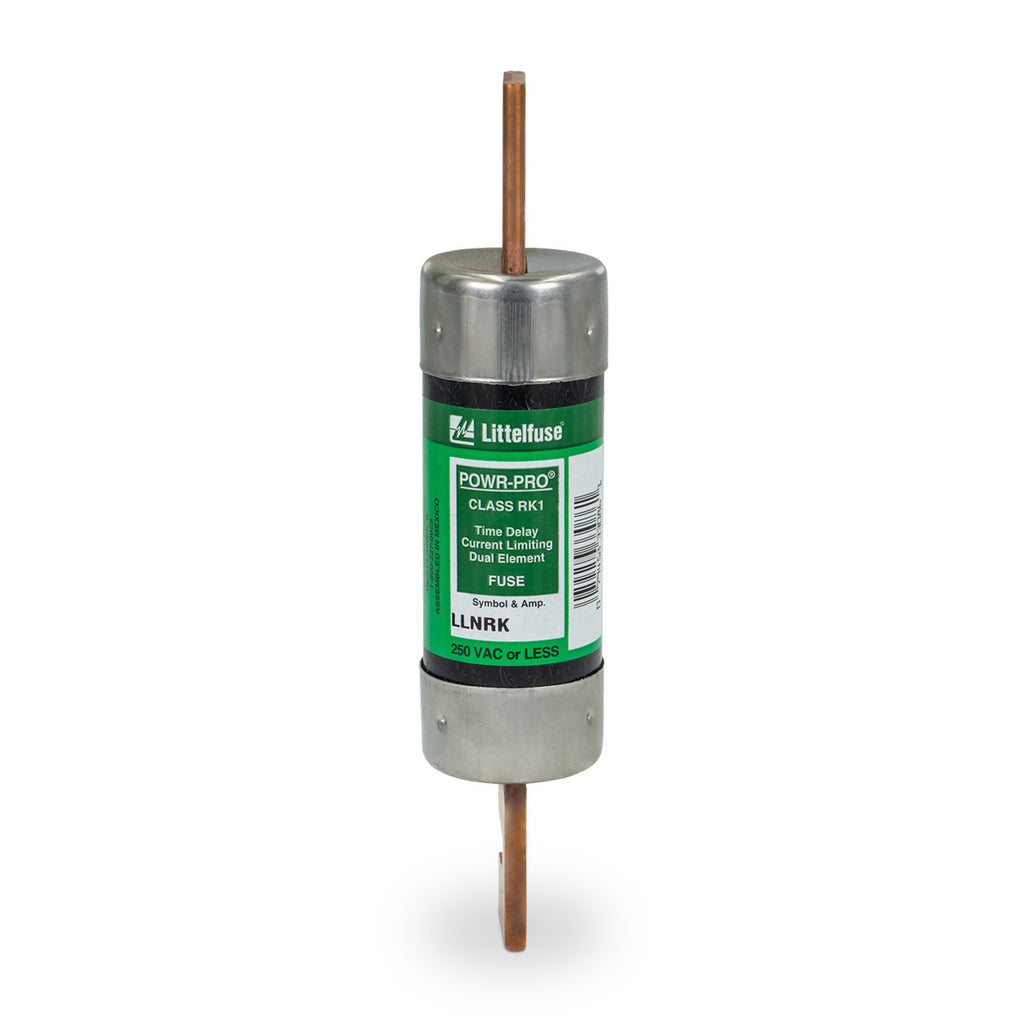

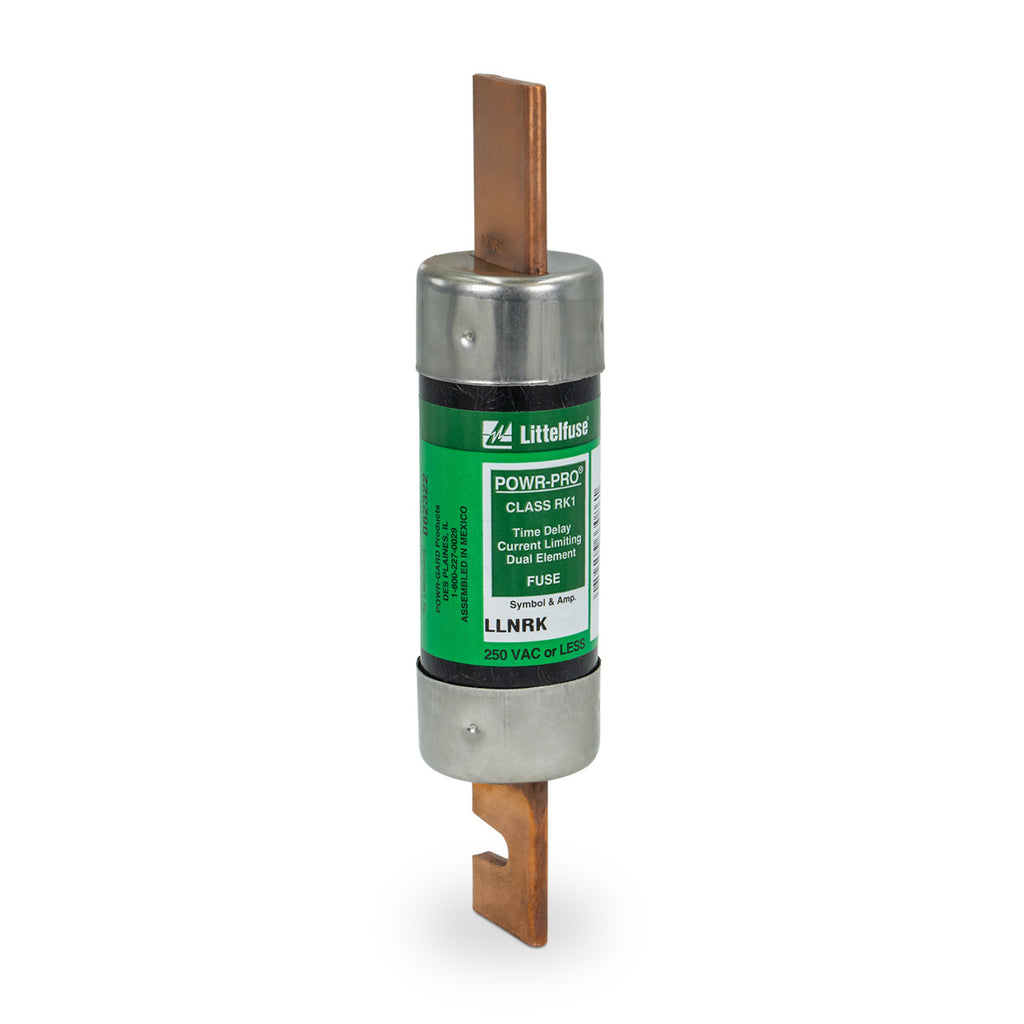

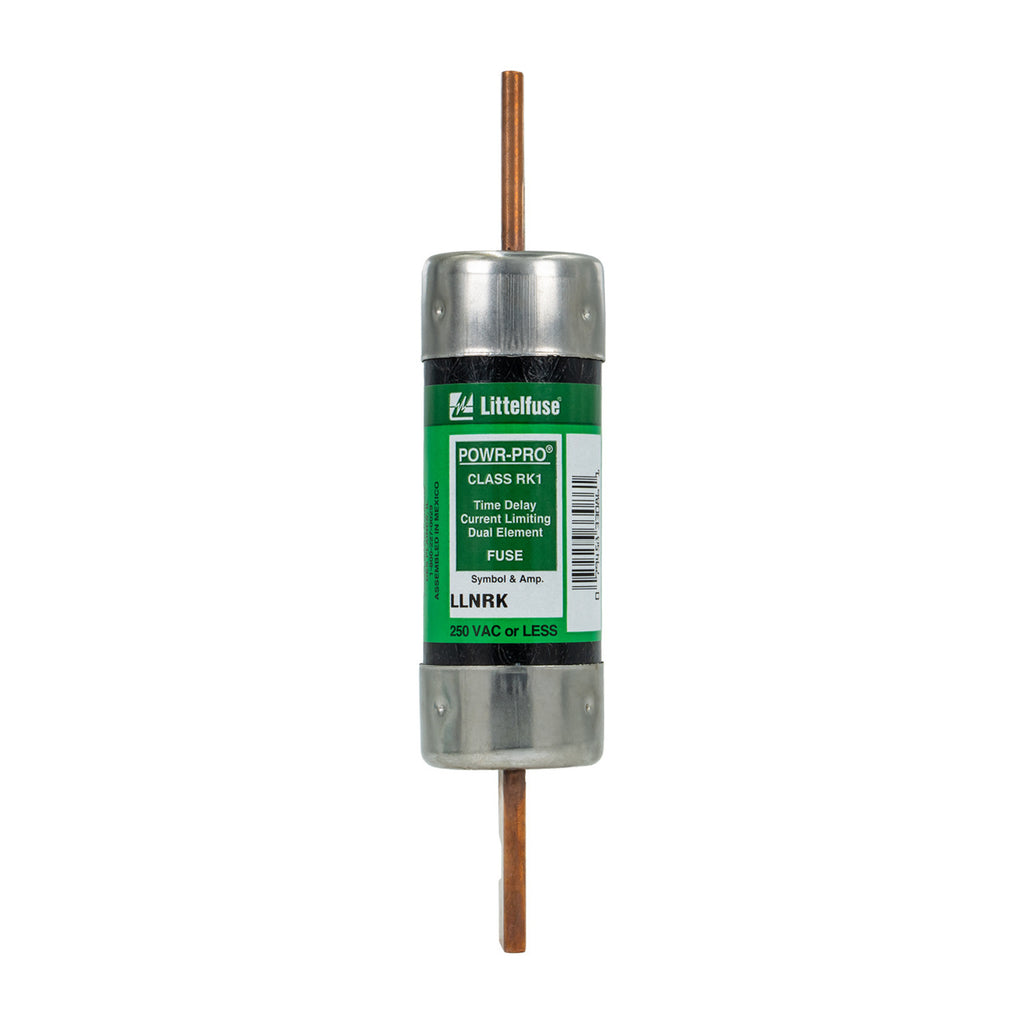

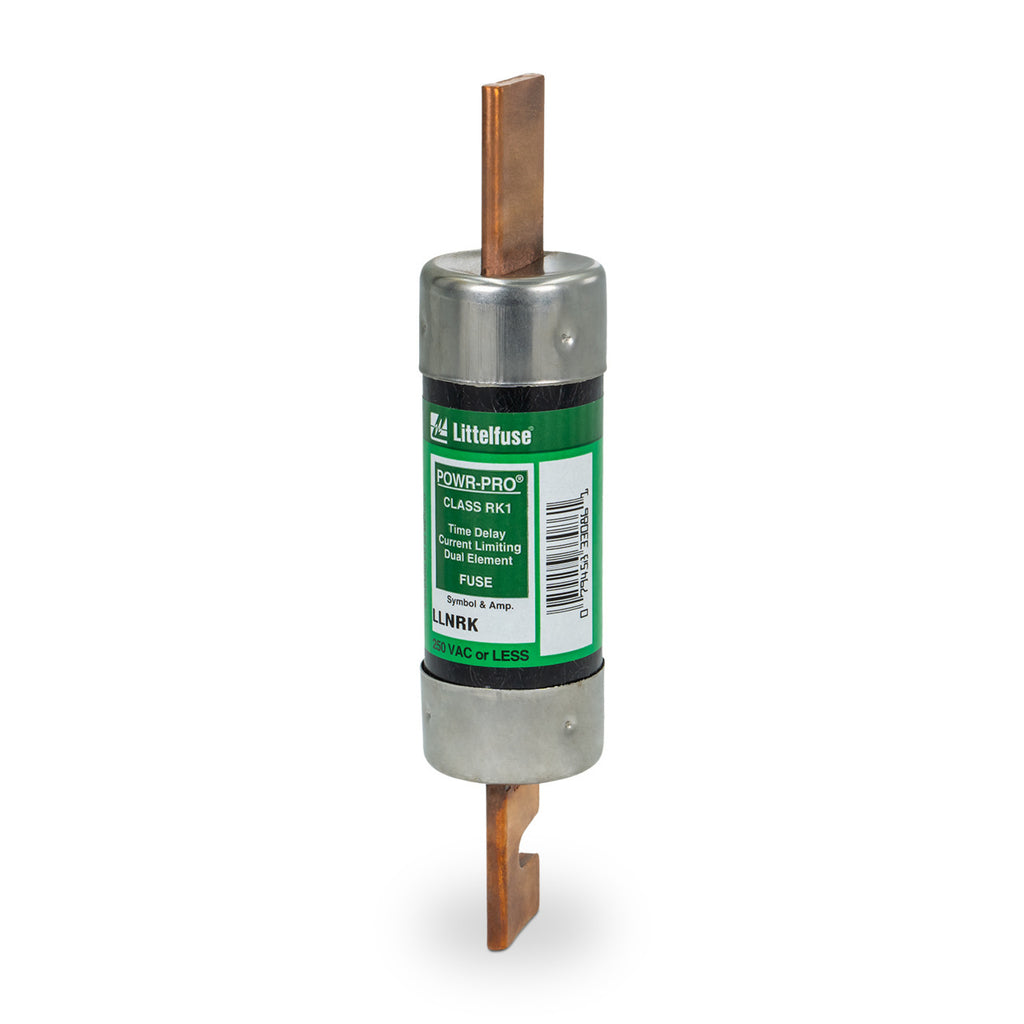

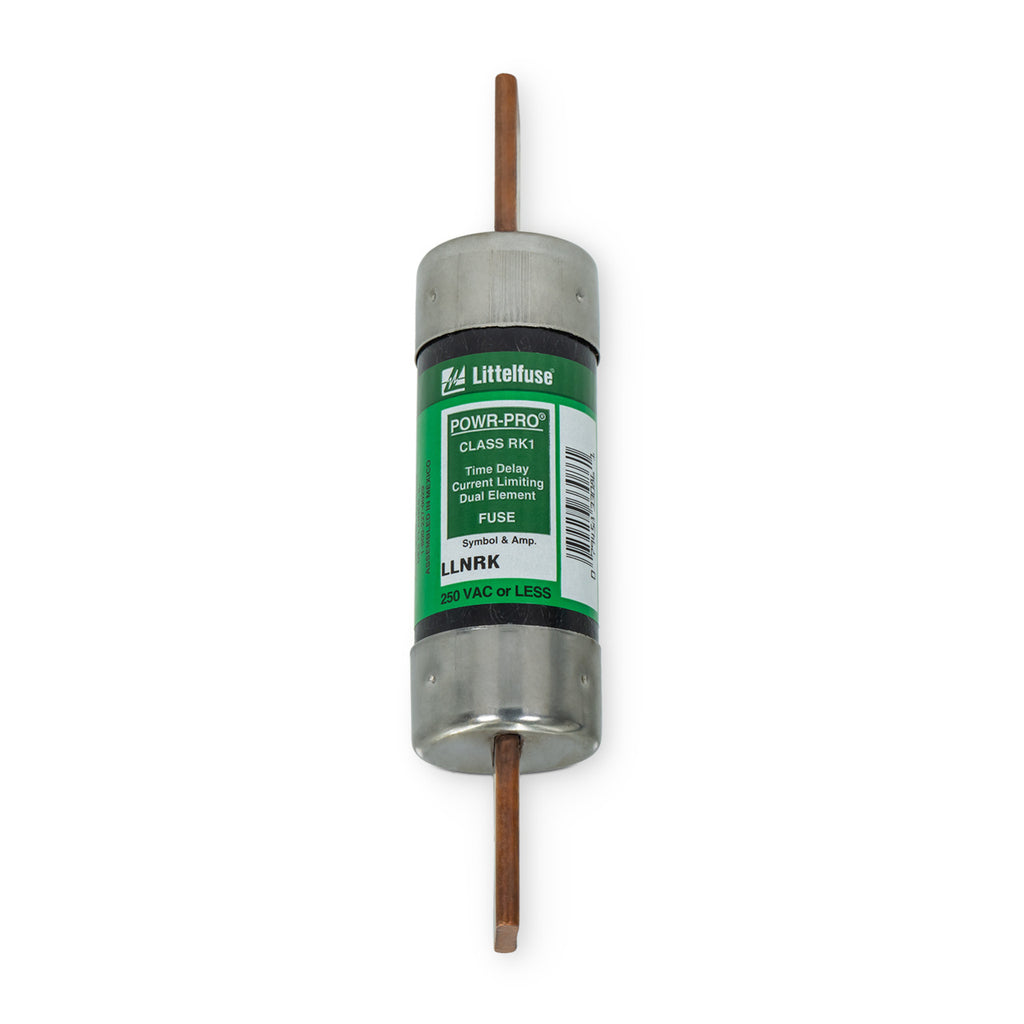

LLNRK110 is a Littelfuse Class RK1 fuse rated for 110 amps and 250 volts, designed for time delay and dual-element protection.
This fuse features POWR-PRO performance with extremely current-limiting characteristics, providing superior overload and short-circuit protection for general-purpose circuits, motors, transformers, and more. It offers IEC Type 2 "No Damage" protection to IEC and NEMA type motor starters and is UL Listed and CSA Certified. The fuse has a physical size of approximately 1 19/32" diameter by 7 1/8" length and an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC.
- Amperage Rating: 110 Amps
- Voltage Rating: 250 Volts AC, 125 Volts DC
- Fuse Type: UL Class RK1
- Response Time: Time Delay
- Protection Type: Dual Element
- Interrupting Rating: 200,000 AIC @ 250 VAC, 20,000 AIC @ 125 VDC
- Physical Size: 1 19/32" x 7 1/8"
- POWR-PRO Performance
- Extremely Current-Limiting
- IEC Type 2 "No Damage" motor starter protection
- UL Listed and CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LLNRK110
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 110
- AIC rating : 200kA@250V
- Diameter : 1.59
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458330830
- GTIN : 00079458330830
- Weight : 1
