Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLNRK100

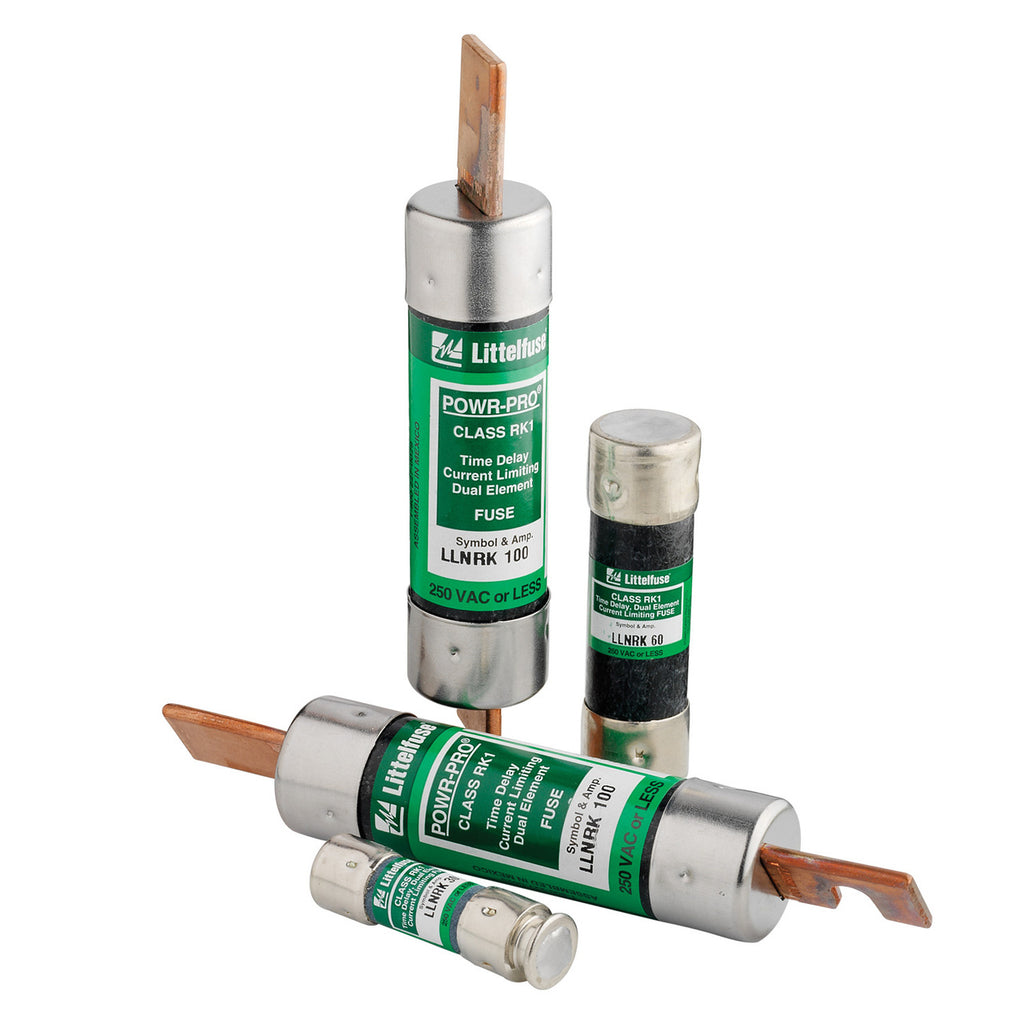

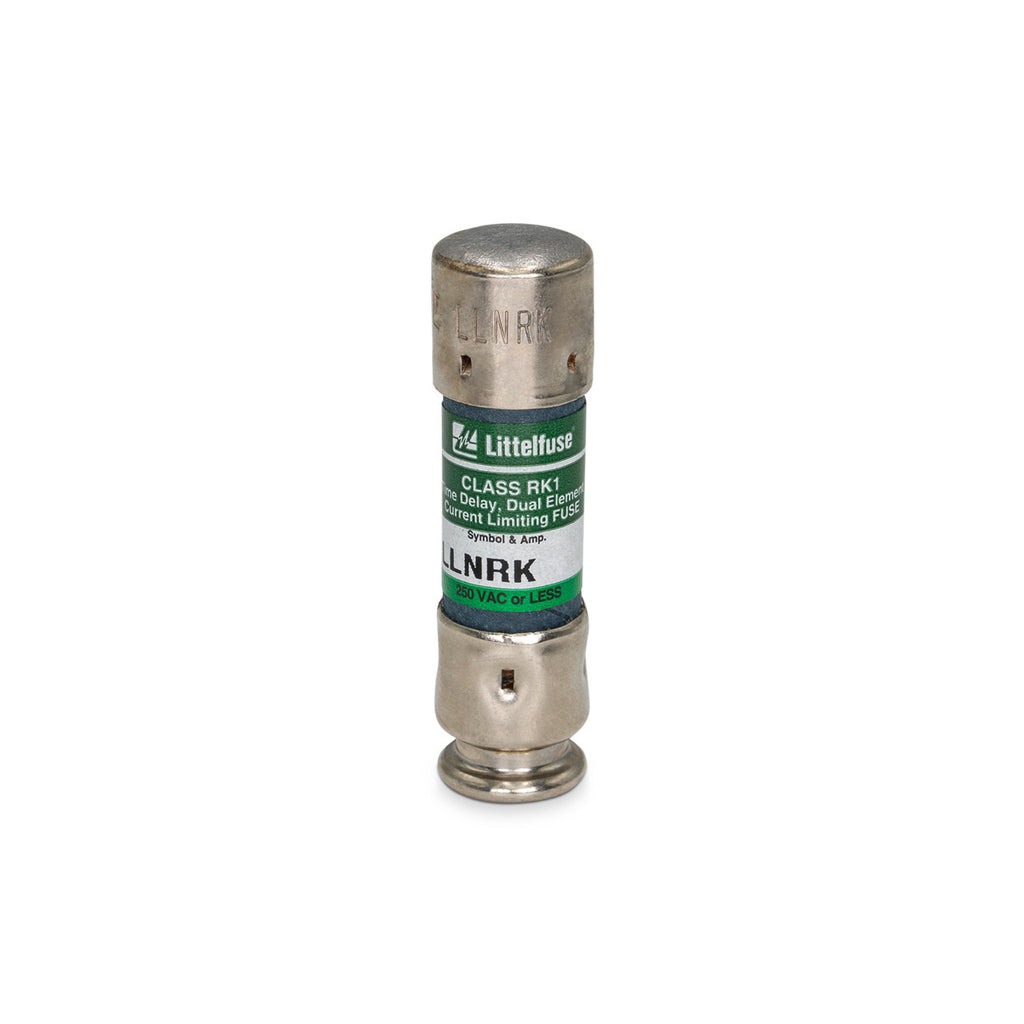

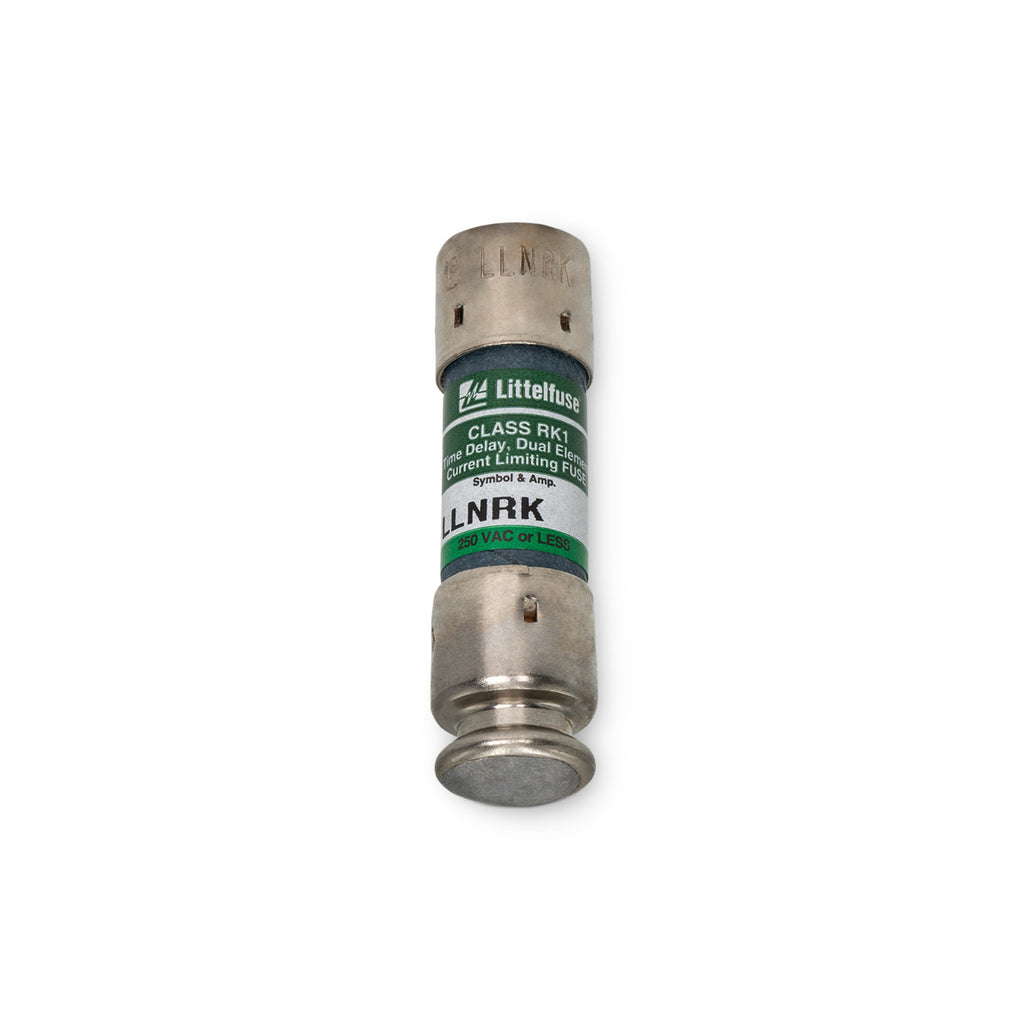

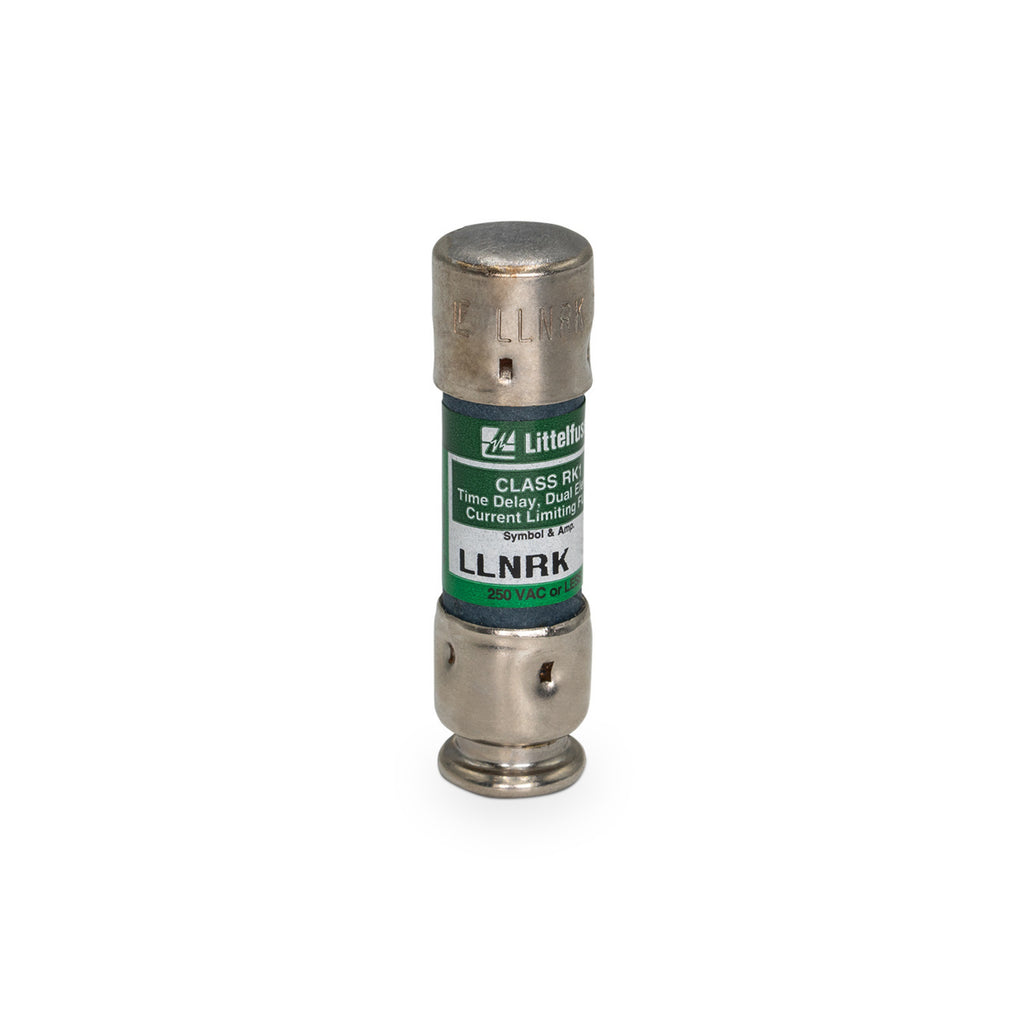

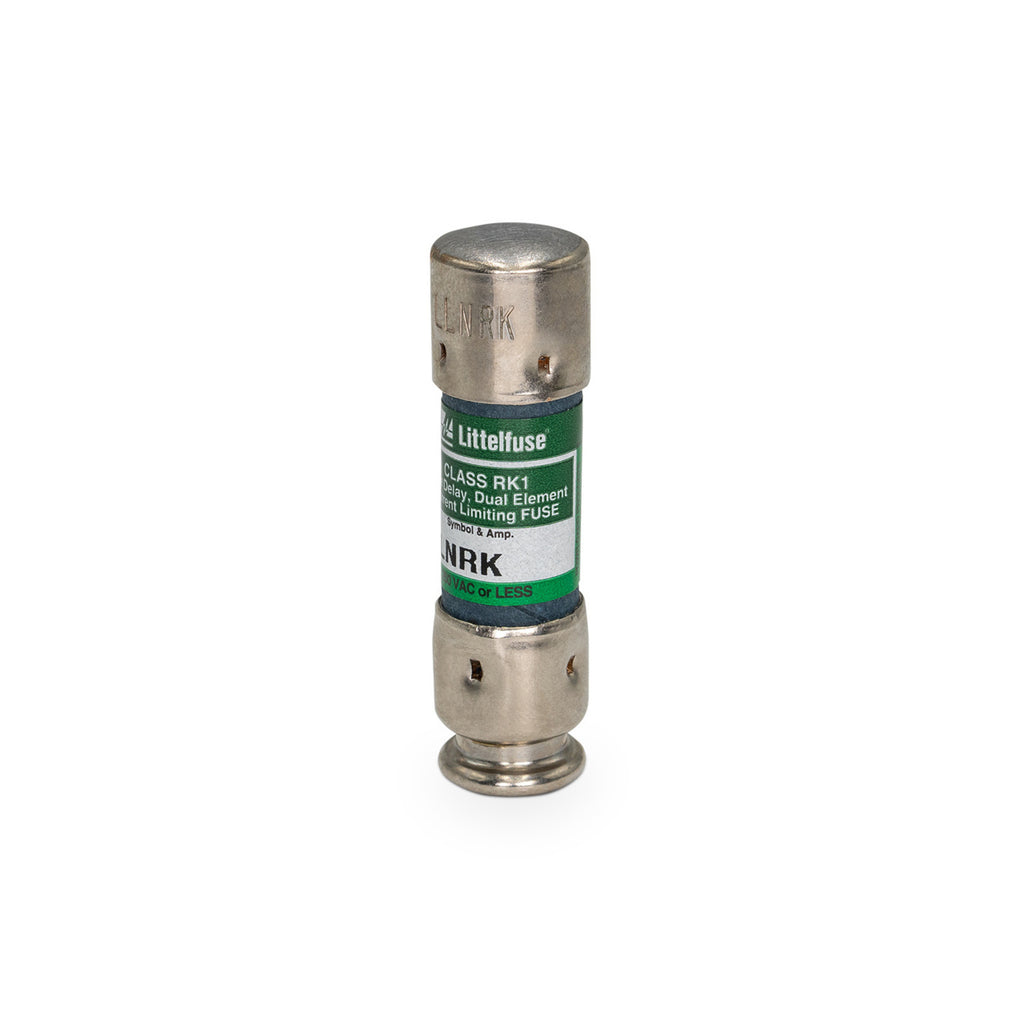

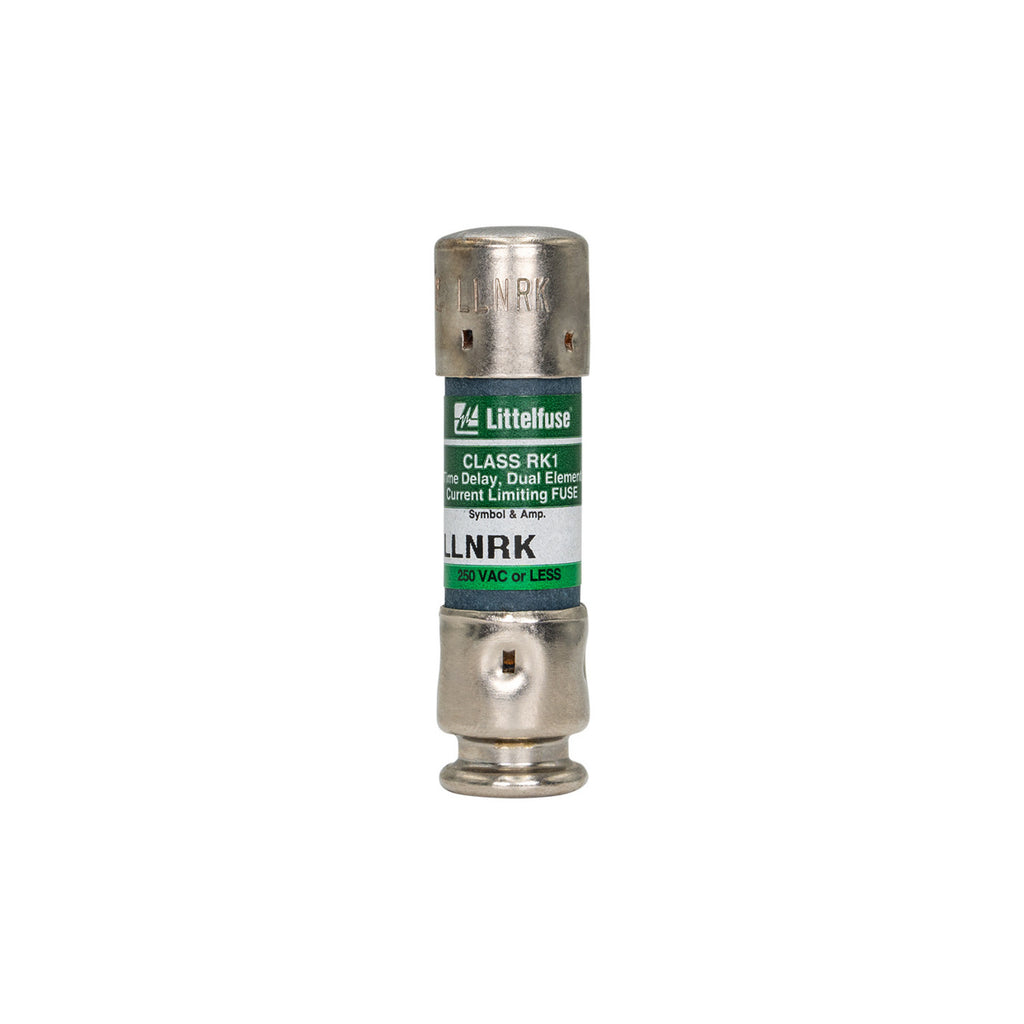

LLNRK100 is a Littelfuse POWR-GARD Class RK1 time delay fuse designed for reliable overcurrent protection in a variety of electrical circuits. This dual-element fuse provides superior short-circuit and overload protection for general-purpose, motor, transformer, and lighting applications. The LLNRK100 features a cartridge body and is extremely current-limiting, offering IEC Type 2 "No Damage" protection for motor starters and other equipment. It is compatible with existing Class H fuse blocks, making it ideal for system upgrades and retrofits. The fuse is designed for fast fault detection and helps minimize downtime and equipment damage.
- 100 A amperage rating
- 250 VAC / 125 VDC voltage rating
- Class RK1 fuse type
- Time delay (Slo-Blo/Time Lag) opening
- Dual-element design
- Extremely current-limiting
- Cartridge body style
- Compatible with Class H fuse blocks
- IEC Type 2 "No Damage" protection
- UL 248-12, CSA, CE, Qpl-Wf-1814 approvals
- Physical size: 1 1/16" x 5 7/8"
- Indication available
Specifications
- Part Number: LLNRK100
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 100
- AIC rating : 200kA@250V
- Diameter : 1.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 079458330823
- GTIN : 00079458330823
- Weight : 5.19
