Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

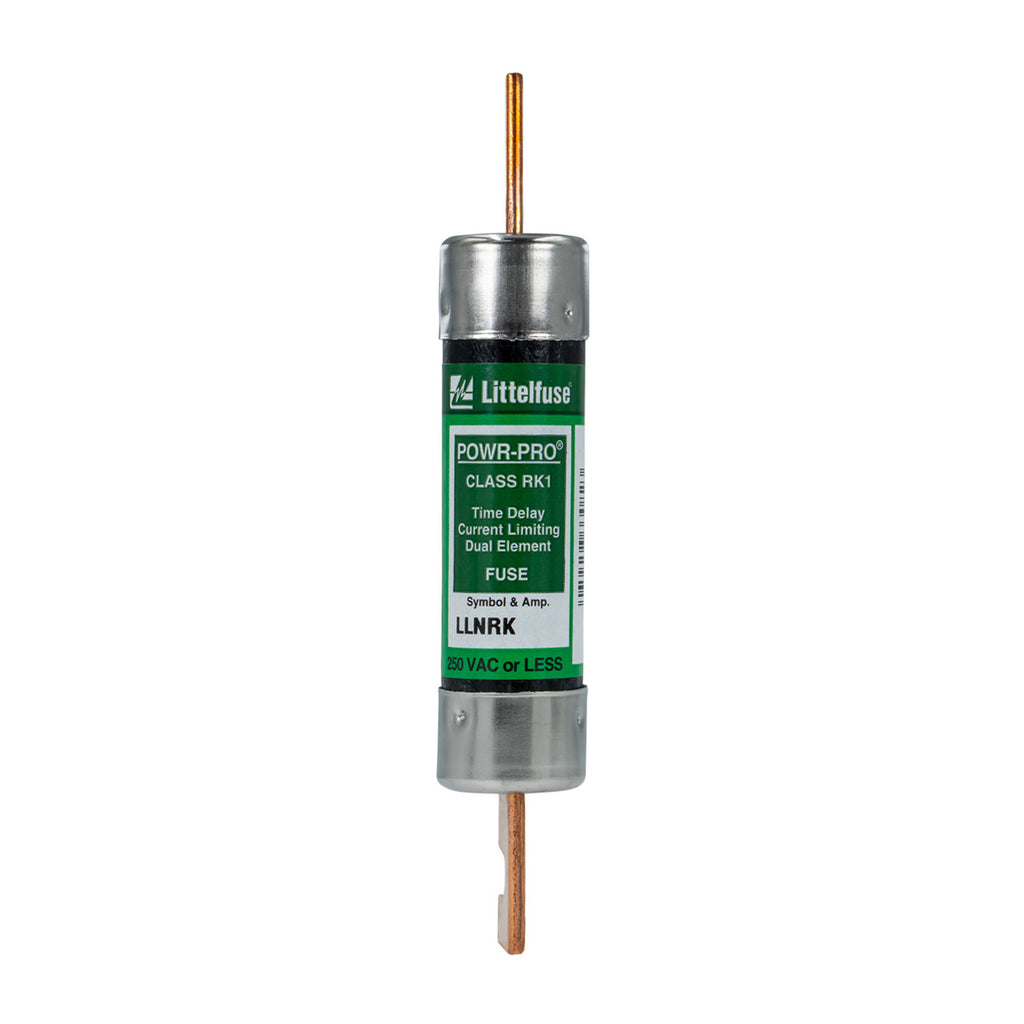

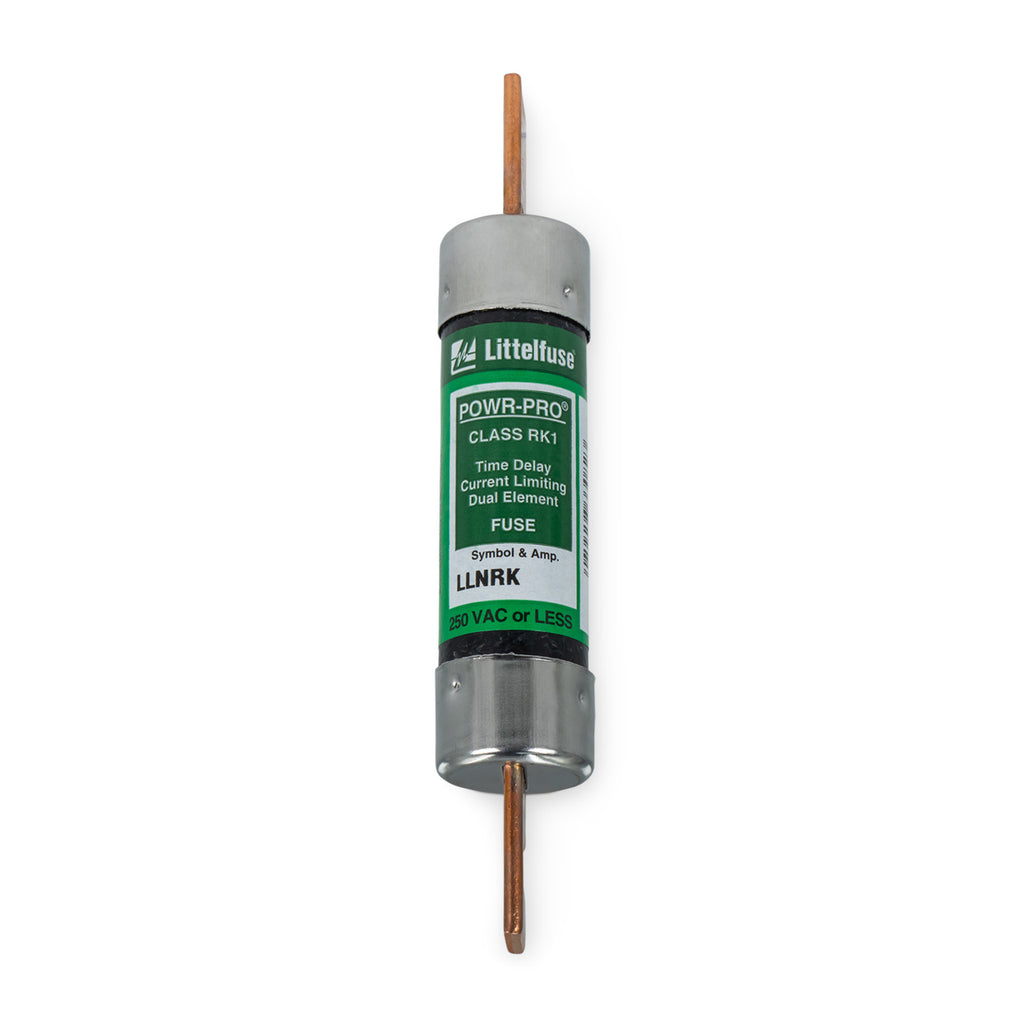

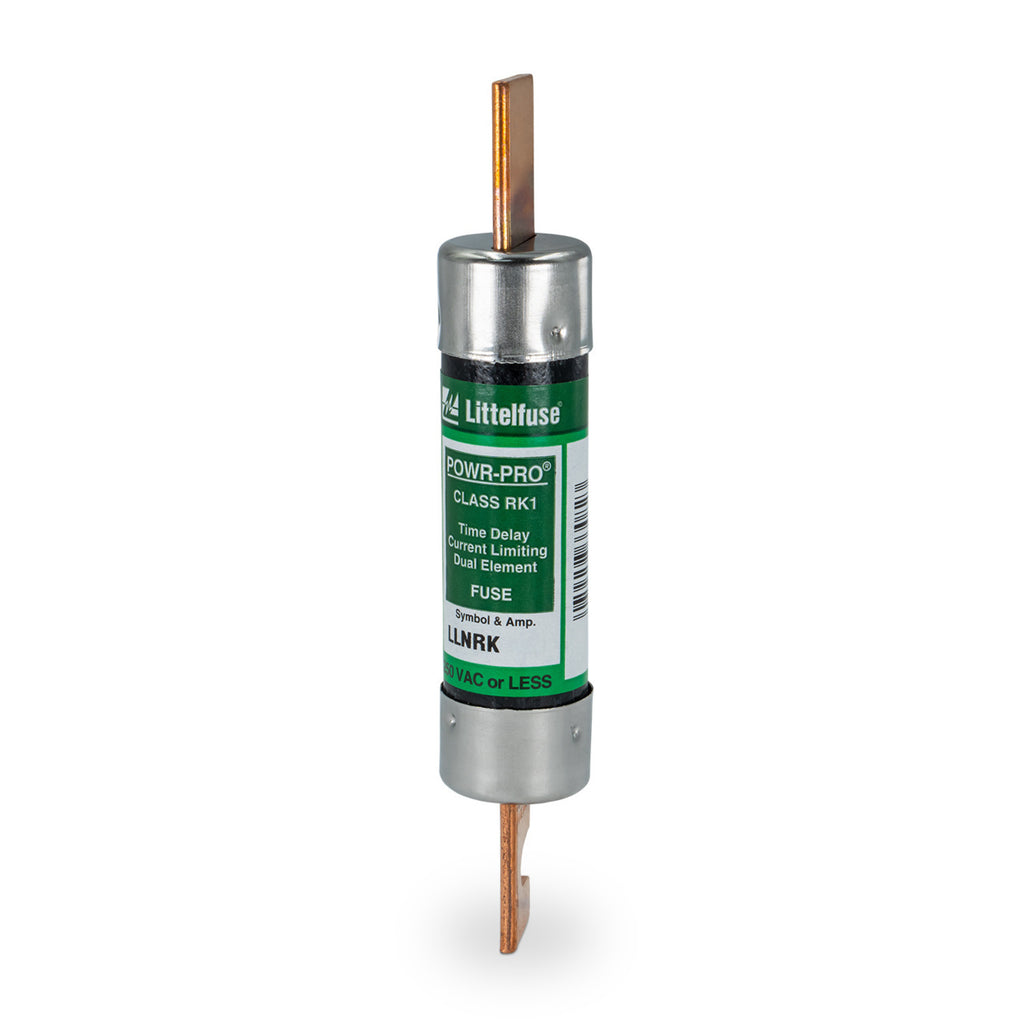

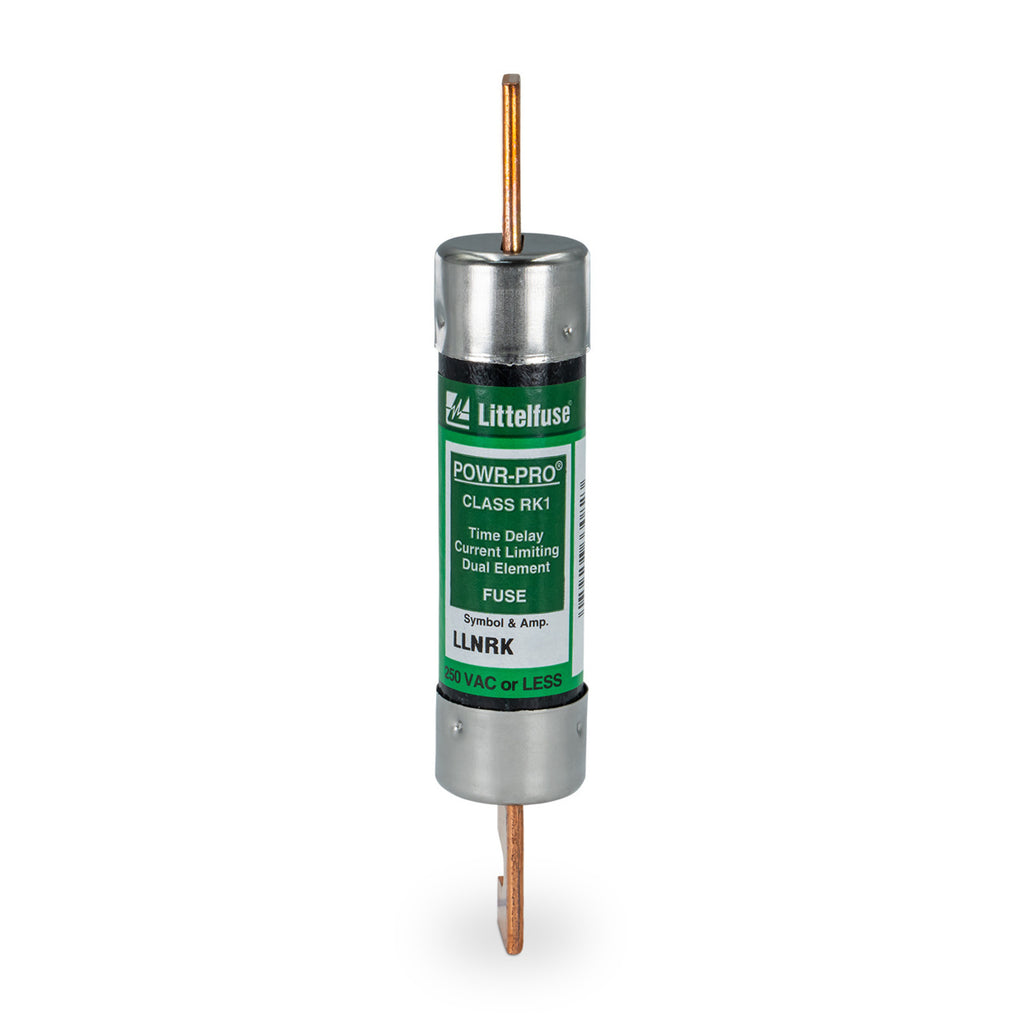

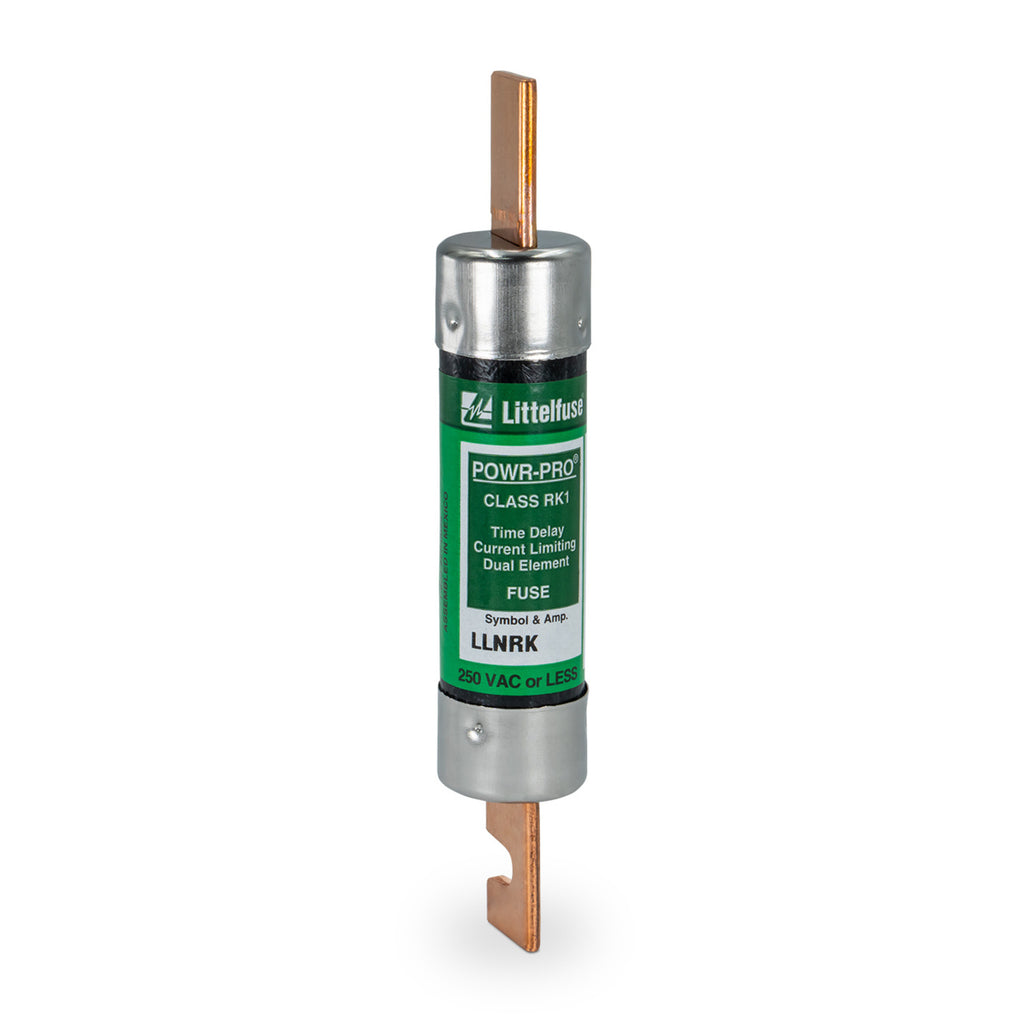

LLNRK080
LLNRK080 is a Class RK1 dual-element time-delay fuse from Littelfuse designed for superior overload and short-circuit protection in service entrance, main, feeder, and general-purpose branch circuits. This extremely current-limiting fuse features robust dual-element construction that withstands repeated surges within rated time delay without unnecessary opening, reducing downtime and equipment damage. The LLNRK080 provides IEC Type 2 "No Damage" protection to IEC and NEMA type motor starters and can be installed in existing Class H fuse blocks to upgrade systems with lower interrupting ratings.
- Amperage Rating: 80 Amps
- Voltage Rating: 250 Vac / 125 Vdc
- Fuse Class: UL Class RK1
- Response Time: Time Delay (Dual Element)
- Physical Size: 1-1/16 inch diameter x 5-7/8 inch length
- Interrupting Rating: 200 kA rms symmetrical (AC)
- Terminal Type: Blade Terminal
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), Federal Specification WF-1814 (QPL)
- Applications: General-purpose circuits, motors, transformers, solenoids, fluorescent lighting
- Performance: Extremely current-limiting with IEC Type 2 protection
Specifications
- Part Number: LLNRK080
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 80
- AIC rating : 200kA@250V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945833080
- GTIN : 00079458330809
- Weight : 5.19
