Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLNRK050

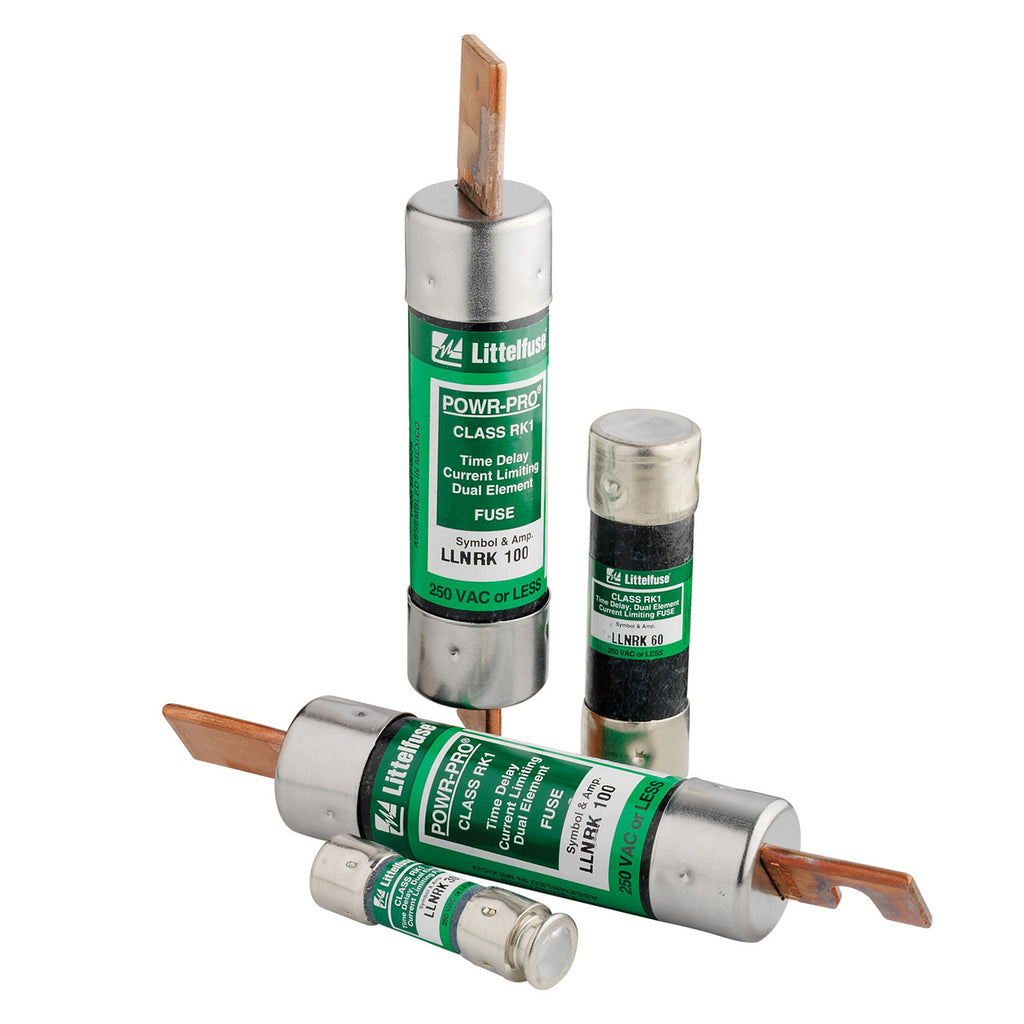

LLNRK050 is a Littelfuse POWR-GARD current limiting time delay fuse rated 50 amperes at 250 VAC/125 VDC with RK1 class protection for general purpose circuits, motors, and transformers. This dual-element cartridge fuse features extremely current-limiting performance and provides IEC Type 2 no-damage protection to motor starters and control equipment. The robust dual-element design withstands repeated surges within rated time delay without unnecessary nuisance trips.
- Amperage Rating: 50 A
- Voltage Rating: 250 VAC / 125 VDC
- Class: RK1
- Interrupting Rating: 200 kA AC / 20 kA DC
- Response Time: Time Delay
- Protection Type: Dual Element
- Physical Size: 13/16 inch diameter x 3 inch length
- Cartridge Body Style
- UL Listed (File E81895)
- CSA Certified (File LR29862)
- Standards: UL 248-12, CE Approved
Specifications
- Part Number: LLNRK050
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 50
- AIC rating : 200kA@250V
- Diameter : 2.59
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945833077
- GTIN : 00079458330779
- Weight : 0.12
