2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
LLNRK020

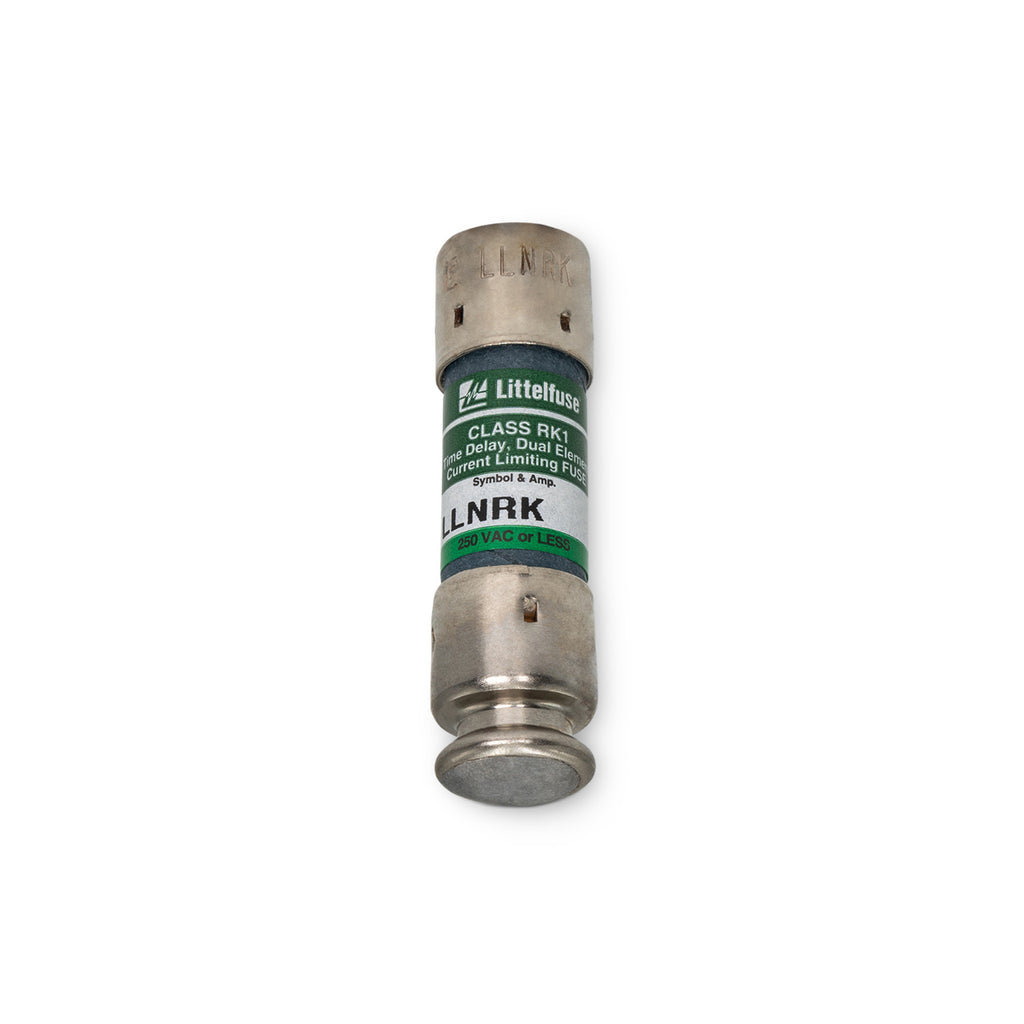

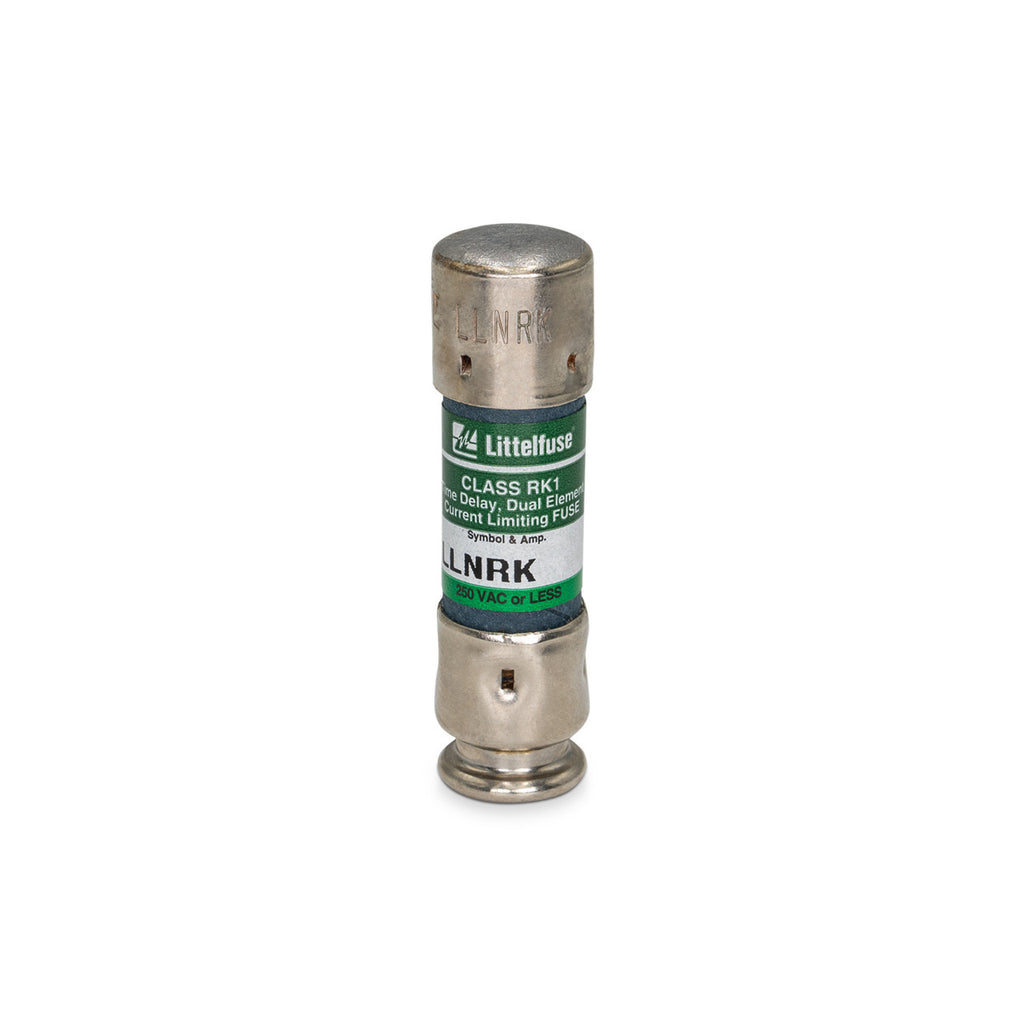

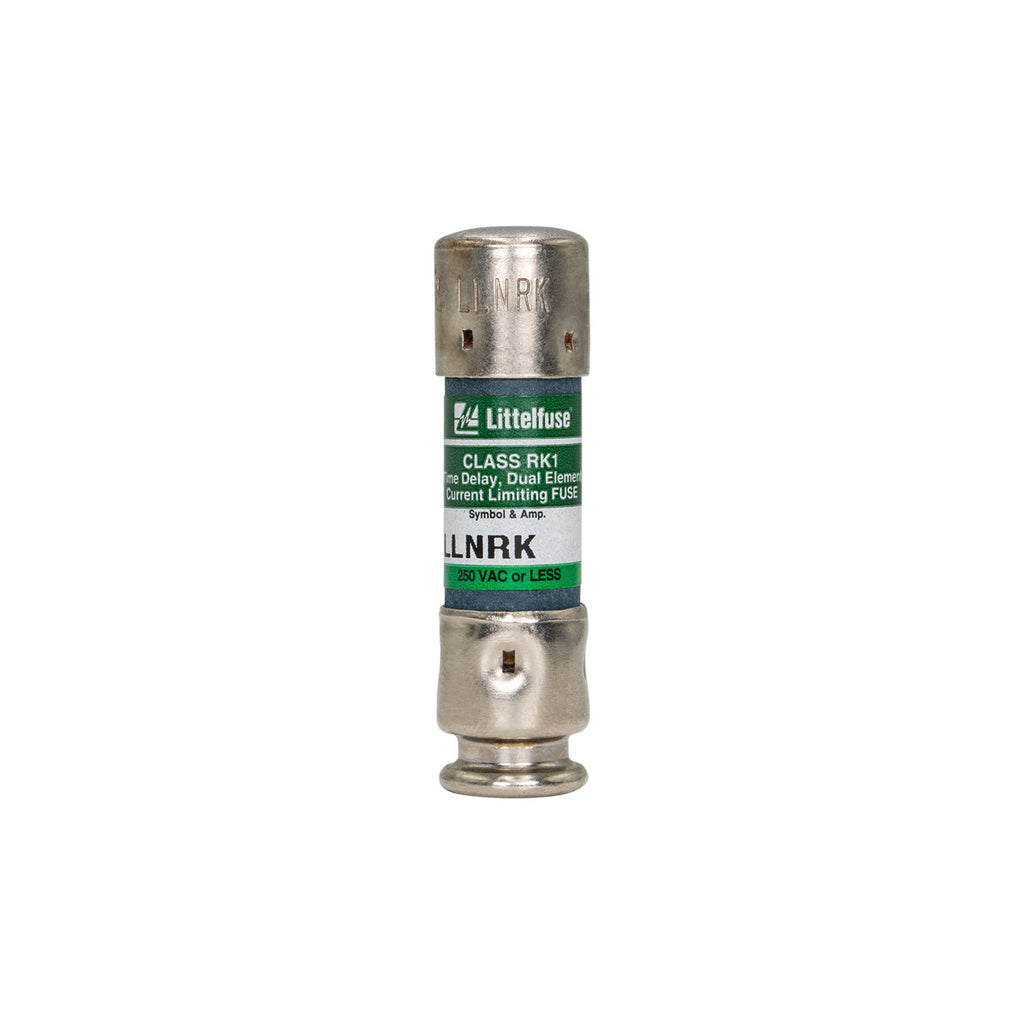

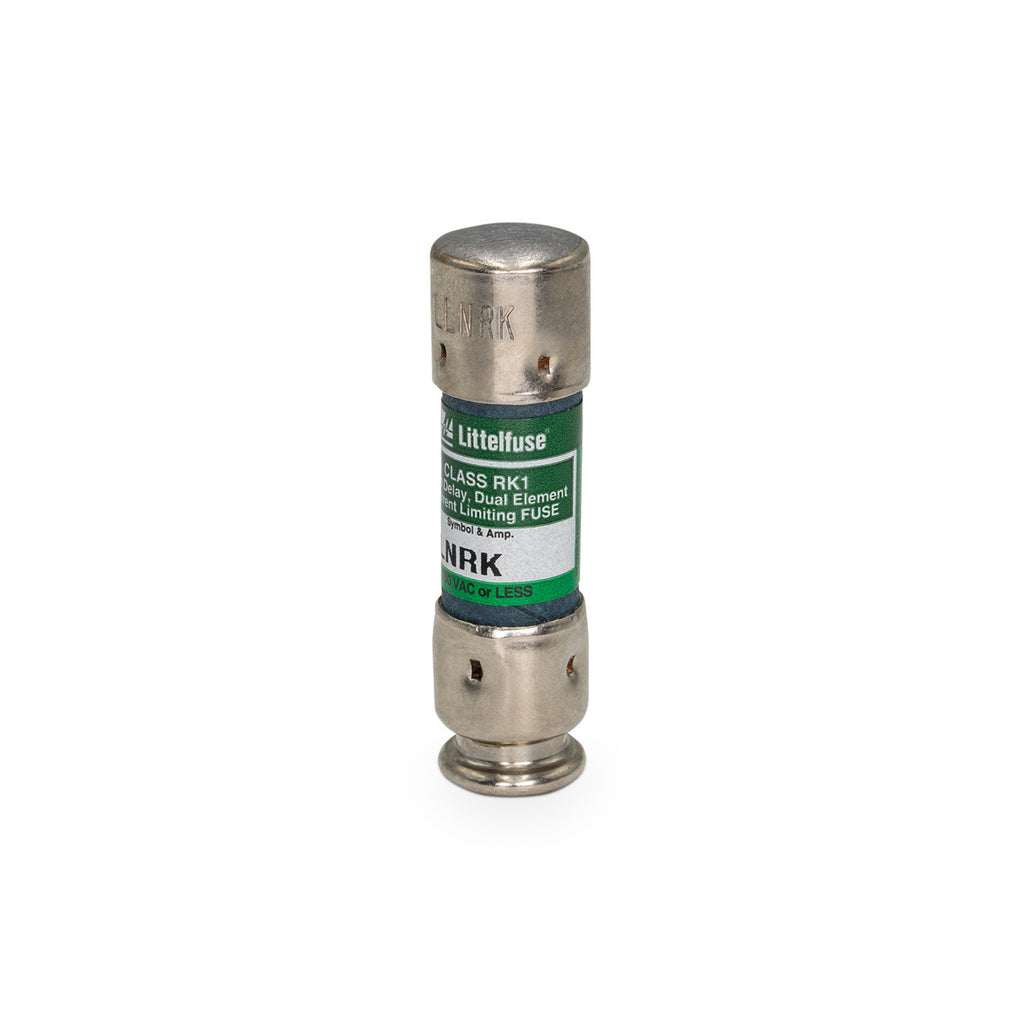

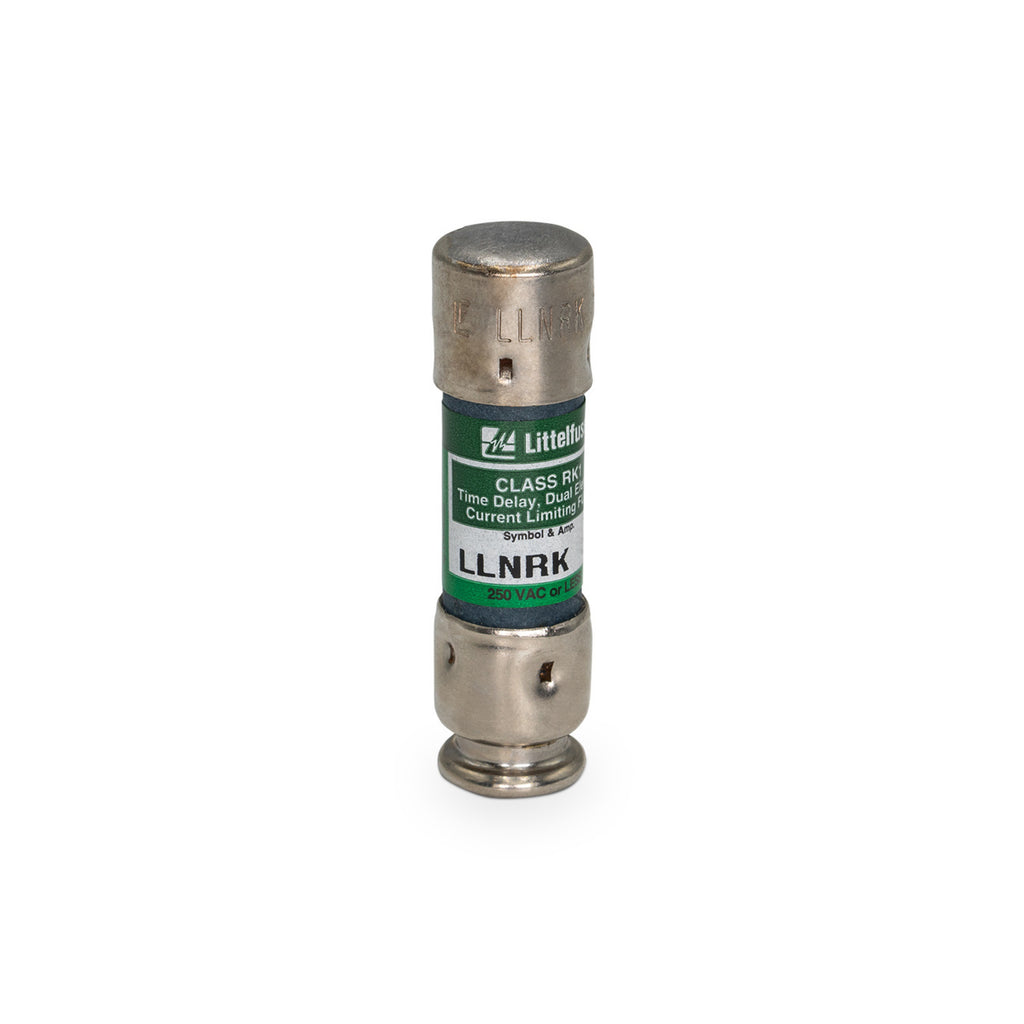

LLNRK020 is a Littelfuse POWR-GARD Class RK1 current limiting time delay fuse rated for 20 amps and 250 VAC/125 VDC operation.
This fuse features a cartridge body design with extremely current limiting characteristics to reduce damage to circuits and equipment under short-circuit conditions. It has a 200,000 amp interrupt rating and dual element construction for time delay performance. The LLNRK020 complies with UL 248-12 and CSA standards and is suitable for Powr-Pro fuse family applications.
- Amperage: 20 A
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: RK1
- Time Delay: Dual Element
- Interrupt Rating: 200,000 A
- Cartridge Body
- Length: 2 inches
- Diameter: 9/16 inch
- Certifications: UL 248-12, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LLNRK020
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 20
- AIC rating : 200kA@250V
- Diameter : 1.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 07945833071
- GTIN : 00079458330717
- Weight : 0.05
