Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

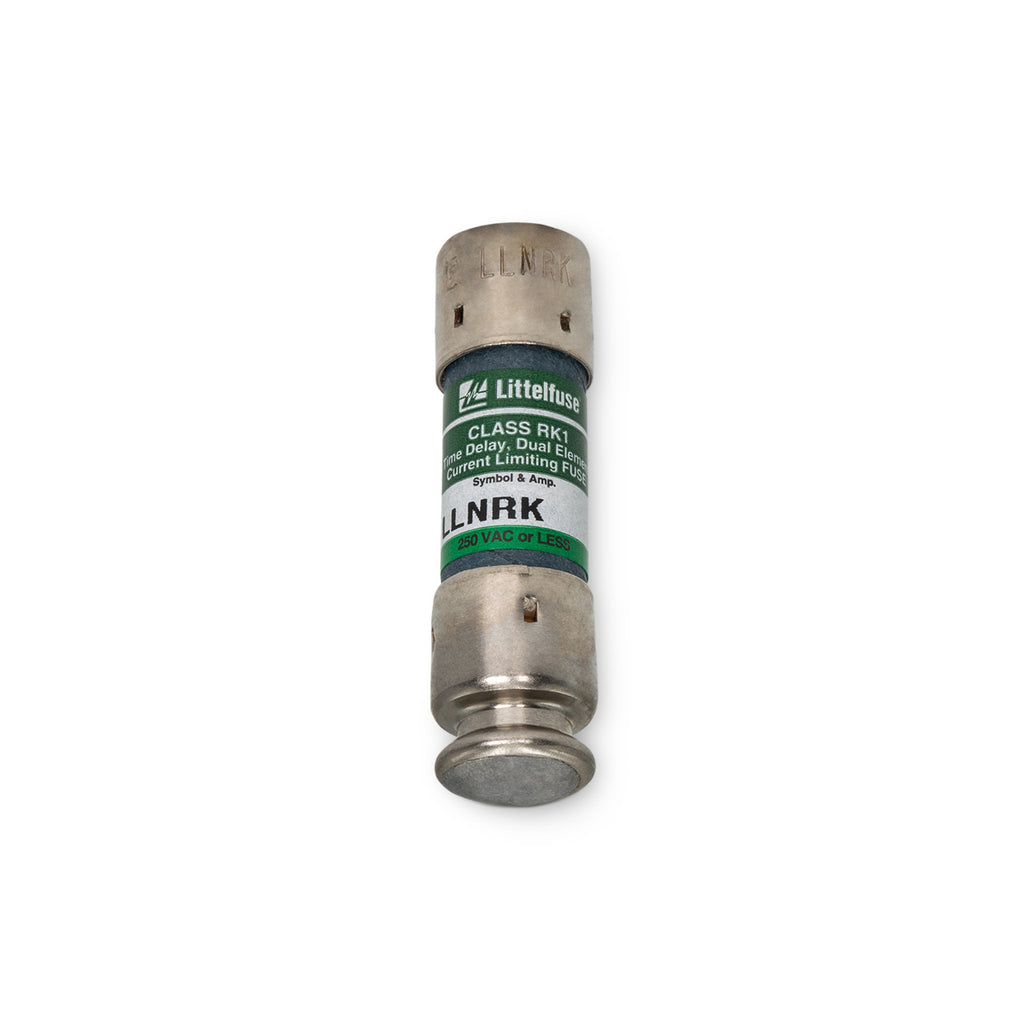

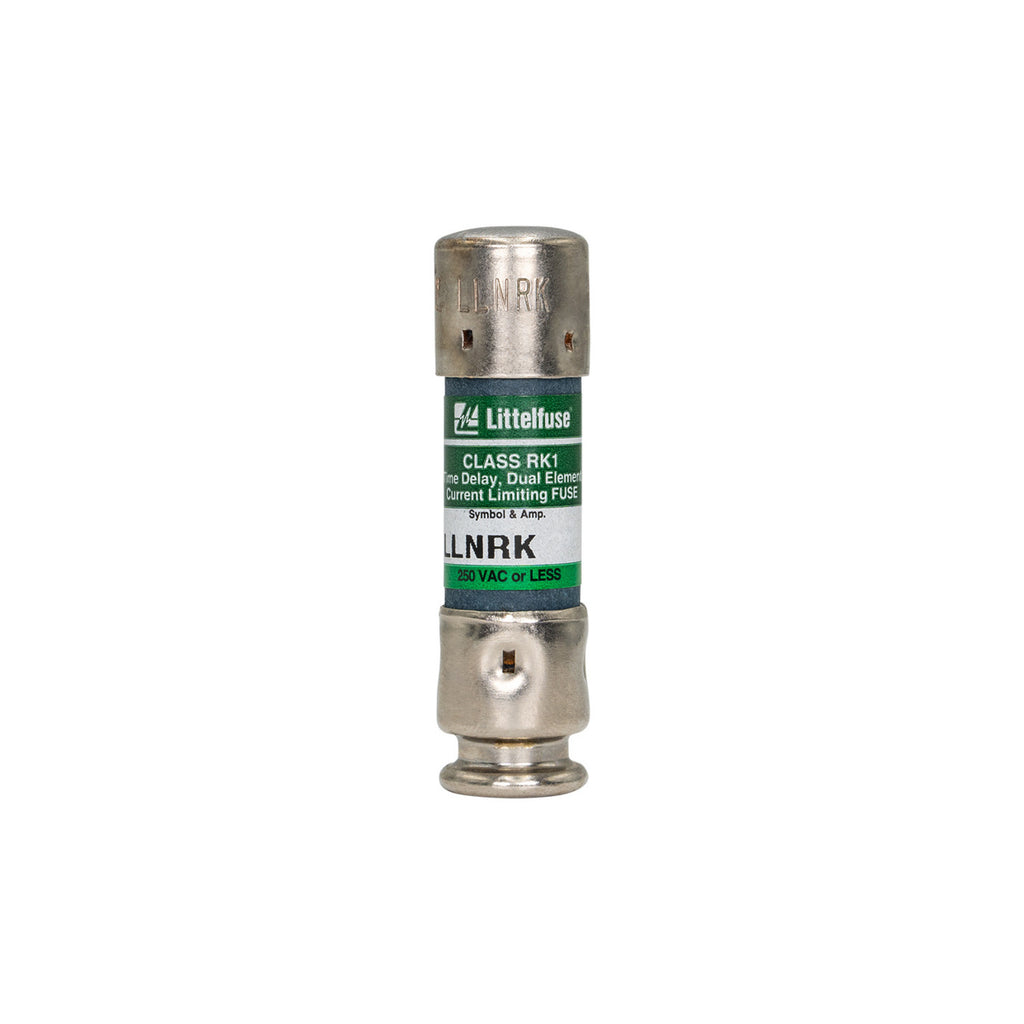

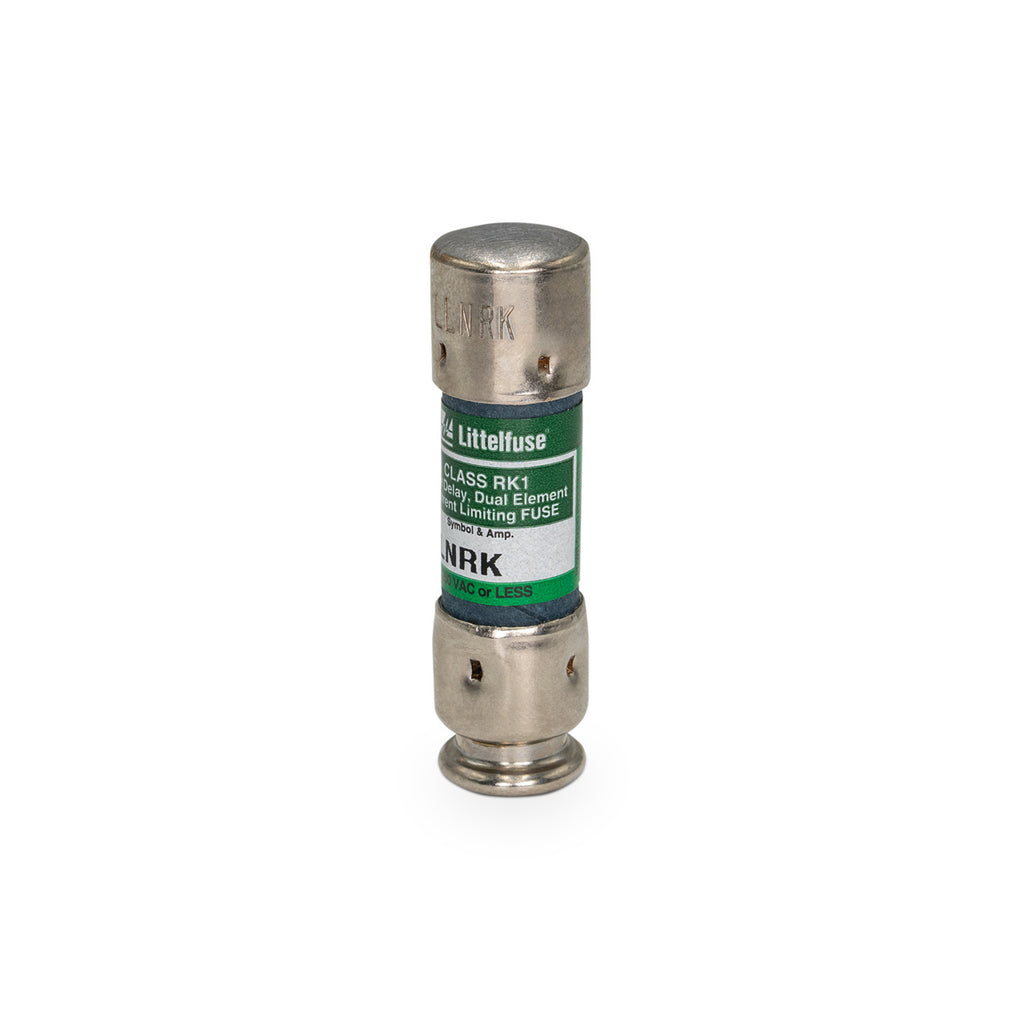

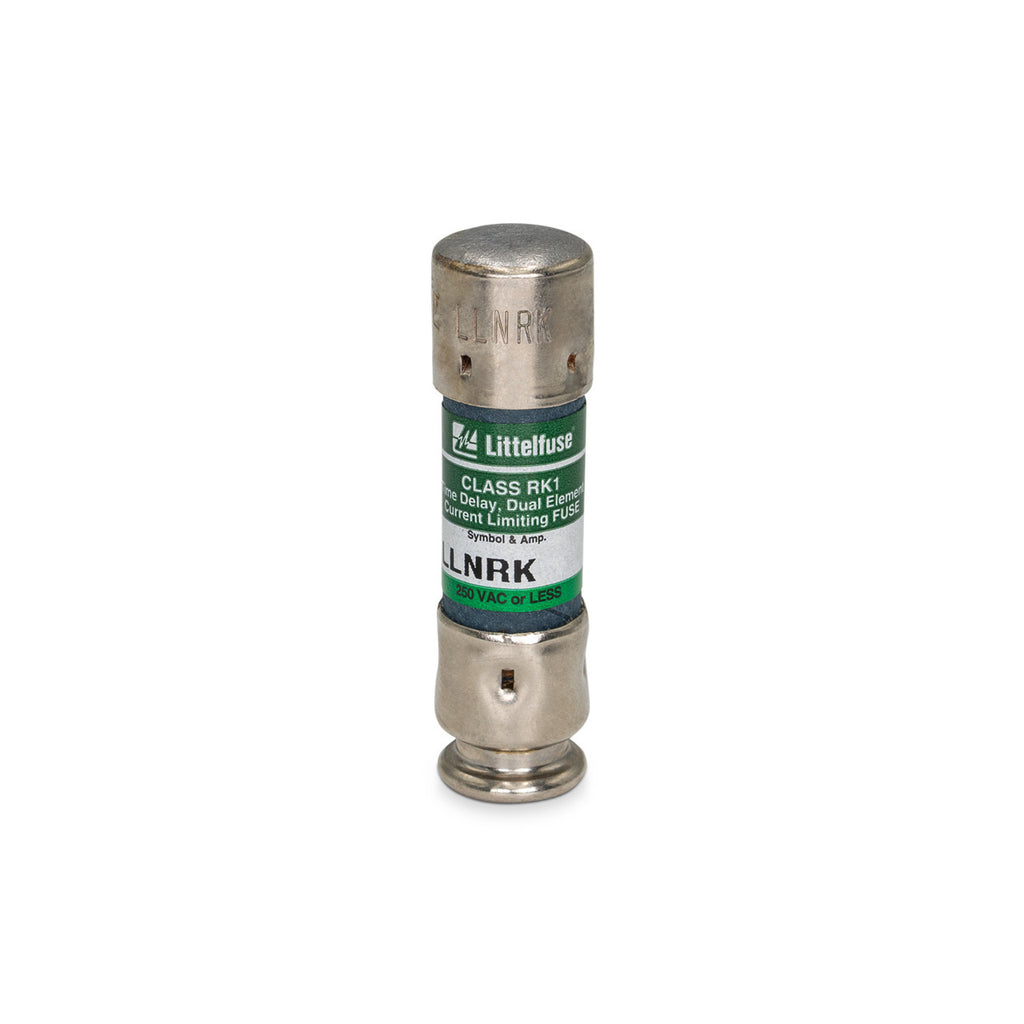

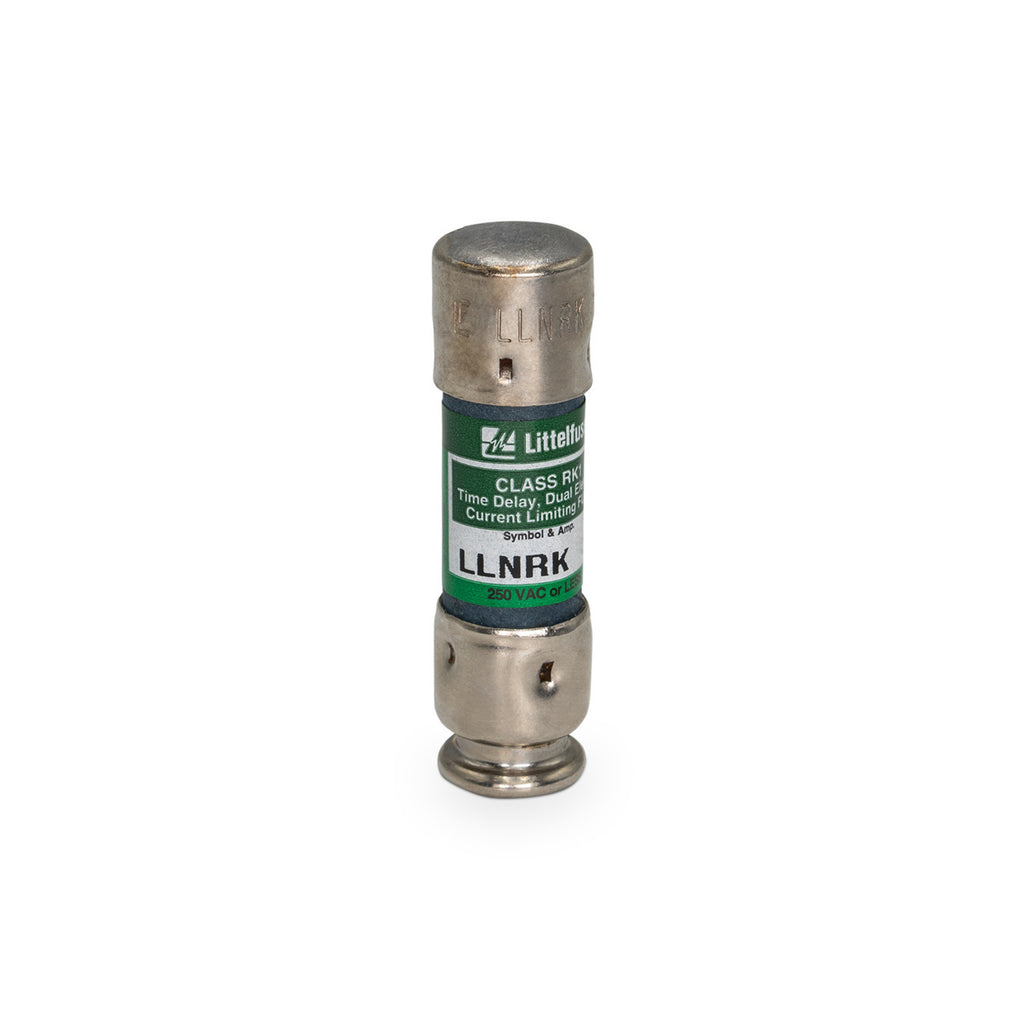

LLNRK005
LLNRK005 is a Littelfuse POWR-GARD LLNRK series current limiting time delay fuse designed for reliable protection in general purpose, motor, and transformer circuits. This fuse features a dual-element construction for superior surge withstand and dependable short circuit protection. The LLNRK005 is a cartridge-style, single-pole fuse with a 5A current rating and 250VAC/125VDC voltage rating. It is engineered for Class RK1 applications and offers a high interrupting capacity for demanding environments. The fuse is constructed with a fiberglass reinforced pultruded body and plated end caps for durability and consistent performance.
- 5A Amperage Rating
- 250VAC/125VDC Voltage Rating
- Single Pole
- Cartridge Mounting Type
- 200kA AC Interrupting Rating
- 20kA DC Interrupting Rating
- Class RK1 Series
- Dual-Element, Time Delay Trip Unit
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- CE Approval
- 9/16 inch Diameter
Specifications
- Part Number: LLNRK005
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LLNRK
- Type : LLNRK
- Voltage : 250
- Amperage : 5
- AIC rating : 200kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 007945833055
- GTIN : 00079458330557
- Weight : 0.04
