Product Info
- Manufacturer:Littelfuse
Description
LLNRK-8

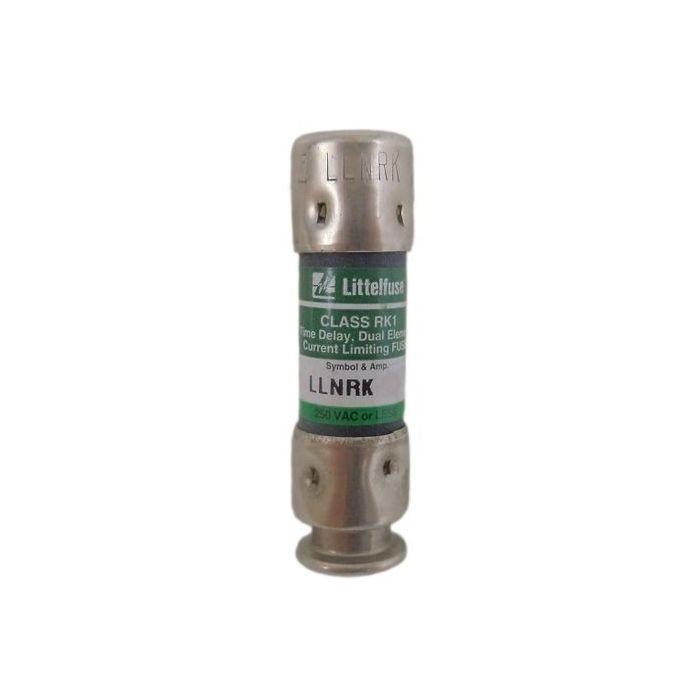

LLNRK-8 is a Littelfuse Class RK1 dual element time-delay fuse designed for reliable overload and short circuit protection in general-purpose circuits, motors, transformers, and lighting systems. This fuse features a robust dual-element construction for superior surge handling and minimal nuisance tripping. The LLNRK-8 fuse is extremely current-limiting, providing up to 200,000A interrupting rating at 250V AC. It is compatible with existing Class H fuse blocks, making it ideal for upgrading older systems. The fuse is constructed with a fiberglass reinforced pultruded body, plated end caps, and precision-formed short circuit elements for long-lasting performance.
- Part Number: LLNRK-8
- Manufacturer: Littelfuse
- Amperage: 8A
- Voltage: 250V AC
- Fuse Class: Class RK1
- Element Type: Dual Element
- Time Delay: Yes
- Interrupting Rating: 200,000A @ 250V AC
- Mounting Type: Fuse Block / Clip / Holder
- Series: LLNRK
- Physical Size: 1 3/8" x 2"
- Certifications: UL, CSA
Specifications
- Part Number: LLNRK-8
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Voltage : 250
- Amperage : 8
Product Data
- Weight : 25
