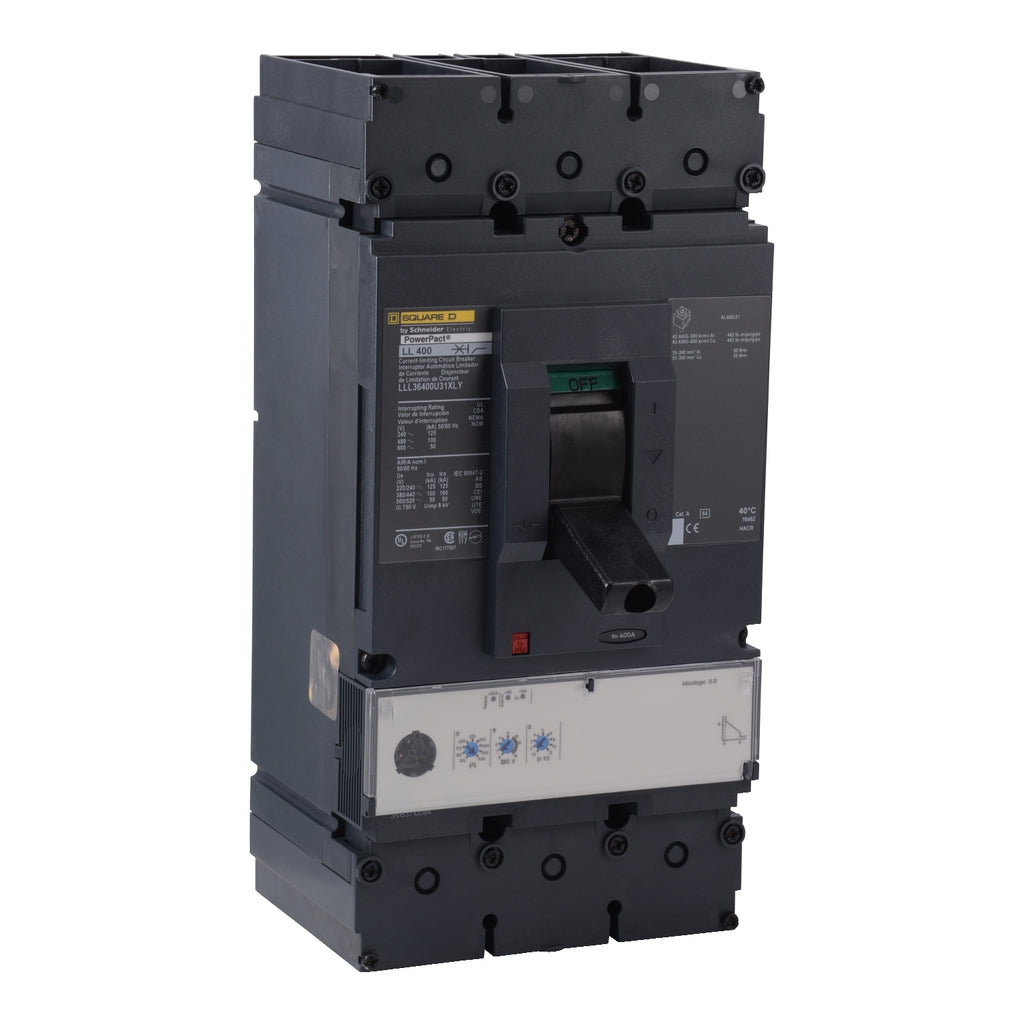

LLL36400U31X - Square D 400A 600V 3 Pole Molded Case Circuit Breaker PowerPact L Frame Electronic Trip

LLL36400U31X

LLL36400U31X is a Square D PowerPact L Frame molded case circuit breaker with a 400 ampere rating and 600 volt AC maximum voltage.This 3 pole breaker features a solid state electronic trip unit (MicroLogic 3.3) with long-time and instantaneous trip functions, suitable for overload and short circuit protection. It has a feed-thru connection type with line and load side lug terminals. The breaker is UL 489 and CSA listed, with an interrupt rating of 50kA at 480V and is designed for use in industrial and commercial power distribution applications.

• Amperage: 400A
• Voltage Rating: 600 VAC max
• Poles: 3
• Frame Type: PowerPact L
• Trip Unit: Electronic MicroLogic 3.3
• Interrupt Rating: 50kA @ 480V
• Connection Type: Feed-Thru with lug terminals
• Certifications: UL 489, CSA
• Mounting Type: Unit Mount
• Dimensions: 5.51" W x 4.33" D x 13.38" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LLL36400U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LLL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901710806
• GTIN : 785901710806
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
