Product Info
- Manufacturer:Appleton
- Sub-Category:Conduit body (LB/LL/LR) / cover
Description

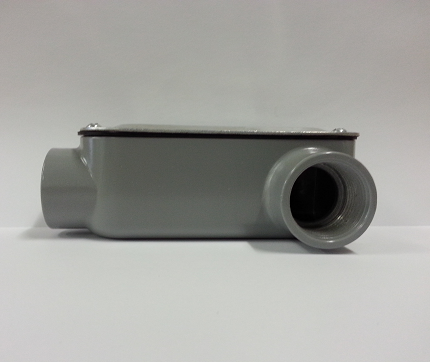

LL50ACG
LL50ACG is an Appleton Type LL conduit outlet body designed for use with rigid steel, aluminum, IMC, and EMT conduit systems. This conduit body features a copper-free aluminum body with epoxy powder coating for durability and corrosion resistance, and includes a neoprene gasket for a secure seal. Engineered for reliable performance in demanding environments, the LL50ACG offers smooth, rounded integral bushings to protect conductor insulation, ample interior space for wiring, and accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity. The flat back design is ideal for mounting flush against surfaces, and the internal volume and maximum wire capacity are clearly marked on the casting.
- Part Number: LL50ACG
- Manufacturer: Appleton
- Configuration: Type LL
- Hub Size: 1/2 in
- Number of Hubs: 2
- Hub Location: 90°
- Access Opening: Left Side
- Body Material: Copper-Free Aluminum
- Finish: Epoxy Powder Coated
- Gasket Material: Neoprene
- Installation: Threaded
- Standards: UL 514A/514B/E2527, CSA C22.2 No. 18.3/065183
Additional Information
Threaded conduit body or cover plate
Specifications
- Part Number: LL50ACG
- Manufacturer : Appleton
- Brand : Appleton
- Category : Conduit & Fittings
- Item Subcategory : Conduit body (LB/LL/LR) / cover
Product Data
- UPC : 783126062892
- GTIN : 00783126062892
- Dimensions : 4-1/2 in L x 1-3/8 in H
- Weight : 5.19
